Grandstream GWN7605LR Access Point Key Features
- Outdoor long-range Wi-Fi access point
- Dual-band 2.4GHz and 5GHz wireless connectivity
- 802.11ac Wave-2 Wi-Fi technology
- Dual-band 2×2:2 MU-MIMO
- Beamforming technology
- Up to 1.27Gbps aggregate wireless throughput
- Up to 250-meter coverage range
- Supports 100+ concurrent Wi-Fi client devices
- 2× Gigabit Ethernet ports
- PoE and PoE+ support
- IP66-level weatherproof design
- Two detachable dual-band external antennas
- Advanced QoS for low-latency applications
- Fast roaming and mesh networking support
- Captive portal support
- Built-in network management controller
- Supports GWN.Cloud and GWN Manager
- Wall and pole mounting options
- Designed for indoor and outdoor deployments
Grandstream GWN7605LR Access Point Introduction

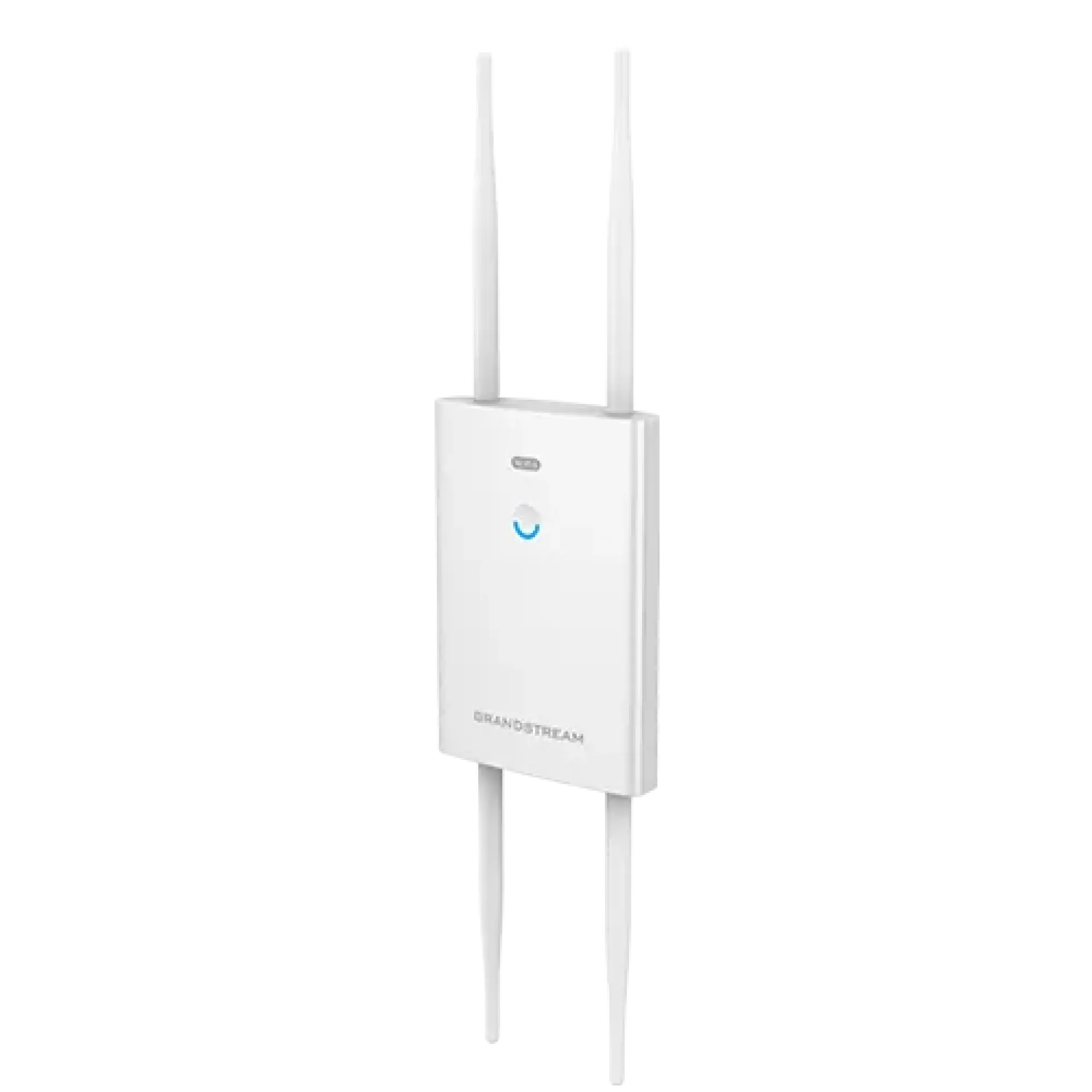

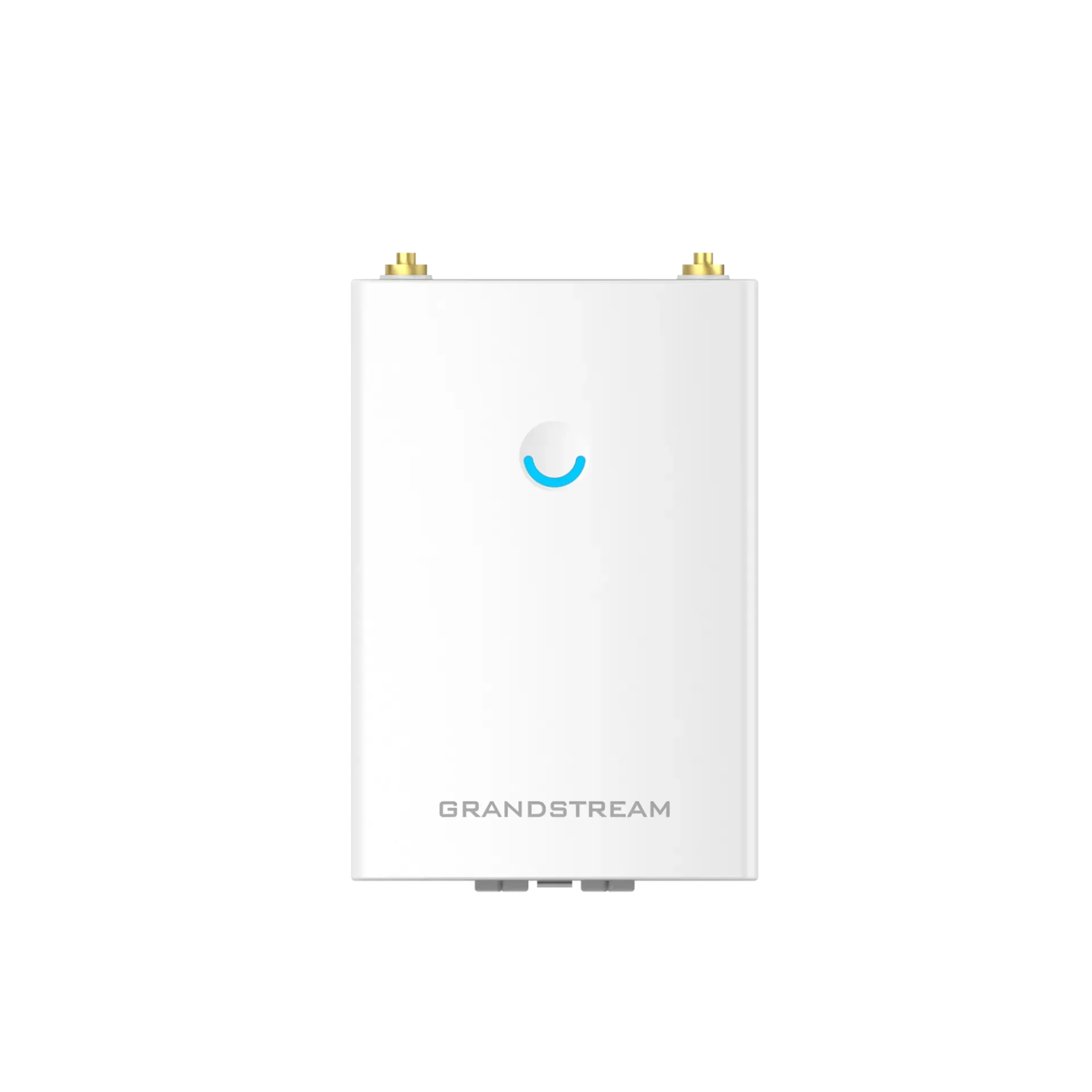

The Grandstream GWN7605LR Access Point is a long-range dual-band Wi-Fi access point designed to provide reliable wireless coverage in both indoor and outdoor environments. It combines 802.11ac Wave-2 technology, dual-band 2×2:2 MU-MIMO, beamforming, Gigabit Ethernet, and extended wireless coverage of up to 250 meters.
The GWN7605LR is particularly suitable for businesses, schools, hotels, warehouses, outdoor areas, and other locations where extended Wi-Fi coverage is required. Its weatherproof construction allows it to be installed outdoors, while PoE/PoE+ support simplifies installation by allowing power and network connectivity over Ethernet.
It can support 100+ concurrent Wi-Fi clients and provides an aggregate wireless throughput of up to 1.27Gbps, making it a practical solution for low-to-medium user-density environments and applications that require reliable wireless connectivity.
Grandstream GWN7605LR Access Point Price
| Product Price | |
|---|---|
| Grandstream GWN7605LR Access Point | KSh 13,000 |
Grandstream GWN7605LR Access Point Key Specifications
| Feature Details | |
| Brand | Grandstream |
| Model | GWN7605LR |
| Device Type | Outdoor Long-Range Wi-Fi Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac Wave-2 |
| Wireless Bands | 2.4GHz and 5GHz |
| MIMO | Dual-band 2×2:2 MU-MIMO |
| 2.4GHz Throughput | Up to 300Mbps |
| 5GHz Throughput | Up to 867Mbps |
| Aggregate Wireless Throughput | Up to 1.27Gbps |
| Coverage Range | Up to 250 meters |
| Concurrent Clients | 100+ |
| Ethernet Ports | 2 × 10/100/1000 Mbps Gigabit Ethernet |
| PoE | 802.3af/802.3at |
| Maximum Power Consumption | 10.16W |
| Antennas | 2 dual-band external antennas |
| SSIDs | Up to 8 per radio |
| Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3 |
| Weatherproof Rating | IP66-level |
| Mounting | Wall or pole mount |
| Management | Embedded Controller, GWN.Cloud, GWN Manager |
The official specifications list 300Mbps maximum throughput on 2.4GHz, 867Mbps on 5GHz, two Gigabit Ethernet ports, PoE/PoE+ support, and up to 250 meters of coverage, although actual wireless performance and range depend on environmental and network conditions.
Grandstream GWN7605LR Access Point Performance
The GWN7605LR provides strong wireless performance for extended-range deployments.
- Up to 1.27Gbps aggregate wireless throughput
- 2×2:2 MU-MIMO technology
- Beamforming for improved wireless coverage
- Dual-band 2.4GHz and 5GHz connectivity
- Up to 250-meter coverage range
- Support for 100+ concurrent clients
- Gigabit wired networking
- Advanced QoS for real-time applications
- Fast roaming support
- Mesh networking capabilities
- Reliable connectivity for voice and video applications
The combination of MU-MIMO and beamforming helps the access point efficiently serve multiple connected devices while improving wireless signal performance.
Grandstream GWN7605LR Access Point Outdoor Design
The GWN7605LR is built specifically for environments where an access point may be exposed to outdoor conditions. Its IP66-level weatherproof design allows it to be installed outdoors when mounted correctly, while its operating temperature range is specified from -30°C to 70°C.
Its design includes:
- Weatherproof housing
- Two detachable dual-band antennas
- Wall mounting capability
- Pole or metal-bar mounting capability
- Durable outdoor-ready construction
- Status LED for device tracking and operation
- Mounting hardware included
The included mounting options make the GWN7605LR suitable for extending wireless coverage across outdoor spaces, compounds, campuses, warehouses, and other large areas.
Grandstream GWN7605LR Access Point Wireless Connectivity
The access point supports both 2.4GHz and 5GHz wireless bands. The 2.4GHz radio provides up to 300Mbps while the 5GHz radio can deliver up to 867Mbps under supported conditions.
Its wireless capabilities include:
- IEEE 802.11a/b/g/n/ac Wave-2
- 2.4GHz wireless connectivity
- 5GHz wireless connectivity
- 2×2:2 MIMO
- MU-MIMO
- Beamforming
- Up to 80MHz channel bandwidth on 5GHz
- Up to 40MHz channel bandwidth on 2.4GHz
- Multiple SSID support
The GWN7605LR can broadcast up to 8 SSIDs per radio, allowing separate wireless networks to be configured for different users, departments, guests, or applications.
Grandstream GWN7605LR Access Point Network Ports & PoE
The GWN7605LR features two 10/100/1000 Mbps Gigabit Ethernet ports. One network port supports PoE/PoE+ for powering the access point through a compatible network switch or injector.
PoE support makes installation easier because a compatible Ethernet connection can provide both:
- Network connectivity
- Electrical power
The access point supports IEEE 802.3af and 802.3at PoE/PoE+, with maximum power consumption of approximately 10.16W.
Grandstream GWN7605LR Access Point Management
The GWN7605LR includes a controller-less management architecture with an embedded controller built into its web interface. This allows locally deployed GWN access points to be configured and managed without requiring a separate hardware controller.
It also supports:
- Embedded GWN controller
- GWN.Cloud
- GWN Manager
- Centralized access point management
- Automatic discovery and provisioning
- Network monitoring
- Configuration management
- Firmware management
- Multiple access point deployments
The embedded controller can manage up to 50 local GWN access points, while GWN.Cloud provides cloud-based management for GWN access points.
Grandstream GWN7605LR Access Point Security
The GWN7605LR provides multiple security features to help protect wireless networks and connected devices.
Security options include:
- WEP
- WPA/WPA2-PSK
- WPA/WPA2 Enterprise
- WPA3
- AES and TKIP encryption
- Anti-hacking secure boot
- Digital signature-based data and control protection
- Unique security certificates
- Device-specific default passwords
These features make the access point suitable for business environments where secure wireless connectivity is required.
Grandstream GWN7605LR Access Point Ideal Use Cases
Perfect for:
- Outdoor Wi-Fi coverage
- Office networks
- Schools and campuses
- Hotels
- Warehouses
- Restaurants
- Commercial compounds
- Large residential properties
- Guest Wi-Fi networks
- CCTV and IoT connectivity
- Voice-over-Wi-Fi applications
- Video-over-Wi-Fi applications
- Business wireless networks
The GWN7605LR is especially useful where a standard indoor access point cannot provide sufficient coverage or where wireless connectivity needs to extend across larger indoor or outdoor areas.
Grandstream GWN7605LR Access Point Pros And Cons
| Pros Cons | |
| Up to 250-meter coverage range | Wi-Fi 5 rather than newer Wi-Fi 6 technology |
| 1.27Gbps aggregate wireless throughput | Actual range depends on environmental conditions |
| Dual-band 2×2:2 MU-MIMO | 10/100/1000 Mbps wired ports |
| 100+ concurrent clients | Requires suitable PoE/PoE+ equipment or power setup |
| IP66-level weatherproof design | |
| Dual Gigabit Ethernet ports | |
| PoE/PoE+ support | |
| Built-in management controller | |
| GWN.Cloud and GWN Manager support | |
| Detachable external antennas |
Grandstream GWN7605LR Access Point FAQs
What is the coverage range of the GWN7605LR?
The Grandstream GWN7605LR offers a coverage range of up to 250 meters under suitable conditions. Actual coverage depends on factors such as building materials, obstacles, interference, antenna positioning, and installation environment.
Is the GWN7605LR suitable for outdoor use?
Yes. It features an IP66-level weatherproof design and is specifically designed for extended-range indoor and outdoor Wi-Fi deployments.
How many devices can connect to the GWN7605LR?
The access point supports 100+ concurrent Wi-Fi client devices according to Grandstream's specifications.
Does the GWN7605LR support PoE?
Yes. It supports IEEE 802.3af and 802.3at PoE/PoE+, making it possible to power the access point through a compatible Ethernet connection.
What Wi-Fi standard does the GWN7605LR use?
The GWN7605LR uses IEEE 802.11a/b/g/n/ac Wave-2 wireless technology with dual-band 2×2:2 MU-MIMO.
Does the GWN7605LR support 5GHz Wi-Fi?
Yes. It has both 2.4GHz and 5GHz radios, with the 5GHz radio offering up to 867Mbps under supported conditions.
Can the GWN7605LR be mounted outdoors?
Yes. It supports wall and pole/metal-bar mounting, with mounting hardware supplied for installation.
Can the GWN7605LR be managed without a separate controller?
Yes. The GWN7605LR has an embedded controller in its web interface, and it can also be managed through GWN.Cloud and GWN Manager.
Grandstream GWN7605LR Access Point Conclusion
The Grandstream GWN7605LR Access Point is a powerful long-range wireless networking solution designed for businesses and organizations that require dependable Wi-Fi coverage across large indoor and outdoor spaces. With dual-band 2×2:2 MU-MIMO, up to 1.27Gbps aggregate wireless throughput, up to 250 meters of coverage, 100+ concurrent clients, dual Gigabit Ethernet ports, PoE/PoE+ support, and IP66-level weatherproofing, it is well suited to demanding wireless deployments.
Priced at KSh 13,000, the Grandstream GWN7605LR Access Point offers a practical solution for extending reliable wireless connectivity across offices, schools, hotels, warehouses, commercial properties, and outdoor areas.
