Grandstream GWN7660ELR Access Point Key Features
- Enterprise-grade outdoor long-range Wi-Fi 6 access point
- Dual-band 2.4GHz and 5GHz wireless connectivity
- IEEE 802.11ax Wi-Fi 6 technology
- Dual-band 2×2:2 MIMO
- OFDMA technology for efficient multi-device connectivity
- XTRA Range technology for extended wireless coverage
- Up to 3Gbps aggregate wireless throughput
- Up to 300-meter coverage range
- Supports up to 256 concurrent Wi-Fi client devices
- 1Gbps RJ45 Ethernet port
- 2.5Gbps SFP wireline port
- PoE and PoE+ support
- IP67 weatherproof and dust-proof design
- Heat-resistant construction
- Five internal antennas
- Advanced QoS for low-latency applications
- Mesh networking support
- Captive portal support
- Bluetooth Low Energy 5.2
- Fast and reliable roaming
- Built-in network management controller
- Supports GWN.Cloud/GDMS Networking and GWN Manager
- Wall and pole mounting options
Grandstream GWN7660ELR Access Point Introduction

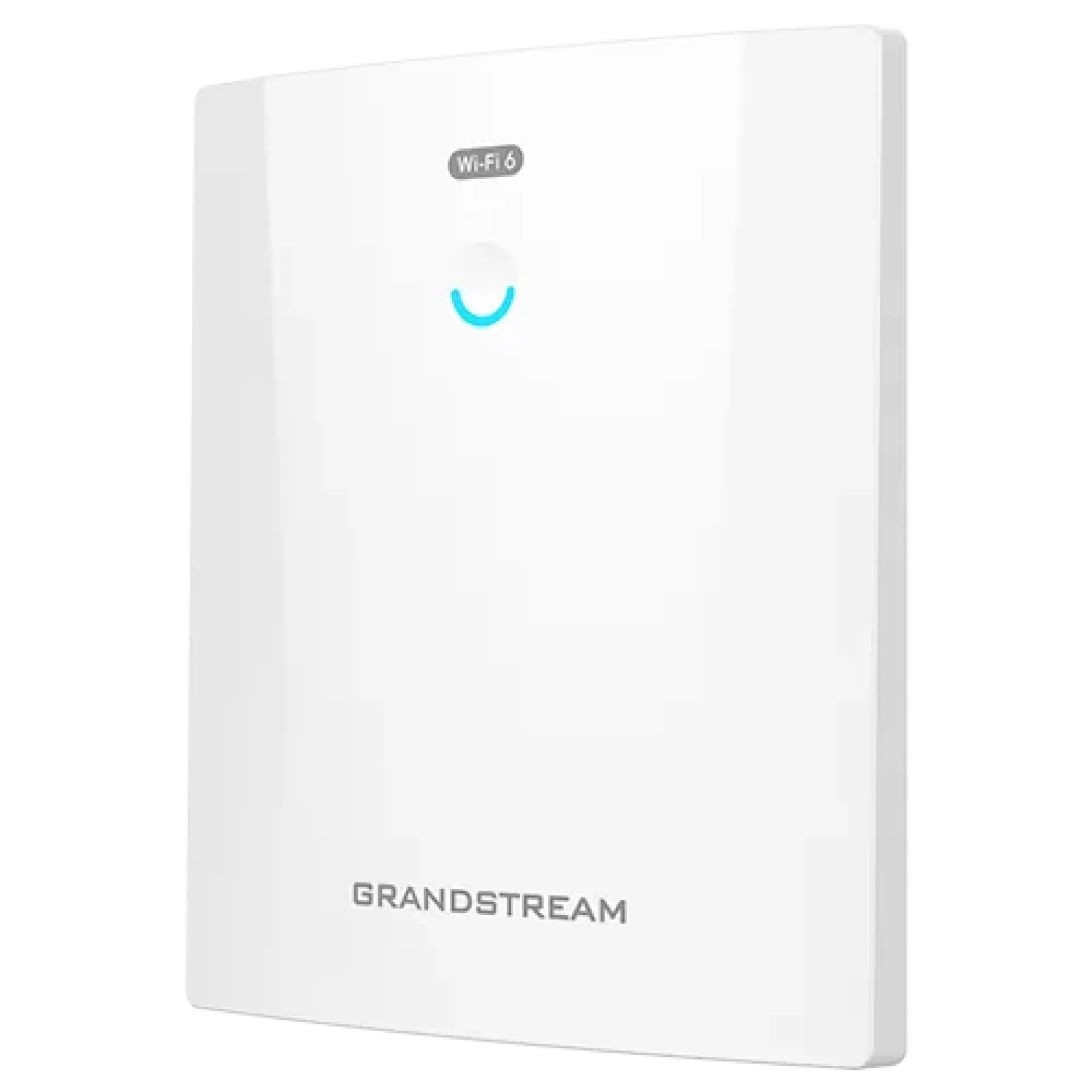

The Grandstream GWN7660ELR Access Point is an enterprise-grade long-range Wi-Fi 6 outdoor access point designed for businesses and organizations that require high-performance wireless connectivity across large areas. It combines dual-band 2×2:2 MIMO, OFDMA, XTRA Range technology, and sophisticated antenna design to deliver up to 3Gbps aggregate wireless throughput and coverage of up to 300 meters.
Designed for demanding environments, the GWN7660ELR features IP67 weatherproof and dust-proof protection and heat-resistant construction. This makes it suitable for outdoor deployments where conventional indoor access points may not provide the required durability or coverage.
The access point supports up to 256 concurrent Wi-Fi client devices and includes a 1Gbps RJ45 port alongside a 2.5Gbps SFP port, providing flexible high-speed wired connectivity. It is suitable for offices, warehouses, schools, hospitals, campuses, commercial compounds, and other large wireless environments.
Grandstream GWN7660ELR Access Point Price
| Product Price | |
|---|---|
| Grandstream GWN7660ELR Access Point | KSh 15,000 |
Grandstream GWN7660ELR Access Point Key Specifications
| Feature Details | |
| Brand | Grandstream |
| Model | GWN7660ELR |
| Device Type | Outdoor Long-Range Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11 b/g/n/ac/ax |
| Wireless Bands | 2.4GHz and 5GHz |
| MIMO | Dual-band 2×2:2 MIMO |
| Wireless Technology | Wi-Fi 6, OFDMA, XTRA Range |
| 2.4GHz Throughput | Up to 573.5Mbps |
| 5GHz Throughput | Up to 2.4Gbps |
| Aggregate Wireless Throughput | Up to 3Gbps |
| Coverage Range | Up to 300 meters |
| Concurrent Clients | Up to 256 |
| Network Interfaces | 1 × 1Gbps RJ45, 1 × 2.5Gbps SFP |
| PoE | IEEE 802.3af/802.3at PoE/PoE+ |
| Maximum Power Consumption | 13W |
| Antennas | 5 internal antennas |
| SSIDs | Up to 32 total, 16 per radio |
| Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3 |
| Bluetooth | Bluetooth Low Energy 5.2 |
| Weather Protection | IP67 weatherproof and dust-proof |
| Management | Embedded Controller, GWN.Cloud/GDMS Networking, GWN Manager |
| Mounting | Wall or pole mount |
| Dimensions | 270 × 230 × 57 mm |
Grandstream lists the GWN7660ELR with 573.5Mbps maximum 2.4GHz throughput, 2.4Gbps maximum 5GHz throughput, 3Gbps aggregate wireless throughput, up to 256 clients, and up to 300 meters of coverage.
Grandstream GWN7660ELR Access Point Performance
The GWN7660ELR is designed to provide high-capacity wireless performance for demanding enterprise and outdoor deployments.
- Up to 3Gbps aggregate wireless throughput
- Dual-band 2×2:2 MIMO
- Wi-Fi 6 performance
- OFDMA technology
- XTRA Range technology
- Up to 300-meter coverage
- Support for up to 256 concurrent clients
- 2.4GHz and 5GHz wireless connectivity
- Advanced QoS
- Reliable performance for voice and video applications
- Support for low-latency real-time applications
- Mesh networking support
- Fast roaming capabilities
The combination of Wi-Fi 6, OFDMA, MIMO, and XTRA Range technology helps the access point efficiently handle multiple connected devices while extending wireless coverage across larger areas.
Grandstream GWN7660ELR Access Point Outdoor Design
The GWN7660ELR is specifically designed for outdoor deployments. Its IP67 weatherproof and dust-proof construction provides protection against demanding environmental conditions, while its heat-resistant design allows it to operate in temperatures ranging from -30°C to 60°C.
Its outdoor-ready design includes:
- IP67 weatherproof protection
- Dust-proof construction
- Heat-resistant housing
- Five internal antennas
- Wall mounting support
- Pole mounting support
- Adjustable mounting kit
- Durable enterprise-grade construction
The combination of weather protection and long-range wireless technology makes the GWN7660ELR suitable for large outdoor areas such as campuses, warehouses, commercial compounds, and institutional facilities.
Grandstream GWN7660ELR Access Point Wireless Connectivity
The GWN7660ELR uses Wi-Fi 6 technology with dual-band 2×2:2 MIMO and OFDMA. The 2.4GHz radio can provide up to 573.5Mbps, while the 5GHz radio supports up to 2.4Gbps, resulting in up to 3Gbps of aggregate wireless throughput.
Wireless features include:
- 2.4GHz wireless connectivity
- 5GHz wireless connectivity
- IEEE 802.11ax Wi-Fi 6
- 2×2:2 MIMO
- OFDMA technology
- XTRA Range technology
- Up to 32 SSIDs
- Up to 16 SSIDs per radio
- Advanced QoS
- Mesh networking
- Captive portal support
- Fast roaming
- Bluetooth Low Energy 5.2
OFDMA allows the access point to manage wireless traffic more efficiently when multiple devices are connected, making it useful for high-density environments and networks with many simultaneous users.
Grandstream GWN7660ELR Access Point Network Ports & PoE
The GWN7660ELR provides two different wired networking interfaces: one 1Gbps RJ45 Ethernet port and one 2.5Gbps SFP port. This combination gives network administrators flexibility when connecting the access point to different network infrastructures.
The RJ45 port supports IEEE 802.3af/802.3at PoE and PoE+, allowing compatible Ethernet equipment to supply power to the access point.
PoE simplifies installation by allowing one Ethernet connection to provide:
- Network connectivity
- Electrical power
The GWN7660ELR supports automatic power adaptation when PoE or PoE+ is detected, with a maximum power consumption of approximately 13W.
Grandstream GWN7660ELR Access Point Management
The GWN7660ELR includes an embedded network management controller within its web user interface. This allows administrators to configure and manage compatible GWN access points without requiring a separate physical controller.
Management options include:
- Embedded controller
- GWN.Cloud/GDMS Networking
- GWN Manager
- Centralized configuration
- Access point provisioning
- Network monitoring
- Firmware management
- Multi-access-point management
- Remote network administration
The embedded controller can manage up to 50 local GWN access points, while GDMS Networking provides cloud-based management and GWN Manager provides on-premise software management.
Grandstream GWN7660ELR Access Point Security
The GWN7660ELR includes multiple security technologies designed to protect wireless networks and connected devices.
Security features include:
- WPA/WPA2-PSK
- WPA/WPA2 Enterprise
- WPA3
- TKIP/AES encryption
- Anti-hacking secure boot
- Digital signature protection
- Unique security certificates
- Random default password for each device
- Critical data and control lockdown
These features provide additional protection for enterprise wireless networks and help administrators deploy secure Wi-Fi environments.
Grandstream GWN7660ELR Access Point Ideal Use Cases
Perfect for:
- Outdoor Wi-Fi coverage
- Enterprise networks
- Large office networks
- Schools and campuses
- Hospitals
- Warehouses
- Hotels
- Commercial compounds
- Multi-floor offices
- Large residential properties
- Guest Wi-Fi networks
- Voice-over-Wi-Fi deployments
- Video-over-Wi-Fi applications
- High-density wireless environments
- Outdoor business networks
Grandstream specifically positions the GWN7660ELR for enterprises, multi-floor offices, warehouses, hospitals, schools, and other environments requiring long-range Wi-Fi 6 connectivity.
Grandstream GWN7660ELR Access Point Pros And Cons
| Pros Cons | |
| Wi-Fi 6 technology | Higher cost than basic access points |
| Up to 3Gbps aggregate wireless throughput | Actual range depends on environmental conditions |
| Up to 300-meter coverage | Requires suitable PoE/PoE+ equipment or power setup |
| Supports up to 256 concurrent clients | 1Gbps RJ45 port limits standard Ethernet throughput |
| 2.5Gbps SFP connectivity | |
| IP67 weatherproof and dust-proof design | |
| Dual-band 2×2:2 MIMO | |
| OFDMA and XTRA Range technology | |
| PoE/PoE+ support | |
| Built-in management controller | |
| GWN.Cloud/GDMS Networking and GWN Manager support |
Grandstream GWN7660ELR Access Point FAQs
What is the coverage range of the GWN7660ELR?
The Grandstream GWN7660ELR offers coverage of up to 300 meters under suitable conditions. Actual range depends on obstacles, interference, building materials, installation height, and the surrounding environment.
How many devices can connect to the GWN7660ELR?
The access point supports up to 256 concurrent Wi-Fi client devices according to Grandstream's specifications.
Does the GWN7660ELR support Wi-Fi 6?
Yes. The GWN7660ELR is an 802.11ax Wi-Fi 6 access point designed for high-density wireless environments.
Does the GWN7660ELR support PoE?
Yes. It supports IEEE 802.3af/802.3at PoE and PoE+ through its 1Gbps RJ45 port. The access point automatically adapts its power requirements when compatible PoE or PoE+ equipment is detected.
Is the GWN7660ELR suitable for outdoor use?
Yes. The GWN7660ELR is specifically designed as a weatherproof long-range outdoor access point. Its IP67 weatherproof and dust-proof construction makes it suitable for demanding outdoor installations.
What is the maximum wireless throughput?
The GWN7660ELR provides up to 3Gbps aggregate wireless throughput, consisting of up to 573.5Mbps on 2.4GHz and 2.4Gbps on 5GHz under supported conditions.
Does the GWN7660ELR support a 2.5Gbps connection?
Yes. It includes a 2.5Gbps SFP port in addition to its 1Gbps RJ45 Ethernet port.
Does the GWN7660ELR support mesh networking?
Yes. The GWN7660ELR supports mesh networking, making it possible to deploy compatible GWN access points together to extend wireless coverage across larger areas.
Can the GWN7660ELR be managed without a separate controller?
Yes. It includes an embedded controller in its web interface. It can also be managed through GDMS Networking/GWN.Cloud and GWN Manager.
Grandstream GWN7660ELR Access Point Conclusion
The Grandstream GWN7660ELR Access Point is a powerful enterprise-grade outdoor wireless networking solution designed for organizations that require reliable, high-speed, long-range Wi-Fi. With Wi-Fi 6 technology, dual-band 2×2:2 MIMO, OFDMA, XTRA Range technology, up to 3Gbps aggregate wireless throughput, up to 300-meter coverage, support for up to 256 concurrent clients, 1Gbps RJ45 and 2.5Gbps SFP connectivity, PoE/PoE+ support, and IP67 weatherproof protection, it is well suited to demanding wireless deployments.
Priced at KSh 15,000, the Grandstream GWN7660ELR Access Point offers a strong solution for offices, schools, hospitals, warehouses, campuses, hotels, commercial compounds, and other large indoor and outdoor environments requiring dependable Wi-Fi 6 connectivity.
