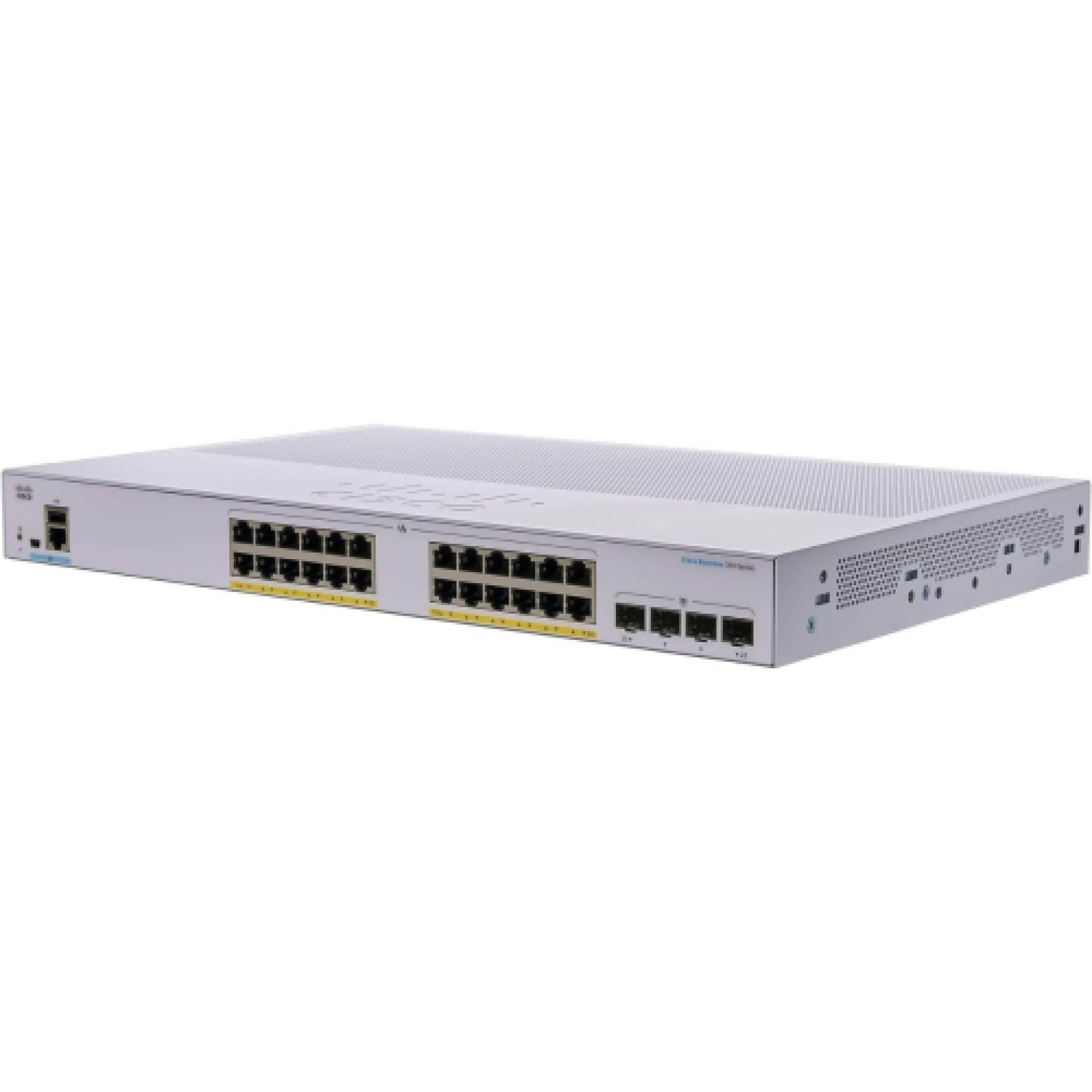

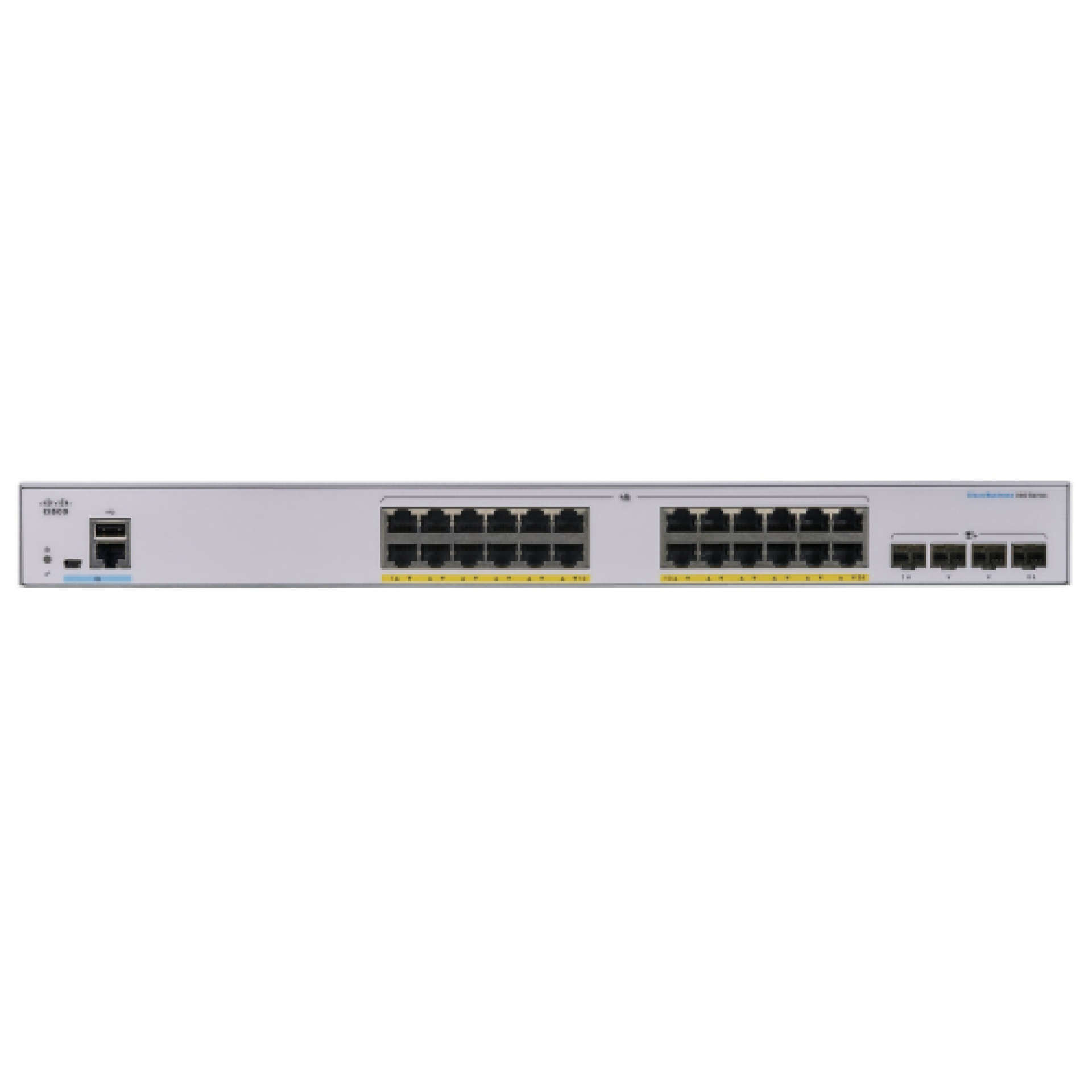

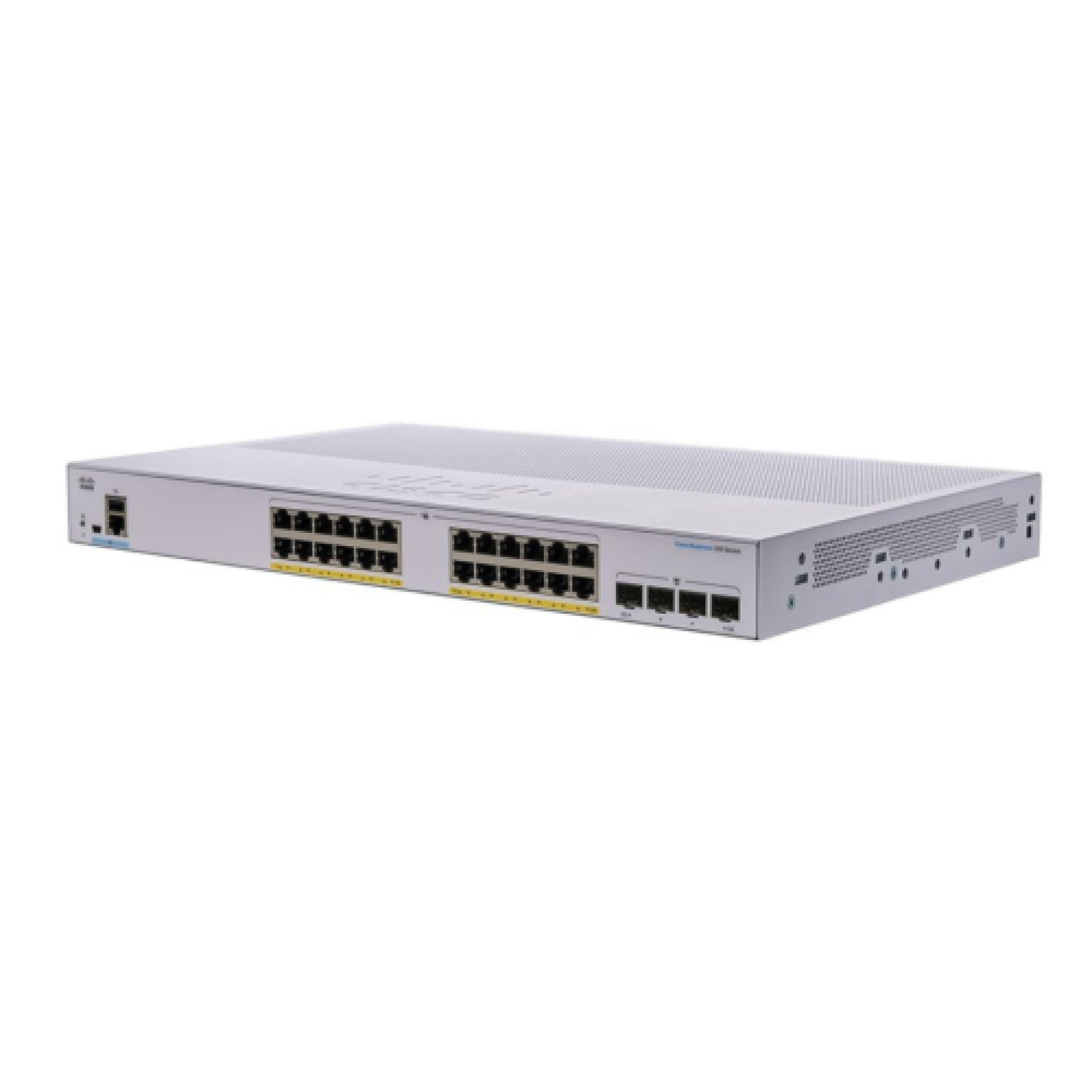

Cisco CBS350 24-Port Gigabit PoE+ Switch with 4 SFP

Specifications – Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

• Product Name: Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

• Ethernet Ports: 24 × 10/100/1000 Mbps RJ45 (PoE+)

• SFP Uplink Ports: 4 × 1G SFP

• PoE Standard: 802.3at PoE+

• Total PoE Budget: 370 Watts

• Switch Type: Fully managed, L2+ and basic L3

• VLAN Support: 802.1Q, VLAN routing

• QoS: Advanced QoS with shaping, prioritization

• Security: ACLs, DHCP Snooping, 802.1X authentication

• Management Interfaces: Web GUI, CLI, SNMP, RMON

• Redundancy: Spanning Tree, Link Aggregation

• Mounting: 1U rackmountable with included brackets

• Cooling: Thermally efficient fans

• Power Supply: Internal AC PSU

• Dimensions: 442 × 280 × 44 mm

• Weight: ~5.5 kg

Port and PoE Configuration of Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

All 24 Ethernet ports support Gigabit PoE+ (802.3at) and offer a total power budget of 370W, allowing simultaneous power delivery to multiple network devices. The 4 SFP uplink ports enable reliable fiber or copper backhaul connectivity for high-bandwidth performance.

L2+ and Basic L3 Management in Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

The Cisco CBS350 offers a sophisticated management suite, supporting VLANs, port-based security, QoS control, ACLs, and static routing. It delivers the flexibility of a managed switch with the scalability to support evolving network requirements, all configurable using either the intuitive web interface or standard CLI protocols.

Security and Network Control in Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

Its advanced security toolkit includes 802.1X port authentication, DHCP snooping, and storm control prevention. Administrators can create access policies and assign network access rights per port, ensuring tight network control and protection against unauthorized access.

Efficient Uplink Performance in Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

Powered by 4 selectable SFP uplink ports, the switch supports flexible fiber or copper connections with redundancy. Paired with link aggregation, it enables seamless scalability, fast backups, and easy integration into core network infrastructures.

Designed for Racks: Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

Built for professional racks, the switch ships with 1U rack brackets and a low-profile chassis. Its efficient fan system quietly maintains thermal stability in demanding environments, while rack-mountable design ensures neat integration.

Centralized Monitoring and Maintenance in Cisco CBS350 24‑Port Gigabit PoE Switch with 4×SFP

Administrators can manage the switch via Web GUI, SSH/CLI, SNMP, or RMON. The platform supports scripting, automated firmware upgrades, port mirroring, syslog, and real-time monitoring—empowering effortless multi-switch oversight and configuration.
