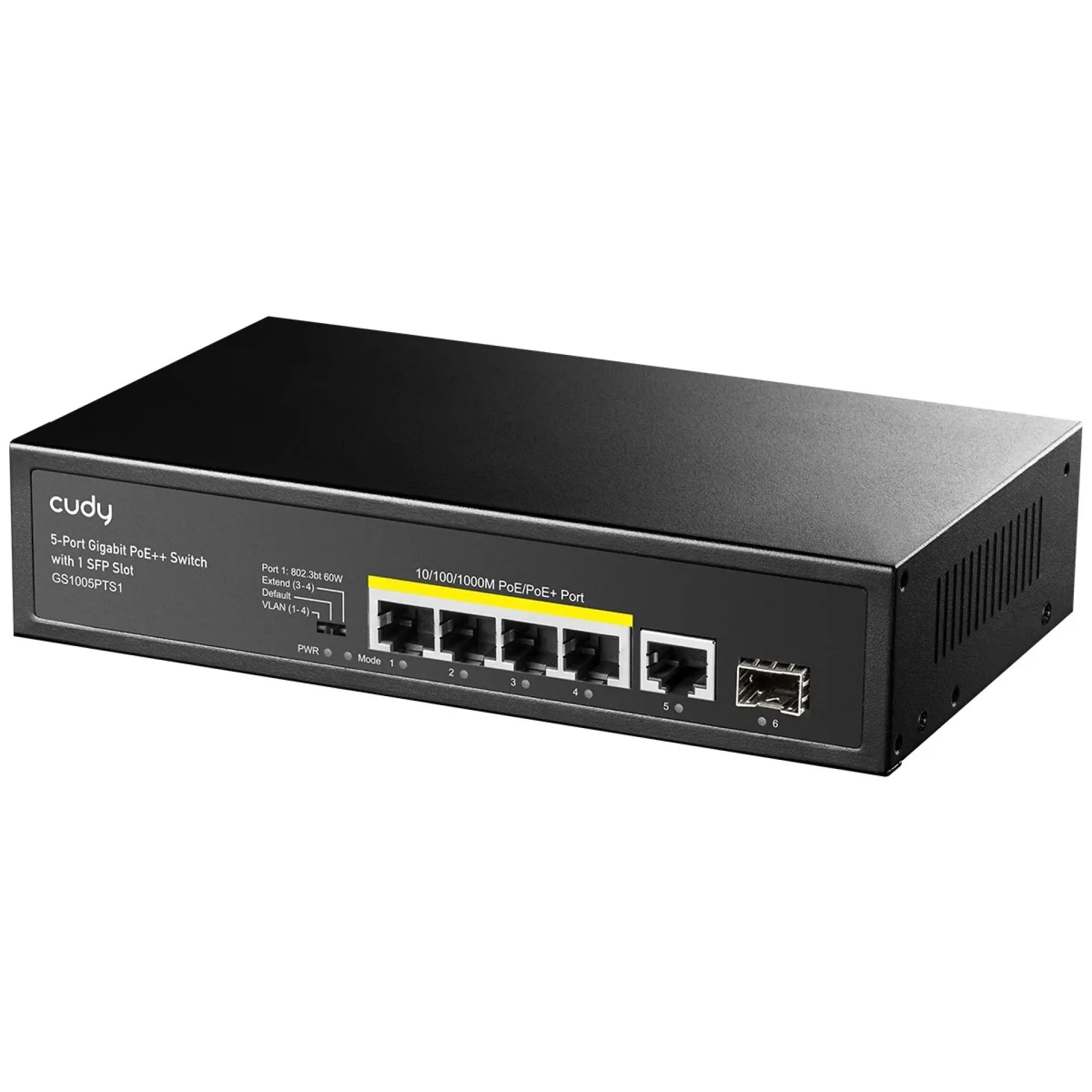

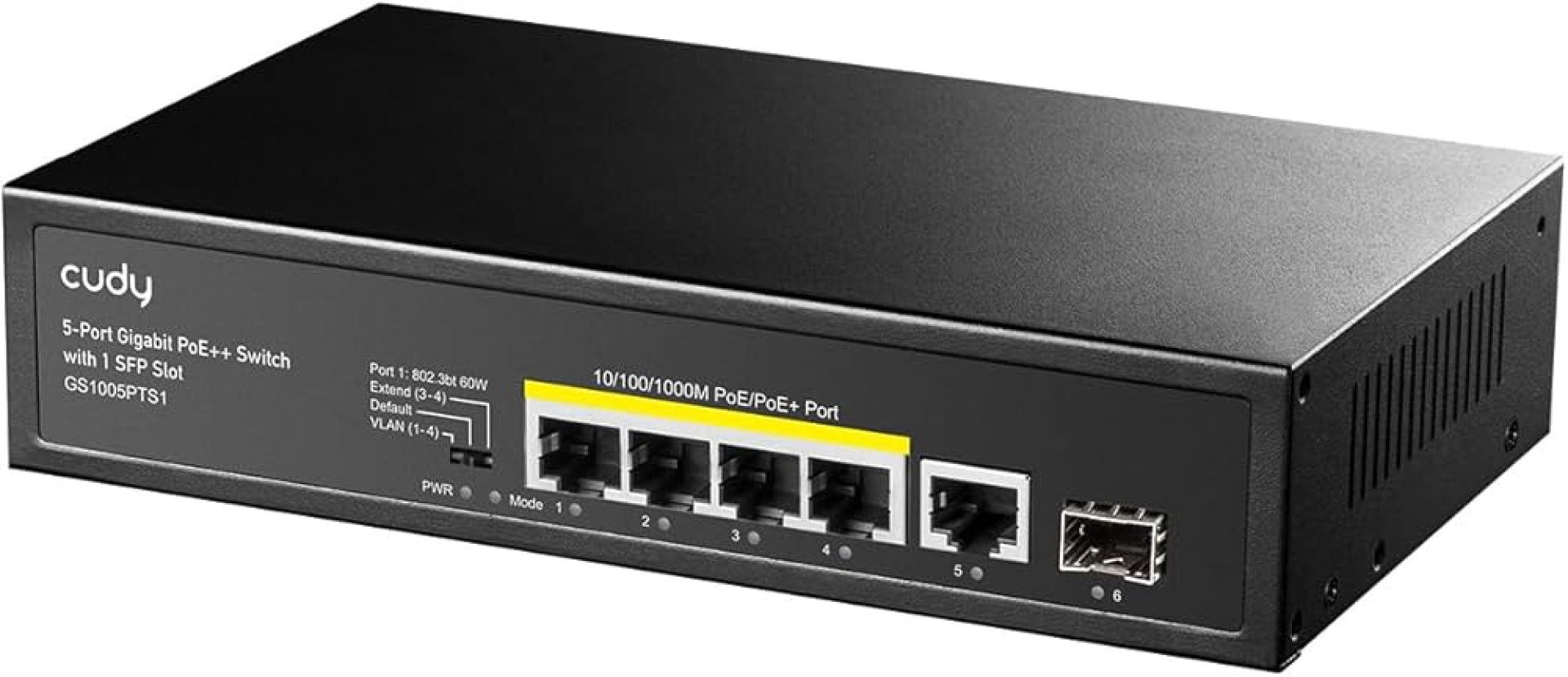

CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W)
Key Specifications
- Product Name: CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W)
- Brand: CUDY
- Model: GS1005PTS1
- Product Type: Unmanaged Gigabit PoE+ Switch
- Ethernet Ports: 5 × Gigabit RJ45 Ports
- PoE Ports: 4 × Gigabit IEEE 802.3af/at PoE+ Ports
- Uplink: 1 × Gigabit RJ45 + 1 × 1.25G SFP Slot
- Maximum PoE Output: Up to 60W (Port 1), Up to 30W (Ports 2–4)
- Total PoE Power Budget: 120W
- Switching Capacity: 12.5 Gbps
- Forwarding Rate: 8.929 Mpps
- Modes: Default, VLAN, Extend
- Installation: Desktop or Rack Mount
- Cooling: Silent Fanless Metal Design
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Overview
The CUDY GS1005PTS1 5-Port Gigabit PoE Switch with 1 SFP Slot is a professional unmanaged PoE+ switch designed for IP surveillance, wireless access points, VoIP systems and business networking. It features four Gigabit PoE+ ports, one dedicated Gigabit uplink port, and one 1.25G SFP uplink slot for fibre connectivity, making it suitable for extending networks over long distances.
With a 120W PoE power budget, the switch can power multiple IEEE 802.3af/at devices simultaneously. Port 1 supports enhanced 60W Hi-PoE output, while Ports 2–4 each deliver up to 30W, making it suitable for PTZ cameras and other higher-power PoE devices. VLAN mode improves network isolation, Extend mode increases transmission distance up to 250 metres, and PoE Watchdog automatically restarts unresponsive powered devices for improved reliability.
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Price in Kenya
| Product | Price (KSh) |
|---|---|
| CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) | 5,500 |
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Full Specifications
| Specification | Details |
|---|---|
| Brand | CUDY |
| Model | GS1005PTS1 |
| Product Type | Unmanaged Gigabit PoE+ Switch |
| Gigabit RJ45 Ports | 5 |
| PoE Ports | 4 × IEEE 802.3af/at |
| Uplink Port | 1 × Gigabit RJ45 |
| SFP Slot | 1 × 1.25G SFP |
| Maximum PoE Output | 60W (Port 1), 30W (Ports 2–4) |
| Total PoE Budget | 120W |
| Switching Capacity | 12.5 Gbps |
| Forwarding Rate | 8.929 Mpps |
| MAC Address Table | 2K Entries |
| Jumbo Frame | 9 KB |
| Packet Buffer | 1 Mbit |
| Power Supply | 120W Internal |
| Power Input | 100–240V AC, 50/60Hz |
| Operating Modes | Default, VLAN, Extend |
| PoE Watchdog | Supported |
| Casing Material | Metal |
| Cooling | Fanless |
| Installation | Desktop, Rack Mount |
| Package Contents | Switch, Power Cord, Installation Guide |
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Design & Build Quality
The GS1005PTS1 features a robust metal enclosure built for continuous operation in business and surveillance environments. Its silent fanless cooling system ensures quiet operation while providing effective heat dissipation. The switch supports both desktop placement and rack mounting for flexible installation.
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Compatibility & Connectivity
- Ethernet Connectivity: 5 × Gigabit RJ45 Ports
- PoE Connectivity: 4 × IEEE 802.3af/at PoE+ Ports
- Fibre Connectivity: 1 × 1.25G SFP Uplink Slot
- Maximum PoE Output: 60W on Port 1, 30W on Ports 2–4
- Total PoE Budget: 120W
- Network Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
- Operating Modes: Default, VLAN and Extend
- Transmission Distance: Up to 250 metres in Extend Mode
- Device Compatibility: IP cameras, PTZ cameras, wireless access points, VoIP phones, NVRs, routers, servers, desktop PCs, printers, NAS devices and fibre networking equipment
- Operating System Compatibility: Windows, macOS, Linux and all Ethernet-enabled networking devices
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Ideal Use
This switch is ideal for:
- IP surveillance systems
- PTZ security cameras
- Wireless access points
- VoIP deployments
- Fibre uplink networking
- Small business networks
- Retail stores
- Office network expansion
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Pros & Cons
| Pros | Cons |
|---|---|
| 4 Gigabit PoE+ ports | Unmanaged switch |
| Dedicated Gigabit and SFP uplinks | SFP module sold separately |
| 120W PoE power budget | No web management |
| 60W Hi-PoE on Port 1 | — |
| VLAN, Extend and PoE Watchdog modes | — |
| Silent fanless metal design | — |
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Frequently Asked Questions (FAQs)
What is the price in Kenya?
The CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) costs KSh 5,500.
How many PoE devices can it power?
It can power up to four PoE devices, with a combined maximum PoE budget of 120W.
What is the purpose of the SFP slot?
The 1.25G SFP slot allows fibre optic uplink connectivity for longer-distance network connections.
Does it support long-distance CCTV installations?
Yes. Extend Mode supports transmission distances of up to 250 metres for compatible PoE ports.
Does it require configuration?
No. It is a plug-and-play unmanaged switch, making installation simple without additional software.
CUDY 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) Conclusion
The CUDY GS1005PTS1 5-Port Gigabit PoE Switch with 1 SFP Slot (120W) is an excellent networking solution for surveillance, wireless networking and business environments. With four PoE+ ports, fibre uplink support, a 120W PoE budget, Hi-PoE capability and long-distance transmission modes, it delivers reliable and flexible network expansion.
At KSh 5,500, it offers excellent value for professional PoE networking installations.
