Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Key Features
- Ultra-slim optical fingerprint scanner
- FBI PIV and FBI Mobile ID FAP30 certified
- 500 ppi optical fingerprint sensor
- 256 grayscale levels
- 21.5 × 26.5 mm fingerprint platen
- 20.32 × 25.4 mm sensing area
- 400 × 500 pixel fingerprint images
- Advanced Multi Dynamic Range (MDR) technology
- Advanced Live Finger Detection (LFD)
- Captures high-quality fingerprints from dry and wet fingers
- Designed to operate under direct sunlight up to 100,000 lux
- IP65-rated sensor surface
- USB 2.0 High-Speed connectivity
- Supports Windows, Linux, and Android
- Supports RAW, BMP, WSQ, and ISO 19794-4 image formats
- Supports Suprema, ISO 19794-2, and ANSI-378 template formats
- Compact and lightweight design
- BioMini SDK support
- Suitable for biometric authentication and fingerprint enrollment
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Introduction

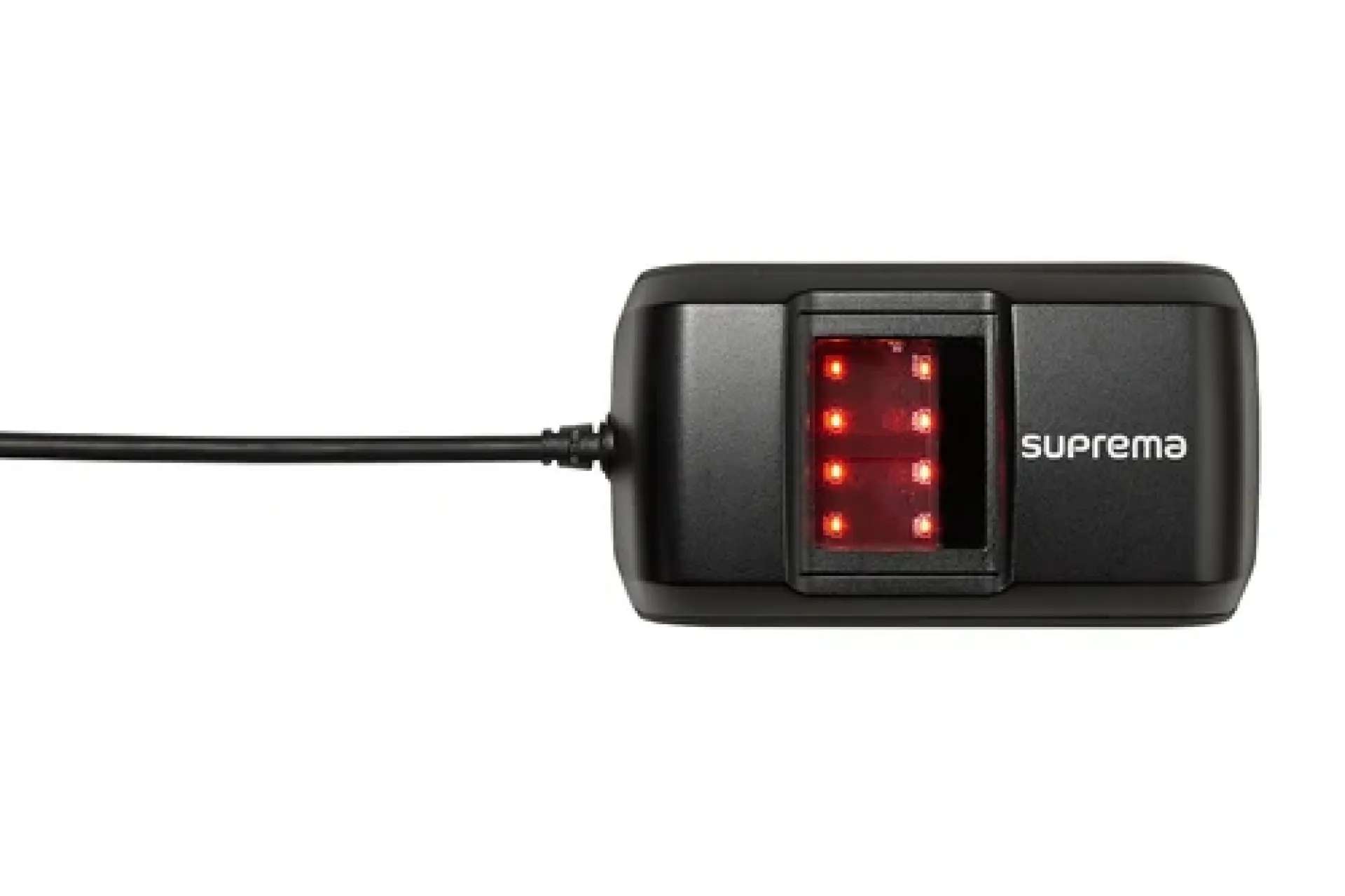

The Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner is a professional optical fingerprint authentication scanner designed for high-quality biometric identification and enrollment applications. It combines an ultra-slim design with FBI PIV and FBI Mobile ID FAP30 certification, making it suitable for applications requiring standardized and high-quality fingerprint image capture.
The BioMini Slim 3 features a 500 ppi optical sensor, a 21.5 × 26.5 mm platen, and a 20.32 × 25.4 mm sensing area. It also incorporates Suprema's Multi Dynamic Range (MDR) technology, which is designed to maintain fingerprint image quality under challenging lighting conditions, including direct sunlight.
Its Live Finger Detection (LFD) technology helps distinguish genuine fingers from artificial fingerprint materials, while the IP65-rated sensor surface provides protection against dust and water exposure.
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Price
| Product Price | |
|---|---|
| Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner | KSh 26,000 |
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Key Specifications
| Feature | Details |
| Brand | Suprema ID |
| Model | BioMini Slim 3 |
| Product Type | Fingerprint Authentication Scanner |
| Sensor Type | Optical |
| Resolution | 500 ppi |
| Grayscale | 256 levels |
| Image Quality Standard | FBI PIV / FBI Mobile ID FAP30 |
| Platen Size | 21.5 × 26.5 mm |
| Sensing Area | 20.32 × 25.4 mm |
| Image Size | 400 × 500 pixels |
| Live Finger Detection | Supported |
| Image Formats | RAW, BMP, WSQ, ISO 19794-4 |
| Template Formats | Suprema, ISO 19794-2, ANSI-378 |
| Interface | USB 2.0 High Speed |
| Processor | MIPS-Based Xburst Core, up to 1.0 GHz |
| RAM | 32 MB LPDDR |
| Flash Memory | 16 MB NOR Flash |
| IP Rating | IP65, sensor surface |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 0–90% RH |
| Dimensions | 83 × 45.9 × 20 mm |
| Weight | 111 g |
| Supported Operating Systems | Windows, Linux, Android |
| Android Support | Android 5.0 or higher with USB Host |
The core specifications are consistent with Suprema's product documentation and current technical listings.
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Performance
The BioMini Slim 3 is designed to provide high-quality fingerprint image capture for demanding biometric authentication applications. Its 500 ppi optical sensor and 256 grayscale levels allow it to capture detailed fingerprint images suitable for standardized biometric processing.
The scanner's MDR technology is designed to improve fingerprint acquisition in difficult lighting conditions. Suprema documentation states that the scanner can acquire normal fingerprint images under direct light conditions of up to 100,000 lux, equivalent to direct sunlight.
Performance features include:
- 500 ppi optical fingerprint sensing
- FAP30-compliant image capture
- 400 × 500 pixel fingerprint images
- 256 grayscale levels
- Multi Dynamic Range technology
- Live Finger Detection
- Support for wet and dry fingerprints
- Direct-sunlight operation up to 100,000 lux
- IP65-rated sensor surface
- USB 2.0 High-Speed data transfer
- Support for standardized fingerprint image formats
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Connectivity
The BioMini Slim 3 uses USB 2.0 High-Speed connectivity to connect directly to compatible computers and mobile devices. It is designed for straightforward deployment in biometric authentication and fingerprint enrollment applications.
Connectivity and platform support include:
- USB 2.0 High Speed
- Windows compatibility
- Linux compatibility
- Android 5.0 or higher with USB Host support
- BioMini SDK support
- RAW image format
- BMP image format
- WSQ image format
- ISO 19794-4 image format
The USB interface makes the scanner suitable for desktop authentication stations, enrollment systems, mobile biometric applications, kiosks, and other computer-based installations.
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Design And Built
The BioMini Slim 3 features an ultra-slim optical sensor design intended for applications where compact biometric hardware is important. Suprema describes it as an ultra-slim FAP30 optical fingerprint scanner, with the sensor module designed to provide flexibility for integration.
The standard scanner measures approximately 83 × 45.9 × 20 mm and weighs approximately 111 g. Its sensor surface is IP65-rated for protection against dust and water exposure.
Design features include:
- Ultra-slim fingerprint scanner body
- Optical fingerprint sensor
- 21.5 × 26.5 mm platen
- 20.32 × 25.4 mm sensing area
- IP65-rated sensor surface
- Compact 83 × 45.9 × 20 mm construction
- Lightweight 111 g body
- USB connectivity
- Suitable for desktop and mobile installations
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Ideal Use Cases
The Suprema BioMini Slim 3 is ideal for:
- Biometric authentication
- Fingerprint enrollment
- Identity verification
- Government identification
- Public-sector authentication
- Banking and financial KYC
- Healthcare patient identification
- Telecommunications customer registration
- Time and attendance systems
- PC and network security
- Smartcard applications
- POS and mPOS systems
- ATM and kiosk authentication
- Enterprise authentication
- Mobile biometric applications
- Security and identity management systems
Its FAP30 certification, compact construction, Live Finger Detection and broad operating-system support make it suitable for professional biometric applications across different industries.
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Pros And Cons
| Pros | Cons |
| FBI PIV and Mobile ID FAP30 certified | Requires compatible biometric software |
| 500 ppi optical sensor | USB connection required |
| Ultra-slim design | Primarily designed for computer-based authentication |
| Advanced Live Finger Detection | |
| Multi Dynamic Range technology | |
| Works with wet and dry fingerprints | |
| Designed for direct sunlight up to 100,000 lux | |
| IP65-rated sensor surface | |
| USB 2.0 High-Speed connectivity | |
| Supports Windows, Linux and Android | |
| Supports multiple image formats | |
| Supports multiple fingerprint template formats | |
| Compact and lightweight | |
| BioMini SDK support |
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner FAQs
What is the Suprema BioMini Slim 3?
The Suprema BioMini Slim 3 is an ultra-slim optical fingerprint scanner designed for biometric authentication, identity verification and fingerprint enrollment applications.
Is the BioMini Slim 3 FAP30 certified?
Yes. The BioMini Slim 3 is certified for FBI PIV and FBI Mobile ID FAP30 requirements.
What fingerprint resolution does the BioMini Slim 3 provide?
The scanner provides 500 ppi fingerprint image resolution with 256 grayscale levels.
Does the BioMini Slim 3 have Live Finger Detection?
Yes. The scanner features Live Finger Detection (LFD) technology designed to help distinguish genuine fingerprints from artificial fingerprint materials.
Can the BioMini Slim 3 capture wet fingerprints?
Yes. The scanner is designed to capture high-quality fingerprint images from both dry and wet fingers, although actual performance can vary depending on the condition of the finger.
Can the BioMini Slim 3 work under direct sunlight?
Yes. Suprema's MDR technology is designed to support fingerprint acquisition under direct light conditions of up to 100,000 lux.
Does the BioMini Slim 3 use USB?
Yes. It uses a USB 2.0 High-Speed interface.
Which operating systems are supported?
The BioMini Slim 3 supports Windows, Linux and Android, with Android requiring USB Host support.
What is the size of the BioMini Slim 3?
The standard BioMini Slim 3 measures approximately 83 × 45.9 × 20 mm.
How much does the BioMini Slim 3 weigh?
The scanner weighs approximately 111 g.
Is the BioMini Slim 3 water resistant?
The sensor surface has an IP65 rating, providing protection against dust and water exposure at the sensor surface.
What fingerprint image formats are supported?
The scanner supports RAW, BMP, WSQ and ISO 19794-4 image formats.
Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner Conclusion
The Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner is a professional biometric scanner designed for organizations that require high-quality fingerprint capture in a compact form factor. With its 500 ppi optical sensor, FBI PIV and Mobile ID FAP30 certification, Live Finger Detection, Multi Dynamic Range technology, IP65-rated sensor surface, USB 2.0 connectivity and support for Windows, Linux and Android, it provides a versatile solution for biometric authentication and identity verification.
Priced at KSh 26,000, the Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner is a suitable choice for government identification, banking, healthcare, telecommunications, enterprise security, time and attendance, KYC, POS, kiosk and other professional biometric applications.
