MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

Product Key Features – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

• Twelve 1G SFP ports for high-speed fiber connectivity

• One 10G SFP+ port for uplinks or backbone integration

• 16-core 1.2GHz Tilera CPU for extreme routing performance

• 2GB DDR3 RAM and 128MB NAND storage

• RouterOS with Level 6 license for full feature access

• Passive and active cooling with temperature sensors

• LCD touchscreen and RJ45 serial console port

• Up to 17.8 million packets per second throughput

• Redundant power supply support (hot-swappable, optional)

• Ideal for ISPs, data centers, and high-capacity core networks

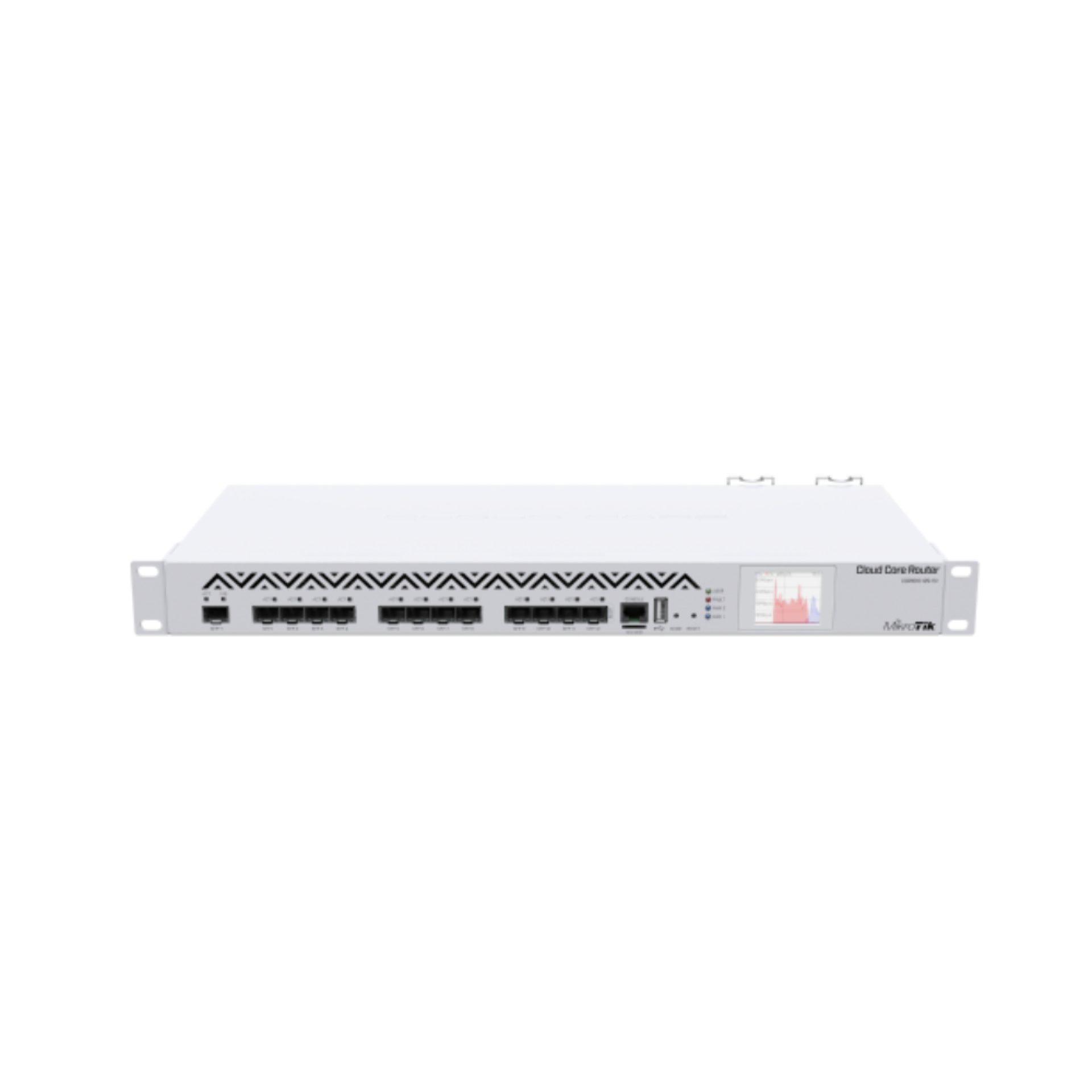

High-Density Fiber Connectivity – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

The MikroTik CCR1016-12S-1S+ is built for high-capacity environments requiring fast and reliable fiber links. With twelve 1G SFP ports, this router can handle multiple direct fiber connections, making it ideal for ISP points of presence, aggregation switches, and business backbones that rely on fiber infrastructure.

Built for Performance – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

Powered by a 16-core Tilera CPU running at 1.2GHz, this router delivers powerful, parallel processing for advanced routing, traffic filtering, and VPN handling. It is capable of forwarding up to 17.8 million packets per second, ensuring minimal latency and exceptional performance under load.

10G SFP+ Uplink – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

The integrated 10Gbps SFP+ port allows you to connect to high-speed core switches or uplinks to the internet or data center. This provides unmatched flexibility and speed when used in roles such as a core router or distribution layer aggregator.

Powered by RouterOS – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

With a Level 6 RouterOS license, the CCR1016 offers full access to MikroTik’s enterprise-grade feature set. From BGP, OSPF, MPLS, and VRF, to complex firewall rules, IPsec tunnels, VLAN tagging, NAT, and traffic shaping, this router empowers administrators to manage even the most intricate network setups with ease and control.

Enterprise Hardware Design – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

Housed in a robust 1U rackmount enclosure, the router includes both passive and active cooling systems with integrated temperature monitoring for reliable operation. It’s built to run continuously in demanding network environments while maintaining thermal efficiency and silent operation.

Built-In Tools for Monitoring – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

The front-facing LCD touchscreen offers real-time system information, port status, and quick diagnostics, while the RJ45 console port enables out-of-band access for configuration and recovery. These features provide essential insight and control for critical network deployments.

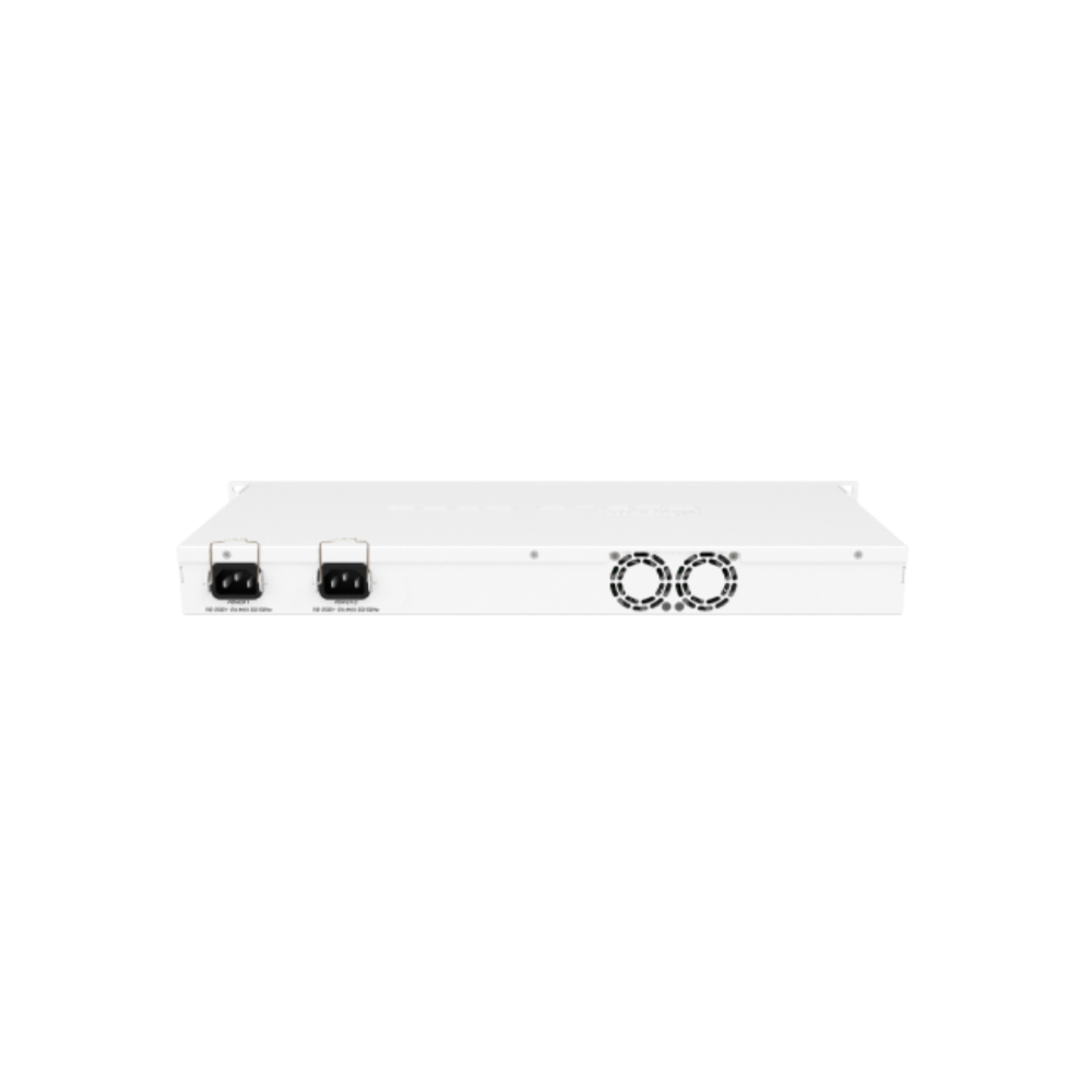

Redundant Power Support – MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

For mission-critical environments, this model supports redundant, hot-swappable power supplies (sold separately), minimizing downtime during maintenance or unexpected failures. This ensures uninterrupted network operation in professional and high-availability setups.

Why Choose the MikroTik CCR1016-12S-1S+ 12x SFP 10G Rackmount Core Router

The CCR1016-12S-1S+ is a highly capable, fiber-optimized core router designed for enterprise and ISP networks. With 16-core processing, high-density SFP interfaces, a 10G uplink, and advanced RouterOS functionality, it delivers the performance, scalability, and resilience needed for large, modern network environments. If you're building a high-throughput routing core or expanding your fiber infrastructure, this router is engineered to lead.
