MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black

MikroTik RB5009UG+S+IN Key Features

• Quad-core 1.4GHz ARM64 processor
• 1GB DDR4 RAM
• 1GB NAND storage
• 7 × Gigabit Ethernet ports
• 1 × 2.5 Gigabit Ethernet port
• 1 × 10G SFP+ port
• USB 3.0 Type-A port
• RouterOS v7
• RouterOS Level 5 license
• Passive cooling with durable metal enclosure
• PoE-in support
• Multiple power input options
• Compact rack-mountable design
• Black finish

MikroTik RB5009UG+S+IN Introduction

The MikroTik RB5009UG+S+IN Wired Router is a powerful professional networking router designed for demanding home labs, offices, businesses, servers, and advanced network installations.

It combines seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and one 10G SFP+ port, giving users a flexible combination of standard and high-speed network connectivity. It is powered by a quad-core 1.4GHz ARM processor with 1GB DDR4 RAM and 1GB NAND storage.

MikroTik RB5009UG+S+IN Price in Kenya

MikroTik RB5009UG+S+IN Key Specifications

The specifications are based on MikroTik's official product documentation.

MikroTik RB5009UG+S+IN Network Performance

The RB5009UG+S+IN is built for high-performance wired networking. Its quad-core processor and dedicated switch chip allow it to handle demanding routing, bridging, firewall, VPN, VLAN, and network-management workloads.

MikroTik's published testing shows high throughput in fast-path configurations, with results varying depending on packet size, firewall rules, queues, and the specific network configuration.

Performance Highlights

• Quad-core 1.4GHz processor
• 1GB DDR4 RAM
• 2.5GbE connectivity
• 10G SFP+ uplink
• High-speed Gigabit switching
• Suitable for demanding routing workloads
• Designed for advanced RouterOS configurations
• Passive fanless cooling

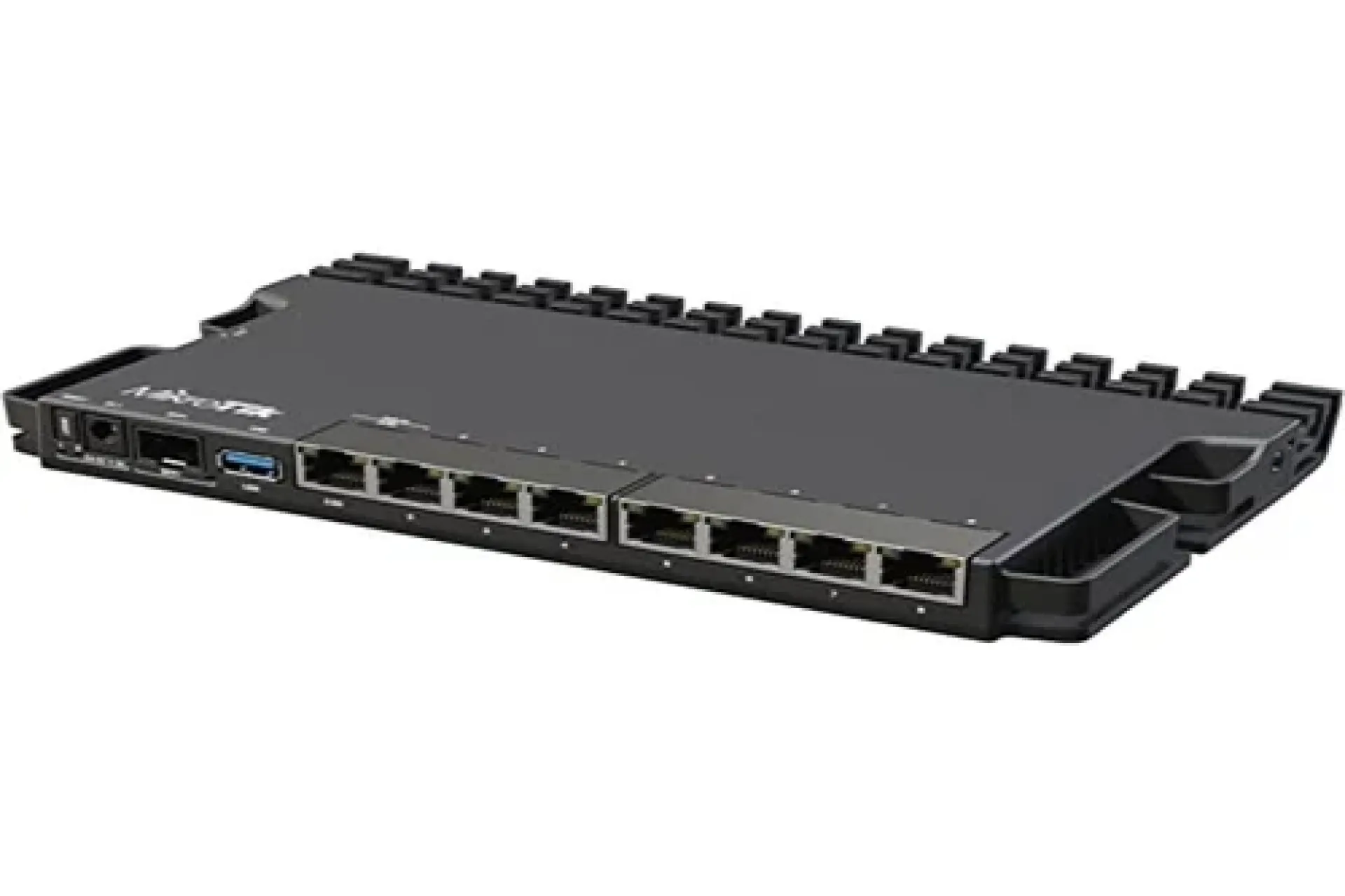

MikroTik RB5009UG+S+IN Ethernet Ports

The router provides seven Gigabit Ethernet ports for standard wired network connections and an additional 2.5 Gigabit Ethernet port for higher-speed devices such as servers, workstations, and compatible switches.

Ethernet Highlights

• 7 × Gigabit Ethernet ports
• 1 × 2.5 Gigabit Ethernet port
• High-speed wired networking
• Suitable for computers and workstations
• Suitable for network switches
• Suitable for servers
• Suitable for access points
• Suitable for CCTV and other network equipment

MikroTik RB5009UG+S+IN 10G SFP+ Port

The 10G SFP+ port provides high-speed connectivity for compatible fibre and SFP+ networking equipment.

It can be used for high-speed uplinks to switches, servers, fibre infrastructure, and other compatible networking devices.

SFP+ Highlights

• 1 × 10G SFP+ port
• Up to 10Gbps connectivity with compatible equipment
• Suitable for fibre networking
• Suitable for high-speed switch uplinks
• Suitable for server connections
• Useful for advanced network infrastructure

MikroTik RB5009UG+S+IN USB 3.0 Port

The RB5009 includes a USB 3.0 Type-A port, providing additional functionality for compatible USB devices and RouterOS applications. The port supports up to 1.5A of USB current.

USB Highlights

• USB 3.0 Type-A
• Up to 1.5A maximum USB current
• Useful for compatible USB peripherals
• Supports additional RouterOS applications

MikroTik RB5009UG+S+IN RouterOS

The router runs RouterOS v7, MikroTik's professional networking operating system.

RouterOS provides advanced networking functions such as routing, firewall management, VLAN configuration, VPNs, bandwidth management, bridging, monitoring, and other network-management features. The RB5009 comes with a Level 5 RouterOS license.

MikroTik RB5009UG+S+IN PoE Support

The RB5009UG+S+IN supports PoE-in through Ethernet port 1, allowing the router to receive power through a compatible Ethernet connection.

It also supports three powering methods: DC jack, PoE-in through Ethernet, and a 2-pin terminal connection.

Power Features

• PoE-in support
• DC jack input
• 2-pin terminal input
• 24–57V DC support for the DC jack and terminal
• Passive cooling
• Efficient fanless operation

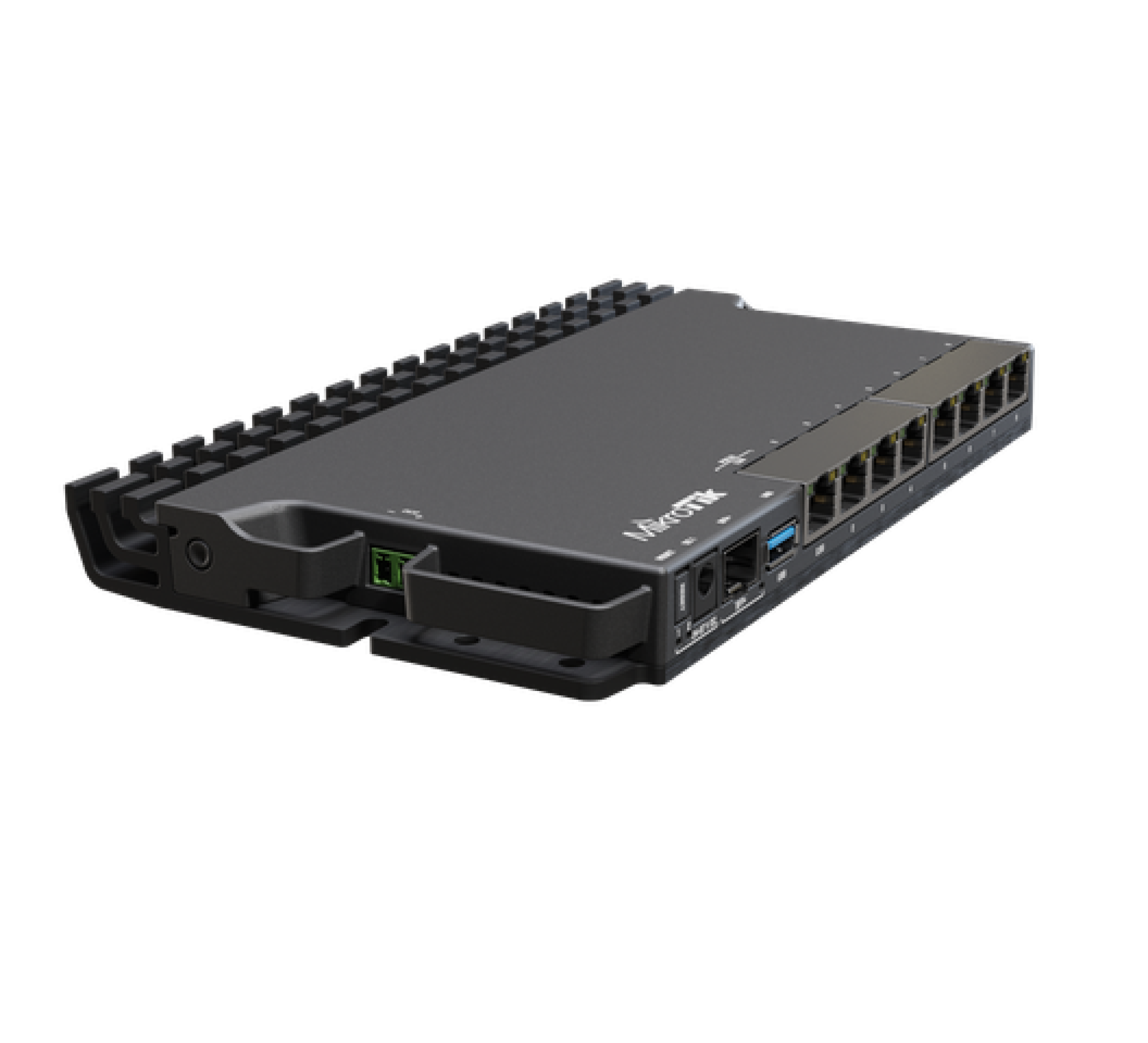

MikroTik RB5009UG+S+IN Design

The RB5009 features a durable metal enclosure designed to provide efficient passive cooling. Its compact dimensions make it suitable for desktop installations and professional rack environments with the appropriate mounting accessories.

Up to four RB5009 units can be mounted in a single 1U rack space using the appropriate mounting accessories.

Design Highlights

• Durable metal construction
• Black finish
• Compact 220 × 125 × 22mm design
• Fanless cooling
• Professional networking design
• Rack-mounting support
• Suitable for server rooms and offices

MikroTik RB5009UG+S+IN Ideal Use Cases

Perfect for:

• Business networks
• Home labs
• Office networks
• Small and medium businesses
• Server environments
• Internet service networks
• Network laboratories
• CCTV networks
• Fibre networks
• High-speed LANs
• VLAN networks
• VPN networks
• Advanced routing installations

MikroTik RB5009UG+S+IN Pros And Cons

MikroTik RB5009UG+S+IN FAQs

How many Ethernet ports does the RB5009 have?

The RB5009UG+S+IN has seven Gigabit Ethernet ports and one 2.5 Gigabit Ethernet port, plus one 10G SFP+ port.

Does the MikroTik RB5009 support 10Gbps?

Yes. It has one 10G SFP+ port that supports high-speed connections with compatible SFP+ equipment.

Does the RB5009 have Wi-Fi?

No. The RB5009UG+S+IN is a wired router and does not have built-in Wi-Fi. A separate wireless access point can be connected through Ethernet.

Does the RB5009 support 2.5Gbps Ethernet?

Yes. It has one dedicated 2.5 Gigabit Ethernet port, making it suitable for compatible high-speed computers, servers, switches, and network equipment.

How much RAM does the RB5009 have?

The router has 1GB of DDR4 RAM and 1GB of NAND storage.

What operating system does the RB5009 use?

The RB5009UG+S+IN runs RouterOS v7 with a Level 5 license.

Does the RB5009 support PoE?

Yes. Ethernet port 1 supports PoE-in, allowing the router to receive power through a compatible Ethernet connection.

Does the RB5009 have a USB port?

Yes. It includes one USB 3.0 Type-A port.

MikroTik RB5009UG+S+IN Conclusion

The MikroTik RB5009UG+S+IN Wired Router is a powerful networking solution for users who need high-speed wired connectivity and advanced RouterOS features.

With 7 Gigabit Ethernet ports, 1 × 2.5 Gigabit Ethernet port, 1 × 10G SFP+ port, a quad-core 1.4GHz processor, 1GB DDR4 RAM, 1GB NAND storage, USB 3.0, PoE-in, and RouterOS v7, it is well suited for business networks, home labs, servers, offices, fibre networks, and advanced networking installations.

Priced at KSh 33,500, the MikroTik RB5009UG+S+IN offers a strong combination of performance, connectivity, expandability, and professional networking capabilities.
