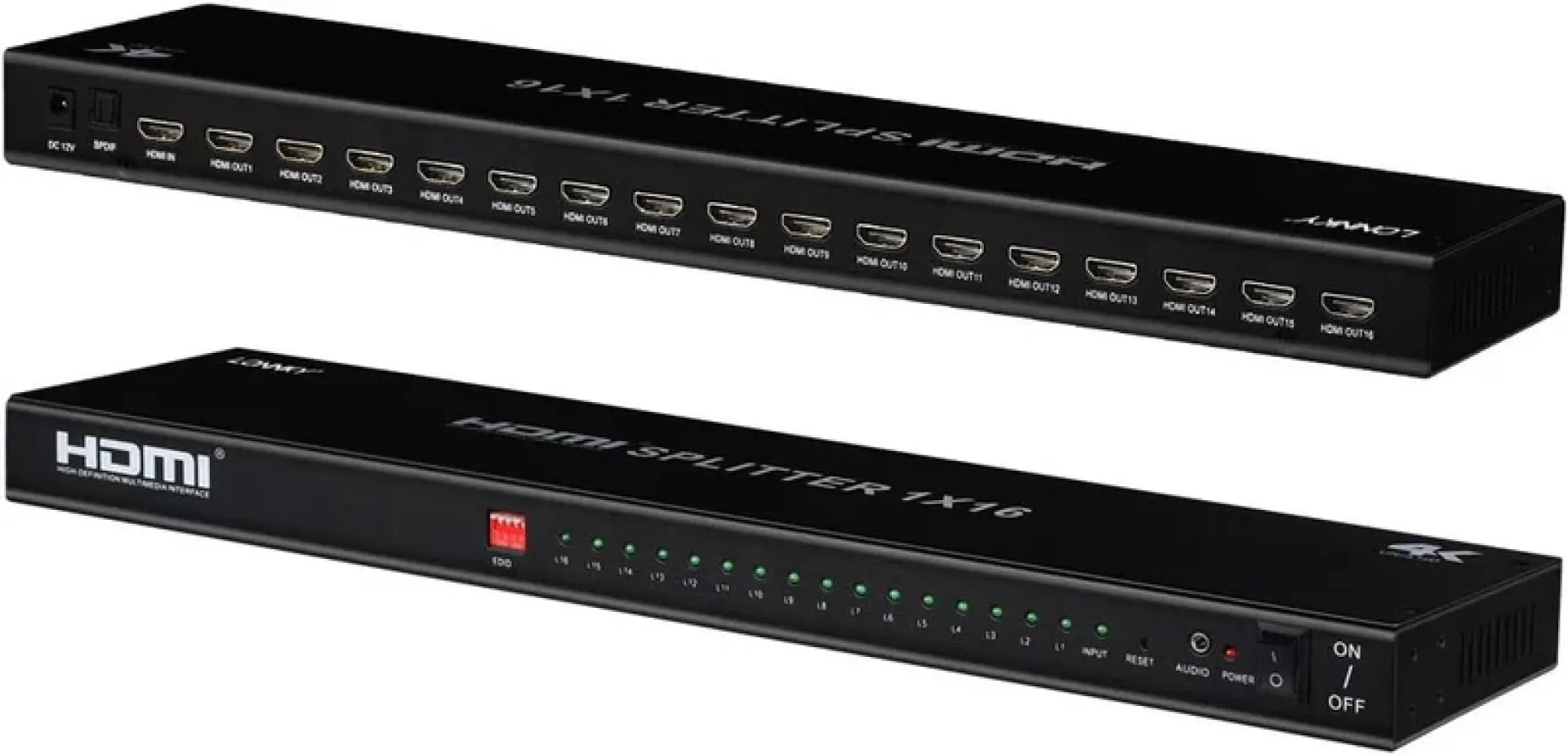

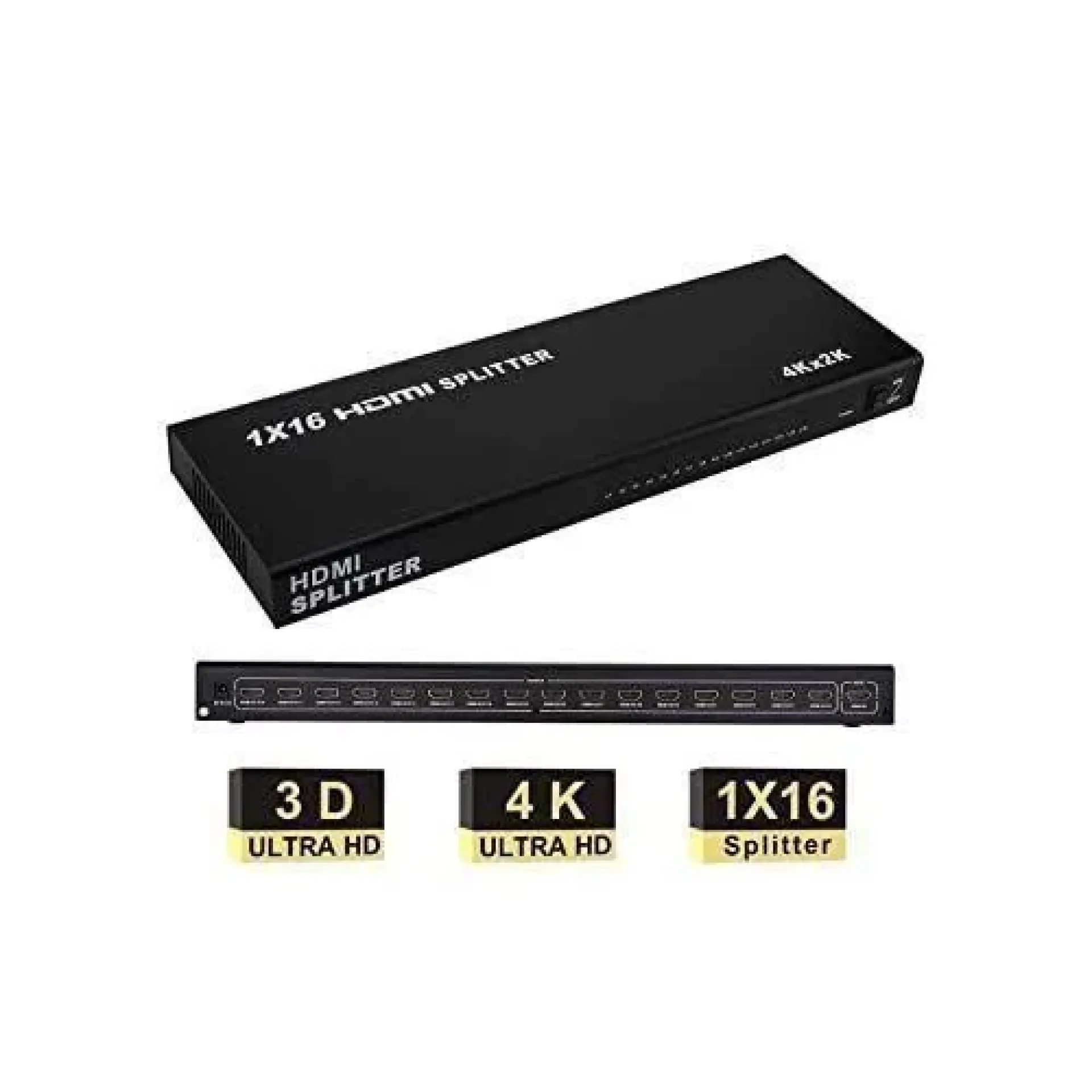

HDMI Splitter 1x16
The HDMI Splitter 1x16 is a professional HDMI distribution amplifier designed to duplicate a single HDMI source to sixteen HDMI displays simultaneously while maintaining high-quality video and audio performance. It is ideal for digital signage, conference rooms, churches, classrooms, hotels, exhibition centers, retail stores, security monitoring systems, and commercial AV installations.
Supporting Full HD 1080p, 3D, and selected 4K UHD resolutions (model dependent), the HDMI Splitter 1x16 delivers synchronized video and multi-channel digital audio across all connected displays. Featuring HDCP compliance, plug-and-play operation, built-in signal amplification, and a durable metal enclosure, it provides a dependable solution for large-scale HDMI signal distribution.
HDMI Splitter 1x16 Price
| Product | Price |
|---|---|
| HDMI Splitter 1x16 | KSh 10,700 |
HDMI Splitter 1x16 Features
- 1 HDMI input
- 16 HDMI outputs
- Simultaneously distributes one HDMI source to sixteen displays
- Supports Full HD 1080p resolution
- Supports selected 4K UHD resolutions (model dependent)
- HDMI 1.4 compliant
- HDCP compliant
- Supports 3D video
- High-speed HDMI signal transmission
- Supports LPCM, Dolby Digital, DTS, DTS-HD, and Dolby TrueHD audio
- Plug-and-play operation
- Built-in signal amplification
- LED power and status indicators
- External power adapter included
- Durable metal housing
- Designed for continuous operation
HDMI Splitter 1x16 Specifications
| Specification | Details |
|---|---|
| Product Type | HDMI Splitter |
| HDMI Input | 1 × HDMI |
| HDMI Outputs | 16 × HDMI |
| HDMI Version | HDMI 1.4 |
| Maximum Resolution | Up to 3840 × 2160 @ 30Hz (Model Dependent) |
| Full HD Support | 1920 × 1080 @ 60Hz |
| 3D Support | Yes |
| HDCP Support | Yes |
| Audio Support | LPCM, Dolby Digital, DTS, DTS-HD, Dolby TrueHD |
| Maximum Bandwidth | 10.2 Gbps |
| Transmission Distance | Up to 15 m Input + 15 m Output using quality HDMI cables |
| Power Supply | DC 5V External Adapter |
| Housing | Metal |
| Installation | Plug-and-Play |
HDMI Splitter 1x16 Performance and Usage Overview
The HDMI Splitter 1x16 is engineered to distribute a single HDMI source to sixteen displays without compromising image clarity or audio quality. It is suitable for distributing content from computers, Blu-ray players, gaming consoles, digital signage players, CCTV DVRs, media players, and satellite receivers.
The integrated signal amplification helps maintain stable signal quality over extended cable runs, while HDCP compatibility ensures reliable operation with most HDMI-enabled devices. Its plug-and-play design allows for quick installation without requiring software or drivers, making it an excellent solution for professional AV installations and large display networks.
HDMI Splitter 1x16 Connectivity
- 1 × HDMI input
- 16 × HDMI outputs
- DC 5V power input
HDMI Splitter 1x16 Compatibility
Compatible with:
- HDTVs
- Computer monitors
- Projectors
- LED displays
- LCD displays
- Gaming consoles
- Blu-ray players
- DVD players
- Streaming media players
- Digital TV decoders
- CCTV DVRs
- CCTV NVRs
- Desktop computers
- Laptops with HDMI output
HDMI Splitter 1x16 Build Quality and Design
- Durable metal enclosure
- Rack-friendly desktop design
- Efficient heat dissipation
- LED power and signal indicators
- Stable long-term operation
- Heavy-duty construction
- Suitable for commercial and professional AV installations
HDMI Splitter 1x16 Ideal Applications and Use Cases
- Digital signage
- Conference rooms
- Boardrooms
- Church AV systems
- Classroom presentations
- Hotels
- Shopping malls
- Exhibition centers
- Security monitoring
- Sports bars
- Home entertainment
- Multi-display video distribution
HDMI Splitter 1x16 Pros and Cons
| Pros | Cons |
|---|---|
| Distributes one HDMI source to sixteen displays simultaneously | All displays show the same content |
| Supports Full HD and selected 4K UHD resolutions | Not designed for switching between multiple HDMI sources |
| Plug-and-play installation | Requires external power adapter |
| Supports multiple HDMI audio formats | |
| Durable metal construction | |
| Ideal for large commercial AV installations |
HDMI Splitter 1x16 Frequently Asked Questions (FAQs)
1. What does an HDMI Splitter 1x16 do?
It distributes one HDMI input signal to sixteen HDMI displays simultaneously while maintaining synchronized video and audio.
2. Can each display show different content?
No. All sixteen connected displays show the same video and audio source.
3. Does it support Full HD?
Yes. It fully supports 1920 × 1080 Full HD at 60Hz.
4. Does it support 4K?
Many HDMI Splitter 1x16 models support 4K UHD up to 3840 × 2160 at 30Hz, depending on the specific hardware version.
5. Does it require software installation?
No. It is a plug-and-play device that works without installing drivers or software.
6. What devices can I connect?
You can connect HDMI devices such as computers, gaming consoles, Blu-ray players, media players, CCTV DVRs, projectors, televisions, and monitors.
7. Is it suitable for commercial installations?
Yes. The HDMI Splitter 1x16 is widely used in churches, hotels, conference centers, classrooms, shopping malls, exhibition venues, digital signage systems, and security control rooms.
HDMI Splitter 1x16 Conclusion
The HDMI Splitter 1x16 is a powerful and reliable HDMI distribution solution for users who need to display the same HDMI content across sixteen screens simultaneously. With support for Full HD 1080p, selected 4K UHD resolutions, HDCP compliance, plug-and-play installation, and a durable metal enclosure, it is an excellent choice for large commercial, educational, and professional AV environments.
At KSh 10,700, the HDMI Splitter 1x16 offers outstanding value for businesses, churches, hotels, schools, and organizations requiring dependable large-scale HDMI signal distribution.
