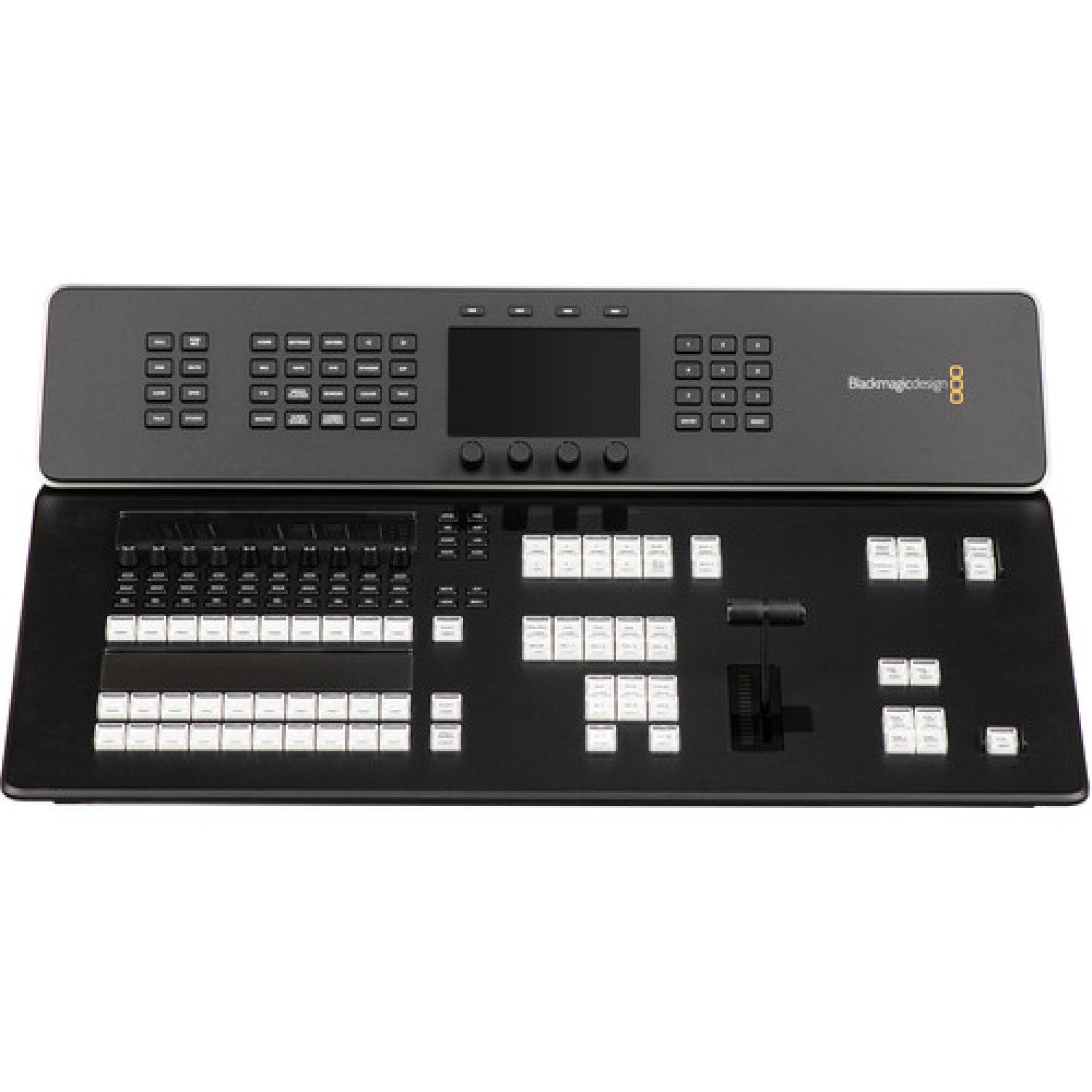

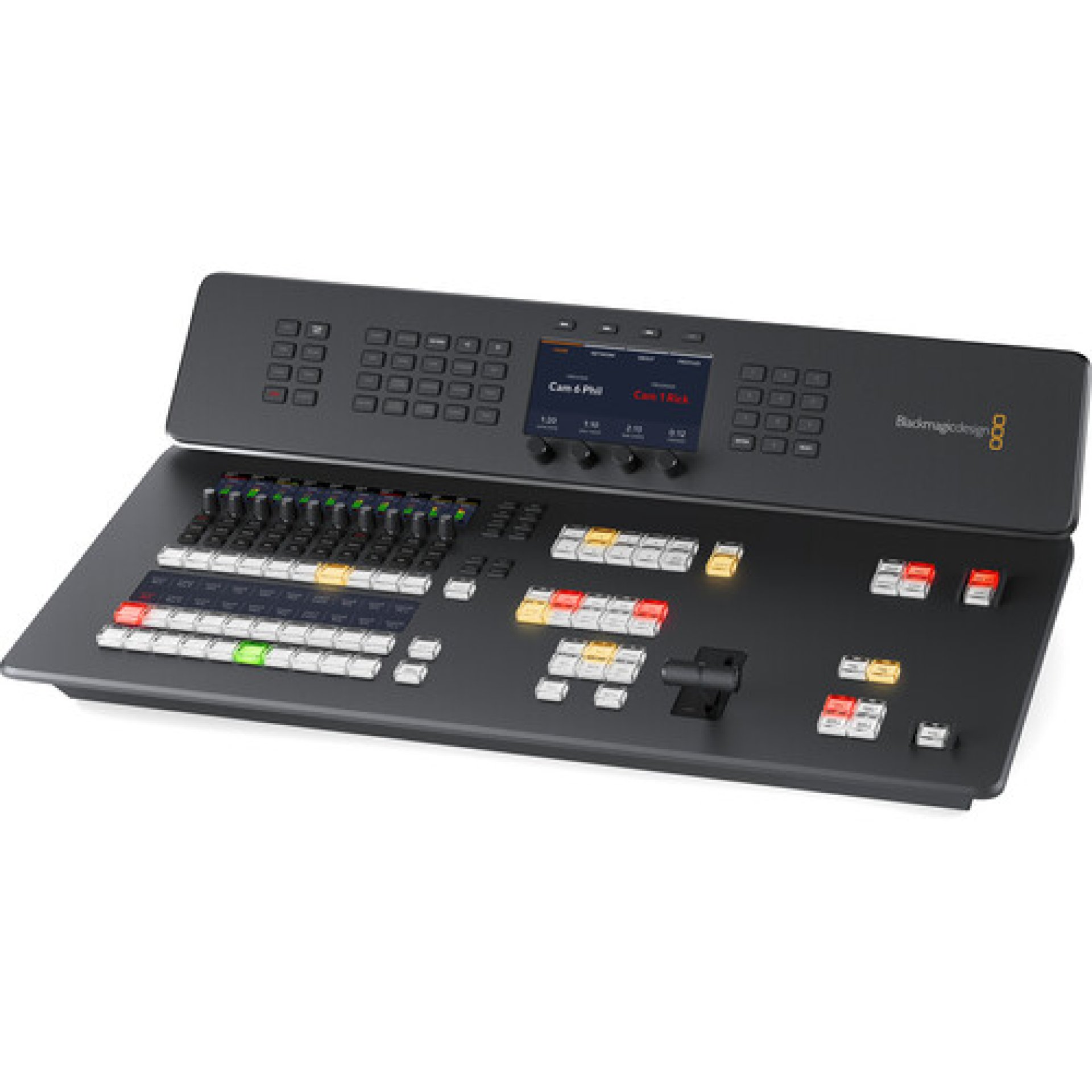

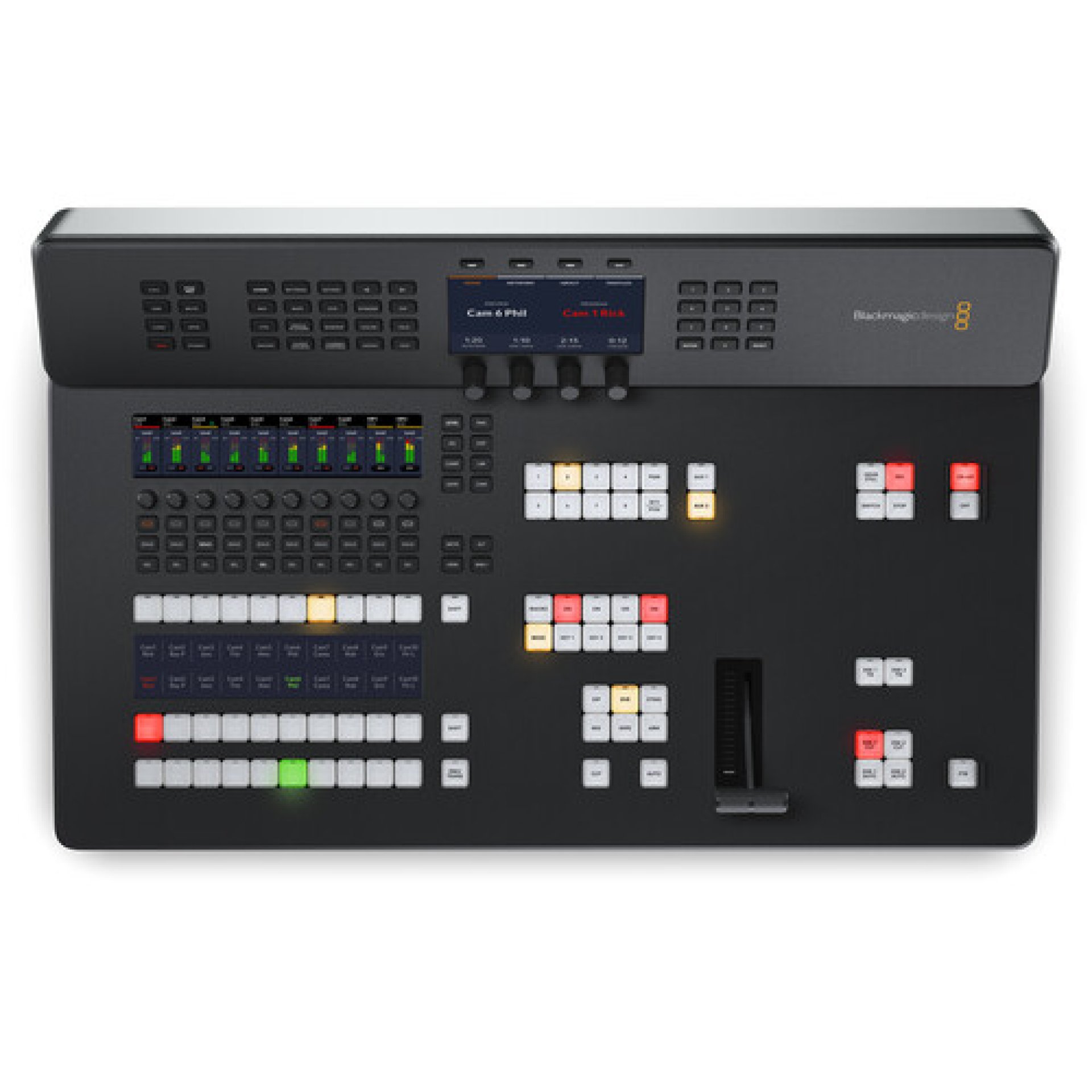

Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher
The Blackmagic ATEM Television Studio HD8 is a professional 8-input 3G-SDI Full HD live production switcher designed for television broadcasters, live event production companies, churches, educational institutions, sports broadcasters, and corporate studios. It combines a powerful broadcast switcher with an integrated hardware control panel, built-in streaming, recording, camera control, talkback, and professional audio mixing, making it an ideal all-in-one solution for high-quality live productions.
Featuring 8 standards-converted 3G-SDI inputs, 10 configurable 3G-SDI outputs, built-in hardware streaming, USB recording, optional internal M.2 recording, Blackmagic Cloud integration, SuperSource, Fairlight audio mixing, and advanced ATEM effects, the ATEM Television Studio HD8 delivers broadcast-grade performance for professional Full HD production environments.
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Price
Product
Price
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher
KSh 442,000
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Features
8 × 3G-SDI inputs with automatic standards conversion
Supports Full HD production up to 1080p60
Built-in hardware live streaming engine
USB recording to external storage devices
Optional internal M.2 network storage recording
Blackmagic Cloud integration
Professional broadcast hardware control panel
Integrated T-bar transition lever
10 configurable 3G-SDI outputs
HDMI and SDI multiview outputs
SuperSource multi-layer video composition
4 advanced ATEM chroma keyers
2 independent digital video effects processors
58-channel Fairlight audio mixer
Camera control for compatible Blackmagic cameras
Built-in talkback functionality
Two media players for graphics and titles
USB webcam output for conferencing and streaming
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Specifications
Specification
Details
Brand
Blackmagic Design
Model
ATEM Television Studio HD8
Product Type
Professional Live Production Switcher
Video Inputs
8 × 3G-SDI
Video Outputs
10 × 3G-SDI
HDMI Outputs
1 × HDMI Multiview
USB Ports
2 × USB-C
Ethernet
Built-in 10G Ethernet Switch
Maximum Resolution
1080p60 Full HD
Streaming
Built-in Hardware Encoder
Recording
USB Recording and Optional Internal M.2 Storage
Audio Mixer
58-Channel Fairlight Audio Mixer
Audio Inputs
2 × XLR, RCA Stereo, MADI
Chroma Keyers
4
DVEs
2
SuperSource
Yes
Media Players
2
Camera Control
Supported
Talkback
Supported
Multiview
HDMI and SDI
Cloud Integration
Blackmagic Cloud
Video Processing
10-bit 4:2:2
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Performance and Usage Overview
The Blackmagic ATEM Television Studio HD8 is engineered for professional Full HD broadcast production where reliability, efficient workflow, and high-quality video are essential. Its eight 3G-SDI inputs each feature automatic standards conversion, allowing cameras operating at different video formats to work together without additional converters.
The built-in hardware streaming engine enables direct streaming to YouTube Live, Facebook Live, Twitch, and other RTMP-compatible platforms without requiring an external encoder. USB recording and optional internal M.2 network storage ensure reliable recording during live productions, while Blackmagic Cloud integration enables rapid collaboration with remote editing teams. The integrated Fairlight audio mixer, SuperSource, advanced keying, camera control, and talkback capabilities make the HD8 suitable for television studios, sports broadcasting, conferences, houses of worship, and professional live streaming.
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Connectivity
8 × 3G-SDI video inputs
10 × 3G-SDI outputs
HDMI multiview output
2 × USB-C ports
Built-in 10G Ethernet
USB webcam output
XLR audio inputs
RCA stereo inputs
MADI audio input and output
Talkback connections
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Compatibility
Blackmagic Studio Cameras
Blackmagic URSA Broadcast cameras
Professional 3G-SDI broadcast cameras
SDI camcorders
DaVinci Resolve
OBS Studio
vMix
Zoom
Microsoft Teams
YouTube Live
Facebook Live
Twitch
Windows computers
macOS computers
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Build Quality and Design
Professional broadcast control surface
Integrated T-bar transition lever
Dedicated LCD monitoring display
Illuminated broadcast-quality buttons
Rugged all-metal construction
Compact rack-friendly design
Designed for continuous 24/7 operation
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Ideal Applications and Use Cases
Television broadcasting
Sports production
Church live streaming
Corporate presentations
Educational broadcasting
Government broadcasting
Live concerts
Conferences and seminars
Podcast studios
Professional livestreaming
Multi-camera production studios
Remote broadcast production
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Pros and Cons
Pros
Cons
Professional broadcast-grade SDI workflow
Limited to Full HD 1080p
Built-in hardware streaming and recording
Premium investment for smaller productions
Integrated Fairlight audio mixer
Requires SDI-compatible equipment
SuperSource and advanced ATEM effects
Learning curve for first-time operators
Blackmagic Cloud integration
Larger than ATEM Mini series
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher FAQs
1. How many cameras can the ATEM Television Studio HD8 support?
It supports up to eight professional 3G-SDI cameras simultaneously.
2. Does it support direct live streaming?
Yes. It includes a built-in hardware streaming engine that allows direct streaming to RTMP-compatible platforms without an external encoder.
3. Can it record live productions?
Yes. It supports USB recording to external drives and optional internal M.2 network storage recording for professional workflows.
4. Does it include SuperSource?
Yes. SuperSource enables advanced multi-box layouts for interviews, presentations, and live panel discussions.
5. Does it support camera control?
Yes. It provides camera control, tally, and talkback for compatible Blackmagic cameras.
6. Is it suitable for television broadcasting?
Yes. The HD8 is specifically designed for professional television studios, live events, houses of worship, educational institutions, and broadcast production facilities.
7. What is the difference between the HD8 and the 4K8?
The HD8 supports Full HD (1080p60) production using 3G-SDI, while the 4K8 supports Ultra HD 4K (2160p60) production using 12G-SDI. Both models offer similar professional production features, with the 4K8 providing higher-resolution workflow support.
Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher Conclusion
The Blackmagic ATEM Television Studio HD8 Professional 8-Input 3G-SDI Live Production Switcher delivers a complete broadcast production solution in a compact and powerful package. Featuring professional SDI connectivity, integrated hardware streaming, USB and optional internal recording, Fairlight audio processing, SuperSource, camera control, and Blackmagic Cloud integration, it provides everything needed for modern Full HD live production.
At KSh 442,000, it is an excellent investment for broadcasters, production companies, churches, educational institutions, sports organizations, and corporate studios seeking a professional Full HD live production switcher with advanced broadcast capabilities.
