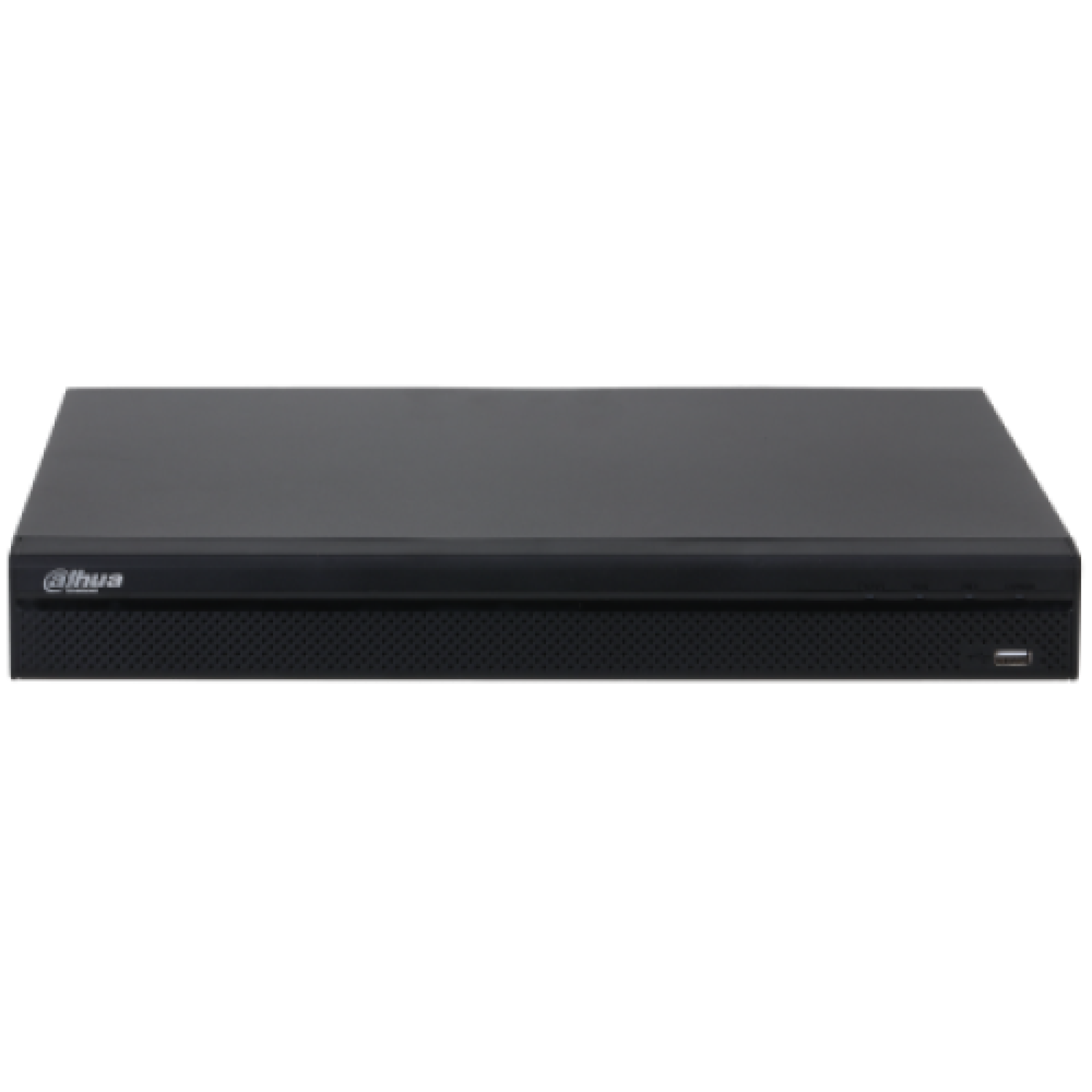

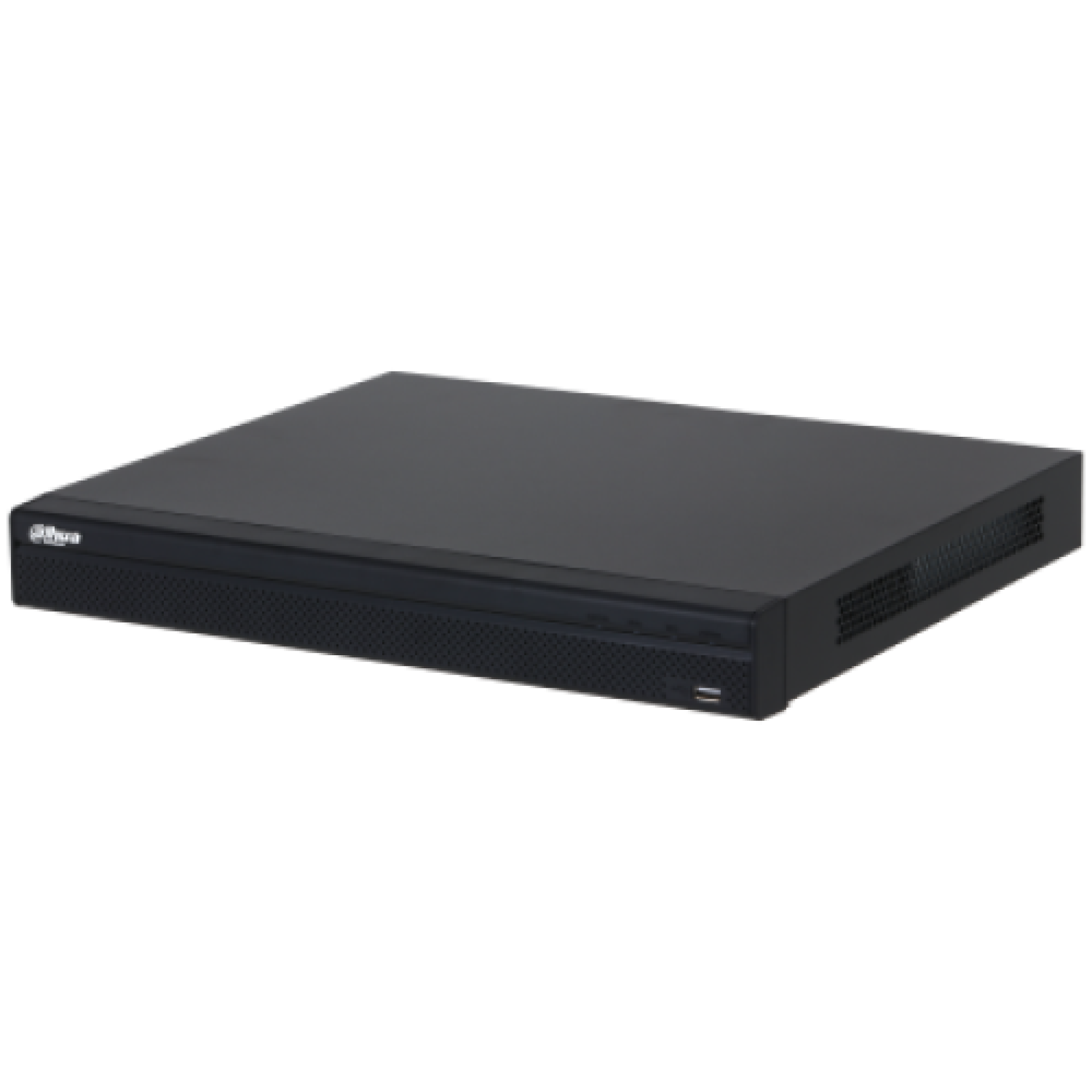

DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Overview
The DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder is a powerful IP surveillance recorder built for medium to large-scale security deployments. It supports up to 32 IP camera channels with 16 integrated PoE ports, enabling simplified installation by delivering power and data through a single Ethernet cable. Supporting cameras with resolutions up to 12MP, Smart H.265+ video compression, AI-powered analytics, dual HDD storage, and 4K HDMI output, this NVR delivers efficient recording, intelligent monitoring, and scalable storage for professional surveillance systems.
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Key Features
- Supports 32 IP camera channels
- 16 built-in IEEE 802.3af/at PoE ports
- Supports IP cameras up to 12MP resolution
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- 160 Mbps incoming bandwidth
- 128 Mbps recording bandwidth
- 4K HDMI and VGA video outputs
- AI by Recorder with 2-channel SMD Plus
- AI by Camera supports face detection, face recognition, perimeter protection, people counting, heat map, and stereo analysis
- Supports up to 2 SATA hard drives
- Maximum storage capacity of up to 20TB per HDD
- ONVIF compatibility for third-party IP cameras
- Remote monitoring through DMSS mobile app
- Smart playback and intelligent event search
- Embedded Linux operating system
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA NVR4232-16P-4KS3 32CH 16PoE Network Video Recorder | KSh 25,000 – KSh 75,000 |
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA NVR4232-16P-4KS3 |
| Channels | 32 IP Channels |
| PoE Ports | 16 × 10/100 Mbps IEEE 802.3af/at |
| Maximum Camera Resolution | 12MP |
| Incoming Bandwidth | 160 Mbps |
| Recording Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Video Output | HDMI (4K), VGA |
| Storage | 2 SATA HDD Bays |
| Maximum HDD Capacity | Up to 20TB per HDD |
| AI Features | SMD Plus, Face Detection, Face Recognition, Perimeter Protection, People Counting, Heat Map |
| Network Port | 1 × Gigabit RJ-45 |
| USB Ports | 2 × USB 2.0 |
| Audio | 1 Audio In, 1 Audio Out |
| Alarm Interface | 4 Alarm Inputs, 2 Alarm Outputs |
| Operating System | Embedded Linux |
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Performance
- Records up to 32 high-resolution IP cameras simultaneously
- Built-in 16-port PoE switch simplifies camera installation
- Supports cameras with resolutions up to 12MP
- Smart H.265+ compression minimizes storage and bandwidth requirements
- AI-powered SMD Plus helps reduce false alarms
- 4K HDMI output delivers crisp live monitoring
- Supports up to 16-channel simultaneous playback
- Reliable 24/7 recording for enterprise surveillance
- High-bandwidth architecture ensures smooth video transmission and playback
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Design and Build
- Compact 1U rack-mountable chassis
- Durable metal housing
- Integrated 16-port PoE switch
- Efficient cooling for continuous operation
- Professional front panel layout
- Designed for commercial and enterprise security systems

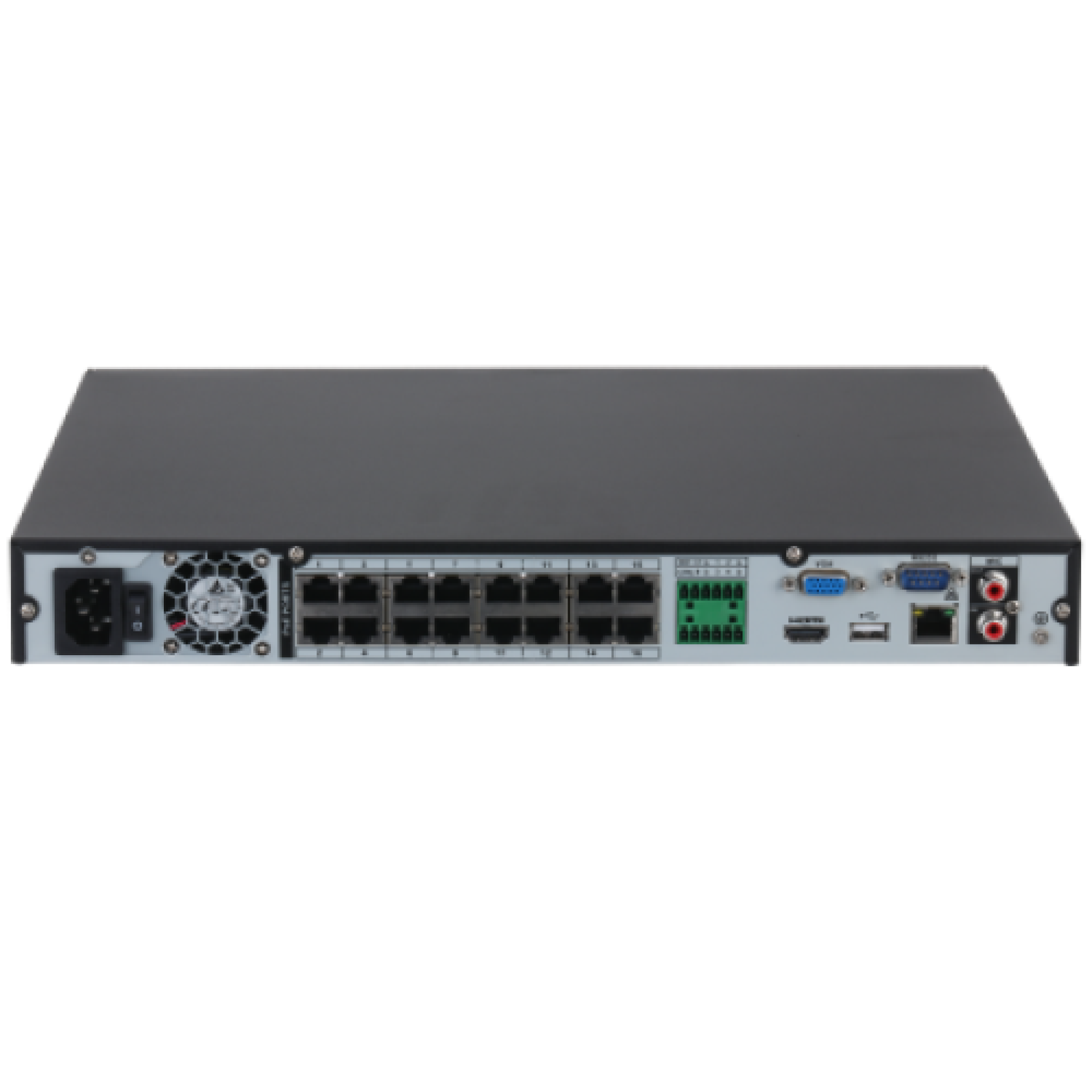

DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Connectivity and Compatibility
- Compatible with Dahua IP cameras
- Supports ONVIF-compliant third-party IP cameras
- 16 integrated PoE ports for direct camera connection
- Gigabit Ethernet uplink
- HDMI and VGA monitor outputs
- USB ports for backup and firmware updates
- Supports DMSS mobile application
- Compatible with SmartPSS and web browser management
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Ideal Use Cases
- Corporate office buildings
- Schools and universities
- Hospitals and healthcare facilities
- Hotels and resorts
- Shopping malls
- Warehouses and distribution centers
- Manufacturing plants
- Apartment complexes
- Government institutions
- Large retail stores
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – FAQs
1. How many cameras does this NVR support?
It supports up to 32 IP cameras.
2. Does it include built-in PoE?
Yes. It features 16 built-in PoE ports for powering compatible IP cameras.
3. What is the maximum camera resolution supported?
It supports IP cameras with resolutions up to 12MP.
4. How much storage can it accommodate?
It supports two SATA hard drives with capacities of up to 20TB each.
5. Can I access the cameras remotely?
Yes. Remote viewing and playback are supported through the DMSS mobile application.
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Supports up to 32 IP cameras | Only 16 cameras can connect directly through PoE |
| 16 built-in PoE ports simplify installation | Hard drives sold separately |
| Supports up to 12MP cameras | Lite AI features compared to higher-end Dahua series |
| Dual HDD bays provide large storage capacity | Single Gigabit uplink port |
| Smart H.265+ compression saves bandwidth and storage | |
| AI-assisted monitoring with SMD Plus | |
| 4K HDMI output |
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Conclusion
The DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder is an ideal solution for businesses and organizations requiring centralized management of up to 32 IP cameras. With 16 integrated PoE ports, support for 12MP cameras, dual HDD storage, AI-assisted monitoring, Smart H.265+ compression, and reliable 24/7 operation, it offers a scalable and efficient surveillance platform for professional CCTV deployments.
