DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Overview

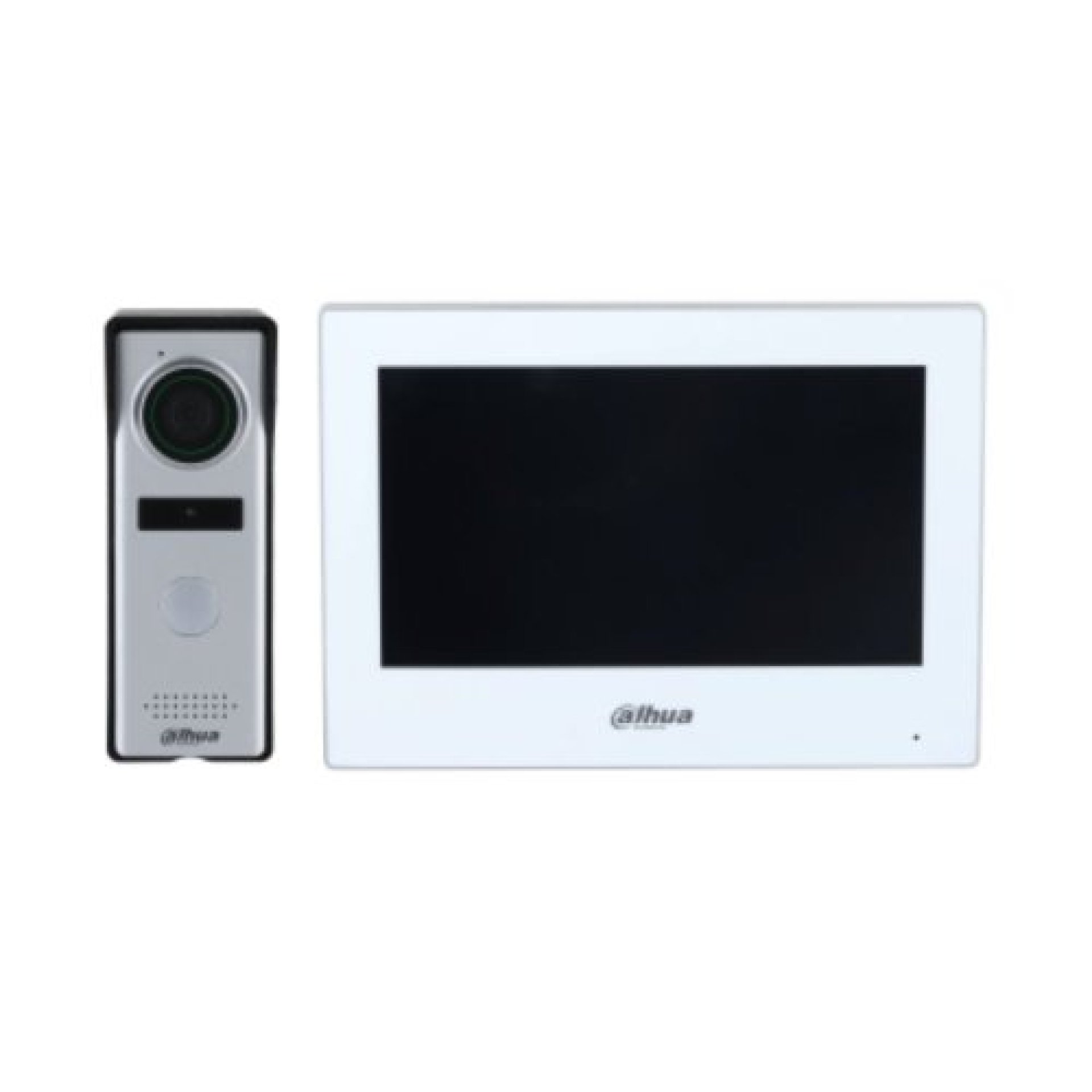

The DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch is a complete hybrid video intercom solution designed for homes, villas, apartments, and small commercial buildings. The kit includes a 7-inch capacitive touchscreen indoor monitor and an IP66-rated outdoor door station, delivering clear video communication, remote door unlocking, two-way audio, and smart app management. Supporting both IP and analog intercom devices, Wi-Fi connectivity, PoE, IPC monitoring, alarm integration, and the DMSS mobile app, the KTH01 offers a flexible and intelligent access control solution for modern properties.
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Key Features
- 7-inch TFT capacitive touchscreen with 1024 × 600 resolution
- Hybrid IP and analog video intercom system
- Built-in Wi-Fi connectivity
- Standard PoE support
- Two-way audio communication
- Remote door unlocking
- Supports voice and video calls
- Connects to IP cameras (IPC surveillance)
- Supports recording videos and snapshots (MicroSD card required)
- Compatible with analog and digital Dahua door stations
- Supports app management through DMSS
- 6 alarm inputs and 1 alarm output
- Group call functionality
- Outdoor station with Digital Wide Dynamic Range (DWDR)
- IP66-rated weatherproof outdoor station
- Surface-mounted installation
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch | KSh 12,000 – KSh 30,000 |
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA KTH01 |
| Indoor Monitor | 7-inch TFT Capacitive Touchscreen |
| Screen Resolution | 1024 × 600 |
| Communication | Full Digital and Analog |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz) |
| Network Port | 1 × 10/100 Mbps RJ-45 |
| Video Compression | H.264 |
| Audio | Built-in Microphone and Speaker |
| Audio Mode | Two-Way Audio |
| Storage | MicroSD Card (Up to 64GB) |
| Alarm Inputs | 6 |
| Alarm Outputs | 1 |
| RS-485 | 1 |
| Power | Standard PoE or 12V DC |
| Outdoor Station Protection | IP66 |
| Installation | Surface Mount |
| Operating System | Embedded Operating System |
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Performance
- Provides clear two-way audio and video communication with visitors
- 7-inch capacitive touchscreen offers intuitive operation
- Supports remote door unlocking from the indoor monitor or mobile app
- Wi-Fi and PoE simplify installation and network connectivity
- Supports monitoring of connected IP cameras
- Group call functionality improves communication within larger properties
- Video recording and snapshot capture enhance visitor management
- DWDR improves image quality in challenging lighting conditions
- Reliable operation for residential and commercial access control systems.
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Design and Build
- Slim modern indoor monitor
- 7-inch capacitive touchscreen interface
- Surface-mounted installation
- Durable PC and ABS construction
- Elegant white finish
- Weather-resistant IP66 outdoor door station
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Connectivity and Compatibility
- Supports Wi-Fi and wired Ethernet connectivity
- Compatible with Dahua analog and digital door stations
- Supports Dahua IP cameras for live monitoring
- Works with the DMSS mobile application
- Supports standard PoE
- ONVIF compatible
- Supports MicroSD storage up to 64GB
- Compatible with residential and commercial intercom installations
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Ideal Use Cases
- Residential homes
- Villas
- Apartments
- Gated communities
- Office buildings
- Retail stores
- Schools
- Clinics
- Small commercial buildings
- Property management applications
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – FAQs
1. What screen size does the indoor monitor feature?
It includes a 7-inch TFT capacitive touchscreen with a resolution of 1024 × 600.
2. Does the KTH01 support Wi-Fi?
Yes. The indoor monitor supports 2.4 GHz Wi-Fi connectivity.
3. Can I unlock the door remotely?
Yes. You can unlock compatible electric door locks from the indoor monitor or through the DMSS mobile app.
4. Can the monitor display IP camera feeds?
Yes. It supports monitoring connected Dahua IP cameras.
5. Does it support recording visitor videos?
Yes. It supports video recording and snapshot capture when a MicroSD card is installed.
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Pros and Cons
| Pros | Cons |
|---|---|
| Large 7-inch capacitive touchscreen | MicroSD card sold separately |
| Supports both IP and analog intercom devices | Supports only 2.4 GHz Wi-Fi |
| Wi-Fi and PoE connectivity | Outdoor station uses a mechanical call button |
| Remote door unlocking through DMSS app | |
| Supports IPC surveillance | |
| IP66-rated outdoor station | |
| Video recording and snapshot support |
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Conclusion
The DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch is a versatile and feature-rich hybrid intercom solution for residential and commercial properties. Combining a responsive 7-inch touchscreen, Wi-Fi connectivity, PoE support, remote app management, IP camera monitoring, and reliable two-way communication, it delivers secure and convenient visitor management while supporting both analog and IP-based intercom systems.
