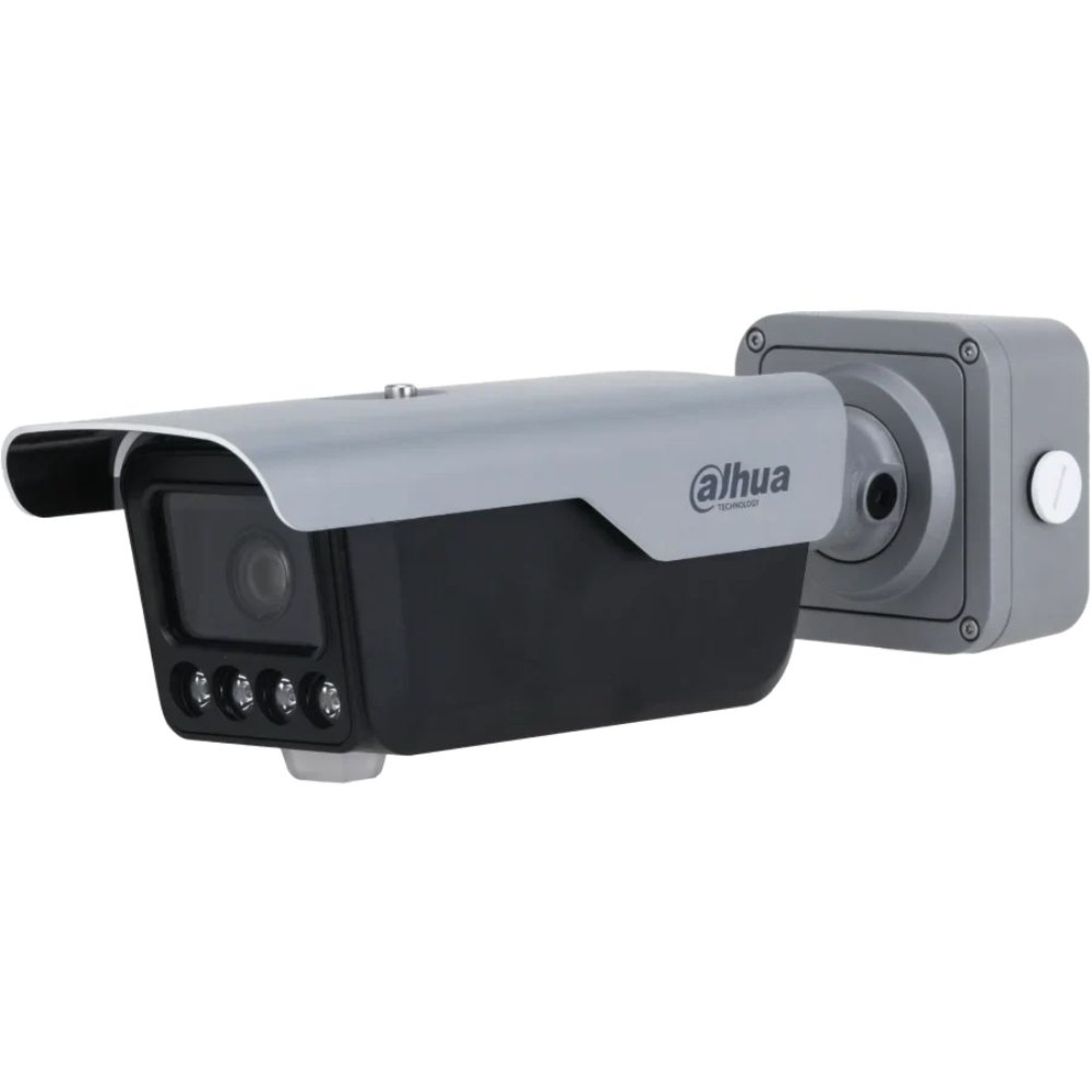

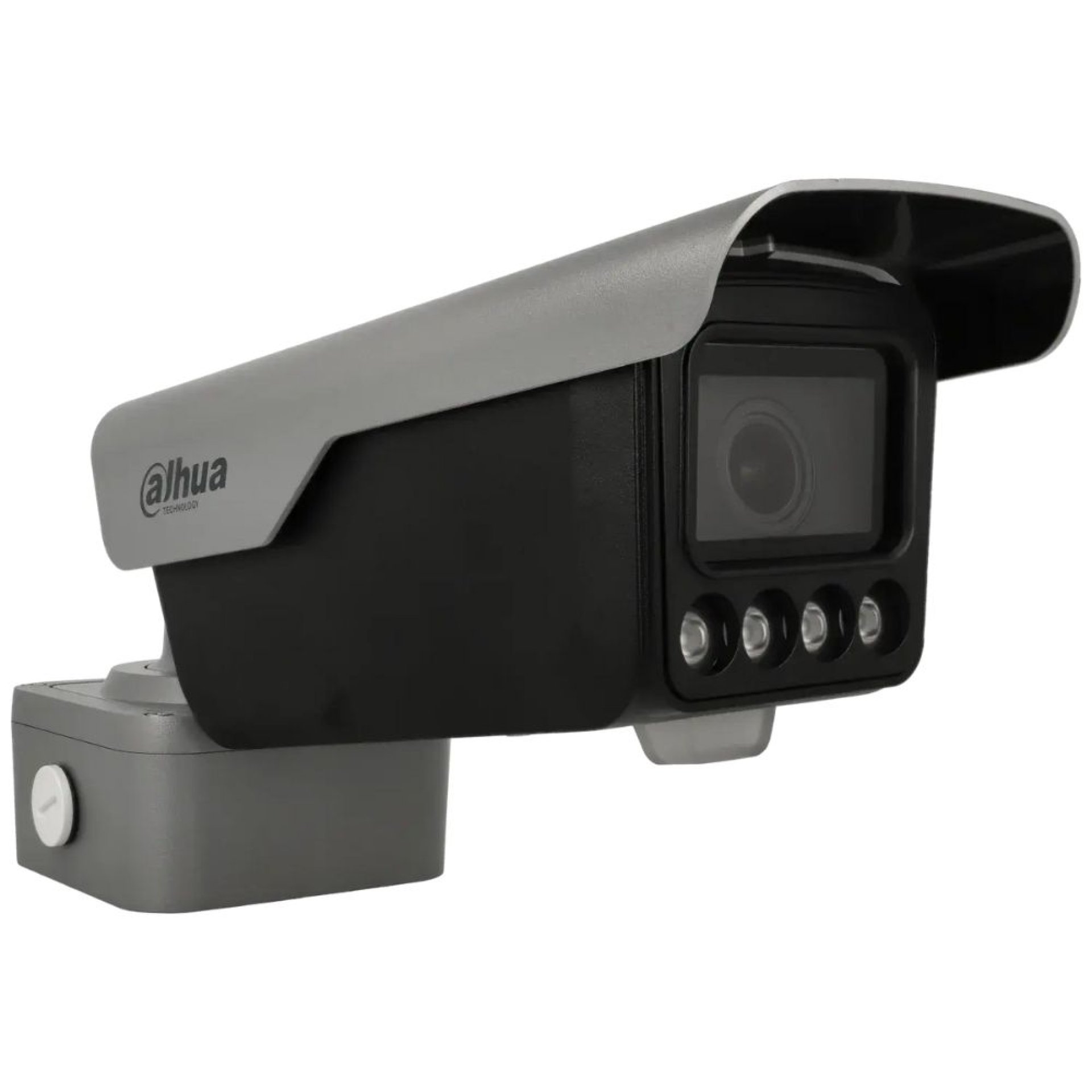

DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Overview
The DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera is a high-performance intelligent traffic and access control camera designed for automatic number plate recognition (ANPR) in parking systems, gated entrances, and security checkpoints. It features a 4MP (2688 × 1520) high-sensitivity CMOS sensor, delivering precise vehicle capture even in challenging lighting conditions. Powered by advanced deep learning ANPR algorithms, it can accurately recognize license plates, vehicle type, color, and brand while also enabling access control automation for barriers and gates. With infrared illumination, smart IR/warm light control, and IP67 weatherproof housing, it is built for reliable 24/7 outdoor operation.
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Key Features
- 4MP high-resolution ANPR camera (2688 × 1520)
- 1/1.8" CMOS high-performance image sensor
- AI-powered automatic number plate recognition
- Vehicle type, color, and brand recognition
- Supports up to 80 km/h vehicle detection speed
- Deep learning-based analytics engine
- Integrated access control for gates and barriers
- Built-in LED illumination for night capture
- Infrared support for low-light environments
- IP67 and IK10-rated rugged outdoor design
- Supports intrusion and loitering detection
- Alarm linkage (light, siren, and speaker output)
- Wiegand interface for access control systems
- ONVIF, SDK, and API integration support
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera | KSh 35,000 – KSh 150,000 |
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA DHI-ITC413-PW4D-Z1 ANPR Camera |
| Image Sensor | 1/1.8" CMOS |
| Maximum Resolution | 2688 × 1520 (4MP) |
| Lens | 2.7 mm – 12 mm motorized vari-focal |
| Shutter Speed | 1/25 s – 1/100,000 s |
| Max Vehicle Speed | Up to 80 km/h |
| Illumination | IR + Smart LED lighting |
| Compression | H.264 / H.265 / MJPEG |
| Storage | MicroSD support up to 256GB |
| AI Functions | ANPR, vehicle classification, color recognition |
| Alarm System | Light + siren + voice deterrence |
| Network | HTTP, HTTPS, TCP/IP, RTSP, FTP, IPv4/IPv6 |
| Interface | Wiegand, I/O ports for barrier control |
| Protection | IP67, IK10 |
| Operating Temperature | –40°C to +60°C |
| Power Supply | 12V DC / PoE support |
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Performance
- Delivers highly accurate number plate recognition (up to 98% in optimal conditions)
- Captures clear vehicle details even in low-light or high-speed scenarios
- AI engine reduces false reads and improves detection accuracy
- Supports real-time access control for automated gate systems
- Smart illumination adjusts brightness based on environmental conditions
- Handles multiple vehicle attributes including type, color, and brand
- Designed for continuous 24/7 roadside or entrance monitoring
- Strong performance in harsh outdoor environments
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Design and Build
- Heavy-duty industrial-grade housing
- IP67 waterproof and IK10 vandal-resistant structure
- Integrated junction box and mounting bracket design
- Built-in LED for simplified installation and alignment
- Motorized zoom lens for flexible deployment
- Low power consumption architecture
- Weather-resistant metal enclosure
- Designed for highways, gates, and parking entrances
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Connectivity and Compatibility
- Supports ONVIF Profile S/T/M
- Compatible with DSS Pro and Smart PSS platforms
- SDK and API available for system integration
- Wiegand interface for barrier and access control systems
- FTP and NVR recording support
- Ethernet network connectivity
- Remote configuration via web interface
- Integrates with parking management systems
- Works with third-party security platforms
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Ideal Use Cases
- Parking management systems
- Residential gated communities
- Commercial building entrances
- Highway toll and traffic monitoring
- Industrial site access control
- Logistics and warehouse entry points
- Government and secure facilities
- Smart city surveillance systems
- Corporate parking automation
- Fleet management checkpoints
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – FAQs
1. What is the main function of this camera?
It is designed for automatic number plate recognition (ANPR) and access control automation.
2. Can it open gates automatically?
Yes, it supports integration with barriers and gate systems via Wiegand and I/O interfaces.
3. Does it work at night?
Yes, it has infrared and smart LED illumination for 24/7 operation.
4. What speed can it capture vehicles at?
It can accurately capture vehicles moving up to 80 km/h.
5. Is it weatherproof?
Yes, it comes with IP67 and IK10 protection for outdoor durability.
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Pros and Cons
| Pros | Cons |
|---|---|
| High-accuracy ANPR recognition | Higher cost than standard CCTV |
| Supports access control integration | Requires proper installation setup |
| Strong AI vehicle analytics | Limited to specialized use cases |
| IP67 + IK10 rugged design | Not ideal for general surveillance |
| Works in low-light conditions | Needs calibration for best results |
| Supports automation systems |
DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera – Conclusion
The DAHUA DHI-ITC413-PW4D-Z1 Access ANPR Camera is a professional-grade intelligent traffic and access control solution designed for environments that require automated vehicle identification and gate management. With advanced ANPR accuracy, AI vehicle analytics, rugged IP67/IK10 build, and seamless integration with barrier systems, it is ideal for parking facilities, gated communities, and high-security installations where automation and precision are essential.
