YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System
- 4 HDMI video inputs allow connection of multiple cameras and other HDMI video sources for multicamera productions.
- 4K live streaming and recording supports high-resolution video production for compatible workflows.
- 8-inch touchscreen display provides an integrated interface for monitoring, switching and controlling live productions.
- 650-nit display brightness improves screen visibility during production and outdoor use.
- ISO recording support allows compatible HDMI sources to be recorded separately for post-production.
- Wi-Fi 6 connectivity provides modern wireless networking for live streaming and production workflows.
- 4G LTE connectivity provides mobile internet access for streaming when wired internet is unavailable.
- Cellular bonding can combine up to five network connections for improved streaming reliability.
- Gigabit Ethernet provides high-speed wired network connectivity.
- USB connectivity supports compatible webcams, storage devices, audio equipment and network dongles.
- NDI and SRT support expands IP-based video production and remote production workflows.
- Vertical streaming mode supports platforms such as Instagram and TikTok.
- Horizontal streaming mode supports platforms such as Facebook, YouTube, Twitch and other RTMP/SRT destinations.
- Video Follows Audio technology can automatically switch camera angles according to the active speaker.
- Built-in graphics and production controls provide tools for managing live broadcasts without requiring a separate computer.
- 8GB RAM and 128GB storage provide increased system memory and internal storage.
- 75.48Wh battery provides extended portable operation.
- Price in Kenya: KSh 180,000.
Description

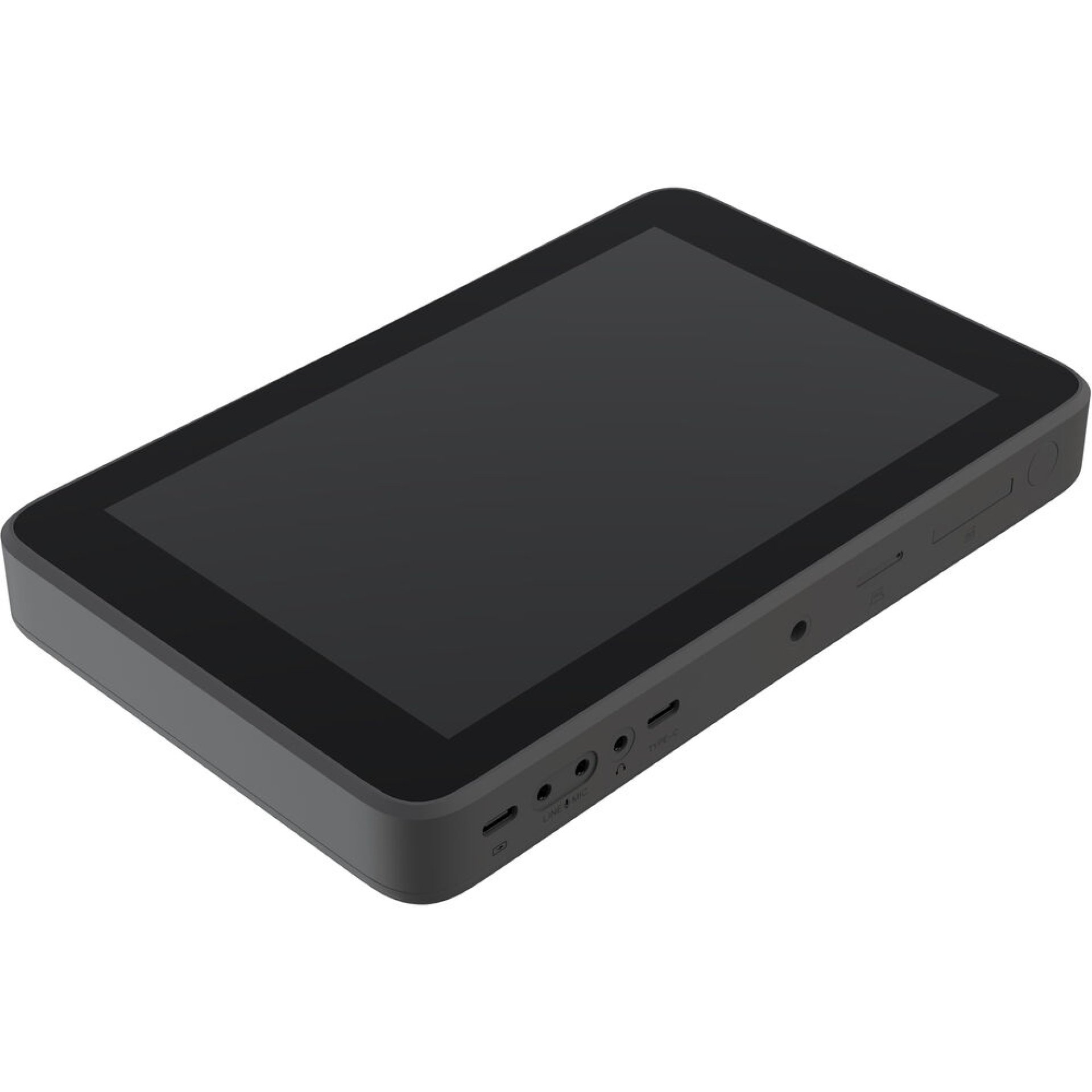

The YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System is a professional portable live production device designed to combine video switching, monitoring, encoding, recording and live streaming into a single system. It is designed for multicamera productions where portability and simplified production workflows are important.
The YoloBox Ultra features four HDMI inputs, allowing users to connect multiple cameras or other HDMI sources simultaneously. It also supports USB video sources and multiple IP-based sources, providing additional flexibility for live production.
The system supports 4K video streaming and recording, making it suitable for professional live events, sports, churches, weddings, conferences and content production. It also supports 1080p video at up to 60fps for smooth live video production.

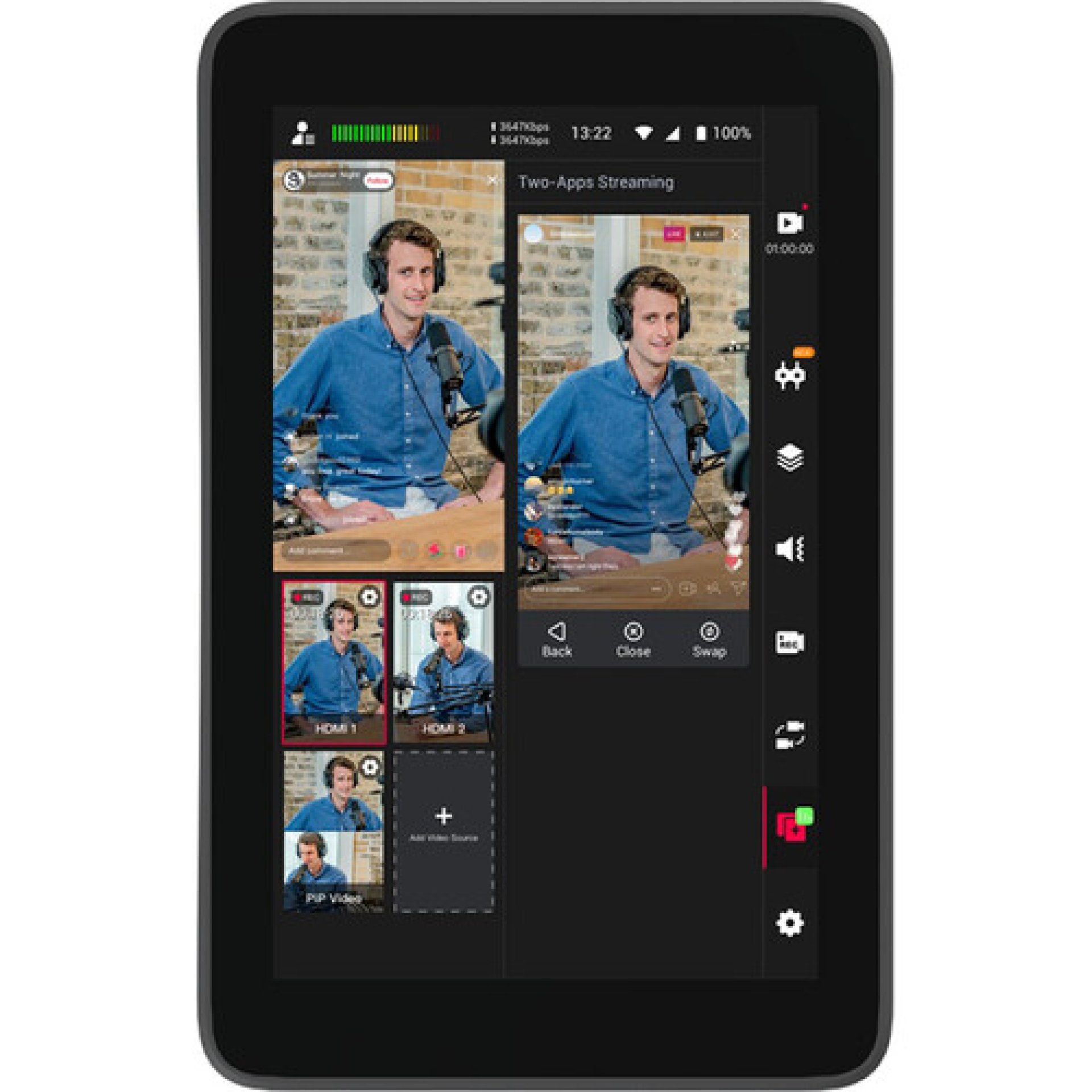

The integrated 8-inch 1200 × 1920 touchscreen display provides a built-in monitoring and control interface. With a brightness rating of 650 nits, the display provides clear visibility while operating the system in different production environments.
One of the major features of the YoloBox Ultra is cellular bonding. The system can combine multiple network connections across 4G LTE, Wi-Fi, Ethernet and compatible USB modems, helping improve connection reliability when streaming from locations with challenging internet conditions.
The YoloBox Ultra also supports ISO recording, allowing supported HDMI sources to be recorded separately. This can be particularly useful for professional productions where individual camera recordings are required for editing after the live event.
For social media production, the YoloBox Ultra supports both horizontal and vertical streaming workflows. Horizontal streaming can be used with platforms such as Facebook, YouTube and Twitch, while Vertical Mode supports platforms such as Instagram and TikTok.
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Price in Kenya
| ProductPrice | |
|---|---|
| YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System | KSh 180,000 |
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Key Specifications
| SpecificationDetails | |
|---|---|
| Product Type | All-in-One Multicamera Live Streaming and Switching System |
| Model | YoloBox Ultra |
| Display | 8-inch LCD Touchscreen |
| Display Resolution | 1200 × 1920 |
| Display Brightness | 650 nits |
| HDMI Inputs | 4 × HDMI |
| USB Inputs | USB-A / USB-C |
| HDMI Output | 1 × HDMI OUT |
| USB-C Output | Supported UVC output |
| Ethernet | 10/100/1000Mbps |
| Wi-Fi | 2.4GHz / 5GHz Wi-Fi 6 |
| 4G LTE | Supported |
| SIM Card | Nano-SIM |
| Video Input Resolution | Up to 4K 30fps |
| Live Output Resolution | Up to 4K 30fps |
| 1080p Frame Rate | Up to 60fps |
| Video Encoding | H.264 / H.265 |
| Streaming Protocols | RTMP / RTMPS / SRT |
| IP Video Sources | NDI / SRT / RTMP / RTSP support |
| ISO Recording | Supported |
| Recording Format | MP4 |
| Audio Inputs | HDMI / USB / Line In / Mic In |
| Audio Output | 3.5mm Headphone Output / HDMI / USB Audio |
| RAM | 8GB |
| Internal Storage | 128GB |
| Battery Capacity | 75.48Wh |
| Battery Rating | 6800mAh |
| Power Consumption | 45W |
| Dimensions | 219 × 140 × 27.1mm |
| Weight | Approximately 981g |
| Price | KSh 180,000 |
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Design & Build
- 8-inch touchscreen display provides an integrated monitoring and production-control interface.
- 650-nit display provides improved visibility during live production.
- Compact portable construction allows the system to be transported between production locations.
- Approximately 981g weight makes it portable for professional multicamera production.
- 219 × 140 × 27.1mm dimensions provide a compact form factor for a professional multicamera production device.
- Multiple mounting points allow the system to be integrated into compatible camera and production setups.
- Integrated touchscreen controls reduce the need for a separate external monitor.
- Built-in battery supports portable live production without requiring constant mains power.
- Multiple physical ports provide connectivity for cameras, microphones, storage and networking equipment.
- Professional production design makes the YoloBox Ultra suitable for mobile and fixed-location broadcasting.
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Connectivity
- Four HDMI inputs support multicamera video production.
- USB-A connectivity supports compatible webcams, storage devices, wireless dongles and audio equipment.
- USB-C connectivity provides additional video, storage, audio and UVC functionality depending on the workflow.
- Gigabit Ethernet provides wired internet connectivity.
- Wi-Fi 6 provides wireless network connectivity.
- 4G LTE provides mobile internet access using a compatible Nano-SIM.
- USB modem connectivity can be used as part of supported cellular bonding workflows.
- HDMI output allows connection to an external monitor or compatible display.
- UVC output allows the YoloBox Ultra to work with compatible computers and video-conferencing workflows.
- 3.5mm audio connections provide analog microphone, line and headphone connectivity.
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Video Performance
- 4K video support enables high-resolution live streaming and recording.
- Up to 4K30 output supports high-resolution compatible production workflows.
- 1080p up to 60fps provides smooth video for live events and fast-moving subjects.
- H.264 encoding provides broad compatibility for live streaming and recording.
- H.265 encoding provides improved compression efficiency for supported workflows.
- RTMP and RTMPS support allows streaming to compatible online platforms.
- SRT support provides a low-latency contribution and streaming option.
- NDI support allows compatible network video sources to be incorporated into productions.
- Multiple camera sources allow users to switch between different viewing angles.
- Picture-in-picture and multiview workflows provide additional production flexibility.
- Video Follows Audio can automatically change camera angles based on the active speaker.
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Network Management
- Wi-Fi 6 connectivity provides modern wireless networking.
- 4G LTE connectivity provides mobile streaming capability.
- Gigabit Ethernet provides high-speed wired internet connectivity.
- Cellular bonding can combine up to five supported network connections.
- Network bonding can use 4G LTE, Wi-Fi, Ethernet and compatible USB modems.
- RTMP/RTMPS streaming supports common live broadcasting workflows.
- SRT connectivity supports compatible low-latency streaming workflows.
- NDI networking allows compatible IP video sources to be incorporated into productions.
- Remote app/web control allows compatible production controls to be managed remotely.
- Multiple network options provide flexibility when working from locations with different internet infrastructures.
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Power & Installation
- 75.48Wh battery provides extended portable operation.
- Built-in battery reduces dependence on mains electricity during mobile productions.
- USB Type-C power supply provides the system's charging and power interface.
- 45W power consumption provides the rated power requirement.
- Portable operation makes the device suitable for outside broadcasts and location-based productions.
- 4G LTE connectivity allows streaming from locations without fixed broadband.
- Wi-Fi connectivity allows wireless operation where a suitable network is available.
- Ethernet connectivity provides a wired option for stable internet connections.
- Cellular bonding provides an additional option for improving network resilience.
- Integrated touchscreen eliminates the need for a separate control monitor during normal operation.
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Ideal Use Cases
- Professional multicamera live streaming
- Church and worship broadcasts
- Sports streaming
- Wedding productions
- Corporate events
- Conferences and seminars
- Live interviews
- Podcasts
- Live selling
- Education and lectures
- Real estate video production
- Music events
- Gaming broadcasts
- Social media livestreaming
- Outdoor and mobile broadcasting
- Professional videography
- Remote video production
- Vertical streaming for Instagram and TikTok
- 4K live production
- Multicamera event recording
YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System Pros and Cons
| Pros | Cons |
|---|---|
| Four HDMI inputs for multicamera production | 4K live workflows are subject to supported modes and source limitations |
| 4K streaming and recording support | 4K output is limited to 30fps in the listed specifications |
| ISO recording capability | ISO recording is limited to supported HDMI sources |
| 8-inch 650-nit touchscreen | Professional features may require time to learn |
| Wi-Fi 6 connectivity | Cellular bonding features may involve additional service costs |
| 4G LTE connectivity | Actual streaming performance depends on network conditions |
| Gigabit Ethernet | 4G LTE availability and bands depend on the regional variant |
| Cellular bonding | Horizontal and vertical streaming modes cannot run simultaneously |
| NDI and SRT support | Some advanced workflows may require compatible equipment or services |
| 8GB RAM and 128GB storage | Battery life depends on workload and operating conditions |
FAQs
1. How much is the YoloLiv YoloBox Ultra in Kenya?
The listed price for the YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System is KSh 180,000.
2. How many HDMI inputs does the YoloBox Ultra have?
The YoloBox Ultra has four HDMI video inputs, allowing users to connect multiple cameras and other HDMI video sources for multicamera productions.
3. Does the YoloBox Ultra support 4K streaming?
Yes. The YoloBox Ultra supports 4K live streaming and recording, with support for resolutions up to 4K at 30fps.
4. Does the YoloBox Ultra support ISO recording?
Yes. The YoloBox Ultra supports ISO recording, allowing supported HDMI inputs to be recorded separately for post-production.
5. Does the YoloBox Ultra support 4G LTE?
Yes. The YoloBox Ultra includes 4G LTE connectivity and supports a Nano-SIM for compatible cellular networks. The exact supported bands depend on the regional version.
6. Does the YoloBox Ultra support Wi-Fi 6?
Yes. The YoloBox Ultra supports 2.4GHz and 5GHz Wi-Fi with Wi-Fi 6, providing a modern wireless networking option for live streaming.
7. Can the YoloBox Ultra stream to Instagram and TikTok?
Yes. The YoloBox Ultra supports a Vertical Streaming Mode designed for vertical platforms such as Instagram and TikTok. However, horizontal and vertical streaming modes cannot be used simultaneously.
8. Does the YoloBox Ultra have a built-in display?
Yes. It features an 8-inch LCD touchscreen with a 1200 × 1920 resolution and 650-nit brightness, providing an integrated interface for monitoring and production control.
9. Can the YoloBox Ultra combine multiple internet connections?
Yes. Its cellular bonding capability can combine supported connections across 4G LTE, Wi-Fi, Ethernet and USB modems, helping improve streaming reliability in challenging network environments.
10. Is the YoloLiv YoloBox Ultra worth buying at KSh 180,000?
At KSh 180,000, the YoloBox Ultra is a powerful option for professional users who need multicamera switching, 4K streaming, ISO recording, Wi-Fi 6, 4G LTE, cellular bonding, NDI/SRT connectivity, vertical streaming and portable live production in a single device.
Conclusion
The YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System is a comprehensive portable production platform designed to combine multicamera switching, monitoring, encoding, recording and live streaming into one device. With four HDMI inputs, 4K streaming and recording, ISO recording, an 8-inch touchscreen, Wi-Fi 6, 4G LTE, Gigabit Ethernet, NDI, SRT and cellular bonding, it provides extensive connectivity and production flexibility.
At KSh 180,000, the YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System is a suitable choice for professional videographers, churches, sports broadcasters, wedding videographers, corporate event producers, content creators, podcasters, live sellers and production teams looking for an all-in-one solution for multicamera and mobile live streaming.
