APC SRV10KRILRK Easy UPS 10kVA Online Rackmount 230V

APC SRV10KRILRK Easy UPS On-Line SRV RM 10000VA 230V – Specifications

• Model: SRV10KRILRK / SRVPM10KRILRK

• UPS Type: Online Double-Conversion

• Form Factor: Rackmount (4U UPS + Battery)

• Capacity: 10000VA / 10000W

• Input Voltage: 230V

• Output Voltage: 230V

• Input Connection: Hardwire 3-wire (1PH+N+G)

• Output Connections: Hardwire 3-wire (1PH+N+G), (1) Terminal Block

• Waveform Type: Pure Sine Wave

• Battery Type: Lead-acid, internal modular (extendable)

• Runtime (Full Load): Approx. 3–4 minutes (extendable with battery packs)

• Recharge Time: Under 4 hours

• Display: Multifunction LCD

• Interfaces: USB, RS-232, SmartSlot

• Dimensions (UPS): 438 x 715 x 263 mm

• Weight (UPS + Battery): Approx. 115 kg

• Rack Height: 8U combined (4U UPS + 4U battery module)

Dependable protection with the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

The APC SRV10KRILRK Easy UPS On-Line SRV 10000VA 230V is built to safeguard mission-critical equipment in commercial and IT environments. This rackmount UPS provides clean and reliable power using true double-conversion online technology.

Online double-conversion in the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

The SRV10KRILRK uses double-conversion online architecture to isolate connected devices from power problems. It constantly conditions incoming electricity to deliver steady 230V output—even during fluctuations or outages.

Full 10000W support on the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

Unlike lower-capacity models, this UPS delivers 10000 watts (10kW) of usable power. It’s ideal for medium to large data racks, enterprise servers, and industrial control units that need consistent backup without compromise.

Pure sine wave output in the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

The pure sine wave output ensures compatibility with sensitive electronics and IT gear. Whether you’re running blade servers, routers, or high-end storage, this UPS keeps systems stable under all conditions.

Modular battery power in the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

The SRV10KRILRK comes with a built-in modular battery pack. For environments that require longer runtime, external batteries can be added easily. This gives flexibility to match your backup duration with your needs.

Fast recharge and runtime flexibility on the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

This unit provides 3–4 minutes of runtime at full load, giving ample time for controlled shutdown or generator switch-over. Battery recharge takes less than 4 hours, which helps maintain uptime readiness.

Smart monitoring with the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

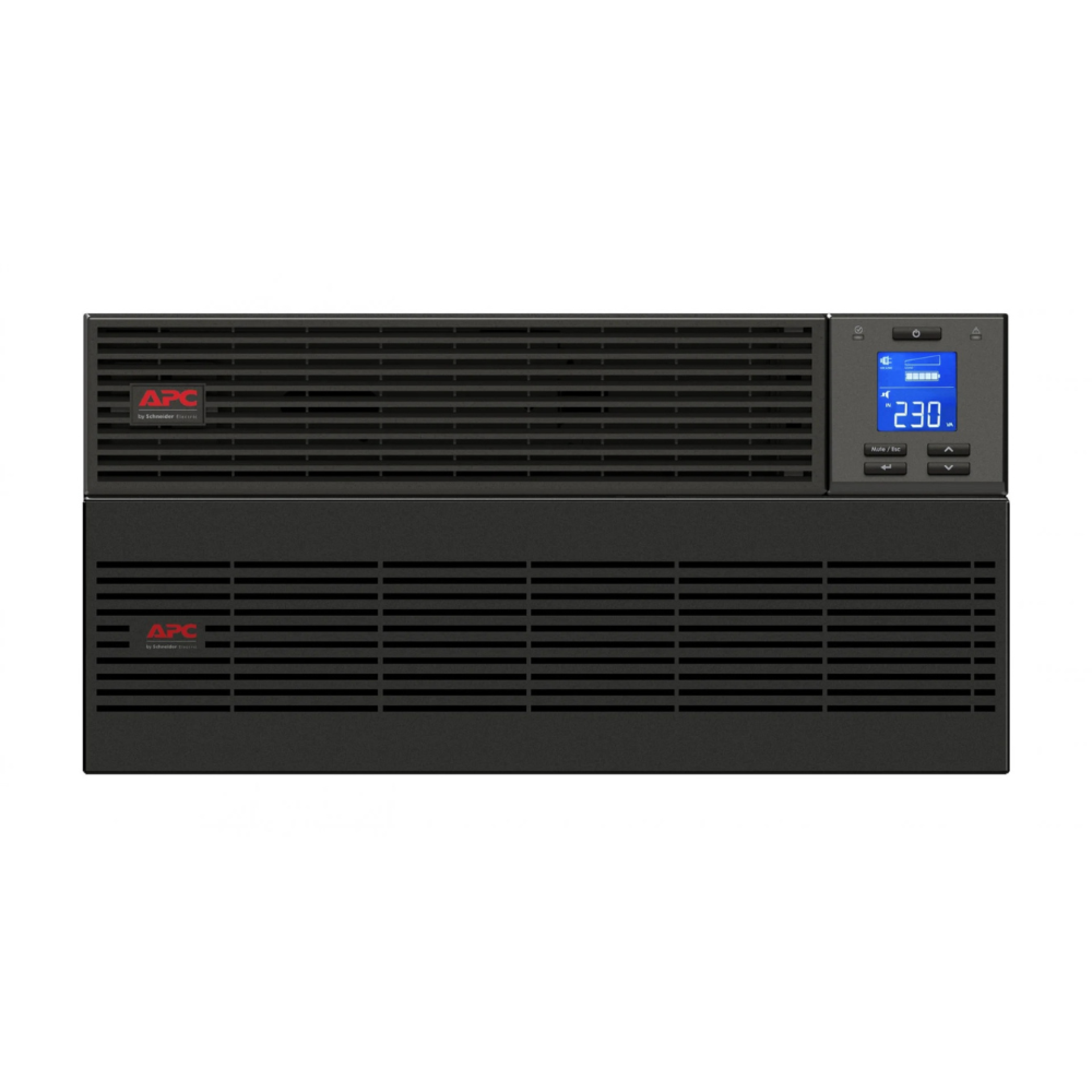

A front-facing LCD display provides clear updates on UPS status, battery level, and load percentage. This simplifies onsite monitoring and helps with quick diagnostics when needed.

Network manageability in the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

Equipped with USB, RS-232, and SmartSlot, the SRV10KRILRK supports advanced network communication. Add SNMP cards or use it with PowerChute Business Edition for remote monitoring and event handling.

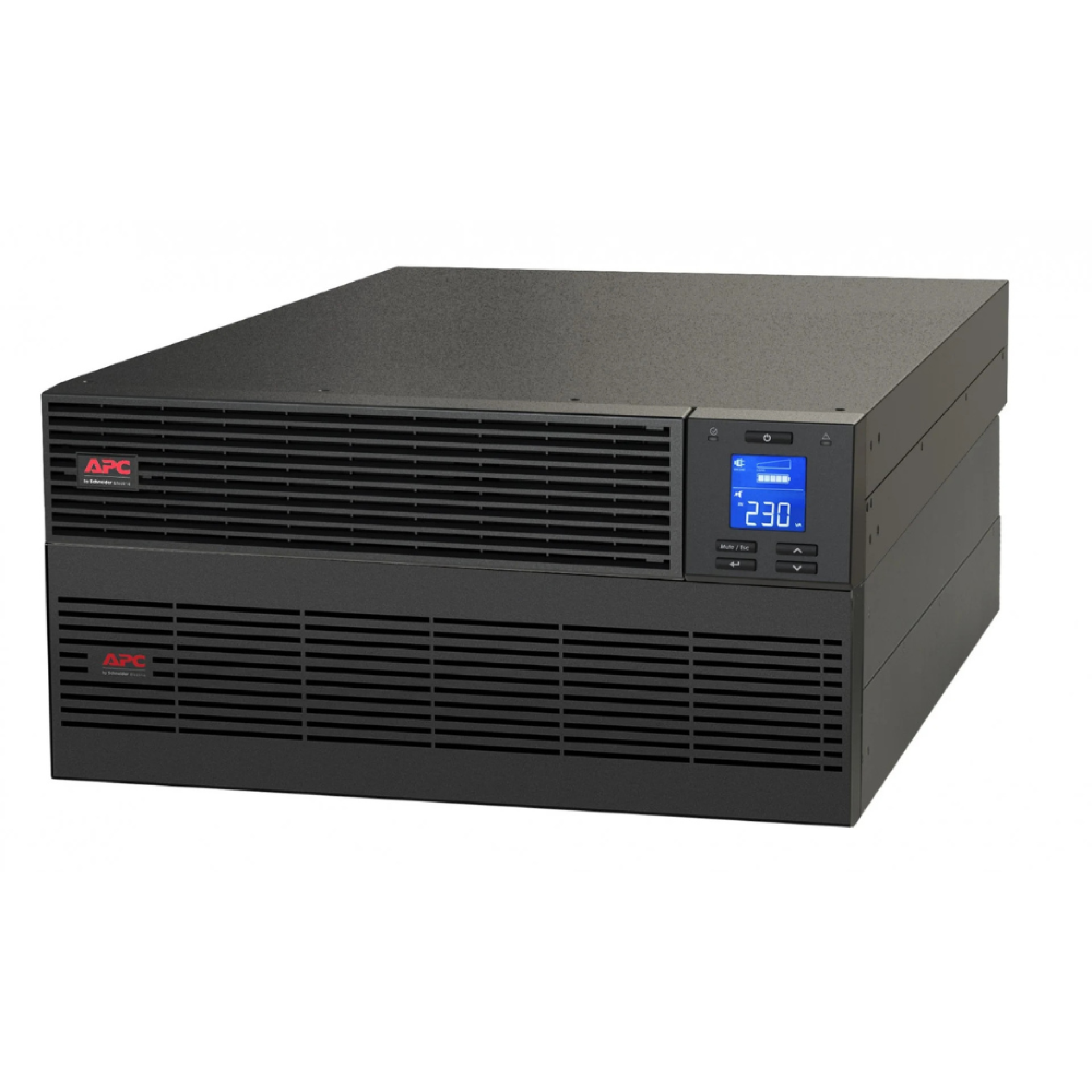

Rackmount design of the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

This rackmount model fits standard 19-inch racks and uses 4U for the UPS and 4U for the battery module, totaling 8U height. Its compact footprint helps you save space in crowded IT closets or server rooms.

High-density power from the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

The compact footprint doesn’t compromise output. The high power density of the unit ensures more watts per U-space, which is especially useful in high-demand applications where space is tight.

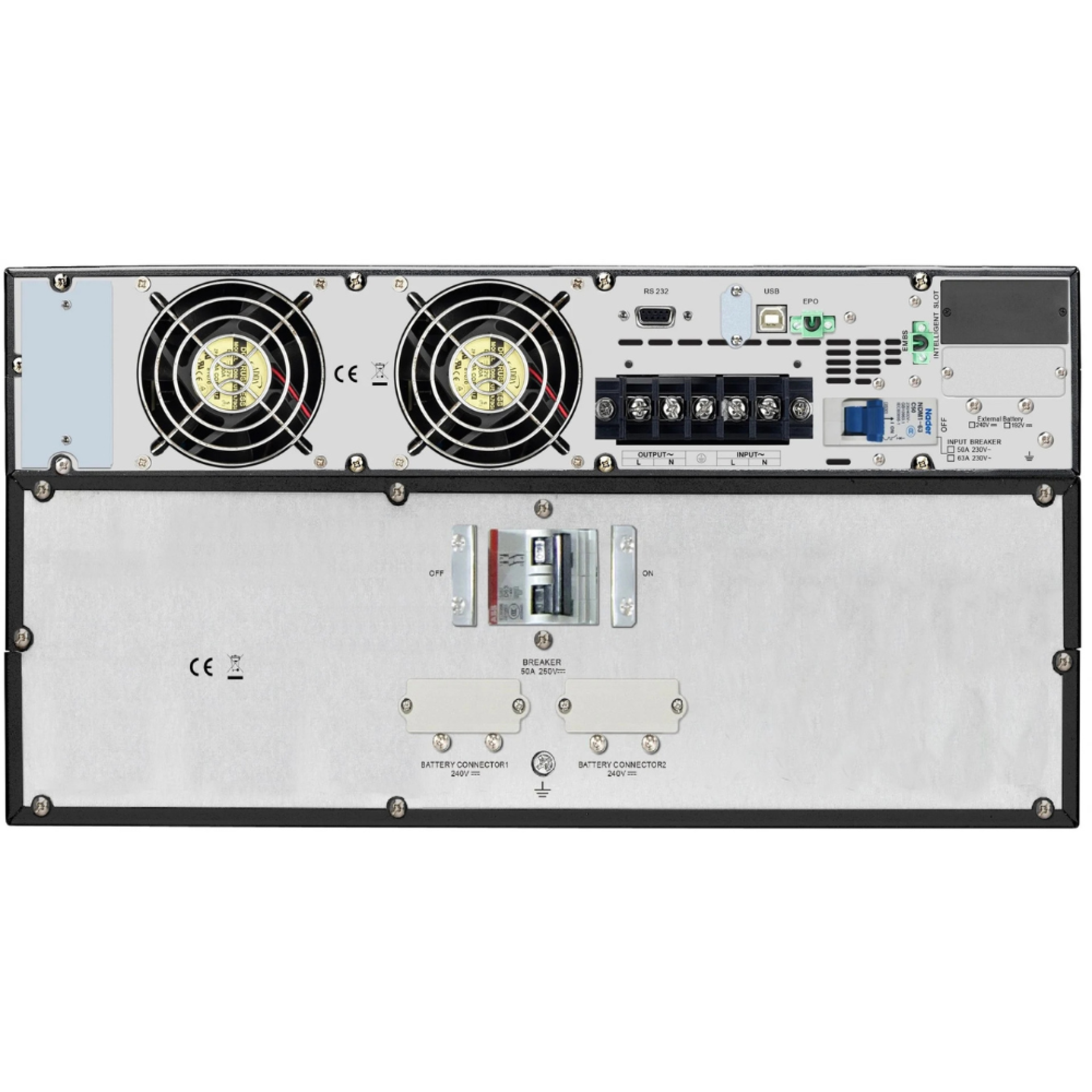

Flexible output connections on the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

The terminal block output makes it easy to wire up mission-critical loads directly. Whether you’re powering servers, edge switches, or control cabinets, the SRV10KRILRK offers reliable delivery.

Reliable performance under pressure with the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

Thanks to its rugged build, this UPS can handle tough power conditions while maintaining stable output. It is designed for continuous 24/7 operation in high-demand commercial, industrial, and IT scenarios.

Ideal applications for the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

This unit is suited for server rooms, financial offices, industrial automation, medical equipment, and high-density rack systems where consistent power is non-negotiable.

Seamless installation and serviceability of the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA

The UPS supports hot-swappable batteries and offers easy front access for maintenance. This reduces the need for downtime during battery replacement or service operations.

Why the APC SRV10KRILRK Easy UPS On-Line SRV 10000VA is a smart choice

With full 10kVA/10kW power, online protection, and scalable battery runtime, the SRV10KRILRK is an ideal solution for businesses that demand uninterrupted, high-quality power in a rackmount format.
