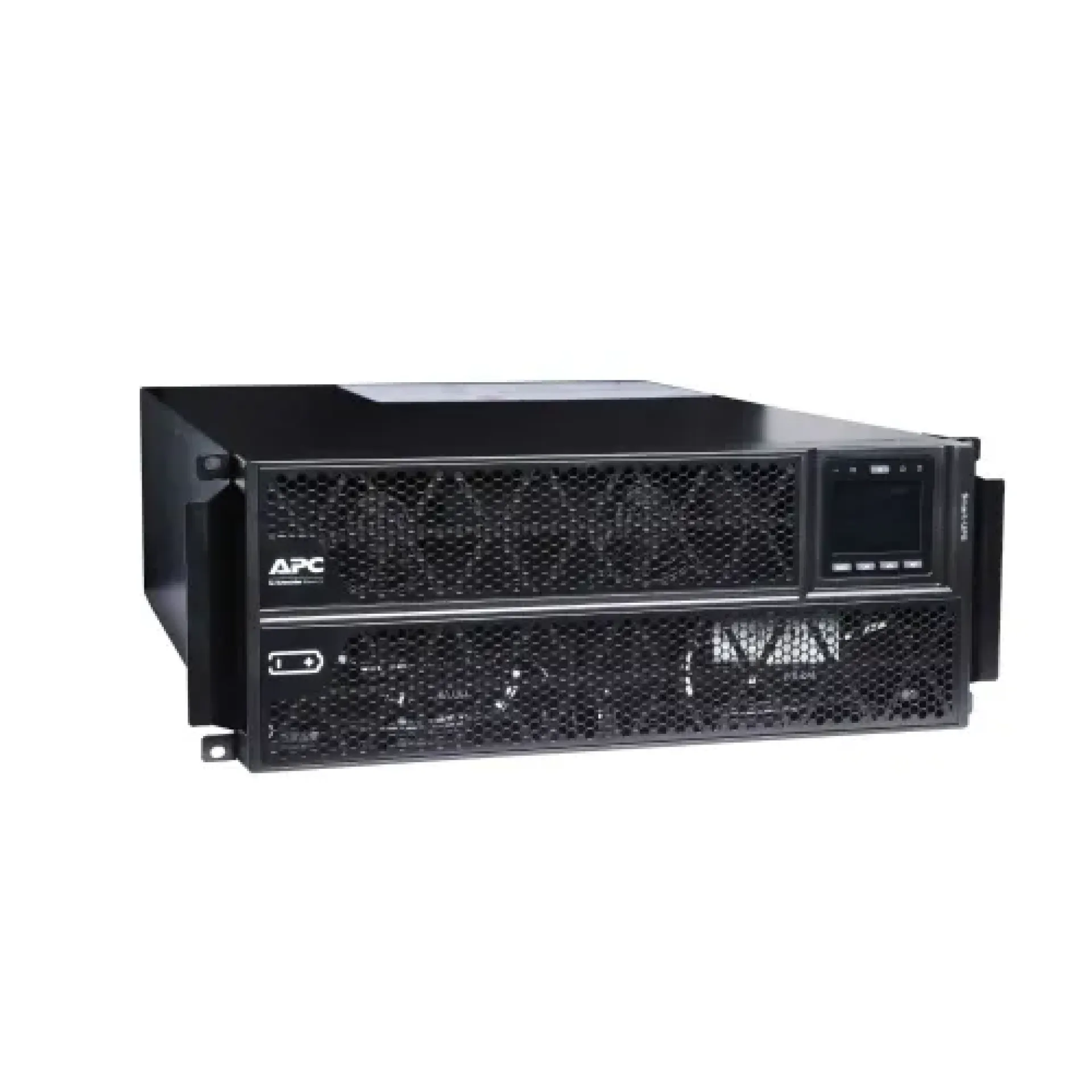

APC Smart-UPS 6kVA 230V Rackmount Online UPS SRTG6KXLI

APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI — Specifications

• Model: SRTG6KXLI

• Type: Rackmount Online Double Conversion UPS

• Capacity: 6000VA / 6000W

• Form Factor: 3U Rackmount

• Input Voltage: 230V

• Output Voltage: 230V

• Input Connection: Hardwire 3-wire (1PH + N + G)

• Output Connections: (6) IEC C13, (2) IEC C19, Hardwire

• Waveform Type: Pure Sine Wave

• Technology: Online Double Conversion

• Battery Type: Internal battery cartridge

• Battery Runtime: 3–5 minutes at full load (extendable)

• Recharge Time: Typically 3 hours

• Display: LCD control panel

• Management Options: SmartSlot, network card compatible

• Dimensions: 130 x 432 x 715 mm

• Weight: Approx. 61.2 kg

• Mounting: Rackmount (3U)

Power stability with the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

The APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI is a high-performance, double-conversion online UPS built to protect mission-critical systems. With 6000 watts of consistent, clean power output, it ensures essential equipment remains operational during outages or power fluctuations.

Online double-conversion technology in the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

This UPS provides seamless protection using online double-conversion. Incoming power is fully conditioned before delivery, resulting in zero transfer time and fully isolated, clean power. This makes the SRTG6KXLI ideal for sensitive IT systems, medical equipment, and telecom infrastructure.

Pure sine wave output with the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

The pure sine wave output ensures stable, high-quality electricity. This type of power is especially important for systems that require precision, like servers, storage devices, lab instruments, and VoIP systems.

High output capacity in the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

With a full 6000VA / 6000W power rating, this UPS can handle large server stacks, multi-rack data systems, and critical production equipment. You get consistent performance even under full load.

Runtime and battery features of the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

This unit delivers 3 to 5 minutes of backup at full load, which can be extended with external battery packs for longer uptime. It's built for enterprise-level power continuity where even seconds of downtime are unacceptable.

Rackmount form factor of the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

Designed to fit standard 19-inch IT racks, this 3U rackmount UPS uses minimal vertical space while providing powerful protection. Heavy-duty rails make installation easy and stable, even in fully loaded enclosures.

Output connections on the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

This model includes (6) IEC C13, (2) IEC C19, and hardwire output terminals. It’s suited for high-demand devices like blade servers, network switches, or enterprise routers—all while maintaining independent, secure connections.

LCD control interface in the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

The multifunction LCD panel shows real-time info such as voltage levels, battery charge, and load capacity. Easy-to-use buttons let technicians manage configurations, perform diagnostics, and review event logs directly from the front panel.

Expandable management for the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

Equipped with a SmartSlot, the SRTG6KXLI supports network management cards for remote monitoring. Add-ons like SNMP cards and environmental sensors enable deeper control over your power systems through software like APC’s PowerChute or web interfaces.

Scalable design of the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

The SRTG6KXLI is built to grow with your infrastructure. Add external battery modules for extended runtime. With its high-wattage output and flexible connectivity, you can scale protection for expanding server environments or complex lab setups.

Installation flexibility of the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

This UPS uses a hardwired input, making it suitable for permanent installs in enterprise data centers. It’s robust enough to act as the backbone for mission-critical systems in sectors such as banking, healthcare, government, or telecom.

Ideal applications for the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

Perfect for enterprise IT, healthcare environments, network operations centers, and manufacturing automation, the SRTG6KXLI ensures consistent uptime and power quality where even milliseconds of downtime cause disruption or data loss.

Dimensions and build quality of the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI

At 130 x 432 x 715 mm, this 3U unit balances compact design with serious performance. The 61.2 kg steel chassis ensures durability under high-demand use, while built-in fans and thermal management features keep the unit running cool.

Conclusion: Why the APC Smart-UPS SRTG 6000VA 230V 6kVA Rackmount – SRTG6KXLI stands out

The SRTG6KXLI delivers robust, scalable, and professional-grade power protection. With online double-conversion, 6000W output, and rack-friendly installation, it's an excellent fit for critical infrastructure that can’t afford interruption.
