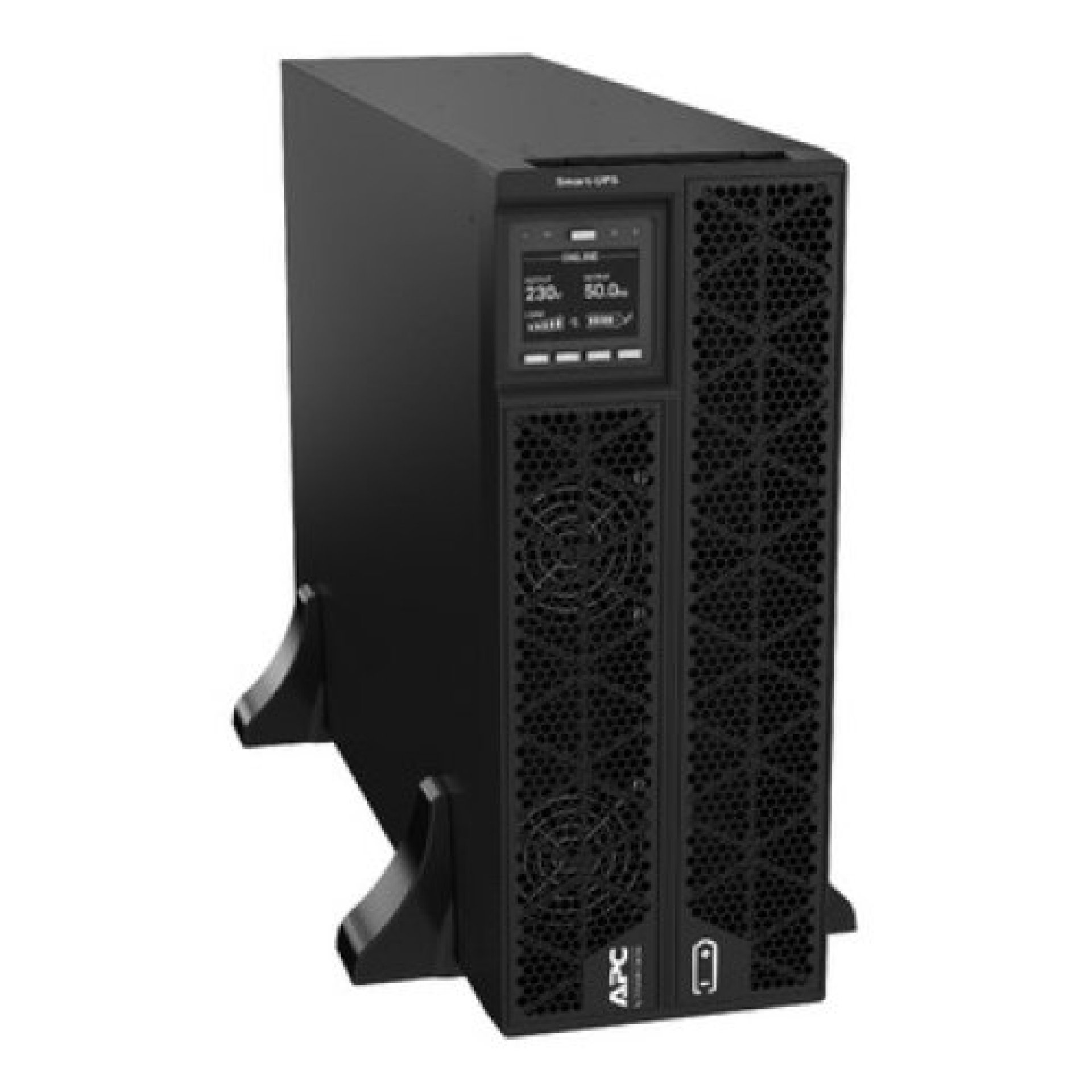

APC Smart-UPS RT 5kVA 230V Rackmount Online UPS SRTG5KXLI

APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI — Specifications

• Model: SRTG5KXLI

• Type: Rackmount Online Double Conversion UPS

• Capacity: 5000VA / 5000W

• Form Factor: 3U Rackmount

• Input Voltage: 230V

• Output Voltage: 230V

• Plug Type: Hardwire 3-wire (1PH + N + G)

• Output Connections: (6) IEC C13, (2) IEC C19

• Waveform Type: Pure Sine Wave

• Technology: Double Conversion Online

• Battery Type: Internal battery cartridge

• Battery Runtime: Up to 4 minutes at full load

• Recharge Time: 1.5–3 hours typical

• Display: Multifunction LCD panel

• Management: SmartSlot, network card optional

• Dimensions: 130 x 432 x 715 mm

• Weight: 55.9 kg

• Mounting: Rackmount (3U)

Reliable protection with the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

The APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI is engineered for critical infrastructure. With 5000VA / 5000W of power and double-conversion online technology, it offers zero transfer time and unmatched protection from power instability. This makes it ideal for sensitive enterprise environments.

Double-conversion efficiency in the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

The SRTG5KXLI continuously converts incoming AC power into DC, then back to AC for delivery. This online topology ensures fully isolated, consistent output even during brownouts, surges, or fluctuations—without ever switching to battery unless absolutely necessary.

High output performance of the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

Unlike line-interactive models, the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI provides a full 5000 watts of clean output. It can support high-draw loads such as large servers, storage arrays, and medical or industrial-grade equipment without compromise.

Runtime capacity of the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

This model provides up to 4 minutes of runtime at full load, with options to connect external battery packs for extended backup times. Its fast recharge cycle of under 3 hours ensures it's quickly ready for the next outage event.

Rackmount compatibility in the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

The 3U rackmount form integrates smoothly into standard 19-inch racks. At just 130 mm high, the UPS conserves vertical space while still delivering robust power for multiple devices. It includes rails for mounting in 4-post enclosures.

Pure sine wave power from the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

For high-end hardware and precision electronics, this UPS offers pure sine wave output with tight voltage regulation. This minimizes wear on connected devices and eliminates distortion, making it suitable for lab, industrial, and IT operations.

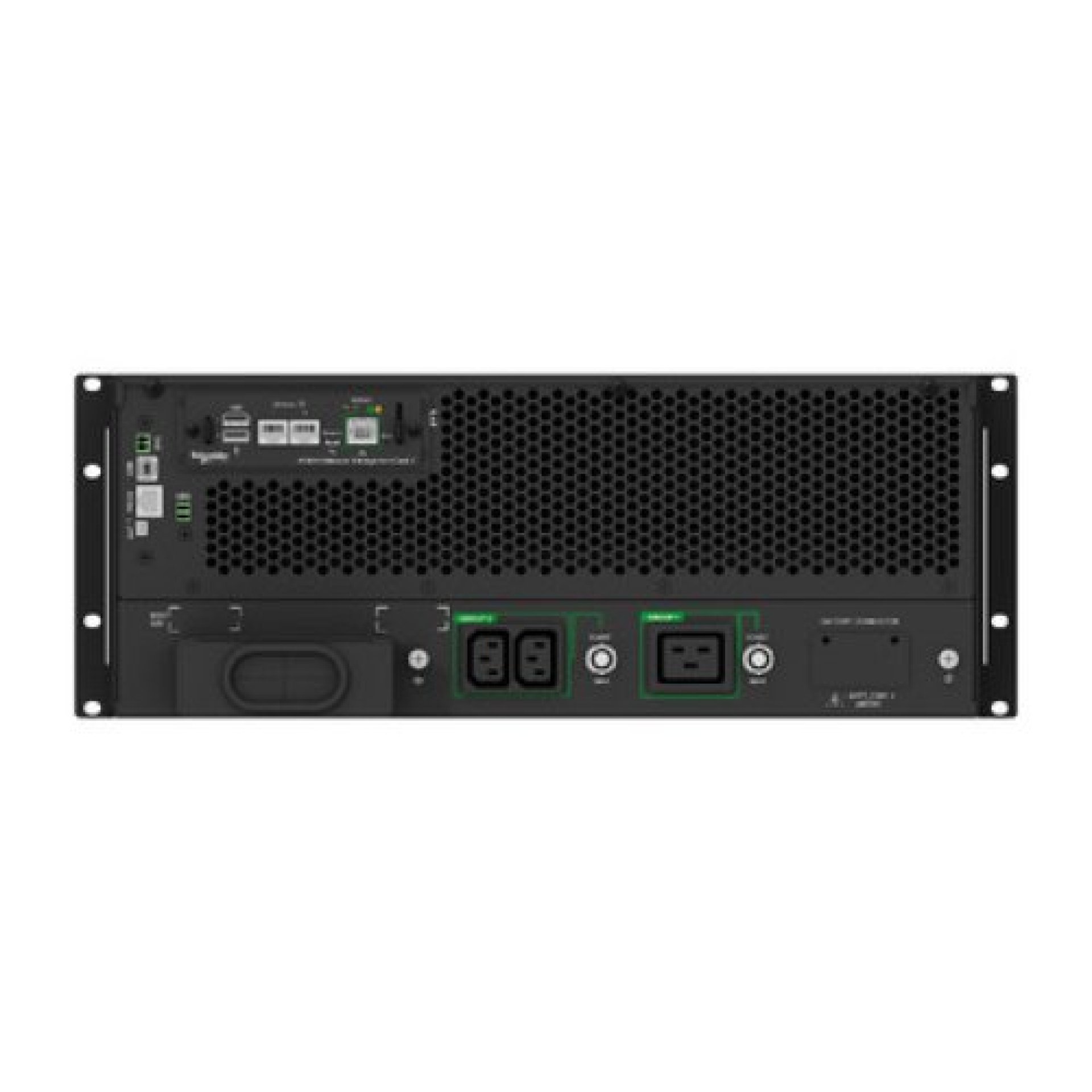

Output options on the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

You get (6) IEC C13 and (2) IEC C19 outlets, with a hardwired input terminal for permanent installation. This layout is perfect for high-power loads like blade servers, switch clusters, and backup systems that require consistent uptime.

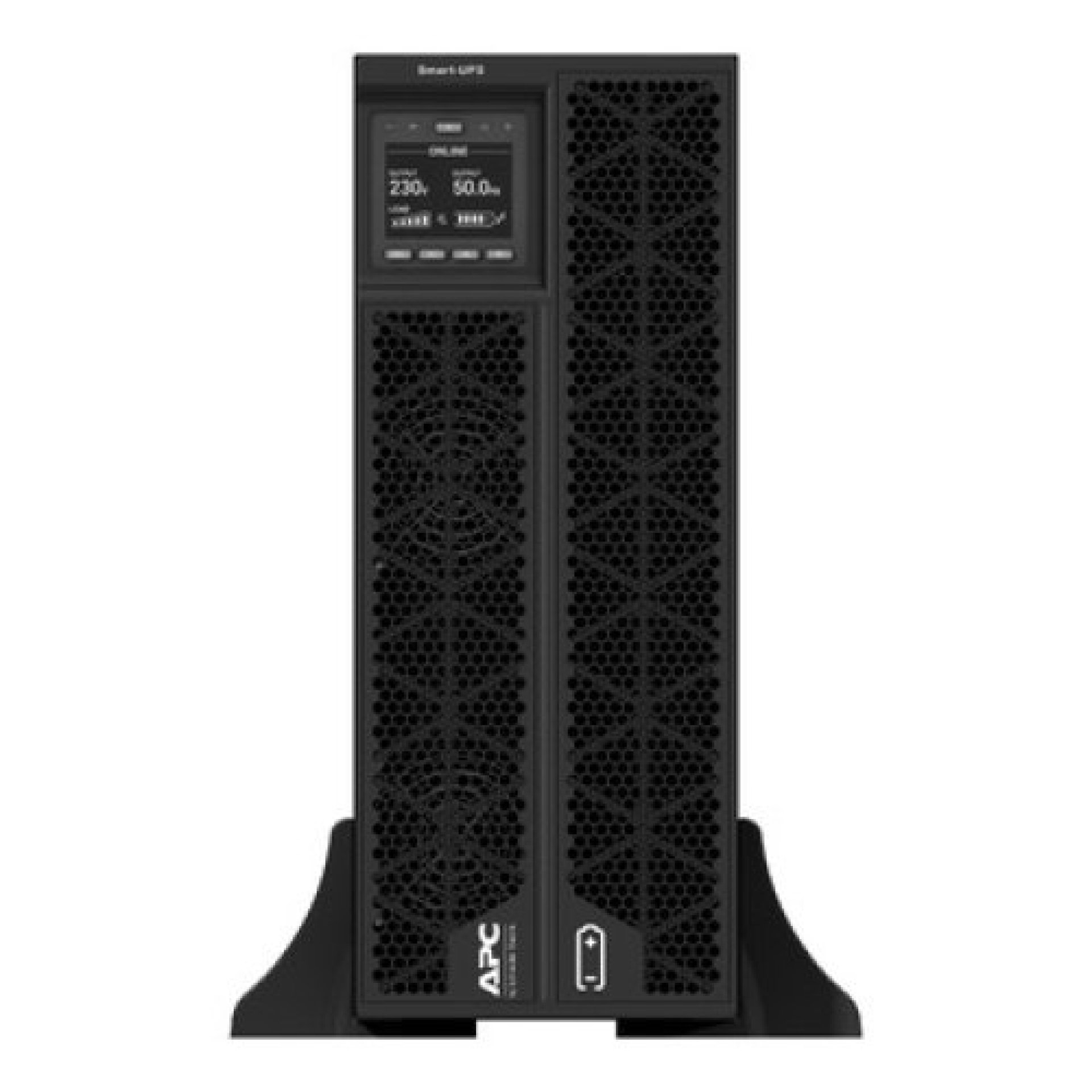

LCD control interface in the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

A bright multifunction LCD panel displays critical data like voltage, frequency, load, runtime, and event logs. Easy navigation buttons let users monitor or configure the UPS right from the rack. No external software needed for basic setup.

Expandable and manageable – APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

The UPS includes a SmartSlot for optional accessories like SNMP network management cards. You can also add environmental sensors for temperature and humidity monitoring, making it ideal for remote IT environments.

Installation flexibility of the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

The hardwired input makes it a top choice for permanent, secure installs in data centers or production environments. You can pair the SRTG5KXLI with external battery modules, generators, or PDUs to tailor a scalable backup solution.

Ideal use cases for the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

The APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI is built for enterprise IT, healthcare labs, industrial controls, and mission-critical systems. Whether you're powering medical imaging gear or server banks, this UPS delivers the uptime and stability your operation demands.

Dimensions and design of the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI

At 130 x 432 x 715 mm, and 55.9 kg, this is a serious UPS meant for heavy-duty environments. It features a steel chassis, internal cooling fans, and reinforced mounting brackets to ensure long-term reliability and safety.

Conclusion: Why the APC Smart-UPS RT 5kVA 230V Rackmount – SRTG5KXLI stands out

The SRTG5KXLI offers a balance of high wattage, online protection, and enterprise-grade flexibility. With zero transfer time, pure sine wave output, and expandable battery runtime, it's a rock-solid foundation for modern data-driven environments.
