Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Key Features
- Compact outdoor RFID access control reader
- Mullion-type design for narrow installation spaces
- Dual-frequency RFID technology
- Supports 125 kHz EM cards
- Supports 13.56 MHz MIFARE cards
- Supports MIFARE Plus cards
- Supports DESFire, DESFire EV1, EV2 and EV3 cards
- Supports FeliCa cards
- Supports mobile credentials through NFC and BLE
- RFID read range of up to 50 mm for MIFARE, DESFire and EM cards
- RFID read range of up to 30 mm for FeliCa cards
- Supports up to 200,000 users
- Stores up to 1,000,000 text logs
- 1 GHz processor
- 4 GB Flash memory and 64 MB RAM
- IP65 and IP67 protection
- IK08 impact protection
- Multi-color LED indicator
- Multi-tone buzzer
- Ethernet connectivity
- RS-485 connectivity
- OSDP V2 compliant
- Wiegand input/output
- 2 input channels
- 1 relay output
- IEEE 802.3af PoE support
- Tamper detection
- Wide operating temperature range
- Suitable for indoor and outdoor access control applications

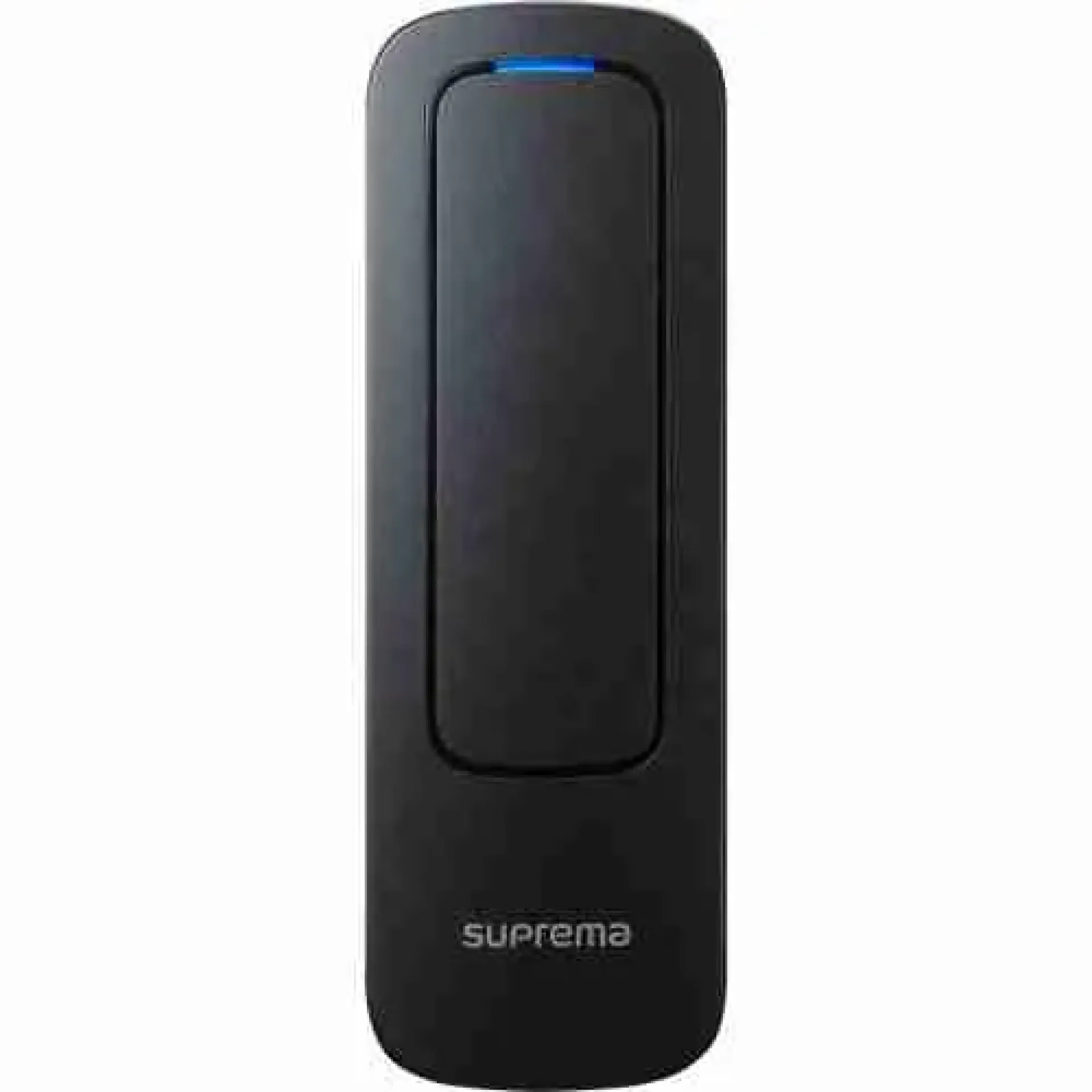

Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Introduction
The Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader is a compact and rugged access control reader designed for professional indoor and outdoor security installations. It combines dual-frequency RFID technology with support for mobile credentials through NFC and BLE, providing flexible options for controlling access to buildings, rooms, gates, offices and restricted areas.
The XP2-MDPB supports 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire and FeliCa cards. It can also read supported mobile credentials using NFC and BLE. With support for up to 200,000 users and 1,000,000 text logs, it is suitable for access control systems that require substantial credential and event capacity.
Its IP65/IP67 protection and IK08 impact resistance make the reader suitable for demanding environments, while the slim mullion-style design allows it to fit into narrow door frames and other restricted installation spaces.
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Price
| Product Price | |
|---|---|
| Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader | KSh 49,000 |
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Key Specifications
| Feature | Details |
| Brand | Suprema |
| Model | XP2-MDPB |
| Product Name | XPass 2 |
| Product Type | Outdoor Compact RFID Reader |
| Installation Type | Mullion |
| RFID Technology | 125 kHz EM & 13.56 MHz |
| Supported Cards | EM, MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FeliCa |
| Mobile Credentials | NFC, BLE |
| RFID Read Range | Up to 50 mm for MIFARE/DESFire/EM; up to 30 mm for FeliCa |
| Maximum Users | 200,000 |
| Maximum Cards | 200,000 |
| Text Logs | 1,000,000 |
| CPU | 1 GHz |
| Memory | 4 GB Flash + 64 MB RAM |
| Ethernet | 10/100 Mbps, Auto MDI/MDI-X |
| Network Protocol | TCP, UDP |
| RS-485 | 1 Channel, Master/Slave Selectable |
| Communication Protocol | OSDP V2 Compliant |
| Wiegand | 1 Channel, Input/Output Selectable |
| Inputs | 2 Channels |
| Relay | 1 Relay |
| PoE | IEEE 802.3af Supported |
| LED | Multi-color |
| Sound | Multi-tone Buzzer |
| IP Rating | IP65, IP67 |
| IK Rating | IK08 |
| Tamper Detection | Supported |
| Operating Temperature | -35°C to 65°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 0% to 95%, non-condensing |
| Storage Humidity | 0% to 95%, non-condensing |
| Power | 12V DC / 24V DC or PoE |
| Dimensions | 48 × 144.7 × 27 mm |
| Weight | 144 g |
| Bracket Weight | 30 g |
The specifications are based on Suprema's current XP2-MDPB product documentation.
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Performance
The Suprema XPass 2 XP2-MDPB is designed to deliver reliable RFID-based access authentication in both indoor and outdoor environments. Its dual-frequency RFID capability allows it to support a broad range of commonly used card technologies.
The reader supports 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire and FeliCa credentials. It also supports NFC and BLE mobile credentials, providing users with alternatives to traditional physical cards.
Performance highlights include:
- Up to 200,000 users
- Up to 200,000 cards
- Up to 1,000,000 text logs
- 1 GHz processor
- 4 GB Flash memory
- 64 MB RAM
- Up to 50 mm RFID read range for MIFARE, DESFire and EM
- Up to 30 mm read range for FeliCa
- NFC and BLE mobile credential support
- Multi-color LED feedback
- Multi-tone audible feedback
- Reliable operation in temperatures from -35°C to 65°C
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Connectivity
The XP2-MDPB provides several communication and connection interfaces for integration into professional access control installations.
Connectivity options include:
- 10/100 Mbps Ethernet
- RS-485
- OSDP V2
- Wiegand input/output
- 2 input channels
- 1 relay output
- PoE through IEEE 802.3af
- 12V DC or 24V DC power options
The Ethernet interface supports TCP and UDP, while the RS-485 interface can operate as either a master or slave and is OSDP V2 compliant. The Wiegand interface can also be configured as an input or output.
PoE support can simplify installation by allowing the reader to receive power and network connectivity through compatible Ethernet infrastructure.
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Design And Built
The Suprema XP2-MDPB features a slim mullion-style design specifically intended for installations where available space is limited. Its approximately 48 mm width allows it to be installed neatly beside doors and within narrow access control areas.
The reader is built for demanding environments, featuring IP65 and IP67 protection against dust and water and an IK08 impact-resistance rating. This makes it suitable for outdoor installations and locations exposed to harsh environmental conditions.
Design features include:
- Compact mullion-style housing
- 48 × 144.7 × 27 mm dimensions
- 144 g device weight
- IP65/IP67 protection
- IK08 impact protection
- Multi-color LED indicator
- Multi-tone buzzer
- Tamper detection
- Slim installation profile
- Suitable for outdoor and indoor use
The device is rated for operating temperatures from -35°C to 65°C and operating humidity from 0% to 95% non-condensing, providing flexibility for demanding access control environments.
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Ideal Use Cases
The Suprema XP2-MDPB XPass 2 is ideal for:
- Office access control
- Corporate buildings
- Commercial premises
- Schools and universities
- Hospitals
- Hotels
- Warehouses
- Factories
- Government facilities
- Apartment buildings
- Residential compounds
- Parking access points
- Gates and barriers
- Restricted areas
- Outdoor doors
- Indoor doors
- Multi-door access control systems
Its rugged construction, compact size, multiple RFID technologies, mobile credential support and flexible network interfaces make it suitable for both standard and demanding access control installations.
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Pros And Cons
| Pros | Cons |
| Dual-frequency RFID support | Requires an access control system or compatible controller |
| Supports 125 kHz EM cards | RFID read range is relatively short |
| Supports MIFARE and DESFire | No fingerprint authentication |
| Supports NFC and BLE mobile credentials | No built-in keypad |
| Supports up to 200,000 users | |
| Stores up to 1,000,000 text logs | |
| IP65/IP67 protection | |
| IK08 impact resistance | |
| Compact mullion design | |
| Ethernet connectivity | |
| RS-485 and OSDP V2 support | |
| Wiegand interface | |
| PoE support | |
| Tamper detection | |
| Wide operating temperature range |
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader FAQs
What is the Suprema XP2-MDPB XPass 2?
The Suprema XP2-MDPB XPass 2 is a compact outdoor RFID access control reader designed to read multiple RFID card technologies and supported mobile credentials.
What RFID cards does the XP2-MDPB support?
It supports 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3 and FeliCa cards.
Does the XPass 2 support mobile access?
Yes. The XP2-MDPB supports mobile credentials through NFC and BLE.
How many users can the XP2-MDPB support?
The reader supports up to 200,000 users and can store up to 1,000,000 text logs.
Is the Suprema XPass 2 suitable for outdoor use?
Yes. The XP2-MDPB has IP65 and IP67 protection and an IK08 impact-resistance rating, making it suitable for outdoor and demanding installations.
Does the XP2-MDPB support PoE?
Yes. It supports IEEE 802.3af Power over Ethernet, allowing power and network connectivity through compatible Ethernet infrastructure.
What communication interfaces does the XP2-MDPB have?
It supports Ethernet, RS-485, OSDP V2 and Wiegand, along with two input channels and one relay output.
What is the RFID reading range?
The specified read range is up to 50 mm for MIFARE, DESFire and EM cards and up to 30 mm for FeliCa. Actual range can vary depending on the installation environment.
Does the XP2-MDPB have a fingerprint sensor?
No. The XP2-MDPB is an RFID reader, not a fingerprint reader. It authenticates users through supported RFID cards and mobile credentials.
What is the size of the XP2-MDPB?
The XP2-MDPB measures approximately 48 × 144.7 × 27 mm, making it suitable for narrow door-frame and mullion installations.
What temperatures can the XPass 2 operate in?
The XP2-MDPB is rated for operating temperatures from -35°C to 65°C.
Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader Conclusion
The Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader is a compact, rugged and flexible access control solution designed for organizations that need reliable RFID authentication in indoor and outdoor environments. With dual-frequency RFID support, NFC and BLE mobile credentials, support for up to 200,000 users, 1,000,000 text logs, Ethernet, RS-485, OSDP V2, Wiegand, PoE, IP65/IP67 protection and IK08 impact resistance, it provides a versatile solution for modern access control systems.
Priced at KSh 49,000, the Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader is a suitable choice for offices, commercial buildings, schools, hospitals, hotels, warehouses, factories, residential compounds, gates and other locations requiring reliable RFID-based access control.
