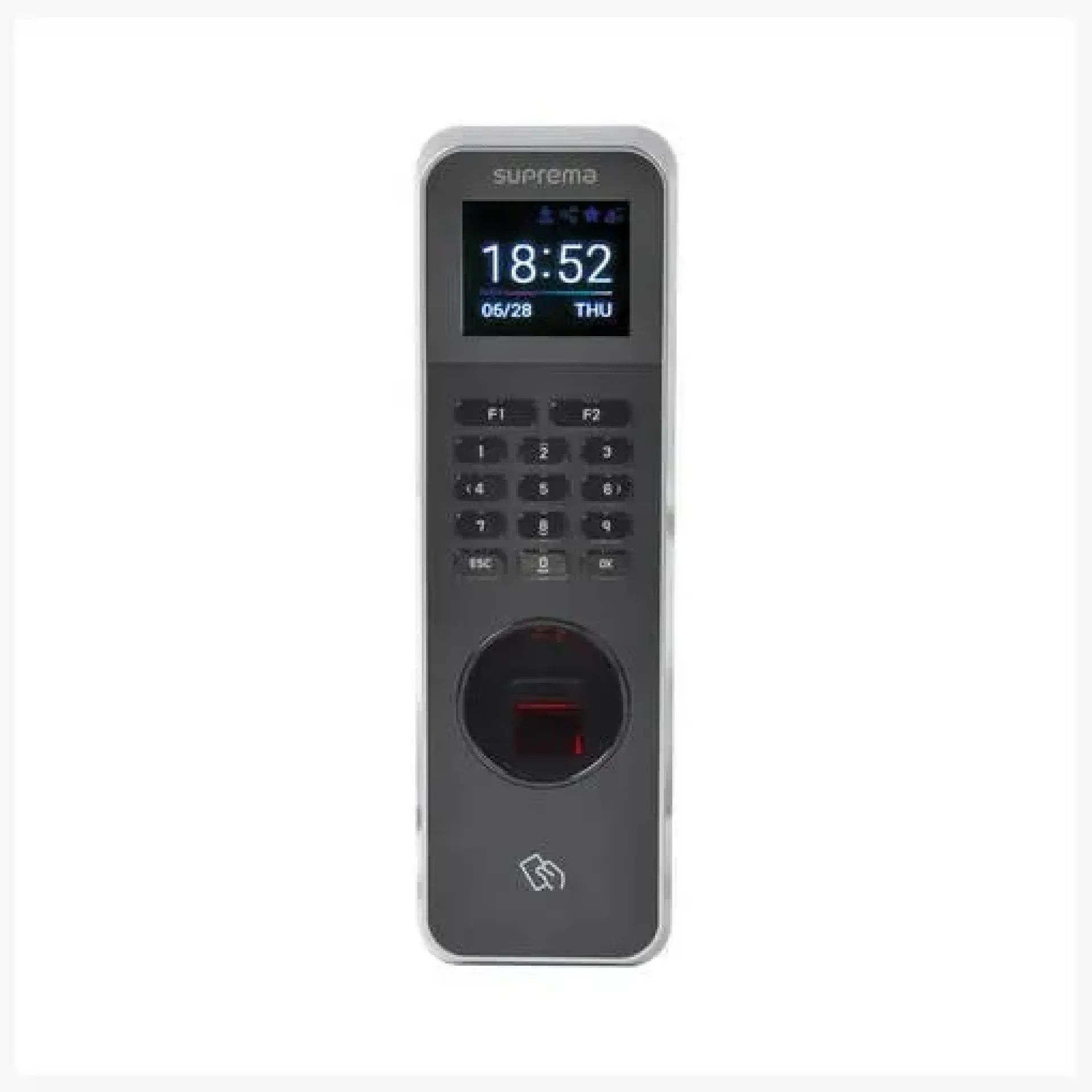

Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Key Features
- Outdoor IP fingerprint terminal for access control and time attendance
- High-precision optical fingerprint sensor
- 500 dpi fingerprint resolution
- Suprema fingerprint algorithm
- MINEX-certified and compliant fingerprint extractor and matcher
- Software-based Live Fingerprint Detection
- Supports up to 10,000 users
- Supports up to 10,000 fingerprint credentials
- Supports up to 10,000 card credentials
- Supports up to 10,000 PIN credentials
- Stores up to 1,000,000 text logs
- Supports 125 kHz EM RFID cards
- Supports 13.56 MHz MIFARE, MIFARE Plus, DESFire and FeliCa cards
- Supports NFC and 2.4 GHz BLE mobile credentials
- 1.2 GHz processor
- 4 GB Flash memory and 64 MB RAM
- 1.77-inch color TFT LCD
- 160 × 128 pixel display resolution
- IP65 and IP67 protection
- Ethernet connectivity
- RS-485 connectivity
- OSDP V2 support
- Wiegand input/output
- 2 input channels
- 1 relay output
- Tamper detection
- Compact outdoor-ready construction
- 12V DC power
- Suitable for access control and time attendance applications
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Introduction
The Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal is a professional biometric terminal designed for outdoor access control and time attendance applications. It combines fingerprint authentication with RFID card and mobile credential support, providing organizations with multiple options for verifying users.
The BLN2-ODB features a high-precision optical fingerprint sensor with 500 dpi resolution, Suprema's fingerprint algorithm, and a MINEX-certified fingerprint extractor and matcher. It also supports software-based Live Fingerprint Detection for enhanced biometric authentication.
The terminal supports 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire and FeliCa cards, while the BLN2-ODB model also supports NFC and 2.4 GHz BLE mobile credentials. Its rugged IP-rated construction makes it suitable for outdoor installations and demanding access control environments.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Price
| Product Price | |
|---|---|
| Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal | KSh 100,000 |
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Key Specifications
| Feature | Details |
| Brand | Suprema |
| Model | BLN2-ODB |
| Product Type | Outdoor IP Fingerprint Terminal |
| Biometric Credential | Fingerprint |
| Sensor Type | Optical Sensor |
| Fingerprint Resolution | 500 dpi |
| Image Dimension | 272 × 320 pixels |
| Image Bit Depth | 8-bit, 256 grayscale |
| Fingerprint Templates | SUPREMA / ISO 19794-2 / ANSI-378 |
| Extractor / Matcher | MINEX Certified and Compliant |
| Live Fingerprint Detection | Supported, Software-Based |
| RFID | 125 kHz EM, 13.56 MHz MIFARE, MIFARE Plus, DESFire, FeliCa |
| Mobile Credentials | NFC, 2.4 GHz BLE |
| RFID Read Range | Up to 50 mm for MIFARE/DESFire; up to 30 mm for EM/FeliCa |
| Maximum Users | 10,000 |
| Fingerprint Credentials | Up to 10,000 |
| Card Credentials | Up to 10,000 |
| PIN Credentials | Up to 10,000 |
| Maximum Text Logs | 1,000,000 |
| CPU | 1.2 GHz |
| Memory | 4 GB Flash + 64 MB RAM |
| Display | 1.77-inch Color TFT LCD |
| Display Resolution | 160 × 128 pixels |
| Sound | 16-bit |
| Ethernet | 10/100 Mbps |
| Network Protocol | TCP, UDP |
| RS-485 | 1 Channel, Master/Slave Selectable |
| Communication Protocol | OSDP V2 Compliant |
| Wiegand | 1 Channel, Input/Output Selectable |
| Inputs | 2 Channels |
| Relay | 1 |
| Tamper Detection | Supported |
| IP Protection | IP65 / IP67 |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 0% to 80%, non-condensing |
| Storage Humidity | 0% to 90%, non-condensing |
| Power | 12V DC, maximum 0.4A |
| Dimensions | 58 × 190 × 44 mm bottom / 34.6 mm top |
| Device Weight | 255 g |
| Bracket Weight | 57 g |
The specifications above are based on Suprema's current BioLite N2 documentation for the BLN2-ODB model.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Performance
The BioLite N2 BLN2-ODB is designed to provide fast and reliable biometric authentication for access control and time attendance environments. Its 1.2 GHz CPU provides responsive operation, while the optical fingerprint sensor delivers detailed 500 dpi fingerprint images.
The terminal supports up to 10,000 users, with capacity for 10,000 fingerprint, card, and PIN credentials depending on the authentication method. It can also store up to 1,000,000 text logs, making it suitable for organizations with substantial access and attendance records.
Performance highlights include:
- 500 dpi optical fingerprint scanning
- MINEX-certified fingerprint matching
- Software-based Live Fingerprint Detection
- 1.2 GHz processing
- Up to 10,000 users
- Up to 10,000 fingerprint credentials
- Up to 10,000 card credentials
- Up to 10,000 PIN credentials
- Up to 1,000,000 text logs
- Multiple RFID technologies
- NFC and BLE mobile credential support
- 1.77-inch color TFT display
- Reliable operation in temperatures from -20°C to 50°C
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Connectivity
The BioLite N2 BLN2-ODB provides several connectivity options for professional access control installations. It includes 10/100 Mbps Ethernet, RS-485, and Wiegand connectivity, allowing it to work with compatible access control infrastructure.
Connectivity options include:
- 10/100 Mbps Ethernet
- TCP and UDP network protocols
- RS-485 interface
- OSDP V2 communication
- Wiegand input/output
- 2 input channels
- 1 relay output
- 12V DC power
- Tamper detection
The Ethernet connection allows the terminal to communicate over an IP network, while RS-485 and Wiegand interfaces provide additional options for connecting compatible access control equipment.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Design And Built
The Suprema BioLite N2 BLN2-ODB features a compact and rugged design intended for outdoor access control environments. Its IP65 and IP67 protection ratings provide protection against dust and water, making the terminal suitable for demanding installation locations.
The terminal measures approximately 58 × 190 × 44 mm at the bottom and 34.6 mm at the top, with a device weight of approximately 255 g. The supplied bracket weighs approximately 57 g.
Design features include:
- Rugged outdoor-oriented housing
- IP65/IP67 protection
- Compact vertical form factor
- Optical fingerprint sensor
- 1.77-inch color TFT LCD
- 160 × 128 pixel display
- Ethernet port
- RS-485 interface
- Wiegand interface
- Tamper detection
- 2 input channels
- 1 relay output
- Suitable for wall-mounted installation
The BioLite N2 is designed to operate in temperatures from -20°C to 50°C and can be stored in temperatures from -40°C to 70°C.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Ideal Use Cases
The Suprema BioLite N2 BLN2-ODB is ideal for:
- Office access control
- Corporate buildings
- Commercial premises
- Schools and universities
- Hospitals
- Hotels
- Warehouses
- Factories
- Government facilities
- Construction sites
- Residential compounds
- Employee entrance systems
- Time and attendance systems
- Restricted areas
- Outdoor doors and gates
- Staff authentication
- Biometric access control systems
Its combination of fingerprint, RFID and mobile credential authentication makes it suitable for organizations that need flexible access verification. Its IP-rated construction also makes it appropriate for outdoor installations.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Pros And Cons
| Pros | Cons |
| Fingerprint, RFID and mobile credential support | Requires access control system configuration |
| 500 dpi optical fingerprint sensor | No built-in Wi-Fi |
| MINEX-certified fingerprint matching | No PoE support |
| Live Fingerprint Detection | |
| Supports up to 10,000 users | |
| Stores up to 1,000,000 text logs | |
| 125 kHz and 13.56 MHz RFID support | |
| NFC and BLE support | |
| IP65/IP67 protection | |
| Ethernet connectivity | |
| RS-485 and OSDP V2 support | |
| Wiegand support | |
| 1 relay output | |
| Tamper detection | |
| 1.77-inch color LCD | |
| Suitable for outdoor installations |
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal FAQs
What is the Suprema BioLite N2 BLN2-ODB?
The Suprema BioLite N2 BLN2-ODB is an outdoor IP fingerprint terminal designed for biometric access control and time attendance applications. It supports fingerprint, RFID and mobile credentials.
How many users does the BioLite N2 support?
The BLN2-ODB supports up to 10,000 users. It also supports up to 10,000 fingerprint, card and PIN credentials depending on the authentication method.
What fingerprint sensor does the BioLite N2 use?
The BioLite N2 uses an optical fingerprint sensor with 500 dpi resolution and 272 × 320 pixel image dimensions.
Does the BioLite N2 support RFID cards?
Yes. The BLN2-ODB supports 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire and FeliCa cards.
Does the BLN2-ODB support mobile credentials?
Yes. The BLN2-ODB supports NFC and 2.4 GHz BLE mobile credentials.
Is the BioLite N2 suitable for outdoor use?
Yes. The BioLite N2 is designed for outdoor use and has IP65/IP67 protection, providing resistance against dust and water exposure.
Does the BioLite N2 have Ethernet?
Yes. The BLN2-ODB includes 10/100 Mbps Ethernet with TCP and UDP network protocol support.
Does the BioLite N2 support OSDP?
Yes. Its RS-485 interface supports the OSDP V2 protocol.
Does the BioLite N2 support Wiegand?
Yes. The terminal has one Wiegand channel that can be configured as an input or output.
How many logs can the BioLite N2 store?
The BLN2-ODB can store up to 1,000,000 text logs.
Does the BioLite N2 have a display?
Yes. It features a 1.77-inch color TFT LCD with a resolution of 160 × 128 pixels.
What power supply does the BioLite N2 use?
The BLN2-ODB uses 12V DC power with a maximum current of 0.4A.
Does the BioLite N2 support Live Fingerprint Detection?
Yes. The terminal supports software-based Live Fingerprint Detection.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Conclusion
The Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal is a professional biometric access control and time attendance device designed for organizations that require reliable authentication in indoor and outdoor environments. With its 500 dpi optical fingerprint sensor, MINEX-certified matching, Live Fingerprint Detection, RFID support, NFC and BLE mobile credentials, 10,000-user capacity, 1,000,000 text-log capacity, Ethernet, RS-485, OSDP V2, Wiegand, relay output, tamper detection and IP65/IP67 protection, it provides a versatile solution for modern access control installations.
Priced at KSh 100,000, the Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal is a suitable choice for offices, commercial buildings, schools, hospitals, hotels, warehouses, factories, government facilities, residential compounds and other organizations requiring secure biometric access and time attendance capabilities.
