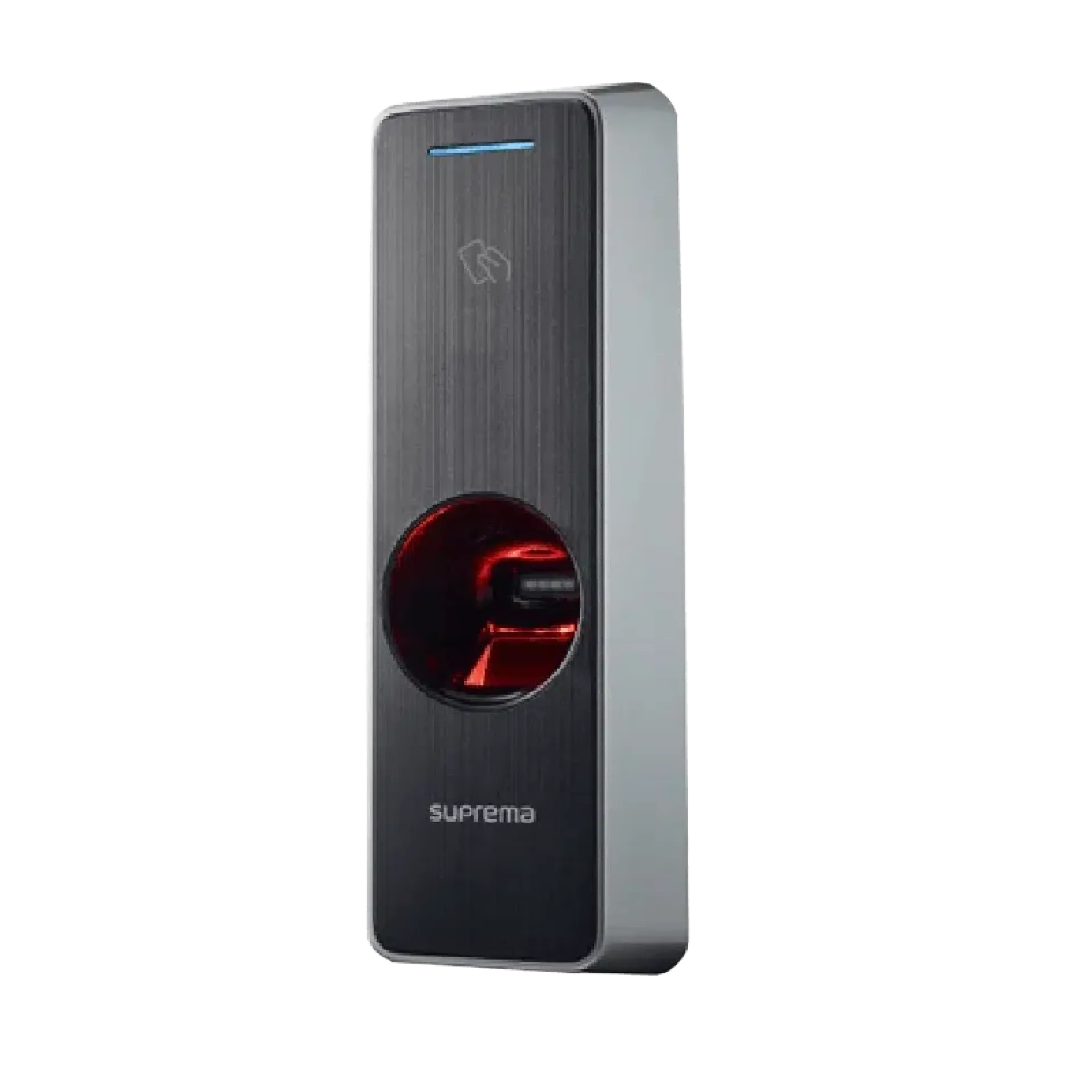

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Key Features

• Compact fingerprint and RFID card reader
• Designed for centralized access control systems
• High-definition fingerprint image capture
• High-precision OP6 optical fingerprint sensor
• 500 dpi fingerprint resolution
• Supports 125 kHz EM RFID cards
• Supports 13.56 MHz MIFARE and MIFARE Plus cards
• Supports DESFire and FeliCa cards
• Supports NFC credentials
• Dual-frequency RFID card technology
• Supports multiple RFID card standards
• Suprema fingerprint algorithm
• MINEX-certified and compliant fingerprint extractor and matcher
• Supports SUPREMA, ISO 19794-2, and ANSI-378 fingerprint templates
• 1.0 GHz CPU
• 32 MB Flash and 32 MB RAM
• Multi-color LED indicator
• Multi-tone buzzer
• RS-485 communication
• OSDP V2 compliant
• Tamper detection support
• Slim mullion-type design
• Suitable for narrow spaces and door frames
• 12V DC power
• Suitable for centralized biometric access control applications

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Introduction

The Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD is a compact biometric access control reader designed for centralized access control systems. It combines fingerprint authentication with dual-frequency RFID card reading, providing organizations with flexible options for controlling access to secured areas.

The BER2-OD uses a high-precision optical fingerprint sensor with 500 dpi resolution and supports Suprema, ISO 19794-2, and ANSI-378 fingerprint templates. It also supports a wide range of RFID technologies, including 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire, and FeliCa, as well as NFC credentials.

Its slim 50 mm-wide mullion-type design allows it to fit neatly into narrow installation areas and door frames, making it suitable for offices, commercial buildings, institutions, and other controlled-access environments.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Price

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Key Specifications

The specifications above are based on Suprema's current product documentation for the BER2-OD.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Performance

The Suprema BioEntry R2 BER2-OD is designed to provide accurate and flexible biometric authentication for centralized access control environments.

Its optical fingerprint sensor captures fingerprint images at 500 dpi, while the MINEX-certified extractor and matcher supports reliable fingerprint template processing. The device supports Suprema, ISO 19794-2, and ANSI-378 template formats, making it suitable for professional biometric access control applications.

Performance features include:

• 500 dpi fingerprint resolution
• 272 × 320 pixel fingerprint image capture
• 8-bit, 256-grayscale image processing
• MINEX-certified fingerprint extractor and matcher
• 1.0 GHz processing capability
• 32 MB Flash memory
• 32 MB RAM
• Multi-color LED status indication
• Multi-tone audible feedback
• Fingerprint and RFID authentication support
• NFC credential support
• OSDP V2 communication

The combination of fingerprint and RFID credentials provides organizations with flexible authentication options depending on their access control requirements.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Connectivity

The BER2-OD uses RS-485 communication and supports the OSDP V2 protocol, making it suitable for connection to compatible centralized access control controllers.

Connectivity features include:

• 1 × RS-485 channel
• OSDP V2 compliant communication
• Fingerprint authentication
• 125 kHz EM RFID support
• 13.56 MHz MIFARE support
• MIFARE Plus support
• DESFire support
• FeliCa support
• NFC support
• Tamper detection
• 12V DC power

The RF reader provides a read range of up to 50 mm for MIFARE/DESFire and up to 30 mm for EM/FeliCa, although the actual range can vary depending on the installation environment.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Design And Built

The Suprema BioEntry R2 features a slim mullion-type design intended for installation in narrow spaces and door frames. Its approximately 50 mm width makes it suitable for locations where a larger access control reader would be difficult to install.

The device measures approximately 50 × 164 × 38 mm and weighs about 158 g, while the supplied bracket weighs approximately 39 g.

Its design includes:

• Slim mullion-style housing
• Compact 50 mm width
• Optical fingerprint sensor
• Multi-color LED
• Multi-tone buzzer
• Tamper detection
• RS-485 interface
• Professional access-control appearance
• Suitable for narrow door-frame installations

The reader is rated for operating temperatures from -20°C to 50°C and operating humidity from 0% to 80% non-condensing, making it suitable for a range of indoor access-control environments.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Ideal Use Cases

The Suprema BioEntry R2 BER2-OD is ideal for:

• Office access control
• Corporate buildings
• Commercial premises
• Schools and universities
• Hospitals
• Hotels
• Warehouses
• Government facilities
• Restricted areas
• Staff entrance systems
• Door access control
• Centralized biometric access control
• RFID access control systems
• Multi-door access control installations

Its compact design makes it particularly suitable for door frames and narrow installation areas, while its combination of fingerprint and RFID credentials provides flexible authentication options.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Pros And Cons

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD FAQs

What is the Suprema BioEntry R2 BER2-OD?

The Suprema BioEntry R2 BER2-OD is a compact fingerprint and RFID reader designed for centralized access control systems. It combines biometric fingerprint authentication with multiple RFID card technologies.

Does the BioEntry R2 support fingerprint authentication?

Yes. The BER2-OD uses an optical fingerprint sensor with 500 dpi resolution for fingerprint authentication.

What RFID cards does the BER2-OD support?

It supports 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire, and FeliCa technologies. It also supports NFC credentials.

Does the Suprema BioEntry R2 support NFC?

Yes. The BER2-OD supports NFC credentials, allowing compatible NFC-enabled devices and credentials to be used in supported access control configurations.

What communication interface does the BER2-OD use?

The device uses RS-485 and supports the OSDP V2 communication protocol.

Does the BioEntry R2 have tamper detection?

Yes. The BER2-OD includes tamper detection support for access control installations.

What is the fingerprint resolution?

The BioEntry R2 BER2-OD provides 500 dpi fingerprint resolution with a 272 × 320 pixel image dimension.

What is the size of the Suprema BioEntry R2?

The BER2-OD measures approximately 50 × 164 × 38 mm, making it suitable for narrow spaces and door-frame installations.

How much does the Suprema BioEntry R2 weigh?

The device weighs approximately 158 g, while its bracket weighs approximately 39 g.

What power supply does the BER2-OD use?

The BioEntry R2 BER2-OD uses 12V DC power.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Conclusion

The Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD is a compact and versatile biometric access control reader designed for organizations that require reliable fingerprint and RFID authentication. With its 500 dpi optical fingerprint sensor, dual-frequency RFID support, NFC compatibility, MIFARE and DESFire support, OSDP V2 communication, RS-485 interface, tamper detection, and slim mullion-type design, it provides a flexible solution for modern centralized access control systems.

Priced at KSh 52,000, the Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD is a suitable choice for offices, commercial buildings, schools, hospitals, hotels, warehouses, government facilities, and other locations requiring compact and professional biometric access control.
