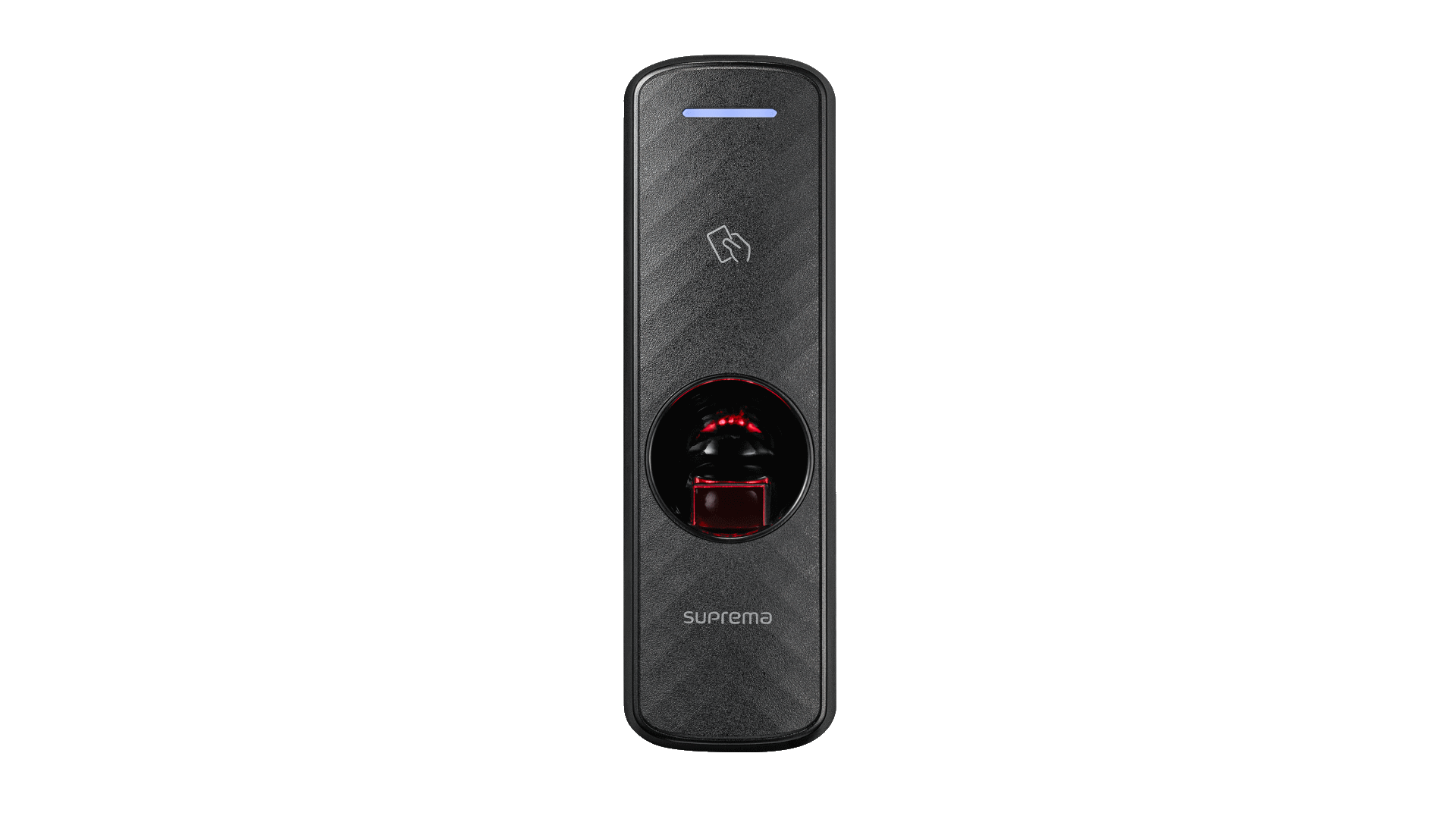

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Key Features

• Compact IP fingerprint reader and controller
• 500 dpi optical fingerprint sensor
• Suprema fingerprint recognition algorithm
• MINEX-certified fingerprint matching
• Software-based Live Fingerprint Detection
• Dual-frequency RFID technology
• Supports 125 kHz EM cards
• Supports 13.56 MHz MIFARE, MIFARE Plus, DESFire and FeliCa
• NFC card support
• Up to 10,000 users
• Up to 1,000,000 text logs
• 1.0 GHz processor
• 8 GB Flash memory and 64 MB RAM
• 10/100 Mbps Ethernet
• RS-485 and Wiegand connectivity
• OSDP V2 support
• 2 input channels and 1 relay output
• Multi-color LED indicator
• Multi-tone buzzer
• Compact mullion-type design
• Suitable for narrow door frames and access points

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Introduction

The Suprema BEP2-OD Fingerprint Reader Controller Dual RFID is a compact biometric access control device designed for secure fingerprint and RFID authentication. It combines Suprema's fingerprint recognition technology with dual-frequency RFID support, allowing users to authenticate using fingerprints or compatible RFID cards.

The device features a 500 dpi optical fingerprint sensor, a 1.0 GHz processor and software-based Live Fingerprint Detection. It supports both 125 kHz EM and 13.56 MHz RFID technologies, including MIFARE, MIFARE Plus, DESFire and FeliCa cards.

Its slim mullion-type design makes the BEP2-OD particularly suitable for narrow door frames and space-constrained access points. It can also connect to compatible access control infrastructure through Ethernet, RS-485 and Wiegand interfaces.

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Price

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Key Specifications

The key specifications are based on Suprema's current BioEntry P2 documentation.

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Performance

The BEP2-OD provides responsive biometric authentication through its 1.0 GHz processor and Suprema fingerprint recognition algorithm. Its 500 dpi optical sensor captures detailed fingerprint images for reliable authentication.

The device supports up to 10,000 users and can store up to 1,000,000 text logs, making it suitable for offices, institutions and other access control environments.

Performance highlights include:

• 500 dpi optical fingerprint scanning
• Suprema fingerprint recognition technology
• MINEX-certified fingerprint matching
• Live Fingerprint Detection
• Up to 10,000 users
• Up to 1,000,000 text logs
• Dual-frequency RFID support
• NFC support
• 1.0 GHz processor
• Multi-color LED feedback
• Multi-tone buzzer

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Connectivity

The BEP2-OD offers flexible connectivity for professional access control installations. It includes 10/100 Mbps Ethernet, RS-485 and Wiegand interfaces. It also supports OSDP V2 for communication with compatible access control systems.

Connectivity features include:

• 10/100 Mbps Ethernet
• RS-485
• OSDP V2
• Wiegand input/output
• 2 input channels
• 1 relay output
• 12V DC power
• Tamper support

These interfaces allow the BEP2-OD to work with different access control configurations and compatible controllers.

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Design And Built

The Suprema BEP2-OD features a slim mullion-type design with a width of only 50 mm, making it suitable for narrow door frames and locations where installation space is limited.

Its compact construction measures approximately 50 × 164 × 37.5 mm and weighs approximately 162 g. The device is designed for practical installation alongside doors and access points.

Design features include:

• Slim mullion-style construction
• 50 mm width
• Compact fingerprint sensor
• Multi-color LED indicator
• Multi-tone buzzer
• Durable housing
• Narrow-door-frame installation
• Tamper support

The BEP2-OD is designed to operate from -20°C to 50°C, making it suitable for a range of access control environments.

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Ideal Use Cases

The Suprema BEP2-OD is ideal for:

• Office access control
• Corporate buildings
• Commercial premises
• Schools and universities
• Hospitals
• Hotels
• Warehouses
• Factories
• Government facilities
• Residential buildings
• Apartment entrances
• Employee access control
• Time and attendance systems
• Restricted areas
• Narrow door frames
• Secure entrances

Its compact design and combination of fingerprint and dual-frequency RFID authentication make it suitable for installations where both security and space efficiency are important.

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Pros And Cons

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID FAQs

What is the Suprema BEP2-OD?

The BEP2-OD is a compact fingerprint access control reader and controller designed for biometric and RFID authentication.

Does the BEP2-OD support fingerprint authentication?

Yes. It uses a 500 dpi optical fingerprint sensor and Suprema's fingerprint recognition technology.

What RFID cards does the BEP2-OD support?

It supports 125 kHz EM and 13.56 MHz MIFARE, MIFARE Plus, DESFire and FeliCa cards.

Does the BEP2-OD support NFC?

Yes. The BEP2-OD supports NFC credentials.

How many users can the BEP2-OD support?

The device supports up to 10,000 users.

How many logs can the BEP2-OD store?

It can store up to 1,000,000 text logs.

Does the BEP2-OD support Live Finger Detection?

Yes. It supports software-based Live Fingerprint Detection.

Does the BEP2-OD support Ethernet?

Yes. It supports 10/100 Mbps Ethernet as well as RS-485 and Wiegand interfaces.

Does the BEP2-OD support OSDP?

Yes. The device supports OSDP V2 through its RS-485 interface.

Is the BEP2-OD suitable for narrow door frames?

Yes. Its 50 mm-wide mullion-type design is specifically suited to narrow installation spaces and door frames.

What is the operating temperature of the BEP2-OD?

The device is designed to operate from -20°C to 50°C.

What is the price of the Suprema BEP2-OD in Kenya?

The listed price for the Suprema BEP2-OD Fingerprint Reader Controller Dual RFID is KSh 60,000.

Suprema BEP2-OD Fingerprint Reader Controller Dual RFID Conclusion

The Suprema BEP2-OD Fingerprint Reader Controller Dual RFID is a compact and capable biometric access control solution for organizations that require reliable fingerprint and RFID authentication. With its 500 dpi optical sensor, Suprema fingerprint algorithm, Live Finger Detection, dual-frequency RFID, NFC support, 10,000-user capacity, 1,000,000-log capacity, Ethernet, RS-485, Wiegand and OSDP V2 support, it provides flexible authentication for modern access control systems.

Its slim 50 mm mullion-type design makes it particularly suitable for narrow door frames, offices, commercial buildings, institutions, residential entrances and other locations where installation space is limited.

Priced at KSh 60,000, the Suprema BEP2-OD Fingerprint Reader Controller Dual RFID is a practical choice for businesses and organizations looking for a compact fingerprint and dual-RFID access control device.
