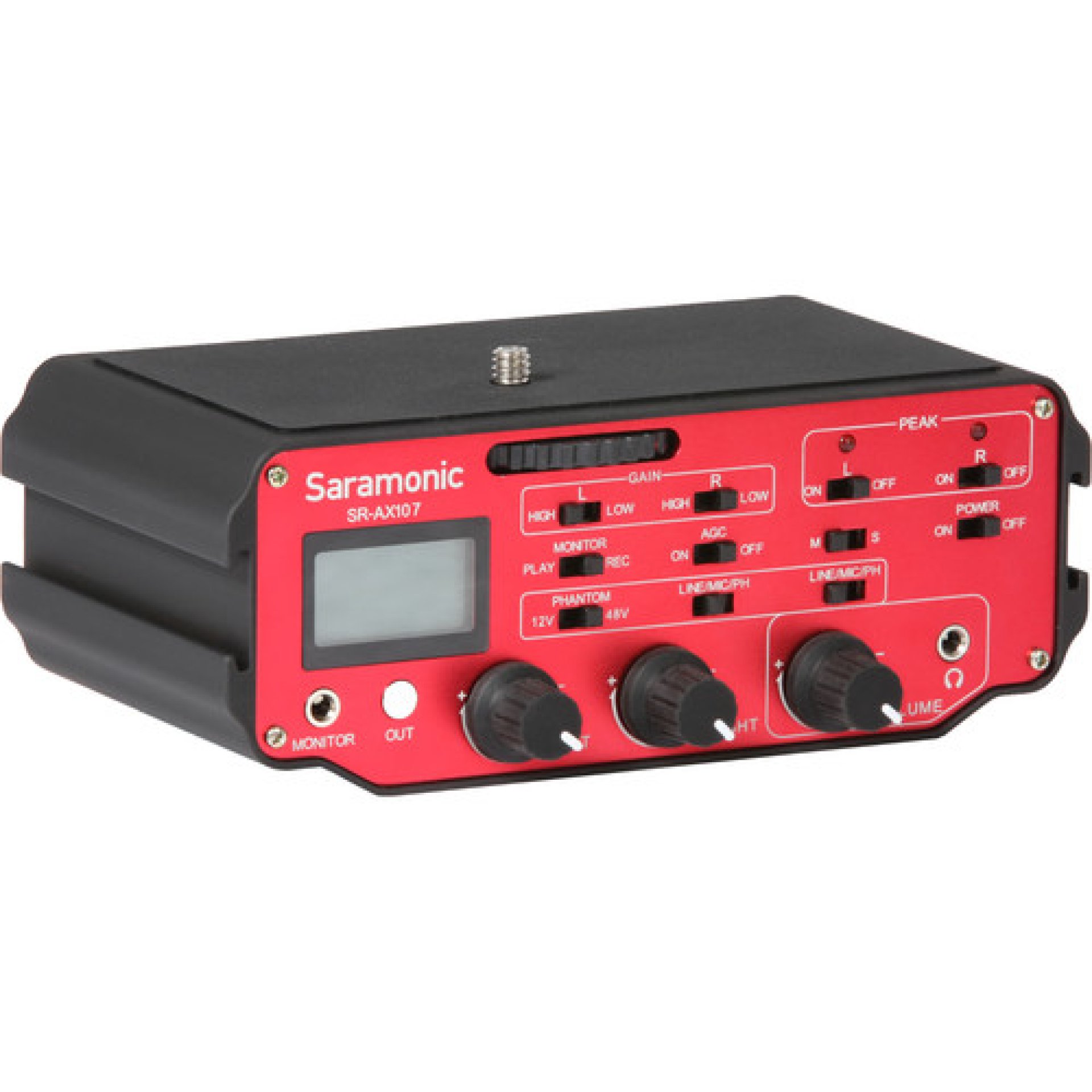

Saramonic SR-AX107 Audio Mixer
The Saramonic SR-AX107 Audio Mixer is a professional two-channel XLR audio adapter and mixer designed for DSLR cameras, mirrorless cameras, camcorders, and professional video production. Featuring dual balanced XLR inputs, built-in microphone preamplifiers, 12V/48V phantom power, an isolation transformer, LED level metering, and real-time headphone monitoring, the SR-AX107 enables filmmakers, broadcasters, videographers, and content creators to capture clean, professional-quality audio directly into their cameras. Its rugged camera-mount design makes it ideal for interviews, documentaries, filmmaking, and broadcast production.
Price
| Product | Price |
|---|---|
| Saramonic SR-AX107 Audio Mixer | KSh 9,400 |
Saramonic SR-AX107 Audio Mixer Key Features and Highlights
- Professional dual-channel camera audio mixer
- Two balanced XLR microphone inputs
- Built-in low-noise microphone preamplifiers
- 12V and 48V selectable phantom power
- Isolation transformer for clean, interference-free audio
- Real-time LED audio level meter
- Independent left and right gain controls
- Mono and Stereo output selection
- AGC (Auto Gain Control) disable function
- Peak overload indicators
- Dual headphone monitoring outputs
- Ground isolation switch

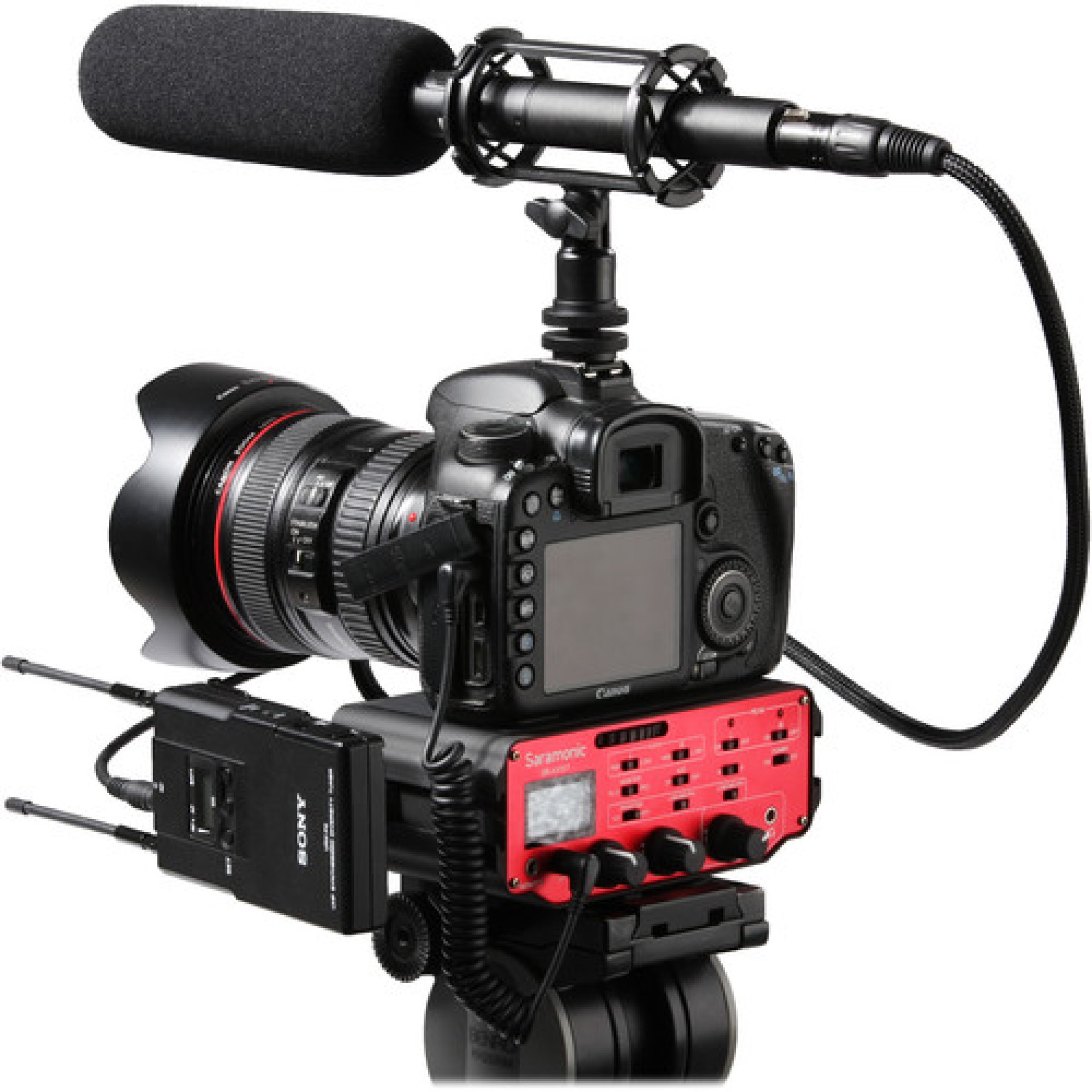

- Camera-mounted compact design
- Powered by a standard 9V battery
Saramonic SR-AX107 Audio Mixer Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Professional Camera Audio Mixer |
| Brand | Saramonic |
| Model | SR-AX107 |
| Channels | 2 |
| Inputs | 2 × Balanced XLR |
| Output | 3.5mm Stereo TRS |
| Phantom Power | 12V / 48V Selectable |
| Gain Control | Independent Left & Right |
| Gain Boost | Low / +20dB High |
| Frequency Response | 20Hz–20kHz (±0.5dB) |
| Signal-to-Noise Ratio | 85dB |
| THD | Less than 0.01% |
| Level Meter | LED (-18dB to +3dB) |
| Headphone Output | Dual 3.5mm Monitoring Outputs |
| Power Source | 9V Battery |
| Mounting | Camera Shoe / Tripod Mount |
| Compatibility | DSLR Cameras, Mirrorless Cameras, Camcorders, Audio Recorders, Professional XLR Microphones |
Saramonic SR-AX107 Audio Mixer Performance and Usage Overview
- Delivers professional-quality audio directly into cameras
- Isolation transformer minimizes hum and interference
- Supports condenser microphones through phantom power
- Independent gain adjustment for precise audio balancing
- LED metering provides accurate input level monitoring
- AGC disable function helps reduce unwanted camera noise
- Excellent for field recording and professional productions
- Produces clean audio suitable for interviews, documentaries, and broadcast work
Saramonic SR-AX107 Audio Mixer Device Compatibility and Supported Systems
- DSLR cameras
- Mirrorless cameras
- Professional camcorders
- Cinema cameras with 3.5mm microphone input
- Professional condenser microphones
- Dynamic microphones
- Wireless microphone receivers
- Audio mixers
- Soundboards
- External audio recorders
Saramonic SR-AX107 Audio Mixer Build Quality and Physical Design
- Rugged metal construction
- Compact camera-mounted form factor
- Professional control layout
- Bright LED level indicators
- Durable XLR connectors
- Secure tripod mounting thread
- Hot shoe mounting support
- Professional matte black finish
Saramonic SR-AX107 Audio Mixer Ideal Applications and Use Cases
- DSLR filmmaking
- Documentary production
- Television broadcasting
- News reporting
- Corporate video production
- Professional interviews
- Wedding videography
- Event videography
- Live production
- Content creation
Saramonic SR-AX107 Audio Mixer Pros and Cons
| Pros | Cons |
|---|---|
| Dual professional XLR inputs | Requires a 9V battery |
| 12V and 48V phantom power support | Larger than basic passive adapters |
| Built-in isolation transformer reduces noise | No built-in audio recorder |
| LED level metering for accurate monitoring | Designed primarily for cameras with 3.5mm mic input |
| Independent gain controls and headphone monitoring | Slightly heavier than compact adapters |
Saramonic SR-AX107 Audio Mixer Frequently Asked Questions (FAQs)
1. Can the SR-AX107 connect two XLR microphones?
Yes. It features two balanced XLR inputs that allow simultaneous connection of two professional microphones.
2. Does it provide phantom power?
Yes. The mixer offers selectable 12V and 48V phantom power for compatible condenser microphones.
3. Can I monitor audio while recording?
Yes. The SR-AX107 includes dual headphone monitoring outputs for real-time monitoring during recording.
4. Is it compatible with DSLR cameras?
Yes. It is specifically designed for DSLR cameras, mirrorless cameras, and camcorders equipped with a 3.5mm microphone input.
5. What powers the SR-AX107?
The mixer is powered by a standard 9V battery.
6. What is the purpose of the isolation transformer?
The built-in isolation transformer minimizes electrical interference and hum, delivering cleaner and more reliable audio recordings.
Saramonic SR-AX107 Audio Mixer Conclusion and Final Recommendation
The Saramonic SR-AX107 Audio Mixer is an excellent professional audio solution for filmmakers, videographers, broadcasters, and content creators who require high-quality XLR audio recording directly into DSLR cameras and camcorders. With dual XLR inputs, built-in preamplifiers, selectable phantom power, isolation transformer technology, and comprehensive monitoring controls, it delivers dependable, broadcast-quality audio for a wide range of video production applications.
