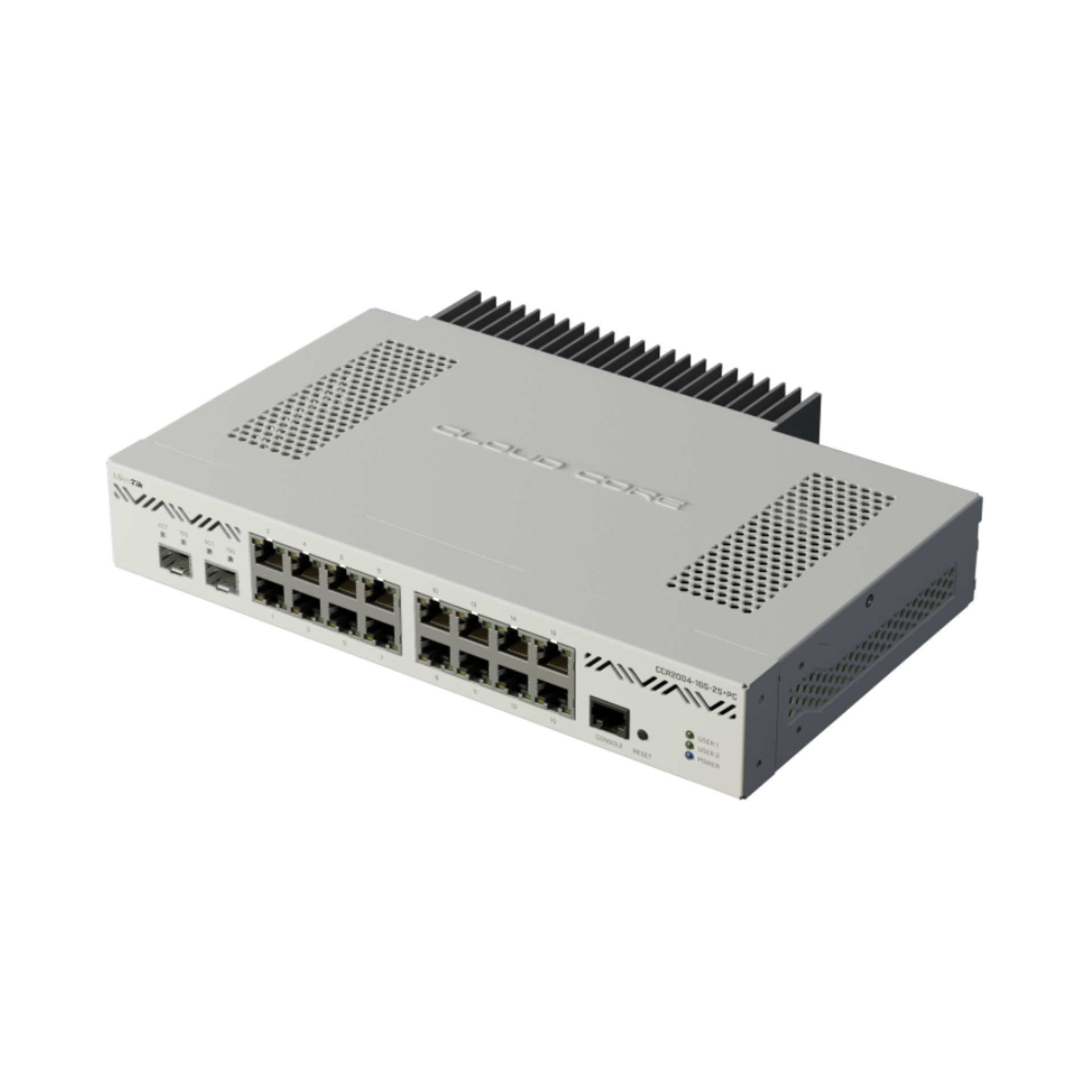

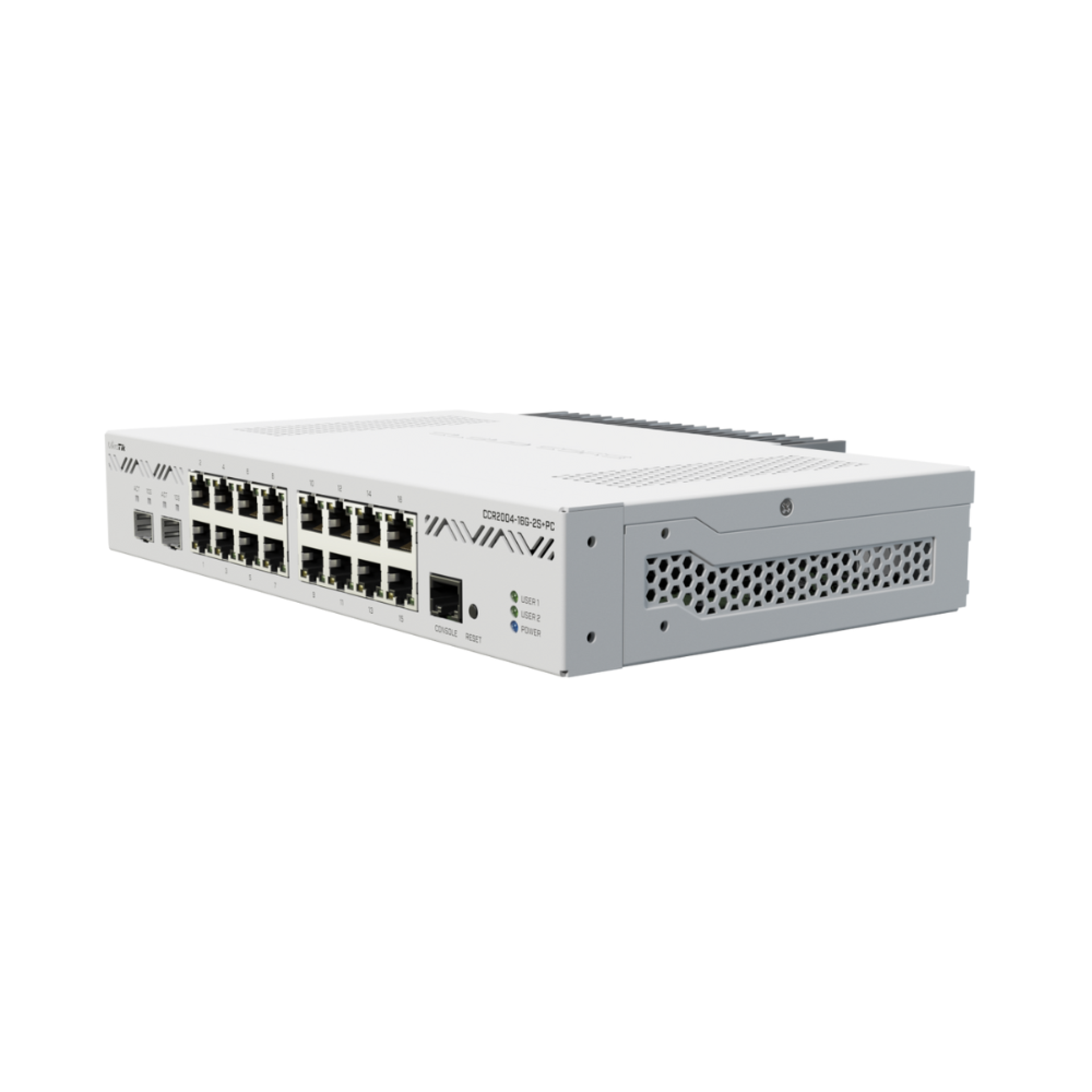

MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

Product Key Features – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

• Sixteen Gigabit Ethernet ports for high-throughput wired networking

• Two 10G SFP+ ports for fiber uplinks or backbone integration

• 64-bit quad-core 1.7 GHz ARM AL32400 processor

• 4GB DDR4 RAM and 128MB NAND storage

• RouterOS with Level 6 license for complete routing functionality

• Fanless passive cooling for silent operation

• Up to 3 million packets per second performance

• USB port and RJ45 console for management and expansion

• Compact 1U form factor for desktop or rackmount use

• Ideal for high-performance LANs, enterprise edge, or ISP routing

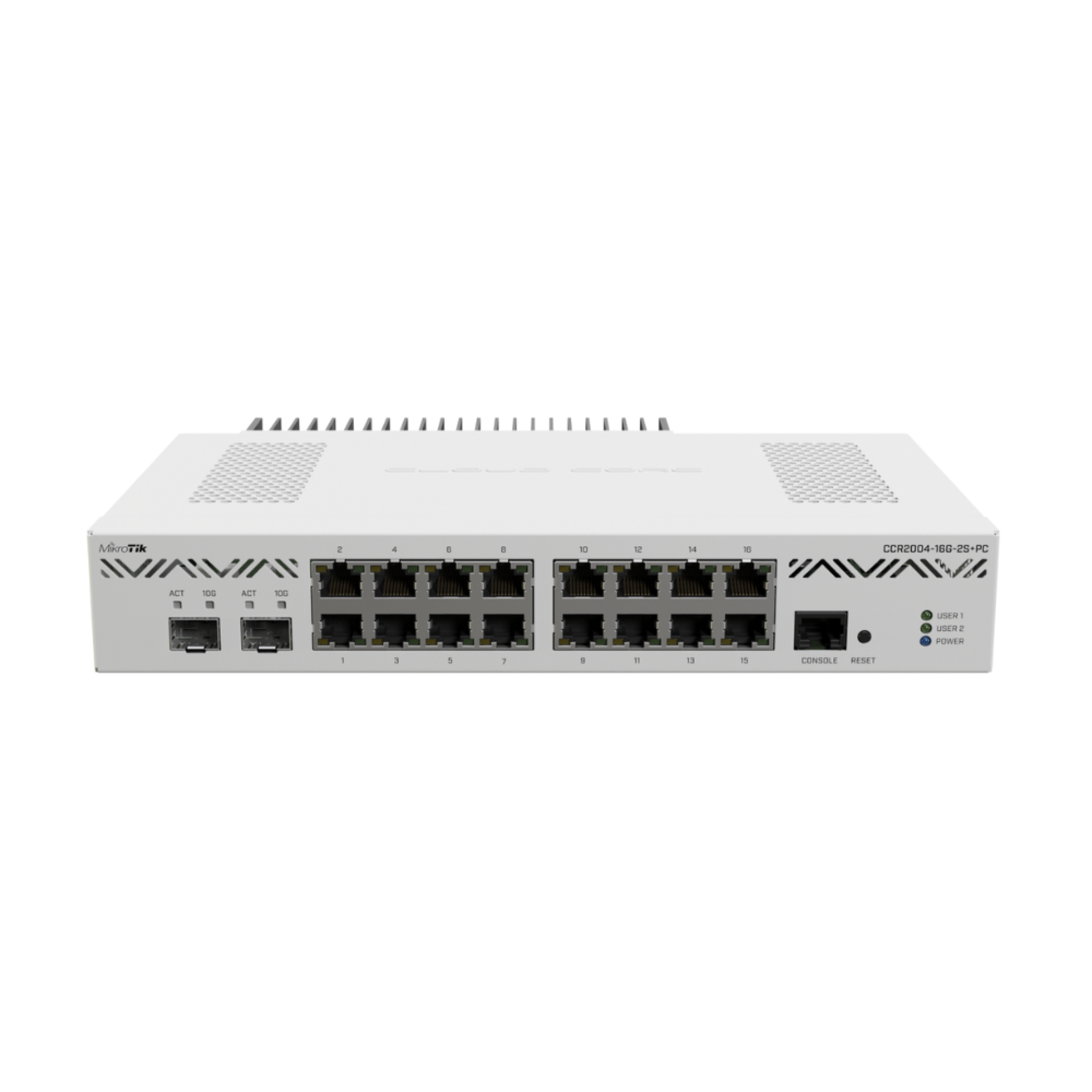

High-Density Gigabit Networking – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

The MikroTik CCR2004-16G-2S+PC provides 16 independent Gigabit Ethernet ports, delivering reliable wired connections for demanding LAN environments. Perfect for office networks, service providers, or high-capacity SOHO setups, this router ensures robust and fast switching across multiple devices without bottlenecks.

10G SFP+ Uplink Capability – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

With two high-speed 10G SFP+ ports, this router supports seamless integration into fiber uplinks, backbone interconnects, or high-speed core links. Whether connecting to a data center, upstream provider, or aggregation switch, the SFP+ ports provide flexibility and future-ready throughput.

Enterprise-Class CPU Performance – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

Powered by a quad-core 1.7 GHz 64-bit ARM AL32400 CPU from Annapurna Labs, this router delivers the muscle to handle advanced routing, firewall rules, IPsec VPNs, bandwidth management, and more. It’s engineered for multi-threaded performance and stability under sustained traffic loads.

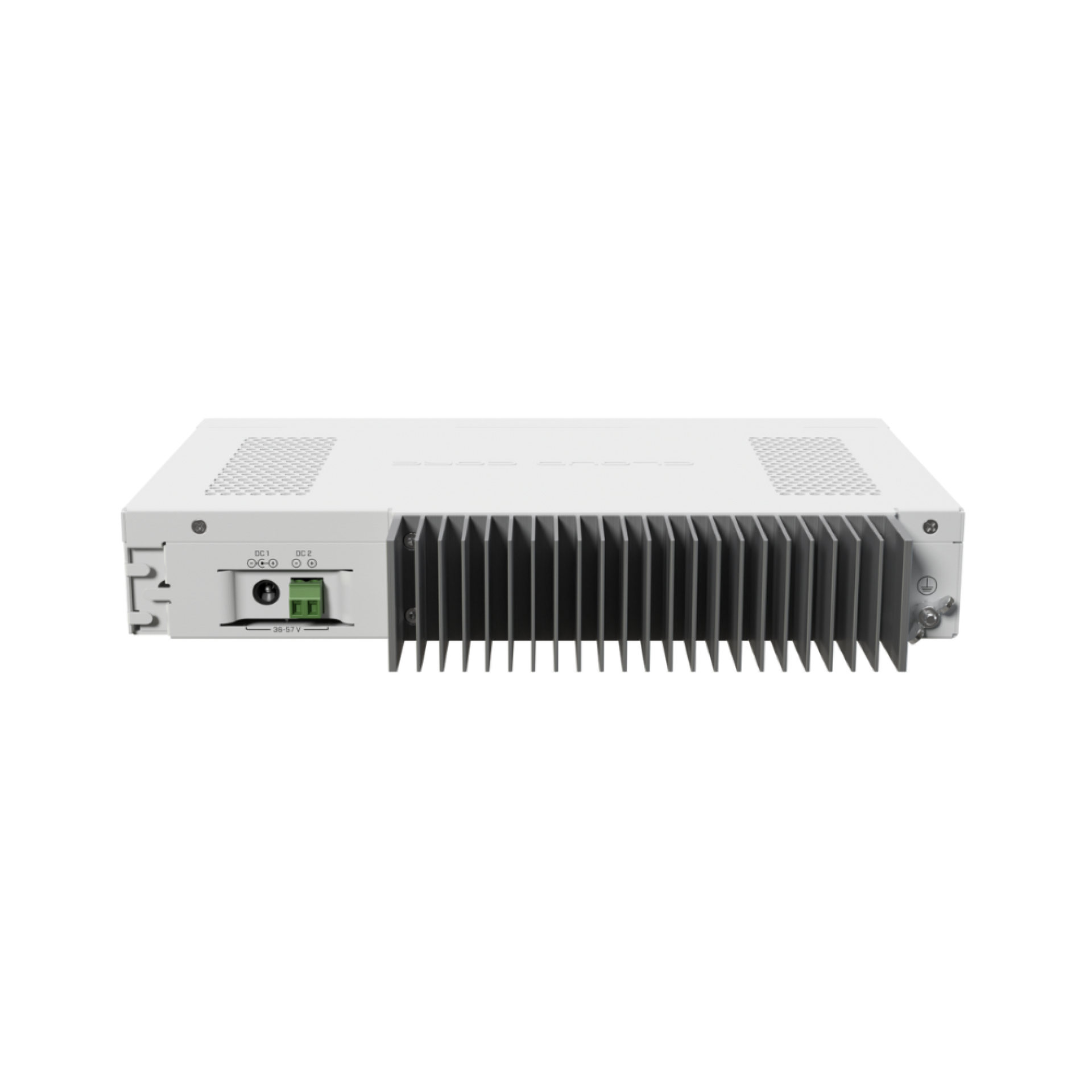

Silent Fanless Design – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

With a passive cooling system, the CCR2004-16G-2S+PC runs silently, making it perfect for noise-sensitive environments like open offices, studios, or home labs. Its heat-dissipating chassis ensures efficient cooling without moving parts, contributing to long-term durability and quiet operation.

Advanced Routing with RouterOS – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

Running RouterOS with a Level 6 license, this router provides enterprise-level features: dynamic routing (BGP, OSPF, MPLS), VLAN configuration, IPsec tunnels, NAT, QoS, traffic shaping, hotspot setup, and more. It’s a feature-complete platform for IT professionals and ISPs needing granular network control.

Compact and Professional Design – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

Housed in a sleek 1U form factor, the unit can be deployed on a desktop or mounted in a rack with optional accessories. It also features a USB port for storage or LTE failover and an RJ45 serial console port for low-level management access, offering full deployment flexibility.

High Throughput Routing – MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

This router is built to move data fast—with up to 3 million packets per second in real-world scenarios. Its architecture supports enterprise loads, ensuring high-performance delivery of services like firewall filtering, NAT, and VPN, without compromising stability or speed.

Why Choose the MikroTik CCR2004-16G-2S+PC 16-Port Gigabit Core Router

The CCR2004-16G-2S+PC blends powerful processing, quiet operation, and advanced RouterOS functionality in a compact, reliable package. Whether you're scaling a business network, managing fiber backbones, or running a high-speed lab, this router delivers performance, flexibility, and control that professionals demand. It’s a solid investment for ISPs, system integrators, or enterprises looking for a scalable core routing solution
