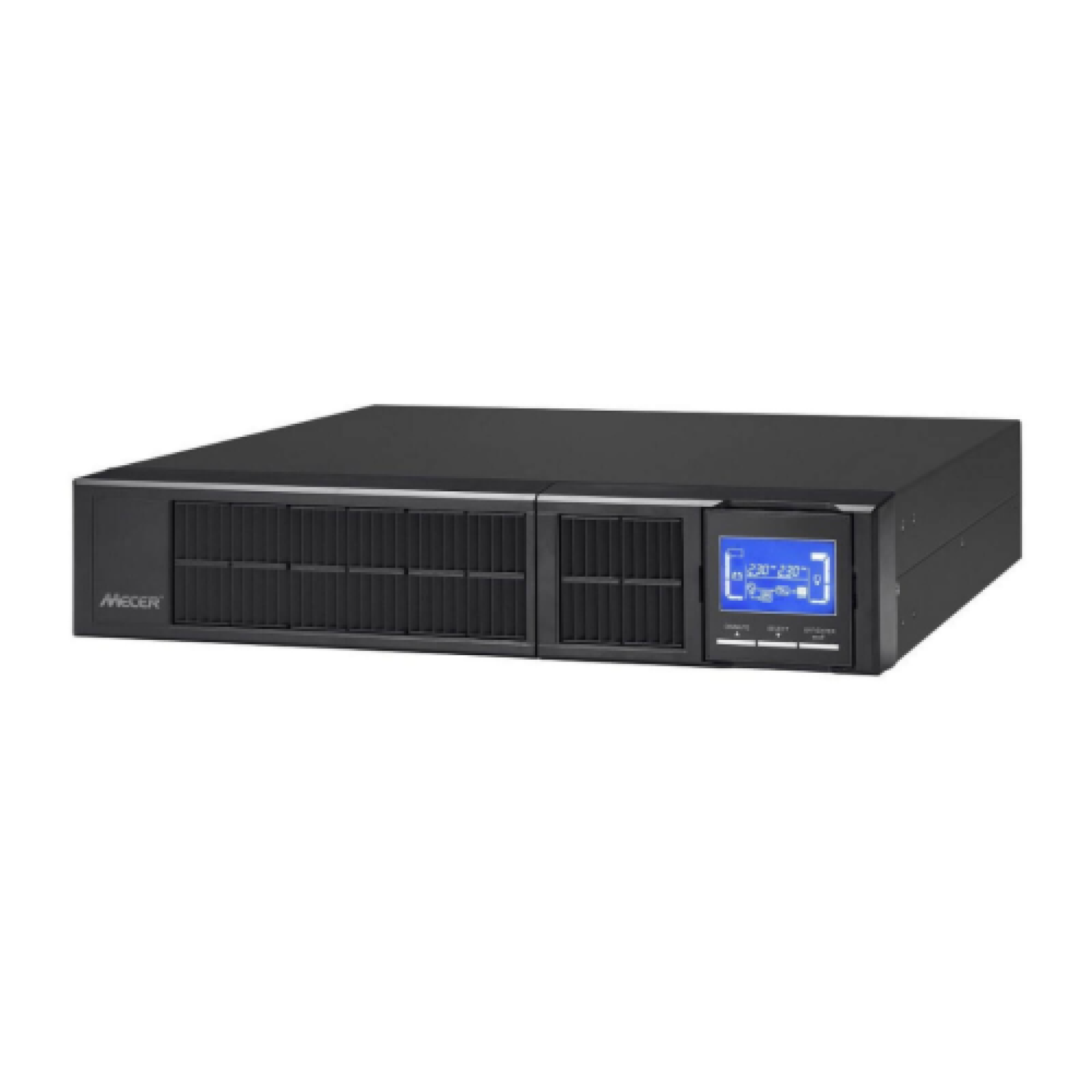

Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU) — Specifications
-
Model: ME‑3000‑WPRU
-
Type: Smart Online Double‑Conversion UPS
-
Capacity: 3000 VA / 2700 W
-
Form Factor: 2U Rackmount
-
Input Voltage: 230 V
-
Output Voltage: 230 V
-
Waveform: Pure Sine Wave
-
Plug Type: Hardwire via terminal block
-

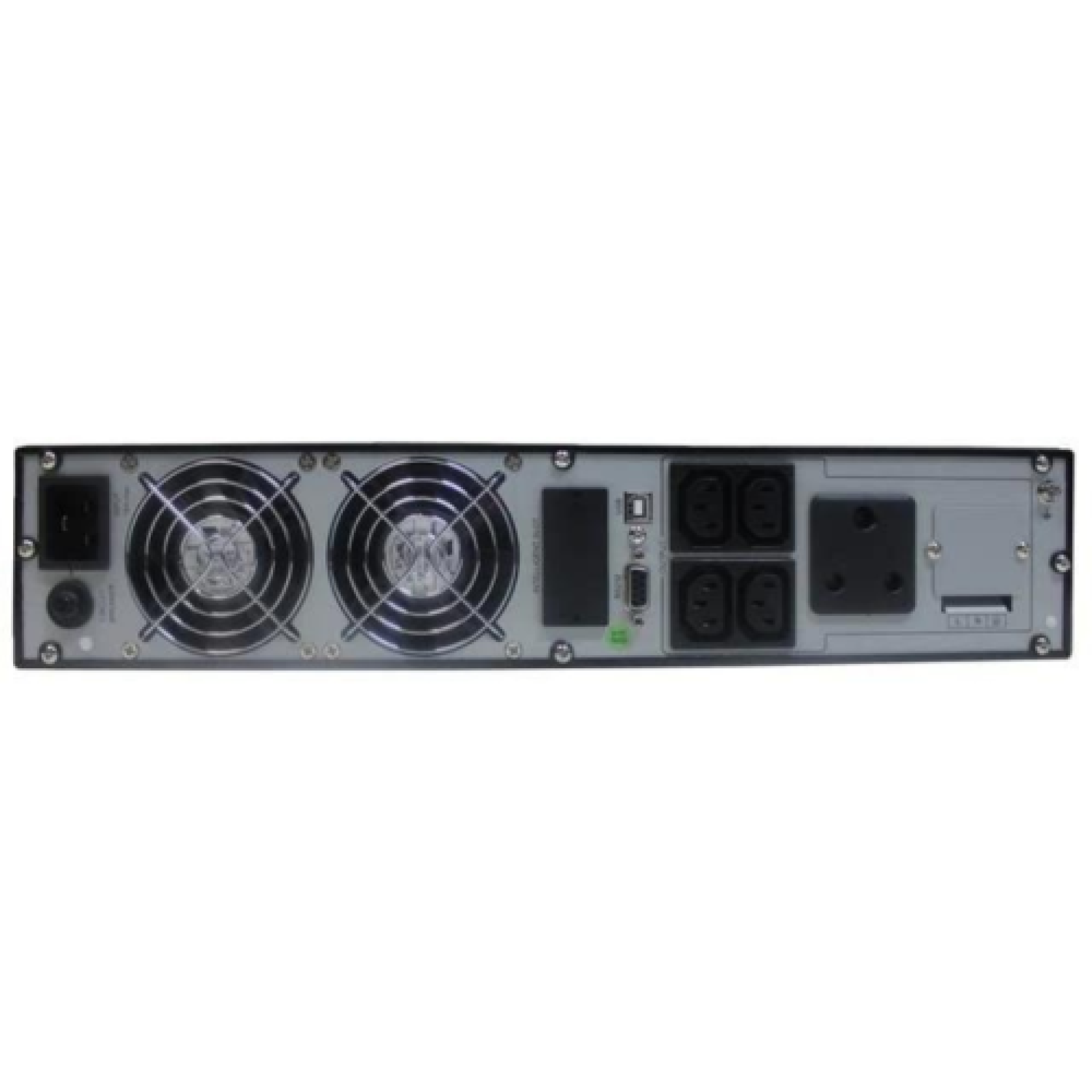

Output Ports: (4) IEC C13, (2) IEC C19
-
Battery: Sealed Lead‑Acid, Hot‑Swappable
-
Runtime: ~5 minutes at 50% load (~1350 W)
-
Recharge Time: ~4 hours to 90%
-
Display: Full LED/LCD panel with load bar
-
Audible Alarm: Yes (battery, overload, fault)
-
Interfaces: USB, RS‑232, SmartSlot
-
Software: Power management suite
-
Dimensions: 88 × 435 × 600 mm
-
Weight: ~28 kg
-
Mounting: 2U Rackmount
Reliable rack protection with the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
The Mecer ME‑3000‑WPRU provides high-capacity backup in a slim 2U rack form. It delivers 2700 W of pure sine power in a fully isolated double-conversion configuration, ensuring smooth, continuous operation for rack-mounted servers, switches, and storage systems.
True online output in the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
This UPS offers pure sine wave power through an online double‑conversion system. It regenerates clean AC for connected gear even if the input is unstable, maintaining uptime with zero transfer time—perfect for mission-critical IT gear.
Rackmount design for server racks in the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
At just 2U (88 mm high), the UPS fits neatly into 19-inch racks. With mounting rails included, it saves valuable rack space while providing powerful backup for compute and network infrastructure. The clean, low‑profile chassis offers professional deployment.
Battery and runtime details in the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
With internal sealed batteries and hot-swappable design, the ME‑3000‑WPRU provides about 5 minutes of runtime at 50% load (~1350 W). Connect additional battery modules to extend uptime. The unit recharges to 90% within approximately 4 hours.
User interface and control in the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
An intuitive LCD panel displays real-time load, battery status, input/output voltage, and alarms. Navigation buttons enable quick setup, testing, and diagnostics—essential during rack deployment and maintenance.
Ports and connectivity on the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
Features include USB, RS‑232, and a SmartSlot for optional network or SNMP cards. These enable automatic shutdowns, syslog notifications, and remote UPS monitoring via management software—critical for unattended data racks.
Protection features of the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
With comprehensive safety built in— including overload protection, short-circuit suppression, thermal shutdown, and input/output isolation—the unit provides safe operation even under demanding conditions and heavy use.
Ideal rack environments for the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
Ideal for server rooms, network closets, VoIP infrastructure, and small data centers, this UPS ensures professional-grade protection. It keeps critical equipment online during disruptions and supports hot-swappable battery maintenance with minimal downtime.
Comparison with similar wall-mount unit in the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
Unlike the ME‑3000‑WPTU wall/tower version, the rack model offers server‑ready deployment in a rack setup with remote monitoring hooks. Both deliver clean online output, but the WPRU is better suited for mounted installations. Related Product: Mecer 3000VA / 2400W Smart Online UPS (ME‑3000‑WPTU)
Installation advice for the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
Install in 19-inch racks using included rails. Leave space for airflow and cable access. Connect USB or RS‑232 for monitoring. If needed, add optional network card via SmartSlot for remote management.
Maintenance and battery replacement in the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
The hot‑swap battery design lets technicians replace batteries without shut down. Firmware updates and diagnostics are accessible via panel or management software, reducing service times in critical environments.
Energy efficiency and eco‑mode in the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
Though online double-conversion UPSs use more power, this model includes eco‑mode which reduces energy draw during stable conditions—optimizing power costs and extending battery life.
Why choose the Mecer 3000VA (3 KVA / 2700 W) LCD Smart Online Rackmount UPS (ME‑3000‑WPRU)
If you require high-capacity, rack-mounted power protection, this UPS checks all the boxes: pure sine wave, online performance, hot‑swap batteries, and remote monitoring. It’s built for uptime, manageability, and professional deployment.
