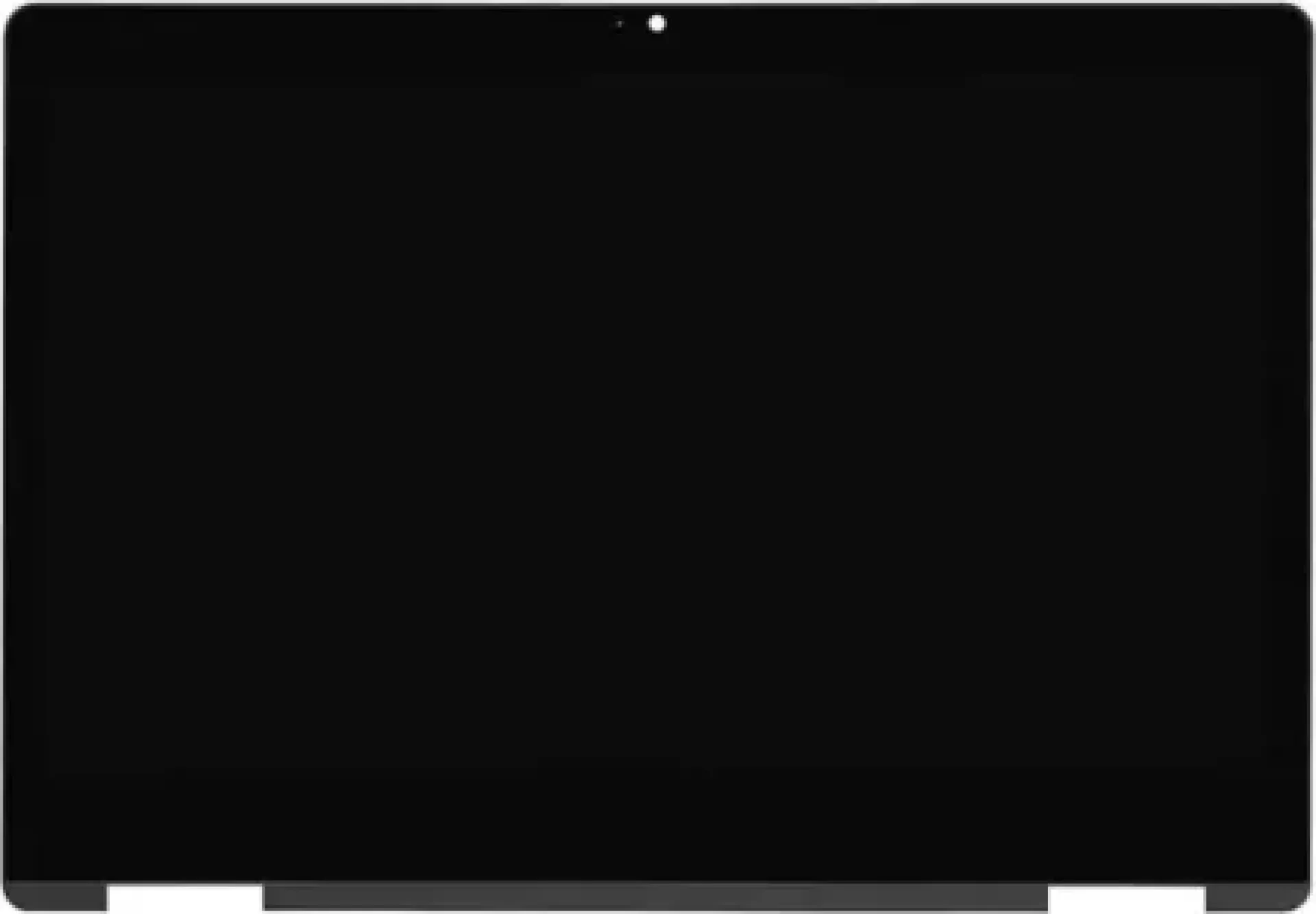

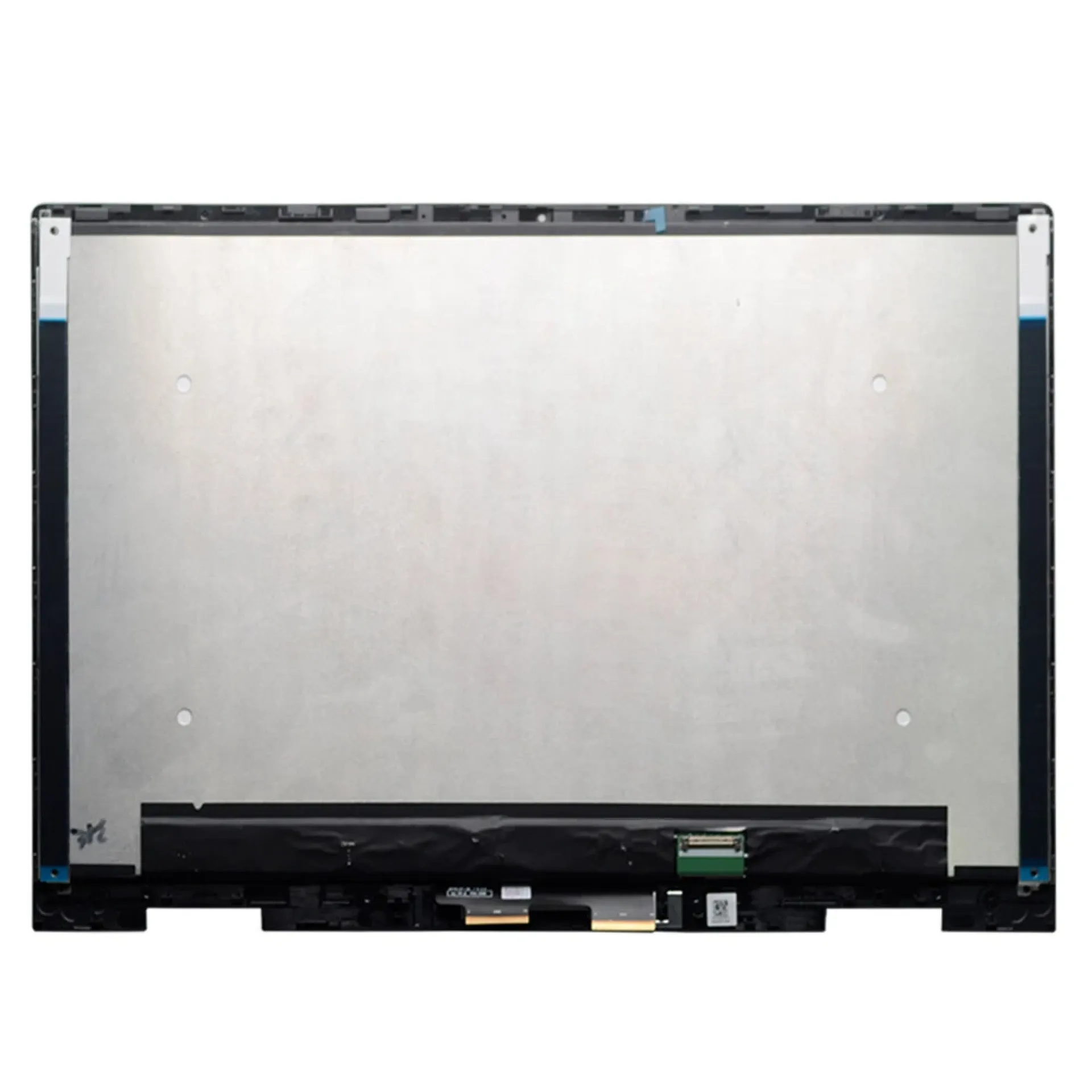

HP EliteBook 840 G5 Touch + LCD Screen Replacement
-
Screen Size: 14.0-inch diagonal.
-
Resolution: Full HD (1920 x 1080) IPS.
-
Connector: 30-pin (standard touch) or 40-pin (for Sure View/UHD variants).
-
Brightness: 250 nits (standard) to 400+ nits (high-end).
-
Touch Type: 10-point multi-touch capacitive digitizer.
-
Compatibility: HP EliteBook 840 G5, 745 G5, and 840 G6 (often cross-compatible).
HP EliteBook 840 G5 Touch + LCD Screen Replacement
The HP EliteBook 840 G5 Touch Screen Replacement is the premium display module for the 840 G5 business laptop. This unit is a "Full Assembly" that includes the 14.0-inch FHD IPS LCD panel and the capacitive touch digitizer glass, factory-bonded for a seamless fit. The HP EliteBook 840 G5 Touch + LCD Screen Replacement Price in Kenya is KSh 18,900.
Who Should Buy This Screen? This is the definitive fix for EliteBook 840 G5 owners with cracked glass, non-responsive touch, or a damaged LCD. As a high-end enterprise machine, the 840 G5's touch version requires this specific assembly to maintain its 220-400 nit brightness and Gorilla Glass durability. At KSh 18,900, this replacement restores your laptop's professional interactivity and visual performance to factory standards.
HP EliteBook 840 G5 Price Table
| Product | Model Compatibility | Size | Resolution | Price (KSh) |
| HP Touch + LCD Assembly | EliteBook 840 G5 | 14.0-inch | 1920 x 1080 (FHD) | KSh 18,900 |
Technical Specifications
| Feature | Specification |
| Compatible Models | HP EliteBook 840 G5, 745 G5 |
| Part Numbers | L15502-001, L15501-001, B140HAK02.0 |
| Display Technology | IPS LED-Backlit (UWVA) |
| Resolution | Full HD ($1920 \times 1080$) |
| Connector Type | 40-Pin eDP (Bottom Right) |
| Glass Type | Corning® Gorilla® Glass 3 |
| Brightness | 220 nits (Typical) / 700 nits (Sure View variants) |
| Touch Support | 10-Point Multi-touch |
Key Professional Features
-
Corning® Gorilla® Glass 3: Features a high-strength glass overlay that is significantly more resistant to scratches and pressure than standard consumer touchscreens.
-
On-Cell Touch Integration: The touch layer is integrated directly into the LCD panel, resulting in a thinner, lighter assembly that maintains the 840 G5's slim profile.
-
Vivid IPS Visuals: Provides "Ultra Wide Viewing Angles" (UWVA), ensuring that your spreadsheets and presentations remain sharp and color-accurate even when viewed off-center.
-
Anti-Glare Touch Finish: Specifically engineered for office environments, reducing harsh reflections while maintaining smooth, low-friction touch interaction.
-
Narrow Bezel Compatibility: Designed for a perfect fit within the 840 G5’s modern, narrow-edge chassis, preserving the premium "executive" aesthetic.
Important Installation Notes
[!CAUTION]
Connector Check: Most touch-enabled 840 G5 models require a 40-pin eDP cable. If your original screen was non-touch, it likely uses a 30-pin cable; upgrading to touch may require an additional cable swap.
Power Isolation: You must disconnect the internal 3-cell 50Wh battery before installation. Touching the 40-pin connector while the system is powered can blow the backlight fuse on the motherboard.
Sure View Warning: If your model has the HP Sure View privacy screen, ensure the replacement assembly explicitly supports it, as standard IPS touch panels will not have the privacy filter functionality.
Pros and Cons
| Pros | Cons |
| Durable Gorilla Glass protection | 40-pin connector limits non-touch motherboard swaps |
| IPS tech with high-contrast clarity | Glossy touch surface can reflect overhead lights |
| OEM-grade 10-point touch response | Installation requires precision around the IR camera |
| Native FHD resolution |
Conclusion
The HP EliteBook 840 G5 Touch + LCD assembly is the most reliable way to restore the premium functionality of your business workstation. For KSh 18,900, you get a durable, high-definition display that handles the rigors of professional daily use.
