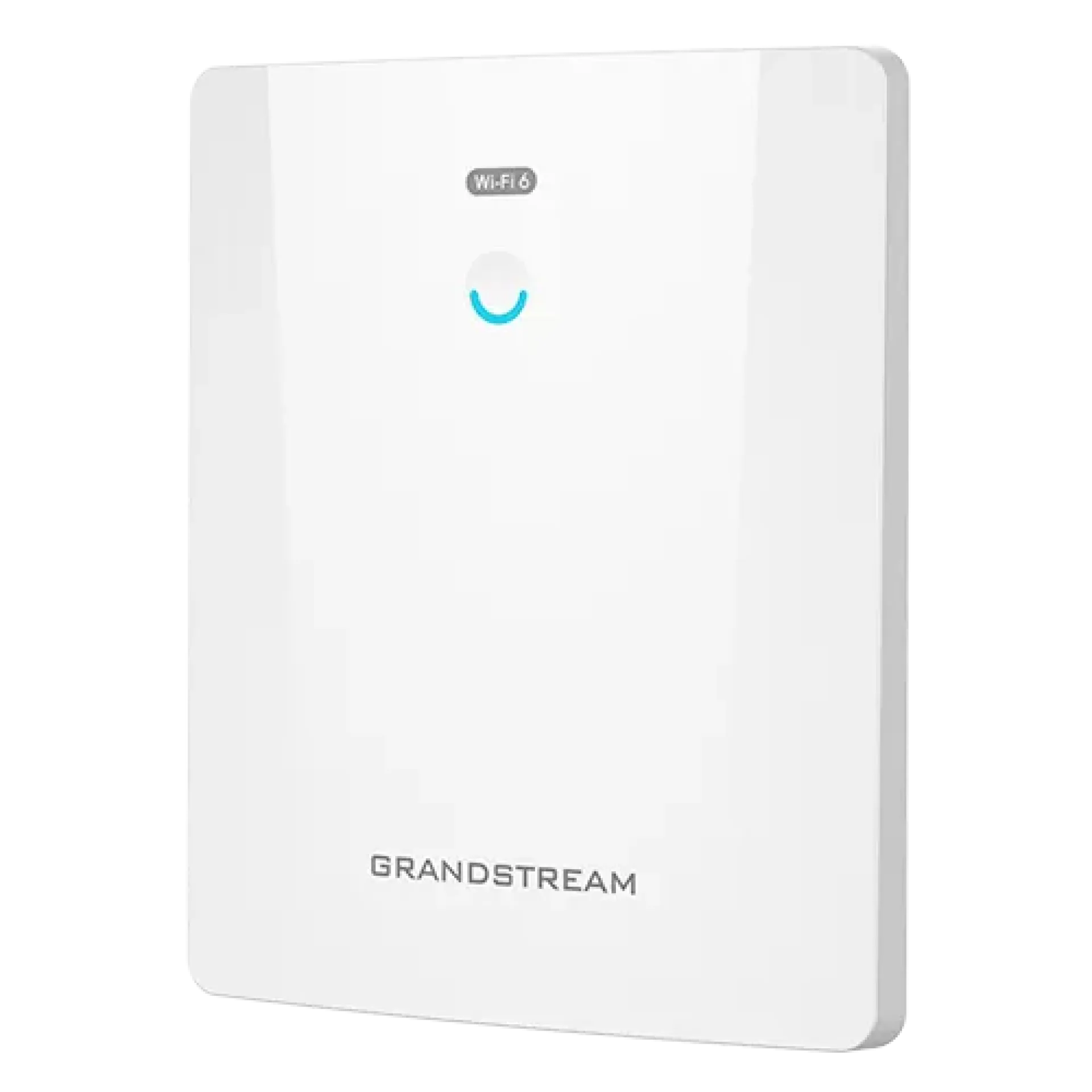

Grandstream GWN7664ELR Access Point

Grandstream GWN7664ELR Access Point Key Features

• Enterprise-grade outdoor long-range Wi-Fi 6 access point
• Dual-band 2.4GHz and 5GHz wireless connectivity
• IEEE 802.11ax Wi-Fi 6 technology
• Dual-band 4×4:4 MU-MIMO
• OFDMA technology for efficient multi-device connectivity
• Up to 6Gbps aggregate wireless throughput
• Up to 300-meter coverage range
• Supports up to 512 concurrent Wi-Fi client devices
• 1 × 2.5Gbps RJ45 Ethernet port
• 1 × 2.5Gbps SFP port
• PoE and PoE+ support
• IP67-level weatherproof capability
• Eight internal antennas
• Advanced QoS for low-latency applications
• Mesh networking support
• Captive portal support
• Fast roaming support
• Built-in network management controller
• Supports GWN.Cloud and GWN Manager
• Wall and pole mounting options
• Designed for medium to large businesses and enterprise deployments

Grandstream GWN7664ELR Access Point Introduction

The Grandstream GWN7664ELR Access Point is a high-performance outdoor long-range Wi-Fi 6 access point designed for medium to large businesses and enterprise environments that require reliable, high-capacity wireless connectivity across large outdoor areas. It combines dual-band 4×4:4 MU-MIMO, OFDMA technology, eight internal antennas, and up to 6Gbps aggregate wireless throughput for demanding wireless deployments.

The GWN7664ELR provides an extended wireless coverage range of up to 300 meters and supports up to 512 concurrent Wi-Fi client devices. Its 2.5Gbps RJ45 port and 2.5Gbps SFP port provide high-speed wired connectivity, while PoE/PoE+ support simplifies installation.

With advanced QoS, mesh networking, captive portal support, secure wireless technologies, and built-in network management, the GWN7664ELR is suitable for offices, schools, hospitals, warehouses, campuses, hotels, commercial compounds, and other demanding wireless environments.

Grandstream GWN7664ELR Access Point Price

Grandstream GWN7664ELR Access Point Key Specifications

Grandstream specifies 1.147Gbps maximum throughput on 2.4GHz and 4.8Gbps on 5GHz, resulting in up to 6Gbps aggregate wireless throughput. The device also supports up to 512 concurrent clients and a 300-meter coverage range.

Grandstream GWN7664ELR Access Point Performance

The GWN7664ELR is designed to deliver high-capacity wireless performance in enterprise and outdoor environments.

• Up to 6Gbps aggregate wireless throughput
• Dual-band 4×4:4 MU-MIMO
• Wi-Fi 6 performance
• OFDMA technology
• Up to 300-meter coverage
• Support for up to 512 concurrent clients
• 2.4GHz and 5GHz wireless connectivity
• Advanced QoS
• Fast roaming capabilities
• Mesh networking support
• Reliable performance for voice and video applications
• Support for low-latency real-time applications

The combination of 4×4:4 MU-MIMO and OFDMA enables the access point to efficiently serve multiple connected devices, making it suitable for networks with high wireless traffic and many simultaneous users.

Grandstream GWN7664ELR Access Point Outdoor Design

The GWN7664ELR is specifically designed for outdoor deployment. Its IP67-level weatherproof capability provides protection against dust and water exposure, while its rugged construction allows it to operate in demanding environmental conditions.

Its outdoor-ready design includes:

• IP67-level weatherproof construction
• Eight internal antennas
• Heat-resistant design
• Wall mounting support
• Pole mounting support
• Adjustable mounting kits
• Durable enterprise-grade housing
• Status indicators for device operation

The access point measures 260 × 310 × 59 mm and weighs approximately 1.445 kg, making it a substantial enterprise wireless device designed for fixed outdoor installation.

Grandstream GWN7664ELR Access Point Wireless Connectivity

The GWN7664ELR uses Wi-Fi 6 technology with dual-band 4×4:4 MU-MIMO and OFDMA. The 2.4GHz radio provides up to 1.147Gbps, while the 5GHz radio provides up to 4.8Gbps under supported conditions.

Wireless features include:

• 2.4GHz wireless connectivity
• 5GHz wireless connectivity
• IEEE 802.11ax Wi-Fi 6
• 4×4:4 MIMO
• 4×4:4 MU-MIMO
• OFDMA technology
• Up to 160MHz channel bandwidth
• Up to 32 SSIDs
• Up to 16 SSIDs per radio
• Advanced QoS
• Mesh networking
• Captive portal support
• Fast roaming

OFDMA helps improve wireless efficiency when multiple devices are communicating simultaneously, making the GWN7664ELR suitable for enterprise environments with many connected users and devices.

Grandstream GWN7664ELR Access Point Network Ports & PoE

The GWN7664ELR features two high-speed wired interfaces: one 2.5Gbps RJ45 Ethernet port and one 2.5Gbps SFP port. This provides flexible high-speed connectivity to compatible network infrastructure.

The 2.5Gbps RJ45 port supports IEEE 802.3at PoE/PoE+, allowing the access point to receive power through a compatible Ethernet connection.

PoE simplifies installation by allowing a compatible Ethernet connection to provide:

• Network connectivity
• Electrical power

The access point supports automatic power adaptation when compatible PoE or PoE+ equipment is detected, with maximum power consumption of approximately 24W.

Grandstream GWN7664ELR Access Point Management

The GWN7664ELR includes an embedded network management controller within its web interface. This allows administrators to configure and manage compatible GWN access points without requiring a separate hardware controller.

Management options include:

• Embedded controller
• GWN.Cloud
• GWN Manager
• Centralized configuration
• Access point provisioning
• Network monitoring
• Firmware management
• Multi-access-point management
• Remote network administration

The embedded controller can manage up to 50 local GWN access points, while GWN.Cloud provides cloud-based management and GWN Manager provides an on-premise management option.

Grandstream GWN7664ELR Access Point Security

The GWN7664ELR includes multiple security technologies designed to protect wireless networks and connected devices.

Security features include:

• WPA/WPA2-PSK
• WPA/WPA2 Enterprise
• WPA3
• TKIP/AES encryption
• Anti-hacking secure boot
• Digital signature protection
• Unique security certificate
• Random default password per device
• Critical data and control lockdown

The GWN7664ELR has also received Wi-Fi CERTIFIED 6 certification, including WPA3-Personal and WPA3-Enterprise support.

Grandstream GWN7664ELR Access Point Ideal Use Cases

Perfect for:

• Outdoor Wi-Fi coverage
• Enterprise networks
• Large office networks
• Schools and campuses
• Hospitals
• Warehouses
• Hotels
• Commercial compounds
• Multi-floor offices
• Large residential properties
• Guest Wi-Fi networks
• Voice-over-Wi-Fi deployments
• Video-over-Wi-Fi applications
• High-density wireless environments
• Outdoor business networks

The GWN7664ELR is particularly suitable for organizations that need long-range Wi-Fi 6 connectivity while supporting a large number of simultaneous wireless clients. Grandstream positions it for enterprises, multi-floor offices, warehouses, hospitals, schools, and similar environments.

Grandstream GWN7664ELR Access Point Pros And Cons

Grandstream GWN7664ELR Access Point FAQs

What is the coverage range of the GWN7664ELR?

The Grandstream GWN7664ELR offers a coverage range of up to 300 meters under suitable conditions. Actual coverage depends on obstacles, interference, installation height, building materials, and the surrounding environment.

How many devices can connect to the GWN7664ELR?

The access point supports up to 512 concurrent Wi-Fi client devices according to Grandstream's specifications.

Does the GWN7664ELR support Wi-Fi 6?

Yes. The GWN7664ELR is an IEEE 802.11ax Wi-Fi 6 access point designed for high-performance and high-density wireless deployments.

Does the GWN7664ELR support PoE?

Yes. The 2.5Gbps RJ45 port supports IEEE 802.3at PoE/PoE+, allowing compatible Ethernet equipment to provide power and network connectivity to the access point.

Is the GWN7664ELR suitable for outdoor use?

Yes. It is designed specifically for outdoor long-range deployments and provides IP67-level weatherproof capability for protection against demanding environmental conditions.

What is the maximum wireless throughput?

The GWN7664ELR provides up to 6Gbps aggregate wireless throughput, consisting of up to 1.147Gbps on 2.4GHz and 4.8Gbps on 5GHz under supported conditions.

Does the GWN7664ELR support 2.5Gbps networking?

Yes. It includes both a 2.5Gbps RJ45 port and a 2.5Gbps SFP port, providing high-speed wired connectivity for compatible network infrastructure.

Does the GWN7664ELR support mesh networking?

Yes. The GWN7664ELR supports mesh networking, allowing compatible GWN access points to work together to extend wireless coverage across larger areas.

Can the GWN7664ELR be managed without a separate controller?

Yes. It includes an embedded controller in its web interface. It also supports GWN.Cloud and GWN Manager for centralized network management.

Grandstream GWN7664ELR Access Point Conclusion

The Grandstream GWN7664ELR Access Point is a powerful enterprise-grade outdoor wireless networking solution designed for organizations that require high-speed, high-capacity, long-range Wi-Fi. With Wi-Fi 6 technology, dual-band 4×4:4 MU-MIMO, OFDMA, up to 6Gbps aggregate wireless throughput, up to 300-meter coverage, support for up to 512 concurrent clients, dual 2.5Gbps wired interfaces, PoE+ support, eight internal antennas, and IP67-level weatherproof capability, it is well suited to demanding outdoor wireless deployments.

Priced at KSh 25,000, the Grandstream GWN7664ELR Access Point offers a high-performance solution for offices, schools, hospitals, warehouses, hotels, campuses, commercial compounds, and other large indoor and outdoor environments requiring dependable Wi-Fi 6 connectivity.
