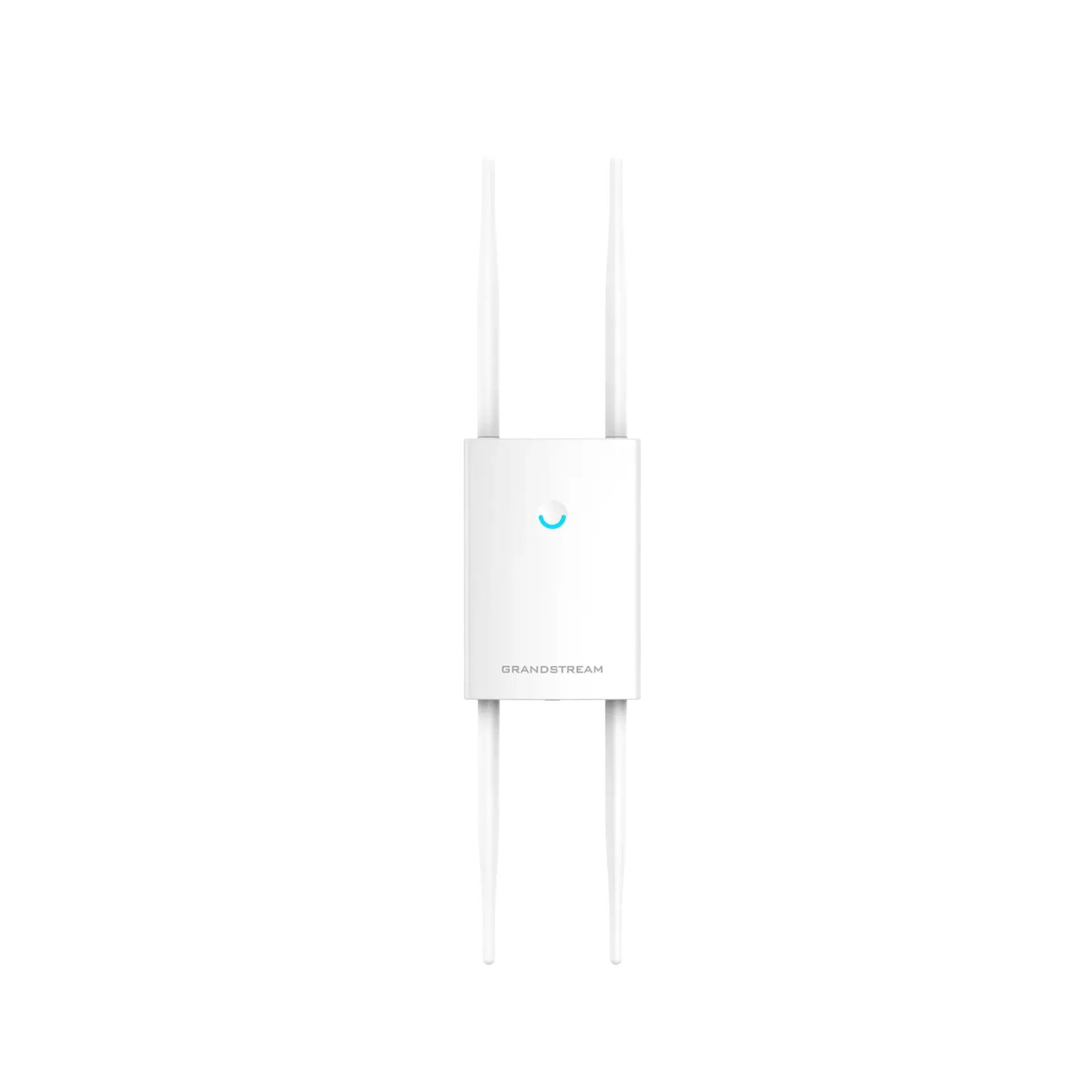

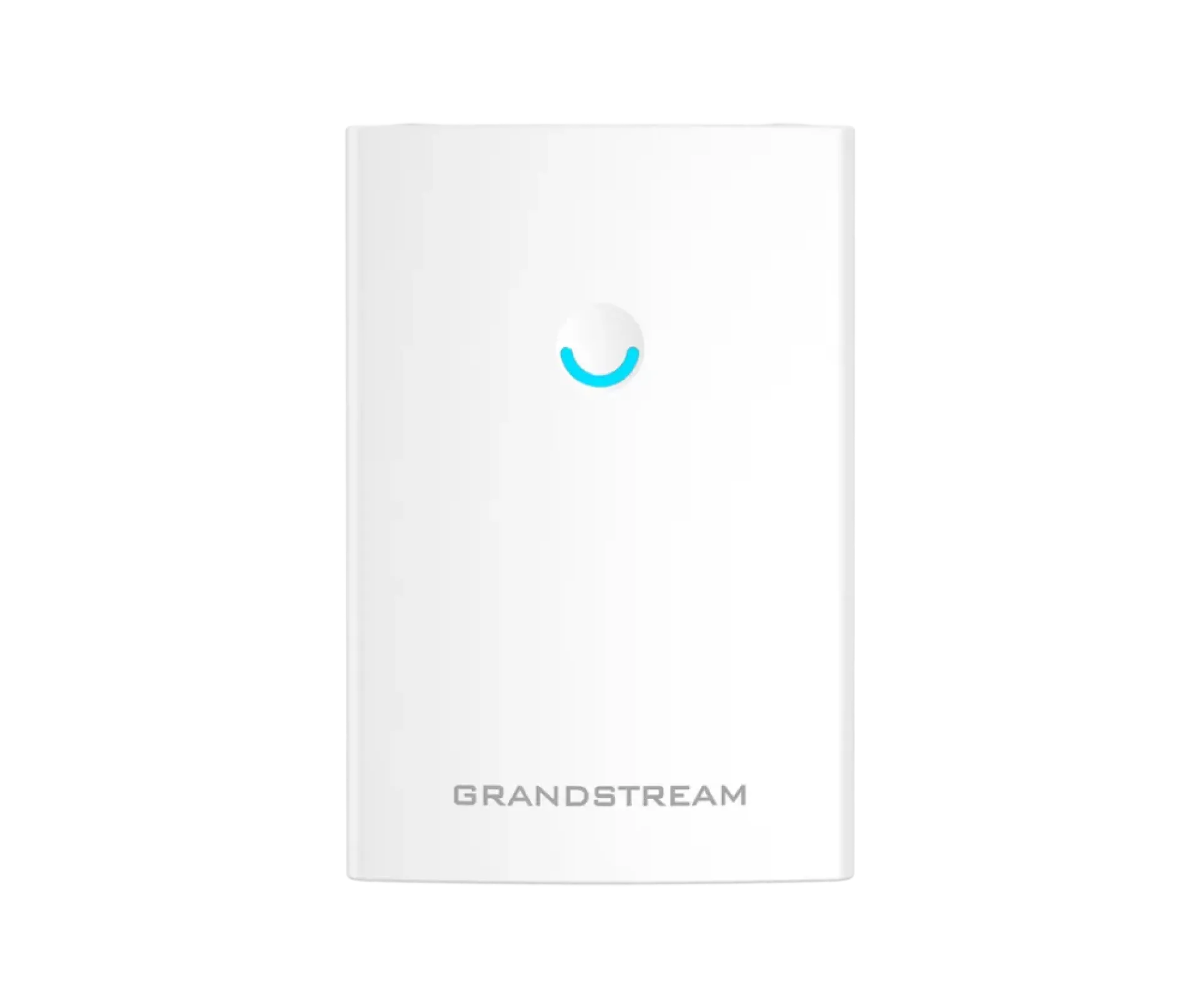

Grandstream GWN7630LR Access Point

Grandstream GWN7630LR Access Point Key Features

• Outdoor long-range Wi-Fi access point
• Dual-band 2.4GHz and 5GHz wireless connectivity
• IEEE 802.11ac Wave-2 technology
• Dual-band 4×4:4 MIMO
• 4×4:4 MU-MIMO on 5GHz
• Up to 2.33Gbps aggregate wireless throughput
• Up to 300-meter coverage range
• Supports 250+ concurrent Wi-Fi clients
• 2 × Gigabit Ethernet ports
• PoE and PoE+ support
• Weatherproof and heat-resistant design
• Four detachable/changeable dual-band omnidirectional antennas
• Advanced QoS for low-latency applications
• Mesh networking support
• Captive portal support
• Fast roaming support
• Built-in network management controller
• Supports GWN.Cloud and GWN Manager
• Wall and pole mounting options
• Suitable for medium to large businesses and enterprise deployments

Grandstream GWN7630LR Access Point Introduction

The Grandstream GWN7630LR Access Point is a high-performance long-range wireless access point designed for medium to large businesses and enterprise environments that require reliable Wi-Fi coverage across both indoor and outdoor areas. It combines dual-band 4×4:4 MIMO technology, 802.11ac Wave-2 Wi-Fi, advanced antenna design, and up to 2.33Gbps wireless throughput for high-capacity wireless networking.

The GWN7630LR is designed to provide an extended wireless coverage range of up to 300 meters and can support 250+ concurrent Wi-Fi client devices. Its weatherproof and heat-resistant construction makes it suitable for outdoor installations, while its Gigabit Ethernet ports and PoE/PoE+ support simplify network deployment.

With features such as advanced QoS, fast roaming, mesh networking, captive portals, and centralized management, the GWN7630LR is suitable for offices, warehouses, schools, hospitals, hotels, campuses, and other demanding wireless environments.

Grandstream GWN7630LR Access Point Price

Grandstream GWN7630LR Access Point Key Specifications

The GWN7630LR provides up to 600Mbps on 2.4GHz and 1733Mbps on 5GHz, with two Gigabit Ethernet ports and support for up to 250+ concurrent clients.

Grandstream GWN7630LR Access Point Performance

The GWN7630LR is designed to deliver high-capacity wireless performance in environments with many connected devices.

• Up to 2.33Gbps wireless throughput
• Dual-band 4×4:4 MIMO
• 4×4:4 MU-MIMO technology
• Up to 300-meter coverage
• Support for 250+ concurrent clients
• Gigabit Ethernet connectivity
• Advanced QoS
• Fast roaming
• Mesh networking support
• Reliable performance for voice and video applications
• Suitable for high-density wireless environments

Its 4×4:4 MIMO architecture provides greater wireless capacity than lower-tier access points, making it particularly useful for environments where multiple users and devices need simultaneous connectivity.

Grandstream GWN7630LR Access Point Outdoor Design

The GWN7630LR is built for both indoor and outdoor deployments. It features weatherproof casing and heat-resistant technology, allowing it to operate in demanding environments. When installed vertically, it offers an IP66-level weatherproof capability.

Its design includes:

• Weather-resistant housing
• Heat-resistant construction
• Four detachable external antennas
• Wall mounting support
• Pole mounting support
• Status LED for device indication
• Durable construction for outdoor deployment

The operating temperature range is specified from -30°C to 60°C, making the access point suitable for a wide variety of environmental conditions.

Grandstream GWN7630LR Access Point Wireless Connectivity

The GWN7630LR supports both 2.4GHz and 5GHz Wi-Fi bands using IEEE 802.11ac Wave-2 technology. Its dual-band 4×4:4 MIMO architecture provides high wireless capacity and helps the access point serve multiple users efficiently.

Wireless features include:

• 2.4GHz wireless connectivity
• 5GHz wireless connectivity
• IEEE 802.11a/b/g/n/ac Wave-2
• 4×4:4 MIMO
• 4×4:4 MU-MIMO
• Up to 600Mbps on 2.4GHz
• Up to 1733Mbps on 5GHz
• Multiple SSIDs
• Advanced QoS
• Fast roaming
• Mesh networking

The access point supports up to 32 SSIDs in total, with up to 16 SSIDs on each radio, making it possible to create separate wireless networks for employees, guests, departments, or different services.

Grandstream GWN7630LR Access Point Network Ports & PoE

The GWN7630LR features two 10/100/1000 Mbps Gigabit Ethernet ports for high-speed wired networking. It supports IEEE 802.3af and 802.3at PoE/PoE+, allowing the access point to receive power through a compatible Ethernet connection.

PoE simplifies installation by reducing the need for a separate power cable at the access point location. The GWN7630LR can automatically adapt its power requirements based on whether PoE or PoE+ is detected.

Maximum power consumption is approximately 16.5W according to Grandstream's specifications.

Grandstream GWN7630LR Access Point Management

The GWN7630LR includes an embedded network management controller within its web user interface. This allows administrators to manage locally deployed GWN access points without requiring a separate physical controller.

Management options include:

• Embedded controller
• GWN.Cloud
• GWN Manager
• Centralized configuration
• Access point provisioning
• Network monitoring
• Firmware management
• Multi-access-point management

The embedded controller can manage up to 50 local GWN series access points, while Grandstream's cloud and on-premise management platforms provide additional options for larger deployments.

Grandstream GWN7630LR Access Point Security

The GWN7630LR provides several security features designed to protect wireless networks and connected devices.

Security options include:

• WEP
• WPA/WPA2-PSK
• WPA/WPA2 Enterprise
• WPA3
• Secure boot
• Digital signature protection
• Critical data and control lockdown
• Device-specific security credentials

These features make the access point suitable for professional environments where wireless network security is an important consideration.

Grandstream GWN7630LR Access Point Ideal Use Cases

Perfect for:

• Outdoor Wi-Fi coverage
• Large office networks
• Enterprise networks
• Schools and campuses
• Hotels
• Hospitals
• Warehouses
• Shopping centers
• Commercial compounds
• Large residential properties
• Guest Wi-Fi networks
• Voice-over-Wi-Fi deployments
• Video-over-Wi-Fi applications
• High-density wireless environments

The GWN7630LR is particularly useful for organizations that need to extend reliable Wi-Fi over large spaces while supporting a large number of simultaneous wireless clients.

Grandstream GWN7630LR Access Point Pros And Cons

Grandstream GWN7630LR Access Point FAQs

What is the coverage range of the GWN7630LR?

The Grandstream GWN7630LR offers a coverage range of up to 300 meters under suitable conditions. Actual coverage will vary depending on obstacles, interference, building materials, antenna positioning, and installation environment.

How many devices can connect to the GWN7630LR?

The access point supports 250+ concurrent Wi-Fi client devices according to Grandstream's current specifications.

Does the GWN7630LR support PoE?

Yes. It supports IEEE 802.3af and 802.3at PoE/PoE+, allowing the access point to receive both power and network connectivity through compatible Ethernet equipment.

Does the GWN7630LR support 5GHz Wi-Fi?

Yes. It supports both 2.4GHz and 5GHz wireless connectivity. The 5GHz radio can provide up to 1733Mbps under supported conditions.

What Wi-Fi standard does the GWN7630LR use?

The GWN7630LR uses IEEE 802.11a/b/g/n/ac Wave-2 technology and features dual-band 4×4:4 MIMO.

Is the GWN7630LR suitable for outdoor use?

Yes. It is designed for indoor and outdoor deployments and features weatherproof casing and heat-resistant technology. When installed vertically, it offers IP66-level weatherproof capability.

Does the GWN7630LR support mesh networking?

Yes. The access point supports mesh networking, allowing compatible GWN access points to be deployed together to extend wireless coverage across larger areas.

Can the GWN7630LR be managed without a separate controller?

Yes. The GWN7630LR has an embedded controller in its web interface. It also supports GWN.Cloud and GWN Manager for centralized network management.

Grandstream GWN7630LR Access Point Conclusion

The Grandstream GWN7630LR Access Point is a high-performance long-range wireless networking solution designed for businesses, institutions, and organizations that need reliable Wi-Fi coverage across large indoor and outdoor spaces. With dual-band 4×4:4 MIMO, up to 2.33Gbps wireless throughput, up to 300-meter coverage, support for 250+ concurrent clients, dual Gigabit Ethernet ports, PoE/PoE+ support, detachable antennas, and weather-resistant construction, it provides the capacity and flexibility required for demanding wireless deployments.

Priced at KSh 15,000, the Grandstream GWN7630LR Access Point offers a powerful networking solution for offices, schools, hospitals, warehouses, hotels, campuses, and large outdoor areas.
