Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Key Features

• Category 6A F/FTP shielded cable
• 305-metre drum
• 23 AWG solid bare copper conductor
• Individual foil shielding around all four twisted pairs
• Overall aluminium foil shielding
• LSOH Low Smoke Zero Halogen jacket
• Flame-resistant construction
• 500MHz performance
• Supports 10 Gigabit Ethernet networks
• Includes drain wire
• Central X filler for improved cable separation
• Suitable for indoor structured cabling
• Designed to reduce alien crosstalk and external EMI
• Suitable for enterprise and data-centre networks

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Introduction

The Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH is a high-performance shielded network cable designed for structured cabling installations. It uses four individually foil-shielded twisted pairs together with an overall aluminium foil shield to provide protection against alien crosstalk and external electromagnetic interference. The cable is designed for 500MHz performance and 10 Gigabit Ethernet networks.

• The 23 AWG solid bare copper conductor is designed for permanent structured cabling.
• Individual pair shielding helps reduce interference between adjacent cables.
• The overall foil shield provides additional protection against external EMI.
• The LSOH jacket is suitable for installations requiring low-smoke and halogen-free cable materials.
• The standard product is supplied as a 305-metre drum.

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Price in Kenya

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Key Specifications

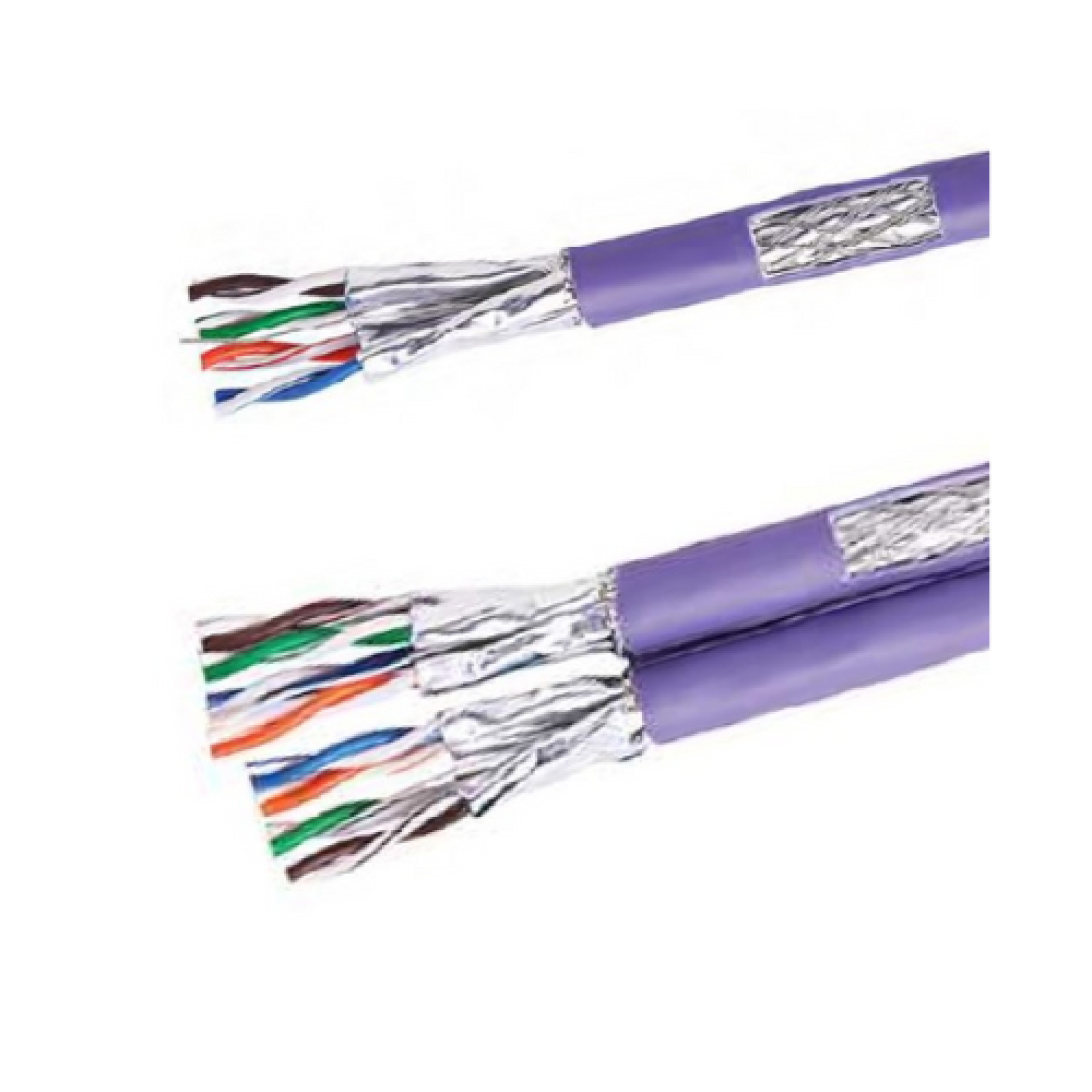

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Shielding

• Each of the four twisted pairs is individually wrapped with aluminium foil.
• An additional overall aluminium foil shield surrounds the cable.
• The shielding helps reduce alien crosstalk.
• It provides protection against external electromagnetic interference.
• A drain wire is included as part of the shielding system.
• The F/FTP construction makes the cable suitable for demanding networking environments.

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Network Performance

• Designed for Category 6A networking.
• Provides performance up to 500MHz.
• Suitable for 10 Gigabit Ethernet networks.
• Designed for high-bandwidth applications.
• Suitable for data, voice and video transmission.
• Supports modern enterprise structured cabling infrastructure.

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Cable Construction

• Uses a 23 AWG solid bare copper conductor.
• Features four individually foil-shielded twisted pairs.
• Includes an overall aluminium foil shield.
• Includes a central X filler to maintain pair separation.
• Includes a drain wire and rip cord.
• Designed for permanent horizontal floor wiring applications.

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH LSOH Jacket

• Uses a Low Smoke Zero Halogen jacket.
• Designed for flame-resistant applications.
• Produces reduced smoke compared with conventional halogen-containing cable materials.
• Suitable for indoor commercial and professional installations.
• Appropriate for environments where fire and smoke performance is an important consideration.

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Installation

• Designed for permanent structured cabling installations.
• Suitable for installation in network cabinets and telecommunications rooms.
• Can be terminated using compatible Cat6A patch panels and keystone jacks.
• Suitable for enterprise network infrastructure.
• The solid conductor design is intended for fixed cabling rather than frequent movement.
• Shielded installations should be correctly grounded according to the applicable cabling system requirements.

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Ideal Use Cases

• Data centres
• Server rooms
• Enterprise networks
• Office buildings
• Structured cabling systems
• Telecommunications rooms
• Network infrastructure projects
• High-speed 10Gbps networks
• Commercial buildings
• Professional IT installations

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Pros and Cons

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH FAQs

What category is the Giganet GN-C6A-F/FTP-LSOH cable?
It is a Category 6A F/FTP shielded network cable.

How long is the standard drum?
The standard cable is supplied as a 305-metre drum.

What conductor does it use?
It uses a 23 AWG solid bare copper conductor.

What does F/FTP mean?
F/FTP means that each twisted pair is individually foil-shielded while the complete group of pairs also has an overall foil shield.

Does it support 10Gbps Ethernet?
Yes. The cable is designed for 10 Gigabit Ethernet applications and 500MHz performance.

What does LSOH mean?
LSOH means Low Smoke Zero Halogen, referring to the jacket material and its low-smoke, halogen-free characteristics.

Is it suitable for structured cabling?
Yes. It is designed for permanent structured cabling and high-speed network infrastructure.

How much does the Giganet GN-C6A-F/FTP-LSOH cost in Kenya?
The price is KSh 3,000.

Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH Conclusion

The Giganet Cat 6A Solid F/FTP LSOH Cable GN-C6A-F/FTP-LSOH is a high-performance structured cabling solution designed for modern enterprise networks. Its 23 AWG solid copper conductor, individual pair shielding, overall foil shield, 500MHz performance, 10Gbps capability and LSOH jacket make it suitable for demanding indoor networking installations.

At KSh 3,000, it provides a practical option for professional network cabling projects requiring shielded Cat6A infrastructure.
