EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Key Features
10000VA / 9000W power capacity
True Online Double-Conversion UPS
Pure sine wave output
Output power factor of 0.9
Zero transfer time (0 ms)
Tower form factor
Rotating LCD display
USB and RS232 communication ports
Optional SNMP, Parallel, and Relay cards
N+X parallel redundancy support
Generator compatible
Cold Start function
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Overview

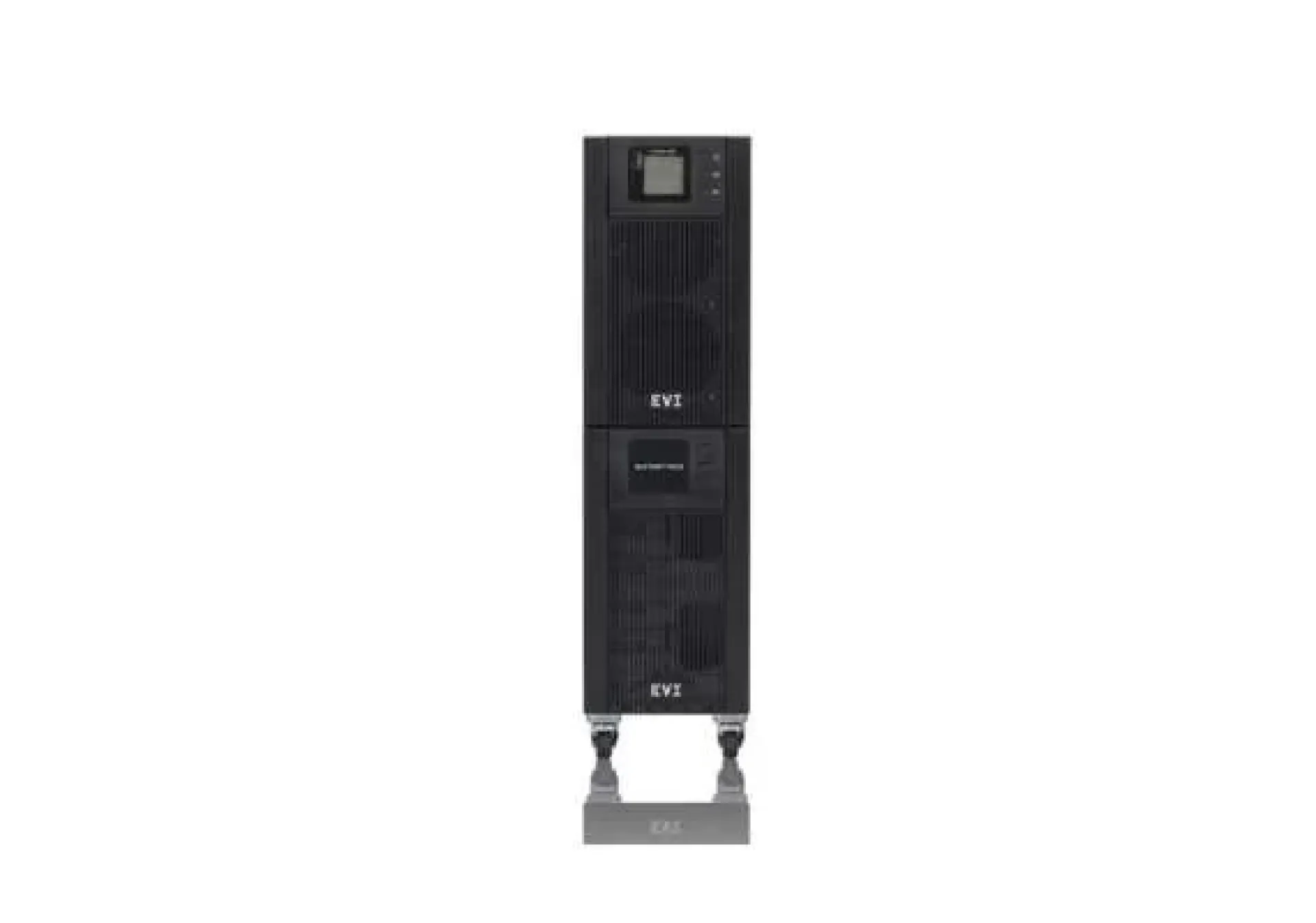

The EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) is an enterprise-grade uninterruptible power supply engineered to deliver reliable backup power for data centers, server rooms, telecommunications systems, healthcare facilities, industrial automation, and other mission-critical applications. Its true online double-conversion technology continuously conditions incoming power, ensuring connected equipment receives clean, stable pure sine wave output with zero transfer time during power disturbances.
Designed in a robust tower chassis, the UPS incorporates advanced DSP control, intelligent battery management, a rotating LCD display for real-time monitoring, USB and RS232 communication interfaces, and optional SNMP support for remote management. N+X parallel redundancy, generator compatibility, Eco mode, and Cold Start functionality make it an ideal solution for organizations that require maximum uptime and dependable power protection.
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Price Table
Product
Price (KES)
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT)
180,000 – 220,000 (approx.)
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Key Specs
Specification
Details
Capacity
10000VA / 9000W
UPS Type
Online Double Conversion
Phase
Single Phase
Output Power Factor
0.9
Output Waveform
Pure Sine Wave
Transfer Time
0 ms
Input Voltage Range
120–276V AC
Input Frequency Range
45–55Hz (50Hz) / 54–66Hz (60Hz)
Communication
USB, RS232, Optional SNMP, Parallel & Relay Cards
Display
Rotating LCD
Form Factor
Tower
Connection
Input/Output Terminal Blocks
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Performance
True online double-conversion technology delivers continuous clean power
Zero transfer time ensures uninterrupted operation during outages
Pure sine wave output protects enterprise servers and sensitive electronics
High 0.9 output power factor provides up to 9000W usable power
Wide input voltage range minimizes battery usage during unstable mains supply
DSP control enhances operational accuracy and system reliability
Generator compatible for dependable backup during extended outages
Eco mode improves energy efficiency under stable power conditions
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Design & Build
Professional tower enclosure
Heavy-duty metal construction
Rotating LCD display for flexible viewing
Intelligent cooling system
Front-panel controls for easy management
Terminal block connections for professional installations
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Connectivity
USB communication interface
RS232 serial communication
Optional SNMP management card
Optional Parallel and Relay cards
Terminal block input and output connections
Generator compatibility
Cold Start capability
N+X parallel redundancy support
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Use Cases
Data Centers: Continuous backup for servers and storage systems
Server Rooms: Protects enterprise IT infrastructure
Telecommunications: Maintains uninterrupted communication systems
Healthcare Facilities: Powers critical medical equipment
Industrial Automation: Supports PLCs and control systems
Financial Institutions: Ensures continuous operation of business-critical applications
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Pros & Cons
Pros
Cons
True online double-conversion technology
Premium purchase cost
High 9000W usable output
Large tower footprint
Pure sine wave output
Heavy due to high-capacity batteries
N+X parallel redundancy support
Professional installation recommended
USB, RS232, and optional SNMP support
Designed primarily for enterprise environments
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) FAQs
Q1: Is this a true online UPS? Yes. It uses online double-conversion technology to provide uninterrupted pure sine wave power with zero transfer time.
Q2: Does it support generator operation? Yes. The UPS is fully compatible with generator power, making it suitable for locations with extended power outages.
Q3: Can it be remotely monitored? Yes. It includes USB and RS232 communication ports and supports optional SNMP, Parallel, and Relay cards for advanced monitoring and management.
Q4: What applications is this UPS best suited for? It is ideal for data centers, enterprise servers, telecommunications systems, industrial automation, healthcare facilities, financial institutions, and other mission-critical environments requiring continuous power protection.
EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) Verdict
The EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) is a premium enterprise UPS built for organizations that demand maximum reliability and uptime. With true online double-conversion technology, pure sine wave output, a high 0.9 output power factor, N+X parallel redundancy, intelligent battery management, advanced communication options, and generator compatibility, it delivers dependable protection for servers, networking infrastructure, industrial equipment, and other mission-critical systems.
