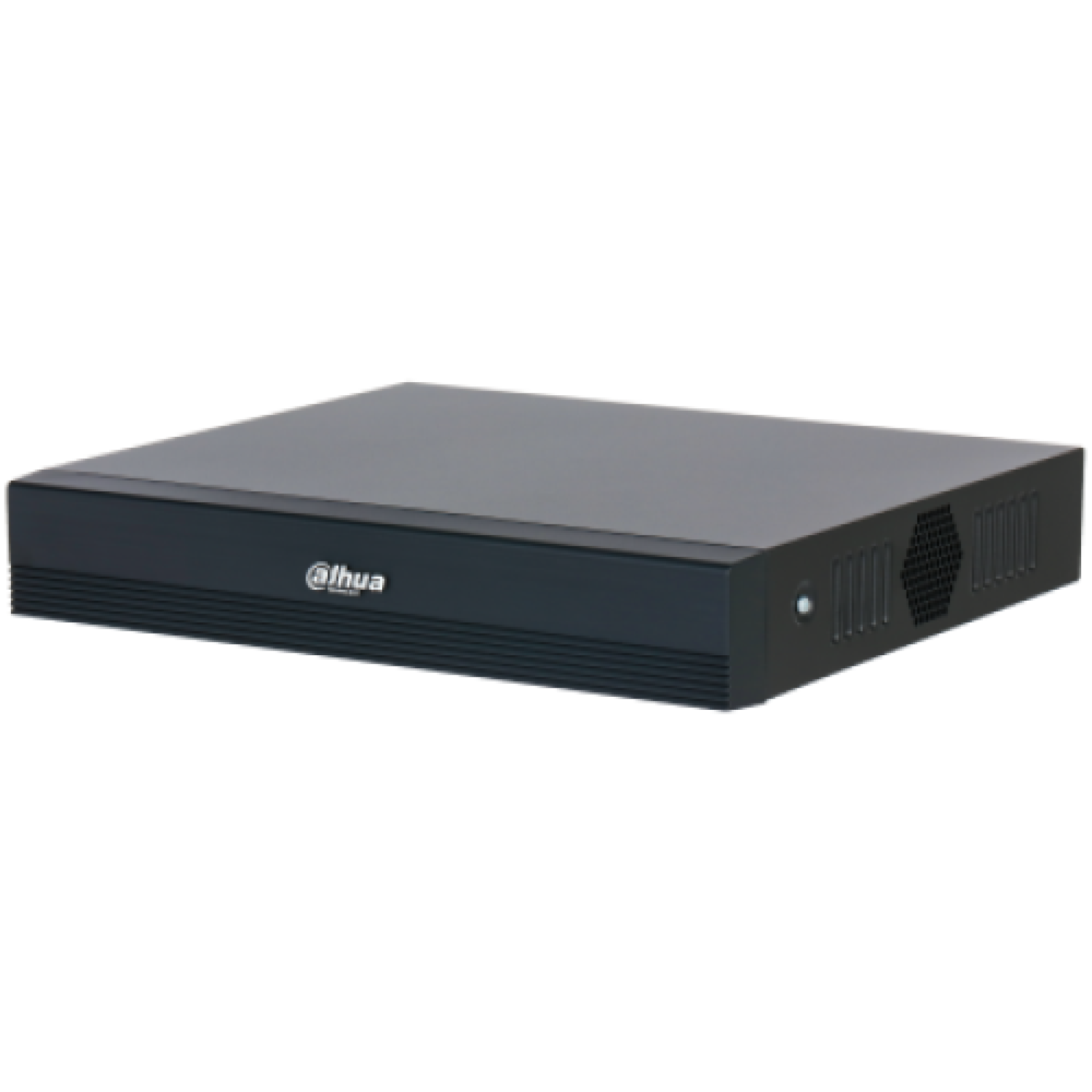

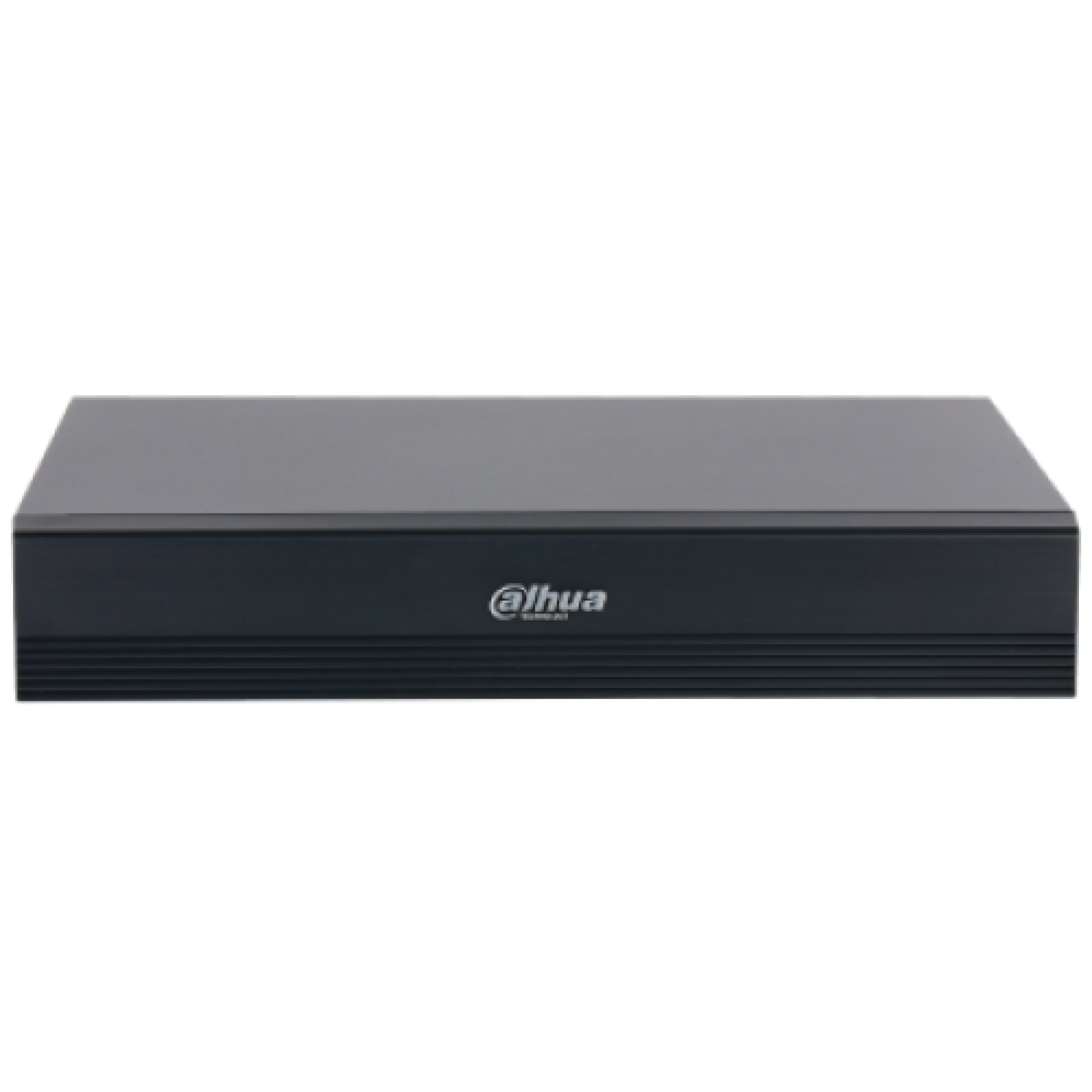

Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Overview
The Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder is a powerful and flexible surveillance recording solution designed for medium to large security installations. It supports Penta-brid technology, allowing seamless integration of HDCVI, AHD, TVI, CVBS, and IP cameras on a single system. With WizSense AI capabilities, it enhances security by accurately detecting humans and vehicles while reducing false alarms. Supporting 1080N/720P recording, H.265 compression, 1 HDD storage, and remote monitoring via DMSS, it delivers efficient and intelligent video management for modern CCTV systems.
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Key Features
- 16-channel Penta-brid video input (HDCVI/AHD/TVI/CVBS/IP)
- Supports up to 1080N/720P recording resolution
- WizSense AI with human and vehicle detection
- Smart Motion Detection (SMD Plus)
- H.265 / H.265+ video compression
- 1 SATA HDD support (up to 6TB–16TB depending on configuration)
- HDMI and VGA simultaneous output
- Remote access via DMSS mobile application
- Supports up to 18 IP camera channels (extended mode)
- AI coding for storage optimization
- Smart playback and intelligent search
- ONVIF IP camera compatibility
- USB backup and firmware upgrade support
- Compact 1U rack-friendly design
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua XVR1B16 16-Channel WizSense DVR | KSh 10,000 – KSh 28,000 |
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua XVR1B16 Digital Video Recorder |
| Channels | 16 Channels (Penta-brid) |
| Video Input | HDCVI / AHD / TVI / CVBS / IP |
| IP Camera Support | Up to 18 channels (extended mode) |
| Max Recording | 1080N / 720P |
| Compression | H.265 / H.265+ / H.264 |
| AI Features | WizSense (SMD Plus, Human/Vehicle detection) |
| Storage | 1 SATA HDD (up to 6TB–16TB depending on model) |
| Video Output | HDMI / VGA |
| Network | RJ45 Ethernet |
| Remote Access | DMSS App, Web Client, CMS software |
| USB Ports | 2 × USB 2.0 |
| Power Supply | 12V DC |
| Operating Temperature | –10°C to +55°C |
| Form Factor | 1U compact DVR |
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Performance
- Handles large-scale hybrid CCTV systems efficiently
- WizSense AI improves accuracy by detecting humans and vehicles
- H.265 compression reduces storage and bandwidth usage significantly
- Supports smooth live view and playback across multiple channels
- Intelligent search speeds up incident retrieval
- Stable 24/7 recording for professional surveillance setups
- Supports both analog and IP expansion for future upgrades
- Reliable performance for commercial environments
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Design and Build
- Compact 1U rack-mountable design
- Durable metal chassis for long-term operation
- Efficient heat dissipation for continuous use
- Simple front panel for easy operation
- Lightweight yet industrial-grade construction
- Designed for professional CCTV installations

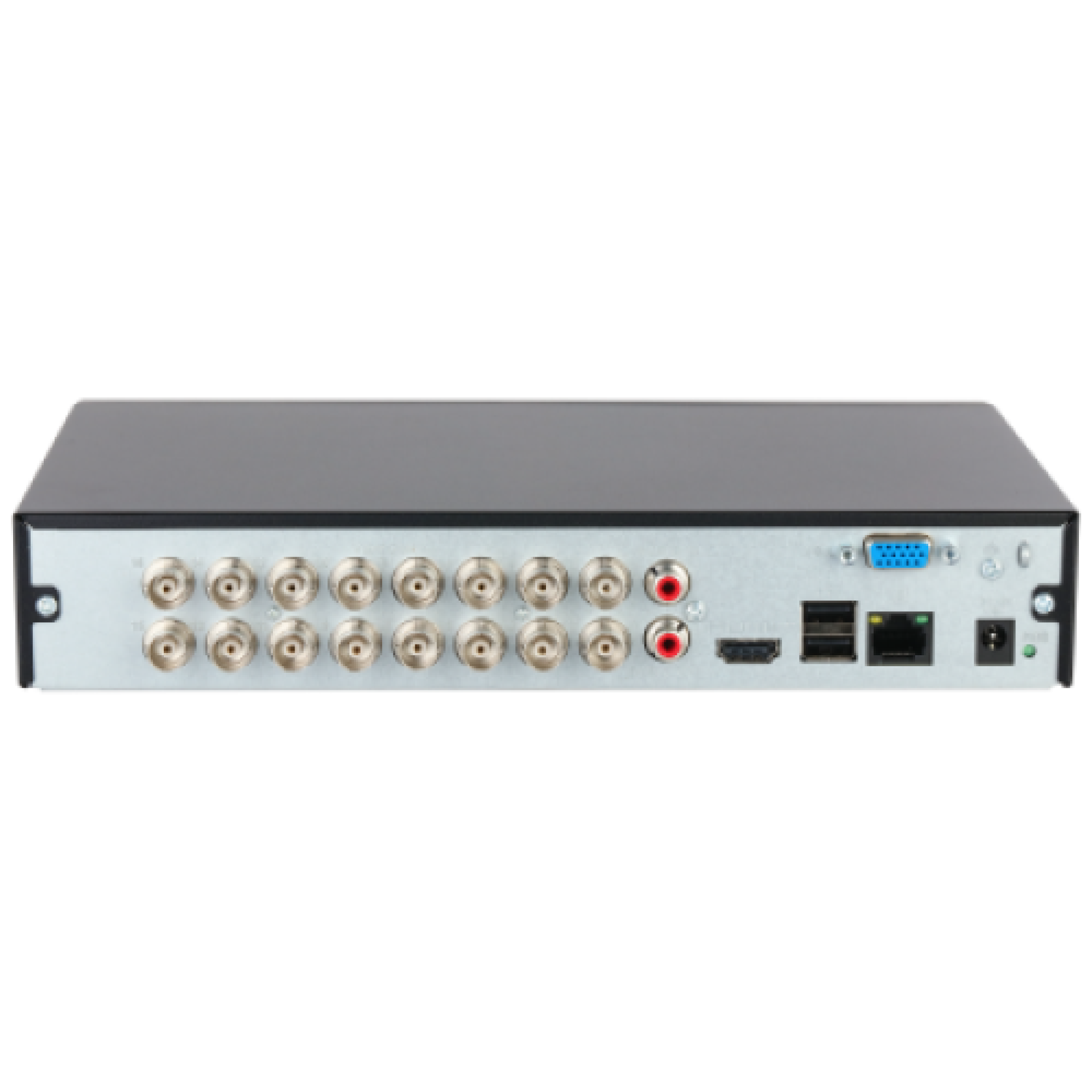

Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Connectivity and Compatibility
- Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Compatible with Dahua and ONVIF IP cameras
- Remote viewing via DMSS mobile app
- Web browser and CMS software support
- HDMI and VGA output connectivity
- RJ45 Ethernet network interface
- USB ports for backup and upgrades
- Integrates into hybrid CCTV infrastructures
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Ideal Use Cases
- Large residential estates
- Commercial buildings and offices
- Retail chains and supermarkets
- Schools and institutions
- Warehouses and logistics centers
- Industrial facilities
- Parking systems and multi-entrance sites
- Hybrid CCTV upgrades (analog + IP)
- Government and security installations
- Multi-camera surveillance environments
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – FAQs
1. How many cameras does it support?
It supports 16 analog channels plus up to 18 IP channels in extended mode.
2. Does it support AI features?
Yes, it includes WizSense AI with human and vehicle detection and SMD Plus.
3. Can I view cameras remotely?
Yes, it supports the DMSS mobile application for remote access.
4. What types of cameras are compatible?
It supports HDCVI, AHD, TVI, CVBS, and IP cameras (Penta-brid).
5. How much storage does it support?
It supports 1 SATA HDD, typically up to 6TB–16TB depending on model version.
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Supports 16-channel hybrid input | Only 1 HDD slot |
| AI WizSense detection | Limited analog resolution (1080N/720P) |
| Supports IP camera expansion | Not ideal for ultra-high-end systems |
| Efficient H.265 compression | Requires proper setup for best AI performance |
| Remote access via DMSS | |
| Scalable and flexible system |
Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder – Conclusion
The Dahua XVR1B16 16-Channel Hybrid Digital Video Recorder is a reliable and scalable surveillance solution designed for medium to large installations. With AI-powered detection, hybrid camera compatibility, efficient compression, and remote monitoring, it delivers strong performance and flexibility for professional security systems.
