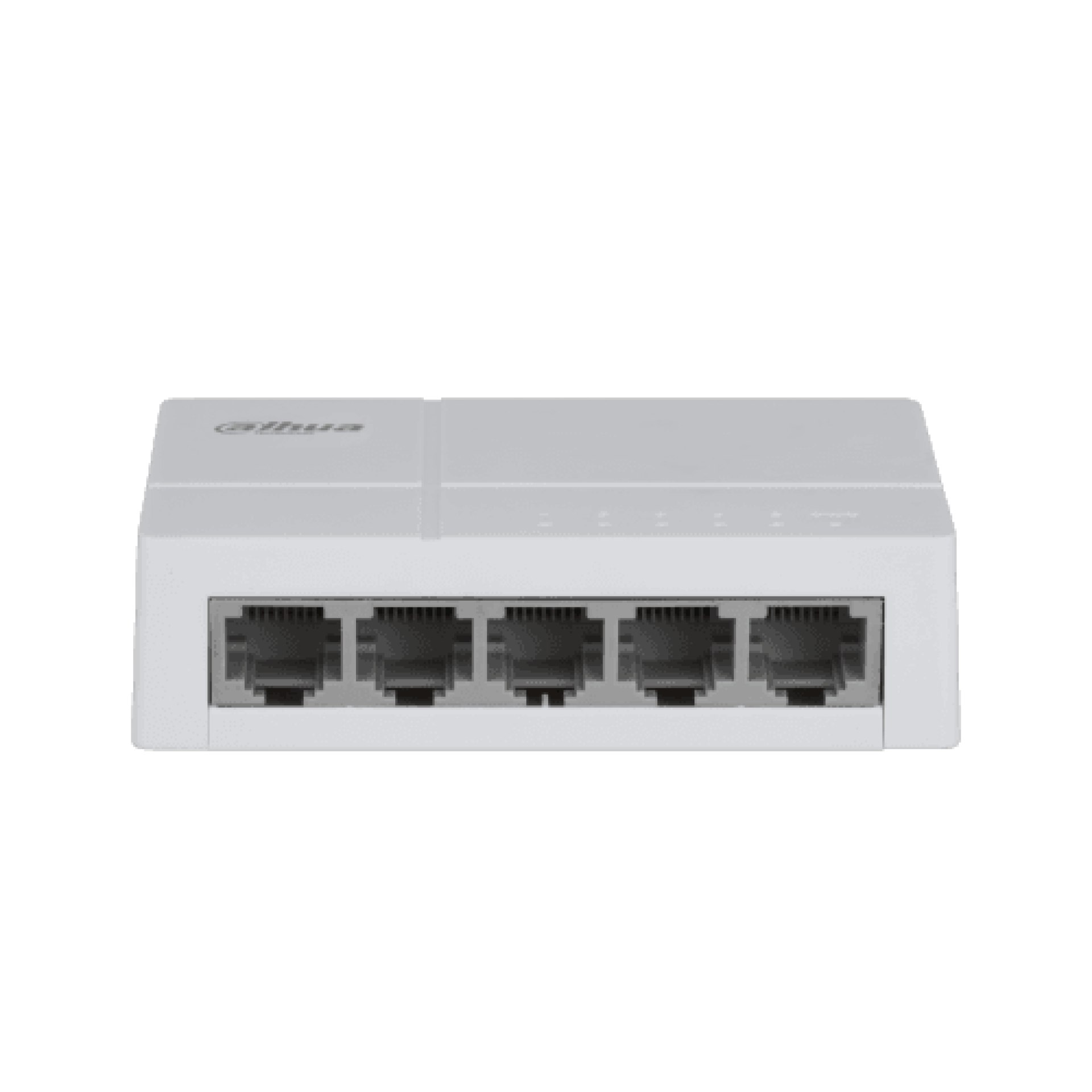

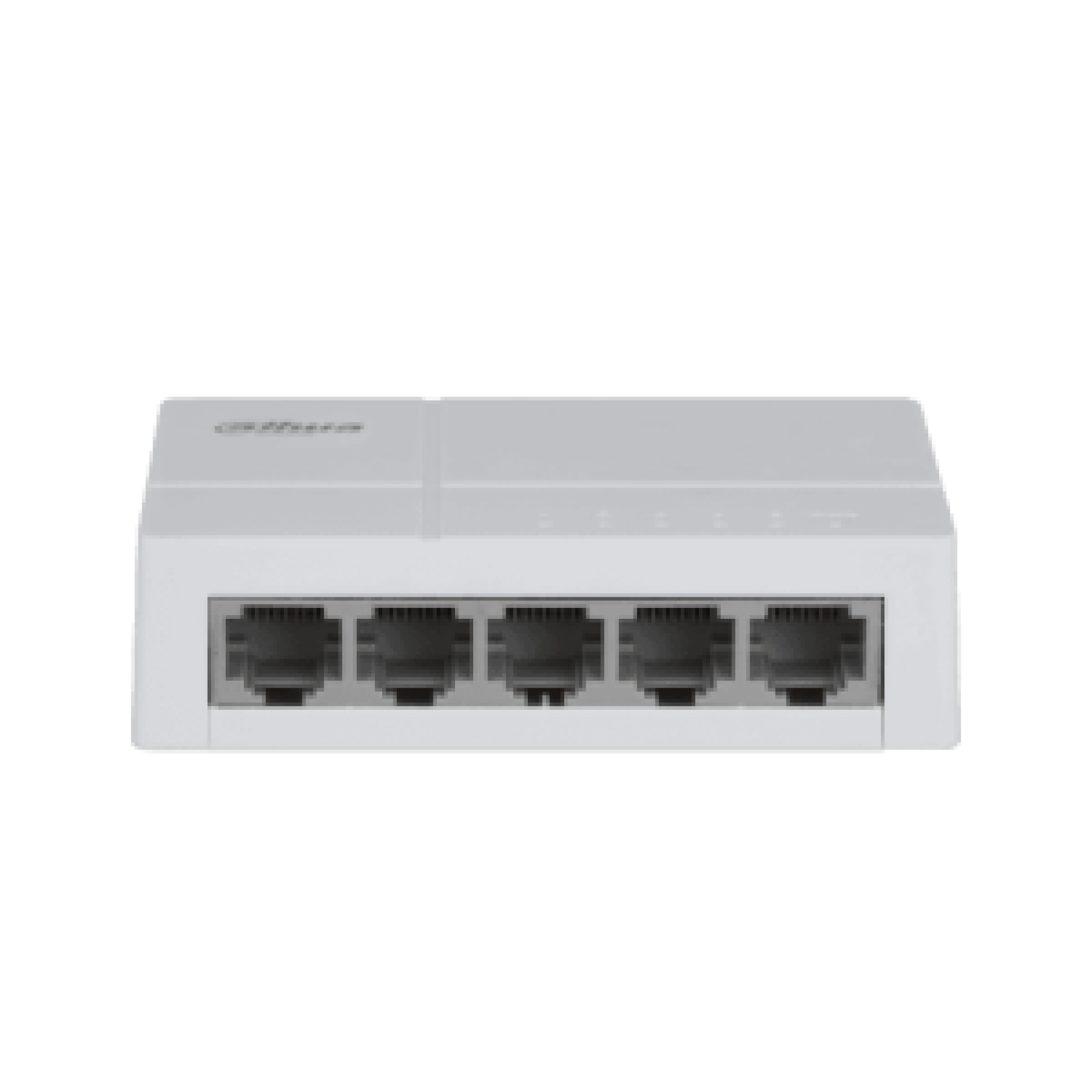

Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Overview
The Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch is a compact and reliable networking solution designed for small offices, homes, and CCTV installations. Featuring five 10/100 Mbps adaptive Ethernet ports, this plug-and-play switch requires no configuration, making it ideal for expanding wired network connectivity quickly and efficiently. With auto MDI/MDIX support, store-and-forward switching, low power consumption, and a lightweight desktop design, the DHI-SF1005L5 provides dependable network performance for everyday networking needs.
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Key Features
- 5 × 10/100 Mbps adaptive RJ-45 Ethernet ports
- Unmanaged Plug-and-Play operation
- Auto MDI/MDIX support
- Store-and-forward switching technology
- 1 Gbps switching capacity
- 2K MAC address table
- 768 Kbit packet buffer
- Compact desktop design
- Low power consumption
- Plastic housing
- Lightning protection
- Energy-efficient operation
- External power adapter included
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch | KSh 800 – KSh 1,500 |
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua DHI-SF1005L5 |
| Switch Type | Unmanaged Ethernet Switch |
| Ethernet Ports | 5 × 10/100 Mbps RJ-45 |
| Port Speed | 10/100 Mbps Auto-Negotiation |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 768 Kbit |
| Transmission Mode | Store-and-Forward |
| Auto MDI/MDIX | Supported |
| Power Supply | 5V DC, 1A |
| Power Consumption | 0.1W (Idle), 0.5W (Full Load) |
| Installation | Desktop Mount |
| Housing | Plastic |
| Operating Temperature | 0°C to +45°C |
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Performance
- Provides stable 10/100 Mbps Ethernet connectivity
- Plug-and-play design eliminates configuration requirements
- Store-and-forward switching improves transmission reliability
- Auto MDI/MDIX removes the need for crossover cables
- 1 Gbps switching capacity supports smooth network communication
- Low latency data forwarding
- Energy-efficient operation with minimal power consumption
- Reliable performance for small LANs and CCTV systems
- Built-in lightning protection enhances equipment safety
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Design and Build
- Compact desktop form factor
- Lightweight plastic enclosure
- Durable construction for daily operation
- LED indicators for power and network activity
- Silent fanless design
- Suitable for desktop or shelf installation
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Connectivity and Compatibility
- Compatible with IP cameras
- Works with NVRs and DVRs
- Supports desktop computers and laptops
- Compatible with printers and network storage devices
- Supports routers and wireless access points
- Works with standard Ethernet networks
- Supports Cat5e and Cat6 network cables
- Suitable for home, office, and CCTV networking
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Ideal Use Cases
- Home networking
- Small business offices
- CCTV surveillance systems
- Retail stores
- Internet cafés
- Point-of-sale (POS) networks
- Educational institutions
- Temporary network deployments
- Network expansion for existing LANs
- Small workgroups
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – FAQs
1. How many Ethernet ports does this switch have?
It features five 10/100 Mbps adaptive RJ-45 Ethernet ports.
2. Does this switch require configuration?
No. It is an unmanaged switch with plug-and-play functionality.
3. Does it support Gigabit Ethernet?
No. It supports Fast Ethernet speeds of up to 100 Mbps per port.
4. Can it be used for CCTV systems?
Yes. It is suitable for connecting IP cameras, NVRs, and other network devices where PoE is not required.
5. Does it provide Power over Ethernet (PoE)?
No. This model is a standard unmanaged Ethernet switch and does not provide PoE.
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Pros and Cons
| Pros | Cons |
|---|---|
| Plug-and-play installation | Does not support PoE |
| Compact and lightweight design | Limited to 10/100 Mbps speeds |
| Low power consumption | No Gigabit Ethernet ports |
| Auto MDI/MDIX support | No advanced management features |
| Reliable store-and-forward switching | Plastic housing |
| Affordable networking solution |
Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Conclusion
The Dahua DHI-SF1005L5 5-Port Unmanaged Ethernet Switch is an affordable and dependable networking solution for homes, small businesses, and CCTV installations. Its plug-and-play functionality, reliable Fast Ethernet performance, compact design, and energy-efficient operation make it an excellent choice for users looking to expand their wired network without the complexity of managed switches.
