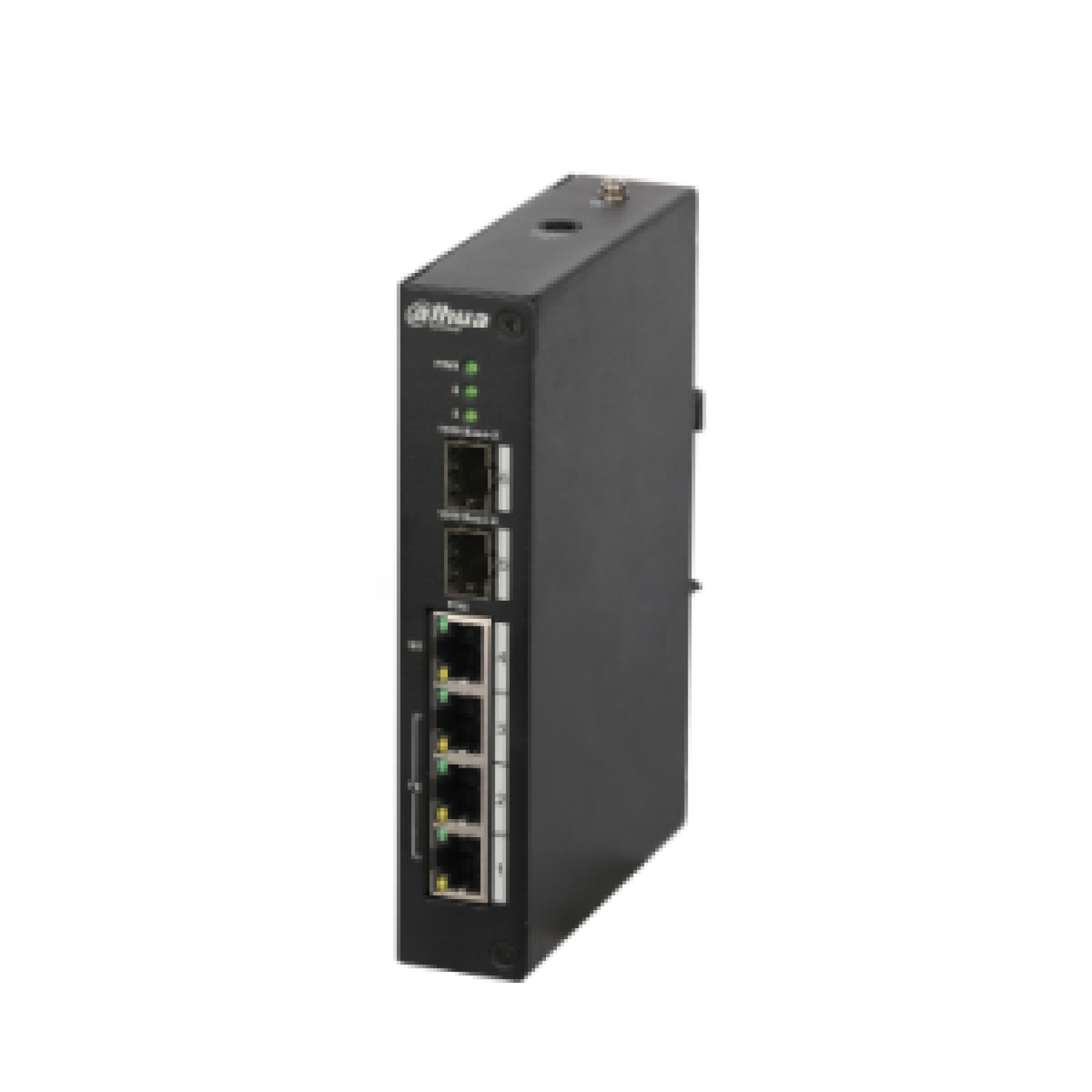

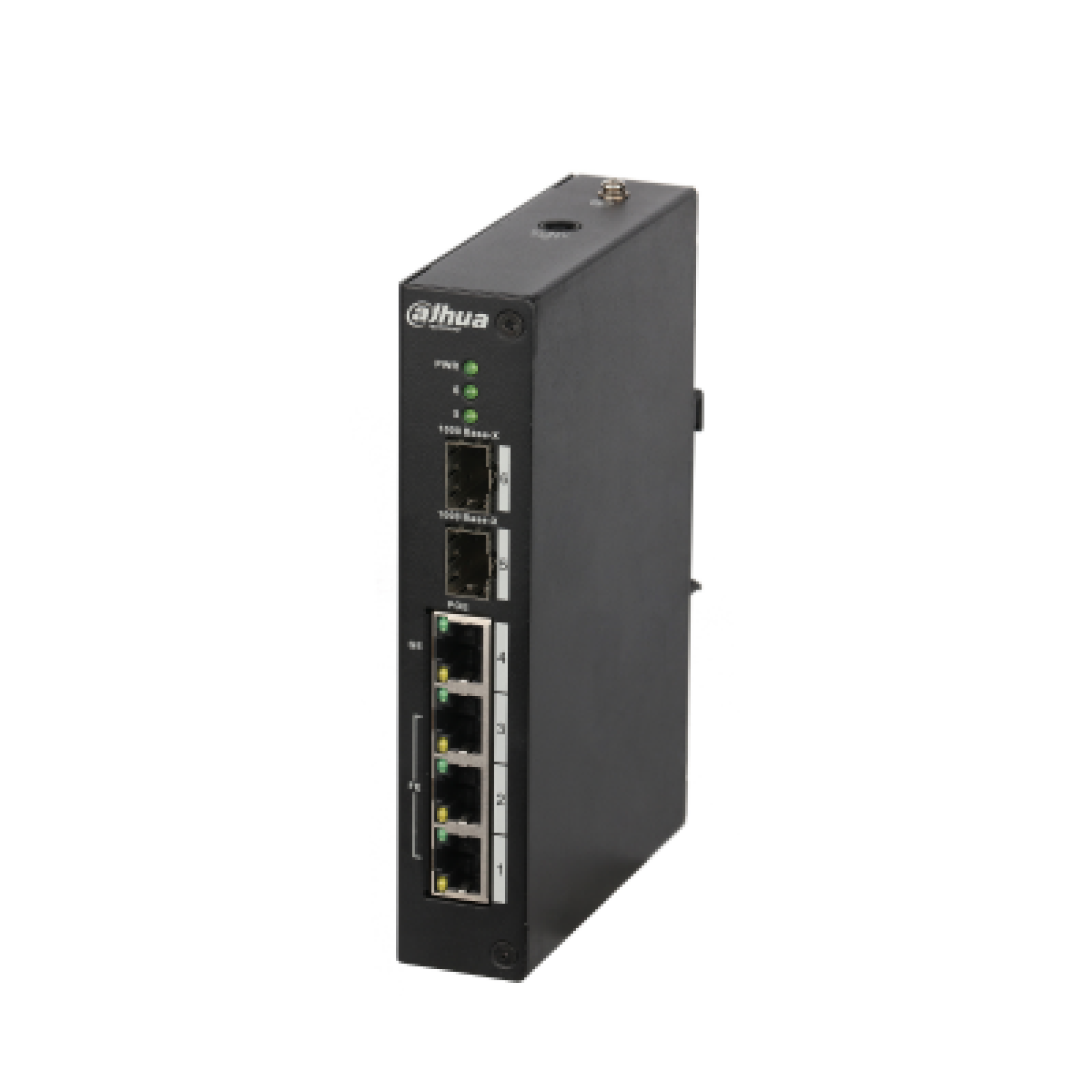

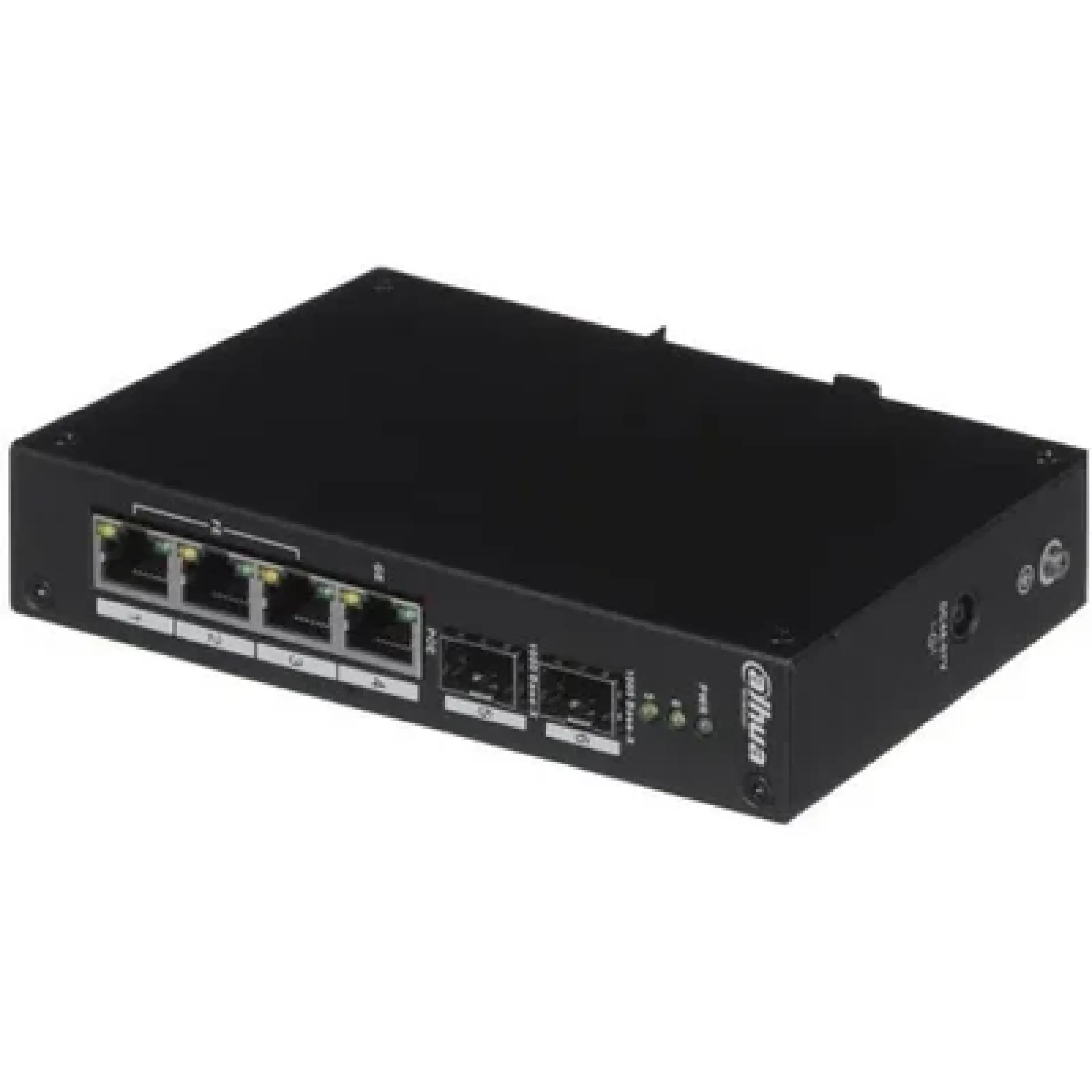

DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Overview
The DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch is an industrial-grade Layer 2 PoE switch designed for professional CCTV surveillance, enterprise networking, and long-distance data transmission. It features 4 PoE-enabled Ethernet ports, including 1 Gigabit Hi-PoE port, 3 Fast Ethernet PoE ports, and 2 Gigabit SFP fiber uplink ports for high-speed backbone connectivity. Supporting IEEE 802.3af/at and Hi-PoE standards, a 96W total PoE budget, and industrial wide-temperature operation, this unmanaged switch provides reliable power and network connectivity for demanding surveillance deployments.
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Key Features
- 4 PoE Ethernet ports
- 1 × 10/100/1000 Mbps Hi-PoE/PoE+/PoE RJ-45 port
- 3 × 10/100 Mbps PoE+/PoE RJ-45 ports
- 2 × Gigabit SFP fiber uplink ports
- Layer 2 unmanaged switch
- Supports IEEE 802.3af, IEEE 802.3at, and Hi-PoE standards
- Total PoE power budget of 96W
- Hi-PoE support up to 60W on Port 4
- 6.8 Gbps switching capacity
- 4.91 Mpps packet forwarding rate
- 8K MAC address table
- Store-and-forward switching
- Industrial wide-temperature design
- Built-in lightning protection
- Plug-and-play operation
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch | KSh 10,000 – KSh 18,000 |
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA PFS3206-4P-96 |
| Switch Type | Layer 2 Unmanaged PoE Switch |
| PoE Ports | 1 × Gigabit Hi-PoE + 3 × Fast Ethernet PoE |
| Fiber Ports | 2 × 1000Base-X SFP |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, Hi-PoE |
| Hi-PoE Output | Up to 60W |
| Total PoE Budget | 96W |
| Switching Capacity | 6.8 Gbps |
| Packet Forwarding Rate | 4.91 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 1 Mb |
| Flow Control | IEEE 802.3x |
| Power Supply | DC 48–57V |
| Lightning Protection | 4 kV Common Mode, 2 kV Differential Mode |
| Operating Temperature | -30°C to +65°C |
| Installation | Desktop or Wall Mount |
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Performance
- Provides reliable Layer 2 switching for surveillance networks
- Hi-PoE port supplies up to 60W for high-power devices
- Supports a total PoE budget of 96W
- Gigabit SFP uplink ports enable long-distance fiber connectivity
- 6.8 Gbps switching capacity ensures efficient data transmission
- 8K MAC address table supports multiple connected devices
- Industrial temperature design enables reliable operation in harsh environments
- Plug-and-play deployment requires no configuration
- Built-in lightning protection enhances equipment safety and reliability.
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Design and Build
- Compact industrial desktop design
- Durable metal enclosure
- Fanless cooling for silent operation
- Industrial-grade construction
- LED indicators for port activity and power status
- Suitable for desktop or wall-mounted installation
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Connectivity and Compatibility
- Compatible with Dahua IP cameras
- Supports third-party IEEE 802.3af/at PoE devices
- Supports Hi-PoE devices up to 60W
- Dual Gigabit SFP ports for fiber backbone connections
- Compatible with NVRs and DVRs
- Works with routers, switches, and access points
- Supports Cat5e/Cat6 Ethernet cabling
- Suitable for enterprise and industrial surveillance networks
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Ideal Use Cases
- Professional CCTV surveillance systems
- Industrial facilities
- Warehouses
- Manufacturing plants
- Commercial office buildings
- Campus security
- Retail outlets
- Hotels
- Transportation hubs
- Long-distance fiber network deployments
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – FAQs
1. How many PoE ports does this switch have?
It includes four PoE ports, consisting of one Gigabit Hi-PoE port and three Fast Ethernet PoE ports.
2. Does it support Hi-PoE?
Yes. One port supports Hi-PoE with power delivery of up to 60W.
3. What is the total PoE power budget?
The switch provides a total PoE power budget of 96W.
4. Does it include fiber uplink ports?
Yes. It features two Gigabit SFP fiber ports for high-speed backbone connectivity.
5. Is the switch managed?
No. It is an unmanaged Layer 2 switch that operates using plug-and-play installation.
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Pros and Cons
| Pros | Cons |
|---|---|
| Supports Hi-PoE up to 60W | No cloud or web management |
| 96W total PoE budget | Only four PoE ports |
| Dual Gigabit SFP fiber uplinks | Requires external DC power supply |
| Industrial wide-temperature operation | Limited advanced Layer 2 management features |
| 6.8 Gbps switching capacity | |
| Durable metal construction | |
| Plug-and-play installation |
DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch – Conclusion
The DAHUA PFS3206-4P-96 4-Port Unmanaged Ethernet Switch is a robust networking solution for professional CCTV and industrial applications. With Hi-PoE support, a generous 96W PoE budget, dual Gigabit SFP uplinks, industrial-grade reliability, and plug-and-play operation, it offers dependable performance for organizations requiring stable, long-distance, and high-power network connectivity.
