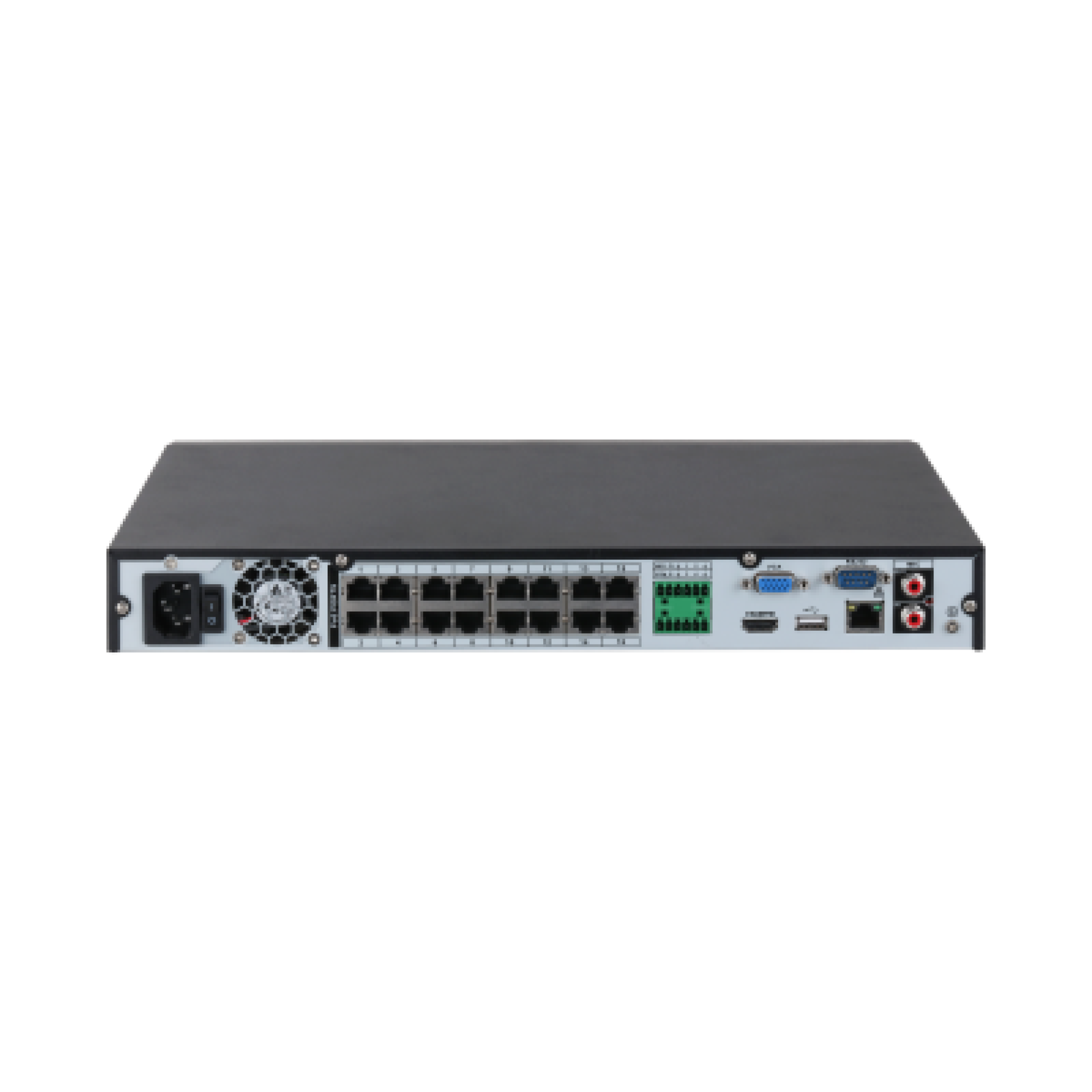

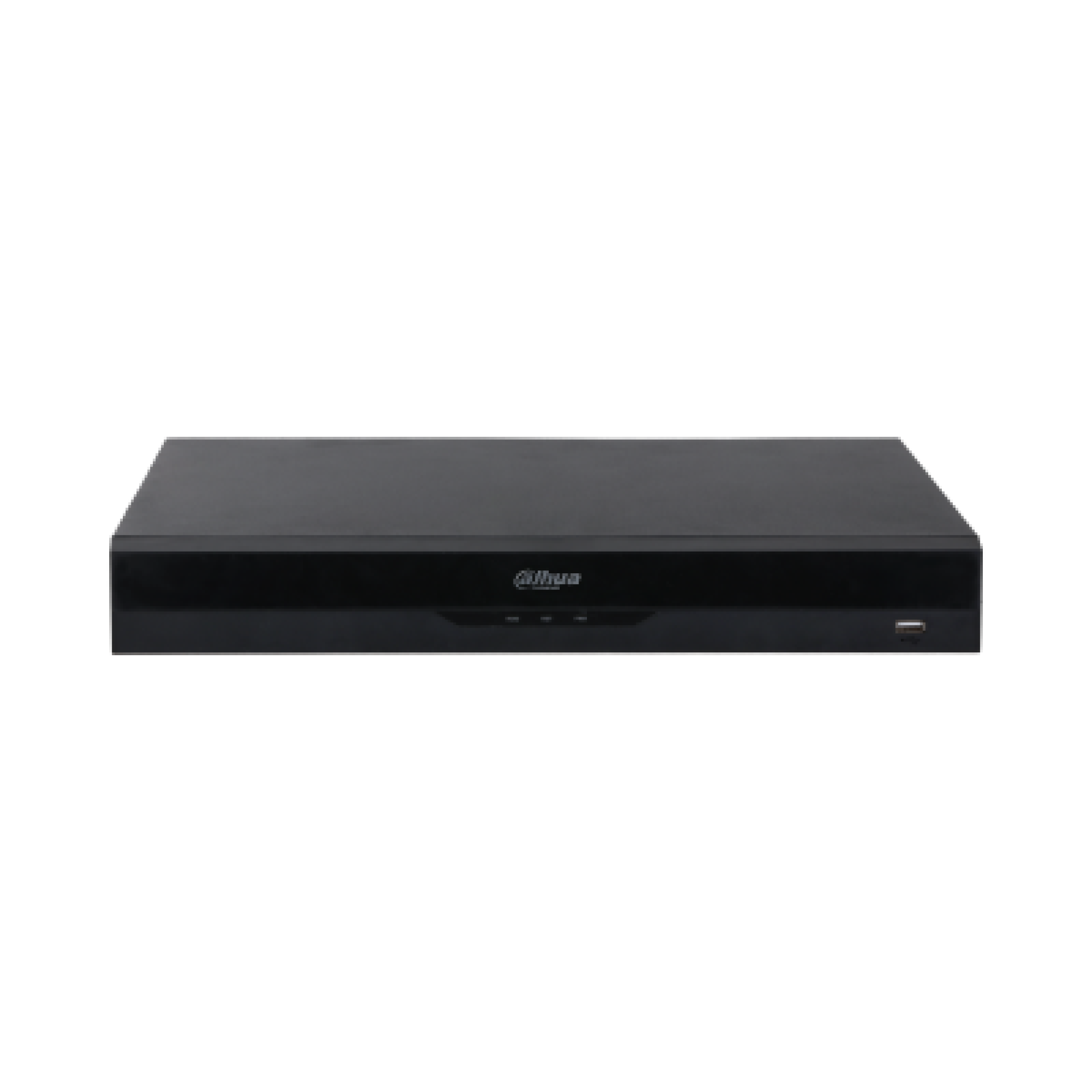

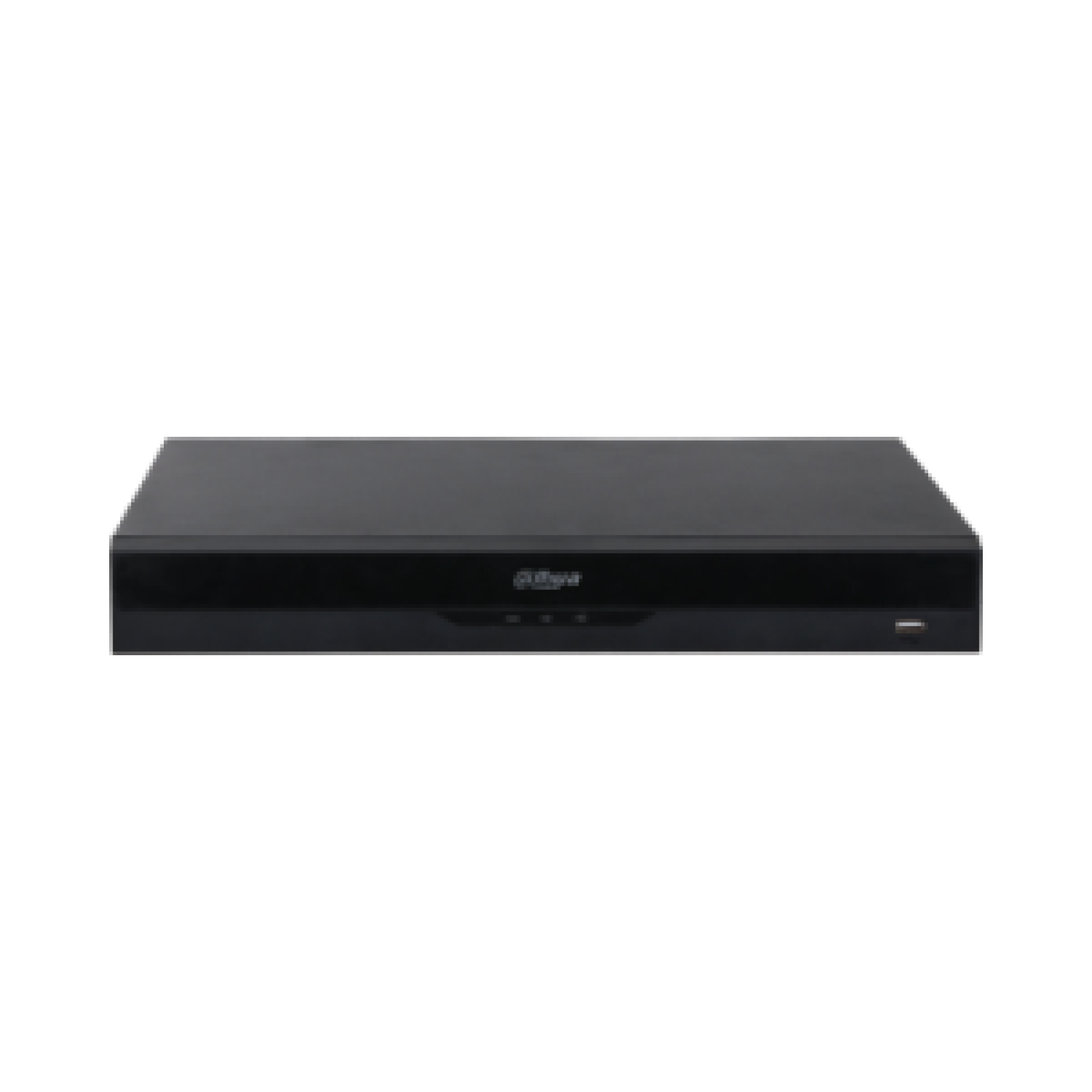

DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Overview
The DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder is an advanced AI-powered network video recorder designed for professional surveillance applications. It supports up to 32 IP camera channels with 16 built-in PoE ports, making installation quick and efficient by transmitting both power and data over a single Ethernet cable. Featuring support for up to 16MP IP cameras, 256 Mbps bandwidth, WizSense AI technology, Smart H.265+ compression, dual HDD bays, and 4K HDMI output, this NVR delivers intelligent video management, reliable recording, and enhanced security monitoring.
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Key Features
- Supports 32 IP camera channels
- 16 built-in IEEE 802.3af/at PoE ports
- Supports IP cameras up to 16MP resolution
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- Up to 256 Mbps incoming, recording, and outgoing bandwidth
- 4K HDMI and VGA video outputs
- WizSense AI with face detection and face recognition
- AI-powered perimeter protection
- 4-channel SMD Plus for accurate human and vehicle detection
- AI by Camera supports ANPR, people counting, stereo analysis, and heat map
- Supports up to 2 SATA hard drives
- Maximum storage capacity of up to 20TB per HDD
- ONVIF compatibility for third-party IP cameras
- Remote monitoring through DMSS mobile app
- Embedded Linux operating system
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA NVR4232-16P-EI 32CH 16PoE WizSense Network Video Recorder | KSh 30,000 – KSh 40,000 |
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA NVR4232-16P-EI |
| Channels | 32 IP Channels |
| PoE Ports | 16 × IEEE 802.3af/at |
| Maximum Camera Resolution | 16MP |
| Incoming Bandwidth | 256 Mbps |
| Recording Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Video Output | HDMI (4K), VGA |
| Storage | 2 SATA HDD Bays |
| Maximum HDD Capacity | Up to 20TB per HDD |
| AI Features | Face Detection, Face Recognition, SMD Plus, Perimeter Protection, ANPR, People Counting, Heat Map |
| Network Port | 1 × Gigabit RJ-45 |
| USB Ports | 2 × USB 2.0 |
| Audio | 1 Audio In, 1 Audio Out |
| Alarm Interface | 4 Alarm Inputs, 2 Alarm Outputs |
| Operating System | Embedded Linux |
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Performance
- Records up to 32 high-resolution IP cameras simultaneously
- Built-in 16-port PoE switch simplifies installation
- Supports IP cameras with resolutions up to 16MP
- 256 Mbps bandwidth enables smooth recording and playback
- WizSense AI accurately detects humans and vehicles while reducing false alarms
- Face detection and recognition improve access monitoring
- Smart H.265+ compression reduces storage and bandwidth usage
- Supports up to 16-channel simultaneous playback
- Delivers reliable 24/7 surveillance performance for demanding environments
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Design and Build
- Compact 1U rack-mountable chassis
- Durable metal enclosure
- Integrated 16-port PoE switch
- Efficient cooling system for continuous operation
- Professional front-panel interface
- Designed for enterprise and commercial surveillance deployments
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Connectivity and Compatibility
- Compatible with Dahua IP cameras
- Supports ONVIF-compliant third-party IP cameras
- 16 integrated PoE ports for direct camera connectivity
- Gigabit Ethernet network connection
- HDMI and VGA monitor outputs
- USB ports for backup and firmware updates
- Compatible with DMSS mobile application
- Supports SmartPSS and web browser management
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Ideal Use Cases
- Enterprise office buildings
- Shopping malls
- Hospitals and healthcare facilities
- Hotels and resorts
- Schools and universities
- Manufacturing plants
- Warehouses and logistics centers
- Government institutions
- Apartment complexes
- Large commercial properties
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – FAQs
1. How many cameras does this NVR support?
It supports up to 32 IP cameras.
2. Does it include built-in PoE ports?
Yes. It features 16 integrated PoE ports for powering compatible IP cameras.
3. What is the maximum supported camera resolution?
It supports IP cameras with resolutions up to 16MP.
4. How much storage does it support?
It accommodates two SATA hard drives with capacities of up to 20TB each.
5. What AI features are available?
It supports face detection, face recognition, perimeter protection, SMD Plus, ANPR, people counting, heat map, and stereo analysis.
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Supports up to 32 IP cameras | Hard drives sold separately |
| 16 integrated PoE ports simplify installation | Only 16 cameras can connect directly through PoE |
| Supports up to 16MP cameras | Single Gigabit Ethernet uplink |
| Powerful WizSense AI analytics | Higher cost than Lite Series models |
| 256 Mbps bandwidth for smooth recording | |
| Dual HDD bays with up to 20TB per drive | |
| Smart H.265+ compression reduces storage usage |
DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder – Conclusion
The DAHUA NVR4232-16P-EI 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder is an excellent solution for organizations seeking intelligent, high-performance video surveillance. With support for 32 IP cameras, 16 built-in PoE ports, advanced WizSense AI features, 16MP recording capability, 256 Mbps bandwidth, and dual HDD storage, it provides reliable, scalable, and efficient security management for professional CCTV installations.
