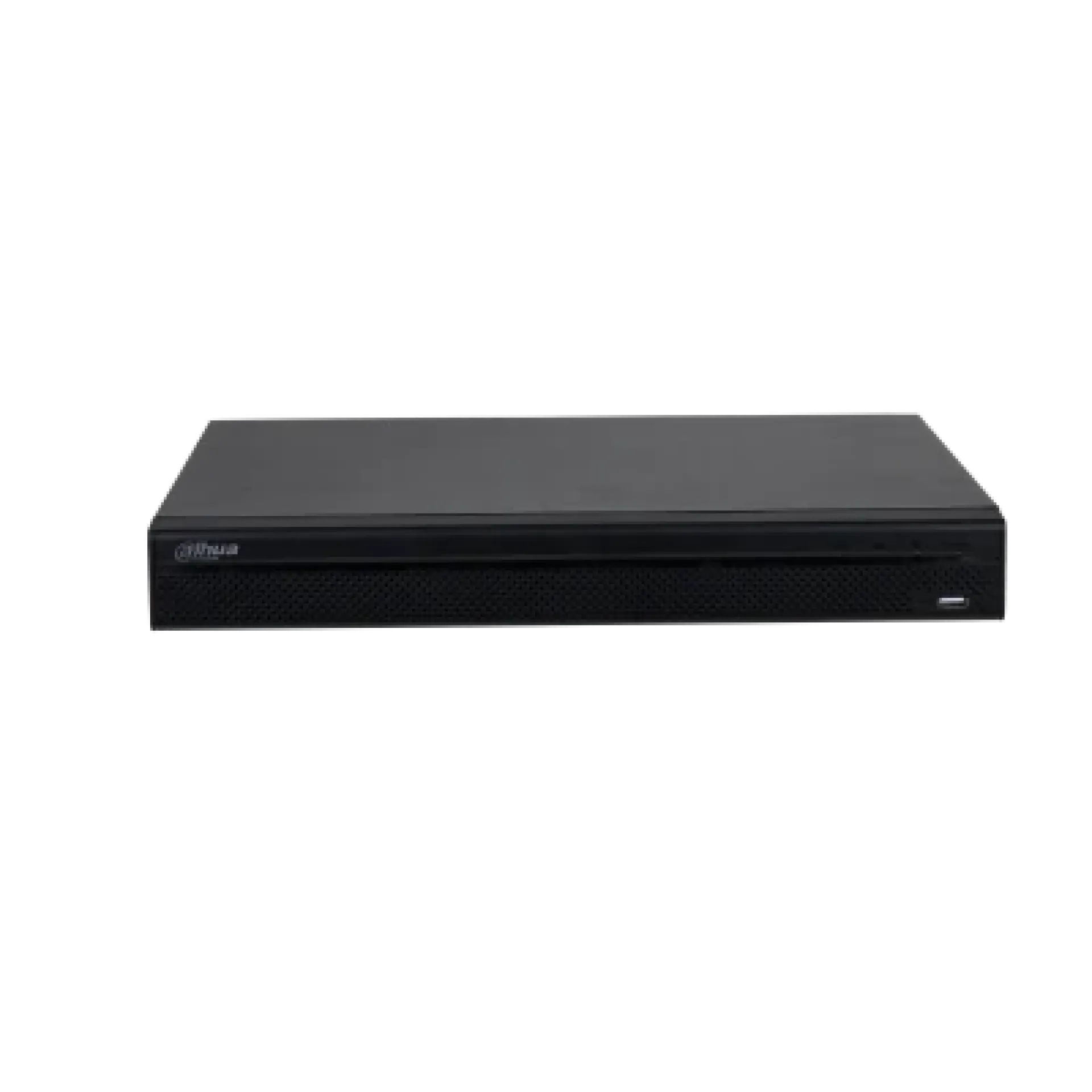

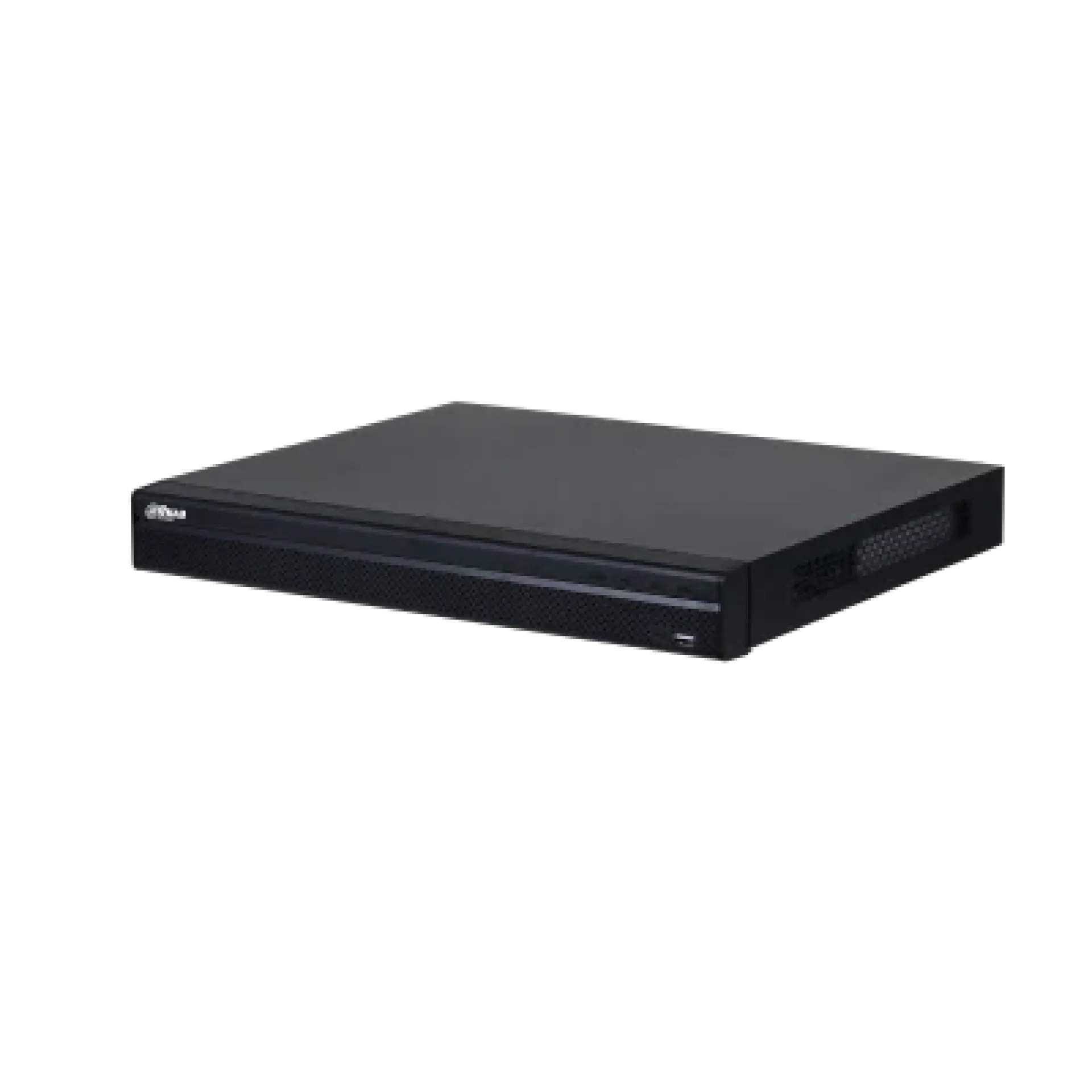

DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Overview
The DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder is a high-performance IP surveillance recorder designed for medium to large security installations. It supports up to 16 IP camera channels with 16 built-in PoE ports, allowing cameras to receive both power and data through a single Ethernet cable for simplified installation. Supporting cameras up to 12MP resolution, Smart H.265+ compression, AI-powered video analytics, dual HDD storage, and 4K HDMI output, this NVR delivers reliable recording, intelligent monitoring, and scalable storage for professional surveillance systems.
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Key Features
- Supports 16 IP camera channels
- 16 built-in IEEE 802.3af/at PoE ports
- Supports IP cameras up to 12MP resolution
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- 160 Mbps incoming and recording bandwidth
- 4K HDMI and VGA video outputs
- AI by Recorder with 4-channel SMD Plus
- AI by Camera supports face detection, face recognition, perimeter protection, people counting, heat map, and stereo analysis
- Supports up to 2 SATA hard drives
- Maximum storage capacity of up to 20TB per HDD
- ONVIF compatibility for third-party IP cameras
- Remote monitoring through DMSS mobile app
- Smart playback and intelligent event search
- Embedded Linux operating system
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA NVR4216-16P-4KS3 16CH 16PoE Network Video Recorder | KSh 25,000 – KSh 55,000 |
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA NVR4216-16P-4KS3 |
| Channels | 16 IP Channels |
| PoE Ports | 16 × 10/100 Mbps IEEE 802.3af/at |
| Maximum Camera Resolution | 12MP |
| Incoming Bandwidth | 160 Mbps |
| Recording Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Video Output | HDMI (4K), VGA |
| Storage | 2 SATA HDD Bays |
| Maximum HDD Capacity | Up to 20TB per HDD |
| AI Features | SMD Plus, Face Detection, Face Recognition, Perimeter Protection, People Counting, Heat Map |
| Network Port | 1 × Gigabit RJ-45 |
| USB Ports | 2 × USB 2.0 |
| Audio | 1 Audio In, 1 Audio Out |
| Alarm Interface | 4 Alarm Inputs, 2 Alarm Outputs |
| Operating System | Embedded Linux |
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Performance
- Records up to 16 high-resolution IP cameras simultaneously
- Built-in PoE simplifies installation by eliminating separate power cables
- Supports up to 12MP cameras for exceptional image quality
- Smart H.265+ compression minimizes storage and bandwidth usage
- AI-powered SMD Plus accurately distinguishes humans and vehicles
- 4K HDMI output provides sharp live monitoring
- Supports simultaneous multi-channel playback
- Stable 24/7 recording for commercial and enterprise surveillance systems
- High-bandwidth architecture ensures smooth video transmission
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Design and Build
- Compact 1U rack-mountable chassis
- Durable metal construction
- Integrated 16-port PoE switch
- Efficient cooling for continuous operation
- Professional front panel layout
- Built for commercial surveillance environments
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Connectivity and Compatibility
- Compatible with Dahua IP cameras
- Supports ONVIF-compliant third-party IP cameras
- 16 integrated PoE ports for direct camera connection
- Gigabit Ethernet uplink
- HDMI and VGA monitor outputs
- USB ports for backup and firmware upgrades
- Supports DMSS mobile application
- Compatible with SmartPSS and web browser management
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Ideal Use Cases
- Commercial office buildings
- Schools and universities
- Hospitals and healthcare facilities
- Hotels and hospitality businesses
- Shopping malls
- Warehouses and logistics centers
- Manufacturing facilities
- Apartment complexes
- Government institutions
- Large retail stores
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – FAQs
1. How many cameras does this NVR support?
It supports up to 16 IP cameras.
2. Does it have built-in PoE?
Yes. It includes 16 built-in PoE ports for powering compatible IP cameras.
3. What is the maximum camera resolution supported?
It supports IP cameras with resolutions up to 12MP.
4. How much storage can it accommodate?
It supports two SATA hard drives with up to 20TB capacity per drive.
5. Can I monitor my cameras remotely?
Yes. You can access live video and recordings remotely using the DMSS mobile application.
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| 16 built-in PoE ports simplify installation | Supports only IP cameras |
| Supports up to 12MP cameras | Hard drives sold separately |
| Dual HDD bays support large storage capacity | Single Gigabit uplink port |
| Smart H.265+ compression | Lite series AI features are more limited than enterprise models |
| AI-powered SMD Plus and advanced camera AI support | |
| 4K HDMI output |
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Conclusion
The DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder is an excellent surveillance recorder for organizations requiring dependable, high-capacity IP video management. With 16 integrated PoE ports, support for up to 12MP cameras, dual HDD storage, AI-assisted monitoring, and efficient Smart H.265+ compression, it provides a reliable and scalable solution for professional CCTV deployments.
