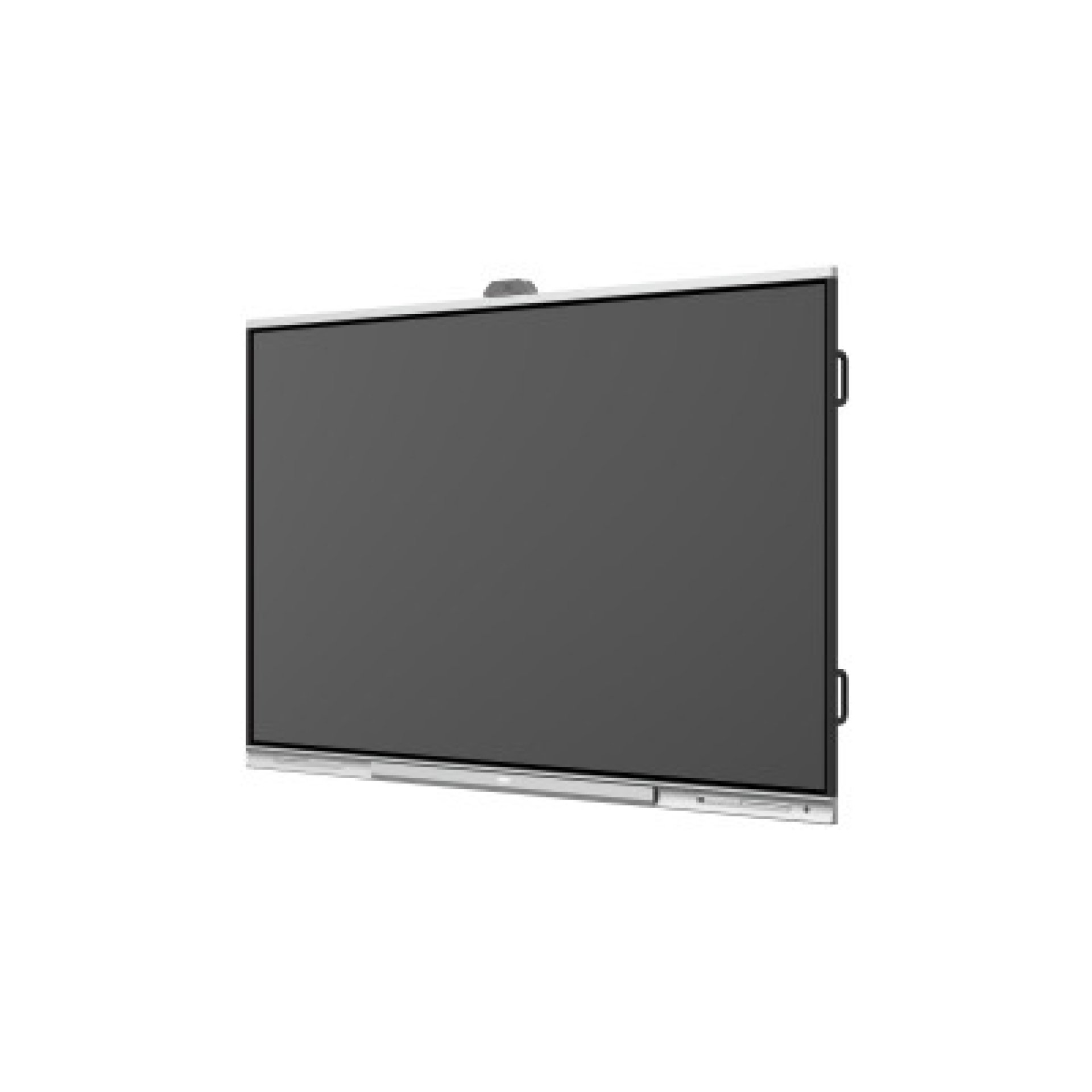

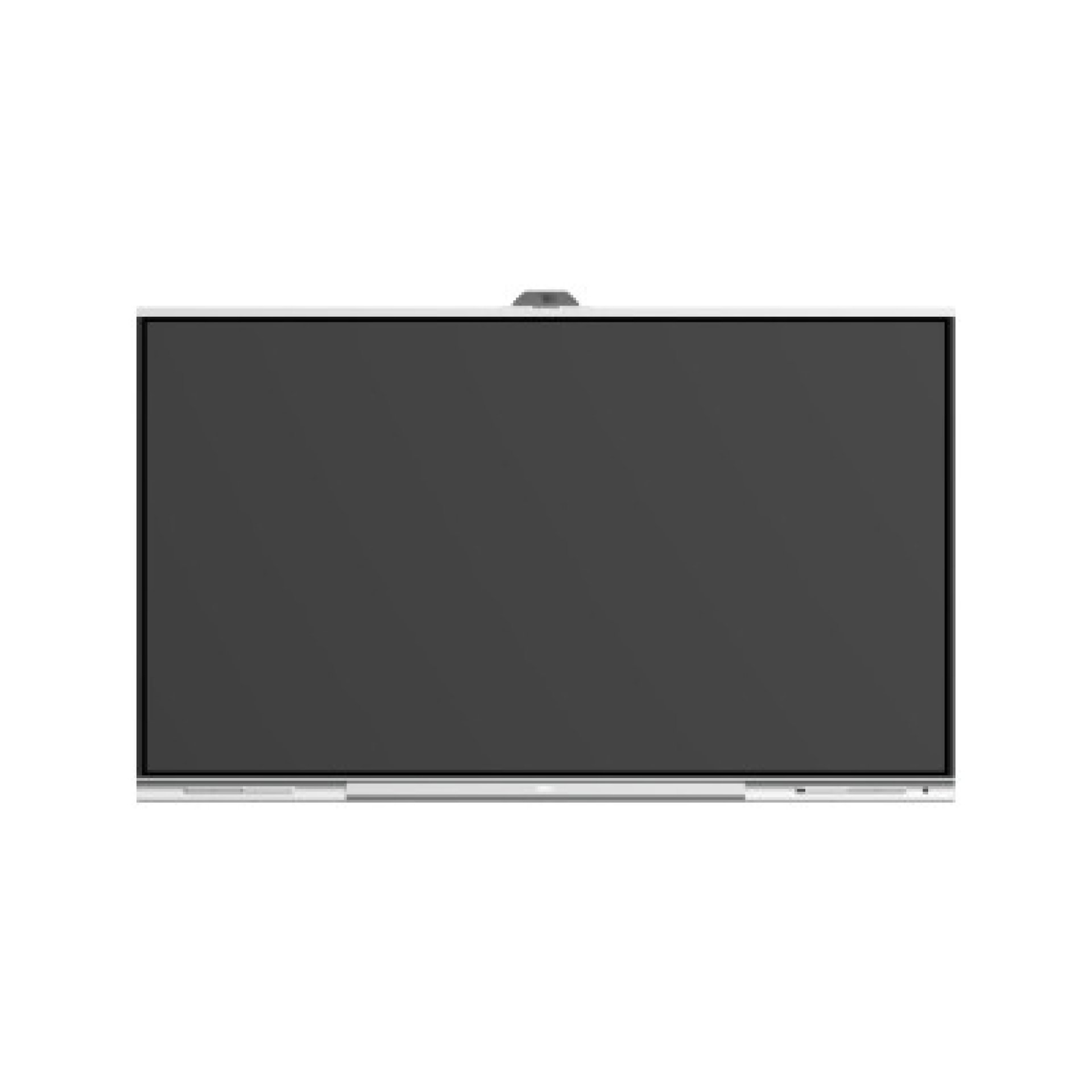

Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

Specifications for Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

• Screen Size: 86 inches

• Resolution: 3840 x 2160 (UHD 4K)

• Display Type: LED touchscreen with anti-glare tempered glass

• Touch Technology: Infrared, 20-point multi-touch

• Built-in System: Android (latest generation)

• Windows Support: Compatible via OPS slot for dual-system use

• Processor (Android): Quad-core, typical 1.9GHz

• Memory (Android): 4GB RAM / 32GB Storage

• Speakers: Dual integrated stereo speakers (typically 2 x 15W)

• Microphones: Built-in, echo-cancelling and noise-suppressing

• Camera: Embedded front camera (typically 5MP, for conferencing)

• Ports:

  • HDMI x2

  • USB 3.0 x3

  • USB Type-C x1

  • VGA x1

  • Audio In/Out

  • LAN (RJ45)

• Wireless Sharing: Supports casting from multiple smart devices

• Touch Response Time: <10ms

• Viewing Angle: 178° horizontal / vertical

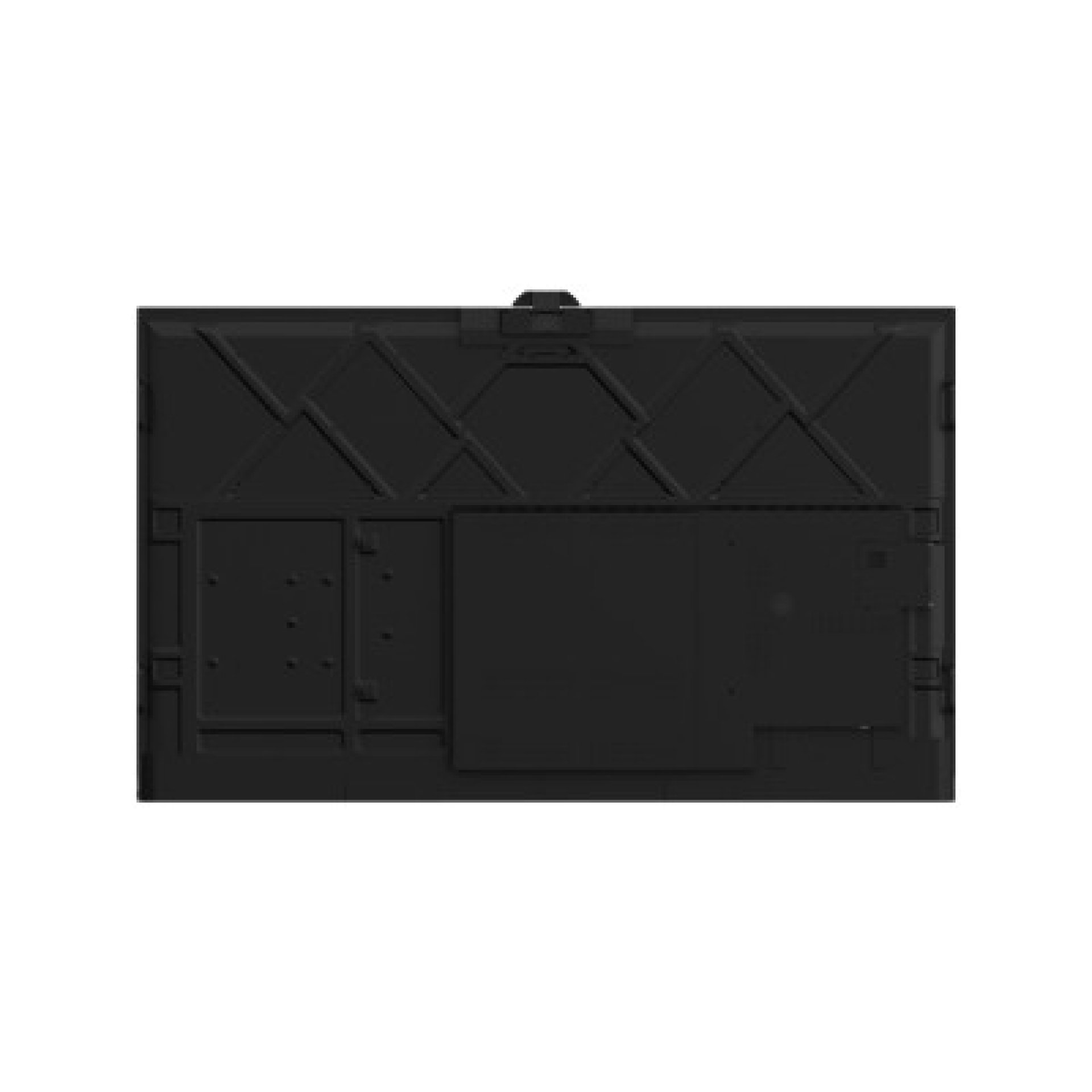

• Mounting: VESA-compatible wall mount and trolley-ready

• Design: Bezel-less edges, slim silver-black frame

• Power Supply: AC 100–240V, 50/60Hz

• Ideal Use: Education, corporate meetings, training, and hybrid collaboration

Description for the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

Immersive Visual Experience with the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

The Dahua LPH86-MC470-P 86" 4K Smart Interactive Display delivers a stunning 3840 × 2160 resolution on its expansive 86-inch DLED panel. With a 16:9 aspect ratio, 400 cd/m² brightness, and a wide 178° viewing angle, it ensures clear and vibrant visuals from any position in the room. The anti-glare tempered glass with a 7H hardness rating provides durability and a comfortable viewing experience, making it ideal for large conference rooms, classrooms, and collaborative spaces.

Seamless Interaction and Touch Responsiveness on the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

Experience natural and intuitive interaction with the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display. Its infrared touch technology supports up to 20 simultaneous touch points, allowing multiple users to write or draw using fingers or stylus pens. The high touch resolution (32767 × 32767) and rapid response time (<10 ms) ensure smooth and precise input, enhancing collaborative sessions and presentations.

Powerful Performance and Dual OS Support in the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

Equipped with a quad-core A73 + quad-core A53 CPU, 12 GB RAM (8 GB for the system and 4 GB for the camera), and 64 GB internal storage, the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display runs on Android 11.0, providing a robust platform for various applications. For users requiring Windows OS, an optional OPS (Open Pluggable Specification) module can be installed, offering flexibility to switch between Android and Windows environments seamlessly.

Advanced Connectivity and Wireless Sharing with the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

The Dahua LPH86-MC470-P 86" 4K Smart Interactive Display offers versatile connectivity options, including HDMI, USB 3.0, USB Type-C, RS-232, and audio ports. Its dual-band Wi-Fi (2.4 GHz/5 GHz) and hotspot capabilities enable wireless screen sharing from multiple devices such as smartphones, tablets, and laptops. Features like screen grouping, host mode, and split-screen display (up to 9 screens) facilitate dynamic and interactive sessions.

Integrated Camera and Audio Features in the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

Enhance your video conferencing experience with the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display. It comes with a built-in 48 MP AI camera supporting resolutions up to 3840 × 2160@30 fps, ensuring clear and detailed video output. The integrated 8-array microphones with noise reduction, echo cancellation, and AGC (Automatic Gain Control) provide clear audio capture within a 6–8 meter range, making remote communication more effective.

Explore a Related Product to the Dahua LPH86-MC470-P 86" 4K Smart Interactive Display

For those seeking a similar interactive display with similar features, consider the Dahua LCH86-MC410-B 86-Inch UHD Smart Interactive Whiteboard , which retains the same 4K resolution, touch capabilities, and dual OS support, making it suitable for medium-sized meeting rooms and classrooms.
