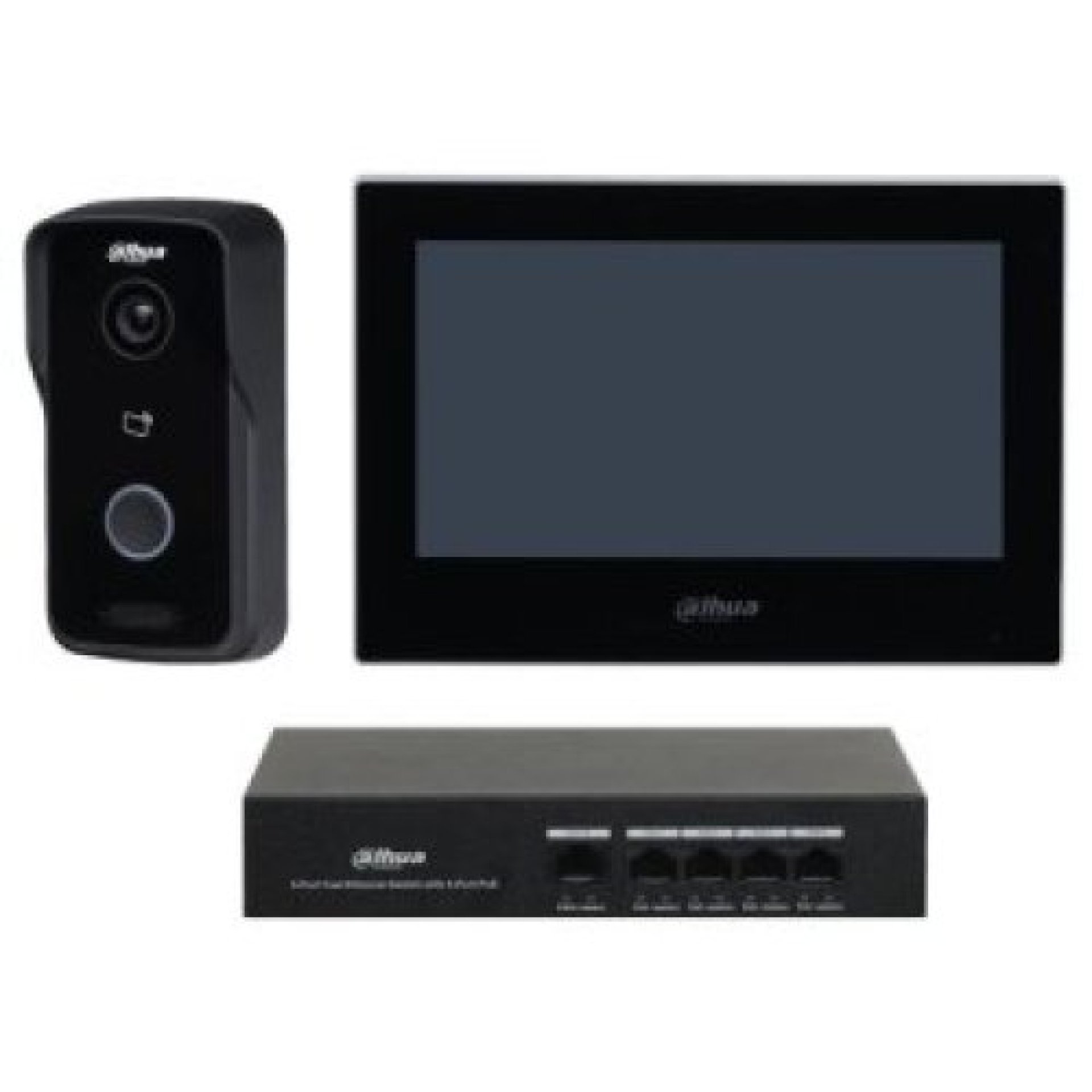

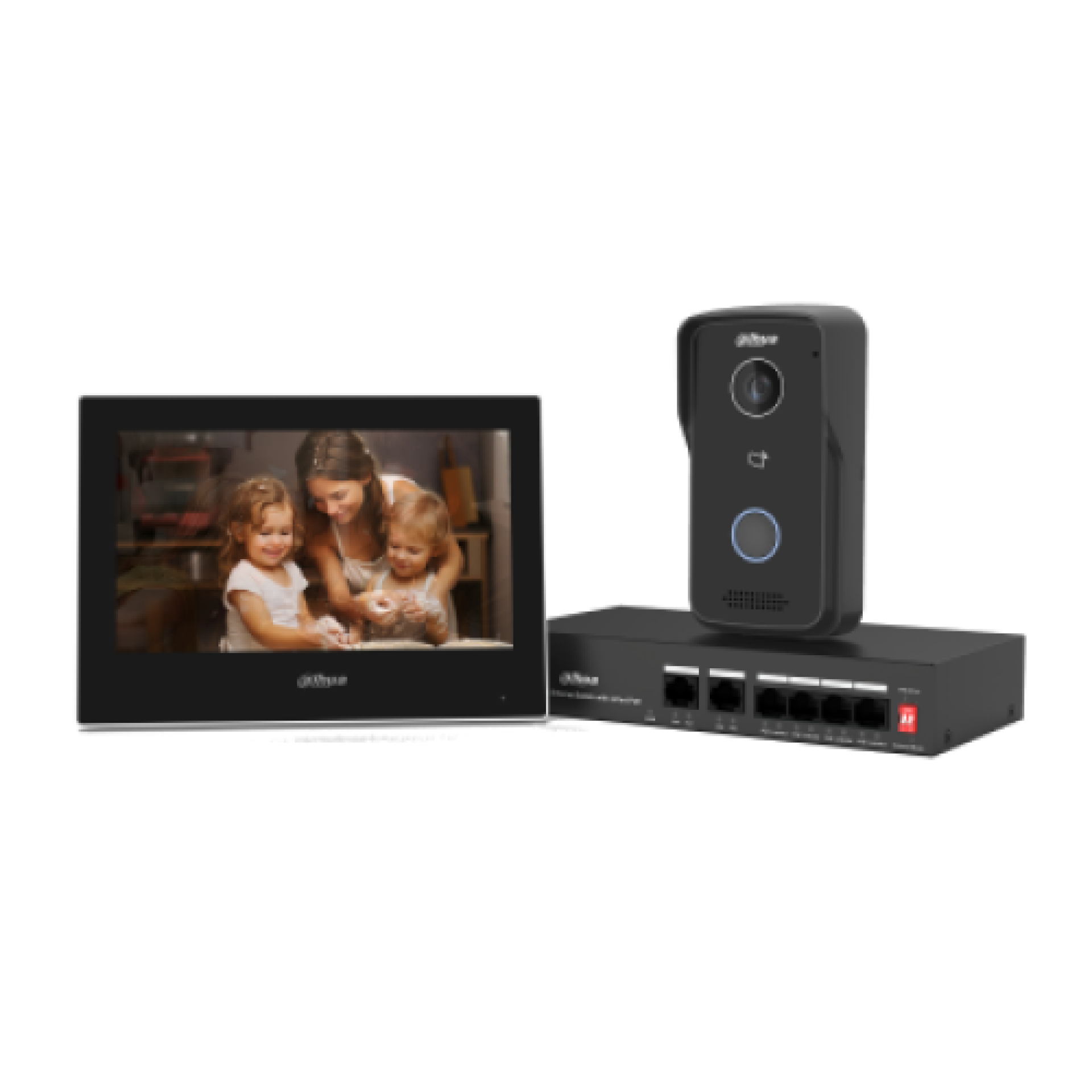

DAHUA KTP03 IP Video Intercom Kit – Overview
The DAHUA KTP03 IP Video Intercom Kit is a complete smart access control solution designed for homes, villas, apartments, and small commercial buildings. The kit includes the DHI-VTO2111D-P-S3 IP Villa Door Station, DHI-VTH2621G-P 7-inch Indoor Monitor, and DH-PFS3006-4ET-36 4-Port PoE Switch, providing everything needed for a reliable IP video intercom installation. With a 2MP HD camera, two-way audio, remote door unlocking, card access, PoE support, mobile app management, and IP camera monitoring, the KTP03 delivers secure and convenient visitor management.
DAHUA KTP03 IP Video Intercom Kit – Key Features
- Complete IP video intercom kit
- Includes DHI-VTO2111D-P-S3 outdoor station
- Includes DHI-VTH2621G-P 7-inch indoor monitor
- Includes DH-PFS3006-4ET-36 4-port PoE switch
- 7-inch TFT capacitive touchscreen (1024 × 600)
- 2MP CMOS HD camera
- H.264 and H.265 video decoding
- Two-way audio communication
- Remote door unlocking via monitor and DMSS app
- IC card unlocking support (up to 10,000 cards)
- Supports PoE power supply
- Supports live IPC monitoring
- 6 alarm inputs and 1 alarm output
- IR night vision
- IP65-rated outdoor station
- Supports ONVIF interoperability
DAHUA KTP03 IP Video Intercom Kit – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA KTP03 IP Video Intercom Kit | KSh 25,000 – KSh 40,000 |
DAHUA KTP03 IP Video Intercom Kit – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA KTP03 |
| Kit Components | DHI-VTO2111D-P-S3, DHI-VTH2621G-P, DH-PFS3006-4ET-36 |
| Indoor Display | 7-inch TFT Capacitive Touchscreen |
| Screen Resolution | 1024 × 600 |
| Outdoor Camera | 2MP 1/2.8-inch CMOS |
| Viewing Angle | H: 107°, V: 60°, D: 122° |
| Video Compression | H.264, H.265 |
| Audio | Built-in Microphone and Speaker |
| Communication | Full Digital IP |
| Unlock Methods | IC Card, Indoor Monitor, DMSS App |
| Card Capacity | Up to 10,000 Cards |
| Alarm Inputs | 6 |
| Alarm Outputs | 1 |
| Network | 10/100 Mbps Ethernet |
| Power Supply | Standard PoE or 12V DC |
| Outdoor Protection | IP65, IK04 |
| Installation | Surface Mount |
DAHUA KTP03 IP Video Intercom Kit – Performance
- Captures clear 2MP HD video for visitor identification
- Supports real-time two-way communication
- Enables remote unlocking through the indoor monitor or DMSS app
- Built-in IR illumination provides clear night-time visibility
- Supports monitoring of connected IP cameras
- PoE simplifies installation using a single Ethernet cable
- IC card authentication enhances access control
- H.264 and H.265 compression optimize network bandwidth
- Reliable performance for residential and commercial security systems.
DAHUA KTP03 IP Video Intercom Kit – Design and Build
- Modern 7-inch touchscreen indoor monitor
- Slim black outdoor door station
- Durable PC and acrylic construction
- IP65 weather-resistant outdoor unit
- IK04 impact protection
- Surface-mounted installation
- Compact PoE switch for simplified deployment
DAHUA KTP03 IP Video Intercom Kit – Connectivity and Compatibility
- Supports standard PoE
- Compatible with the DMSS mobile application
- ONVIF-compatible
- Supports SIP communication
- Supports live viewing of Dahua IP cameras
- Compatible with electronic door locks
- Includes a dedicated 4-port PoE switch
- Supports remote management and monitoring
DAHUA KTP03 IP Video Intercom Kit – Ideal Use Cases
- Residential homes
- Villas
- Apartments
- Gated communities
- Office buildings
- Retail shops
- Schools
- Clinics
- Guest houses
- Small commercial buildings
DAHUA KTP03 IP Video Intercom Kit – FAQs
1. What is included in the KTP03 kit?
The kit includes the DHI-VTO2111D-P-S3 outdoor station, DHI-VTH2621G-P 7-inch indoor monitor, and DH-PFS3006-4ET-36 PoE switch.
2. Does the system support remote unlocking?
Yes. Doors can be unlocked using the indoor monitor, IC cards, or remotely through the DMSS mobile application.
3. Can the outdoor station work at night?
Yes. It features automatic infrared illumination for clear night-time video.
4. How many access cards are supported?
The system supports up to 10,000 IC access cards.
5. Is the outdoor station suitable for outdoor installation?
Yes. It is rated IP65 for weather resistance and IK04 for impact protection.
DAHUA KTP03 IP Video Intercom Kit – Pros and Cons
| Pros | Cons |
|---|---|
| Complete ready-to-install IP intercom kit | MicroSD card required for visitor recording |
| 2MP HD camera with IR night vision | Wi-Fi is not integrated into this kit |
| Supports up to 10,000 IC cards | Requires network configuration for advanced features |
| Standard PoE support | |
| Remote unlocking through DMSS | |
| ONVIF and SIP compatibility | |
| Includes dedicated PoE switch |
DAHUA KTP03 IP Video Intercom Kit – Conclusion
The DAHUA KTP03 IP Video Intercom Kit is an ideal access control solution for modern homes and businesses. Combining a 2MP IP door station, a responsive 7-inch touchscreen indoor monitor, a dedicated PoE switch, remote mobile management, card-based access control, and reliable two-way communication, it provides a secure, scalable, and easy-to-deploy visitor management system.
