DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Overview
The DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder is an enterprise-grade AI network video recorder designed for large-scale surveillance deployments. Supporting up to 64 IP camera channels, cameras with resolutions up to 32MP, 448 Mbps incoming, recording, and outgoing bandwidth, advanced WizSense AI analytics, 8K HDMI output, and four SATA HDD bays, this NVR delivers exceptional performance, intelligent event detection, and scalable storage for demanding commercial and industrial security applications.
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Key Features
- Supports 64 IP camera channels
- Supports IP cameras up to 32MP resolution
- Maximum 448 Mbps incoming, recording, and outgoing bandwidth
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- 8K HDMI and Full HD VGA video outputs
- AI by Recorder with face detection and recognition
- 16-channel SMD Plus intelligent motion detection
- 8-channel perimeter protection
- Video metadata and AcuPick AI search
- AI by Camera supports ANPR, people counting, heat map, stereo analysis, PPE detection, and smart object detection
- Supports up to 4 SATA hard drives
- Maximum storage capacity of up to 20TB per HDD
- Dual Gigabit Ethernet ports
- Supports N+M Cluster and iSCSI
- ONVIF compatibility for third-party IP cameras
- Remote monitoring through DMSS mobile application
- Embedded Linux operating system
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder | KSh 65,000 – KSh 80,000 |
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA DHI-NVR5464-EI2 |
| Channels | 64 IP Channels |
| Maximum Camera Resolution | 32MP |
| Incoming Bandwidth | 448 Mbps |
| Recording Bandwidth | 448 Mbps |
| Outgoing Bandwidth | 448 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Video Output | 2 × HDMI (up to 8K), 2 × VGA |
| Storage | 4 SATA HDD Bays |
| Maximum HDD Capacity | Up to 20TB per HDD |
| AI Features | Face Detection, Face Recognition, SMD Plus, Perimeter Protection, Video Metadata, AcuPick, ANPR, People Counting, Heat Map |
| Network Port | 2 × Gigabit RJ-45 |
| USB Ports | 1 × USB 2.0, 2 × USB 3.0 |
| Audio | 1 Audio In, 2 Audio Out |
| Alarm Interface | 16 Alarm Inputs, 6 Alarm Outputs |
| eSATA | 1 |
| Operating System | Embedded Linux |
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Performance
- Records up to 64 high-resolution IP cameras simultaneously
- Supports cameras with resolutions up to 32MP
- 448 Mbps bandwidth ensures smooth recording and playback
- 8K HDMI output delivers ultra-high-definition monitoring
- Advanced WizSense AI accurately detects people and vehicles while reducing false alarms
- Supports face recognition, AcuPick intelligent search, and video metadata
- Smart H.265+ compression minimizes storage and bandwidth consumption
- Supports up to 16-channel simultaneous playback
- Designed for continuous 24/7 enterprise surveillance operations
- Supports N+M Cluster and iSCSI for enhanced scalability and redundancy

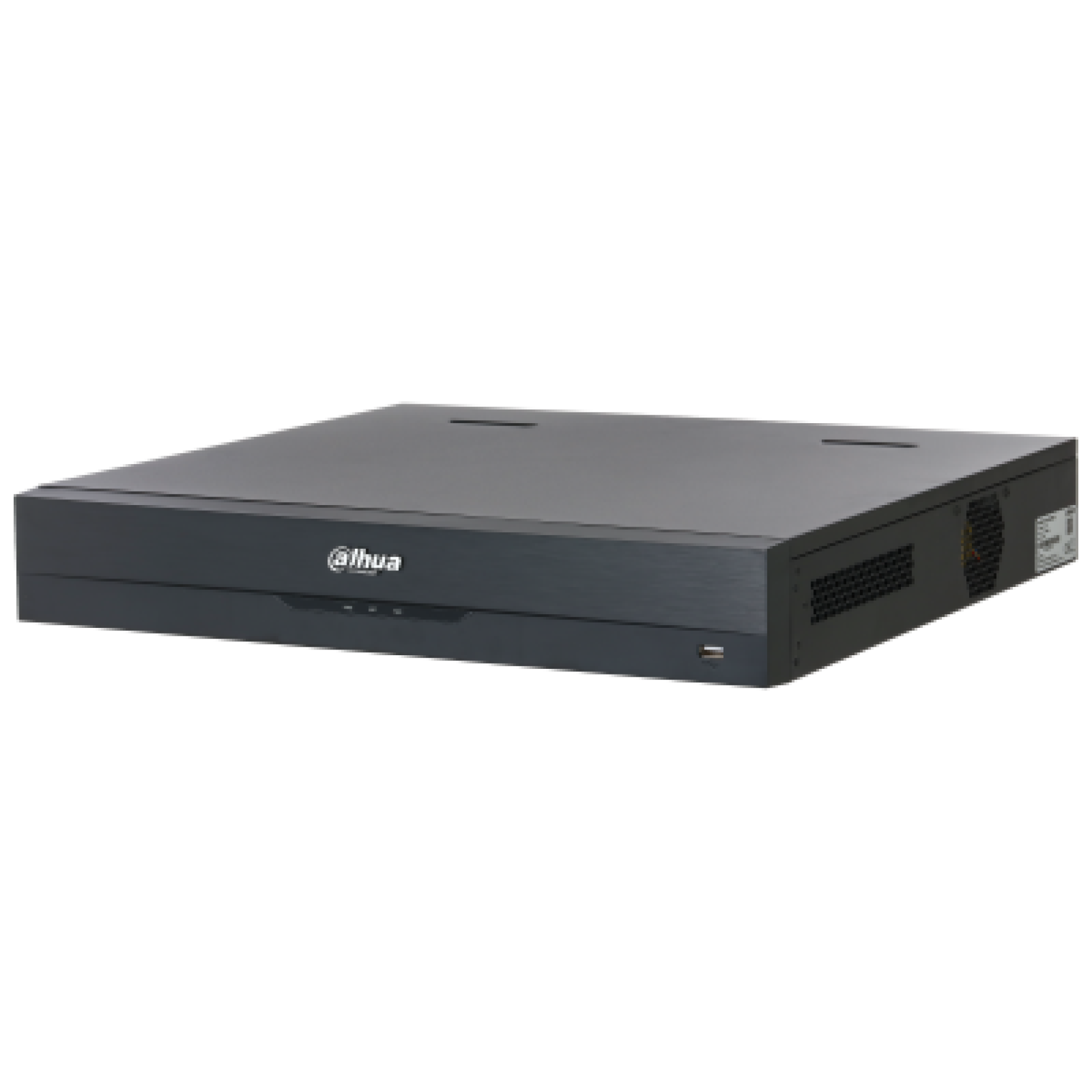

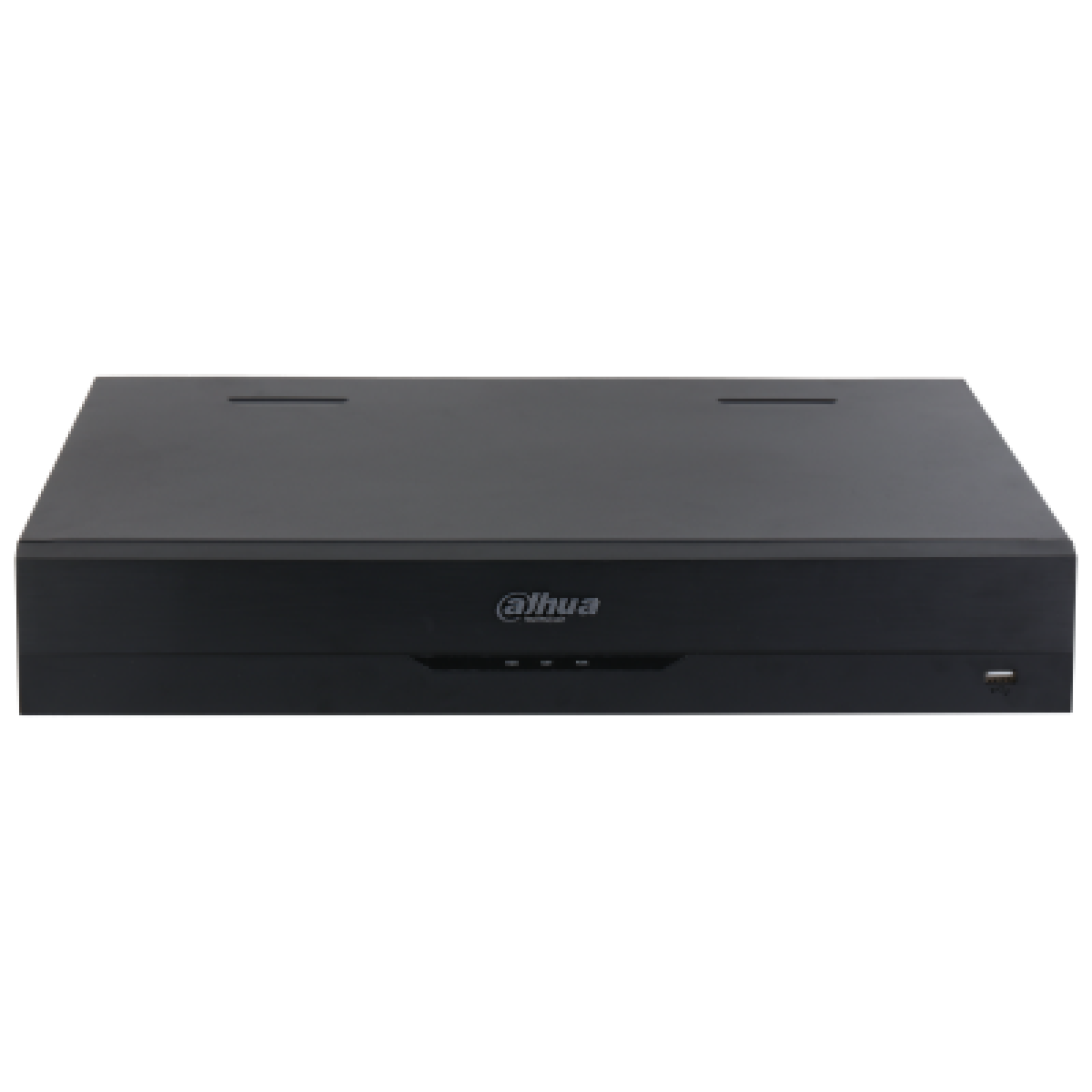

DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Design and Build
- Compact 1.5U rack-mountable chassis
- Durable industrial-grade metal construction
- Efficient cooling system for continuous operation
- Professional front-panel interface
- Four internal HDD bays for large-capacity storage
- Built for enterprise, commercial, and industrial security installations

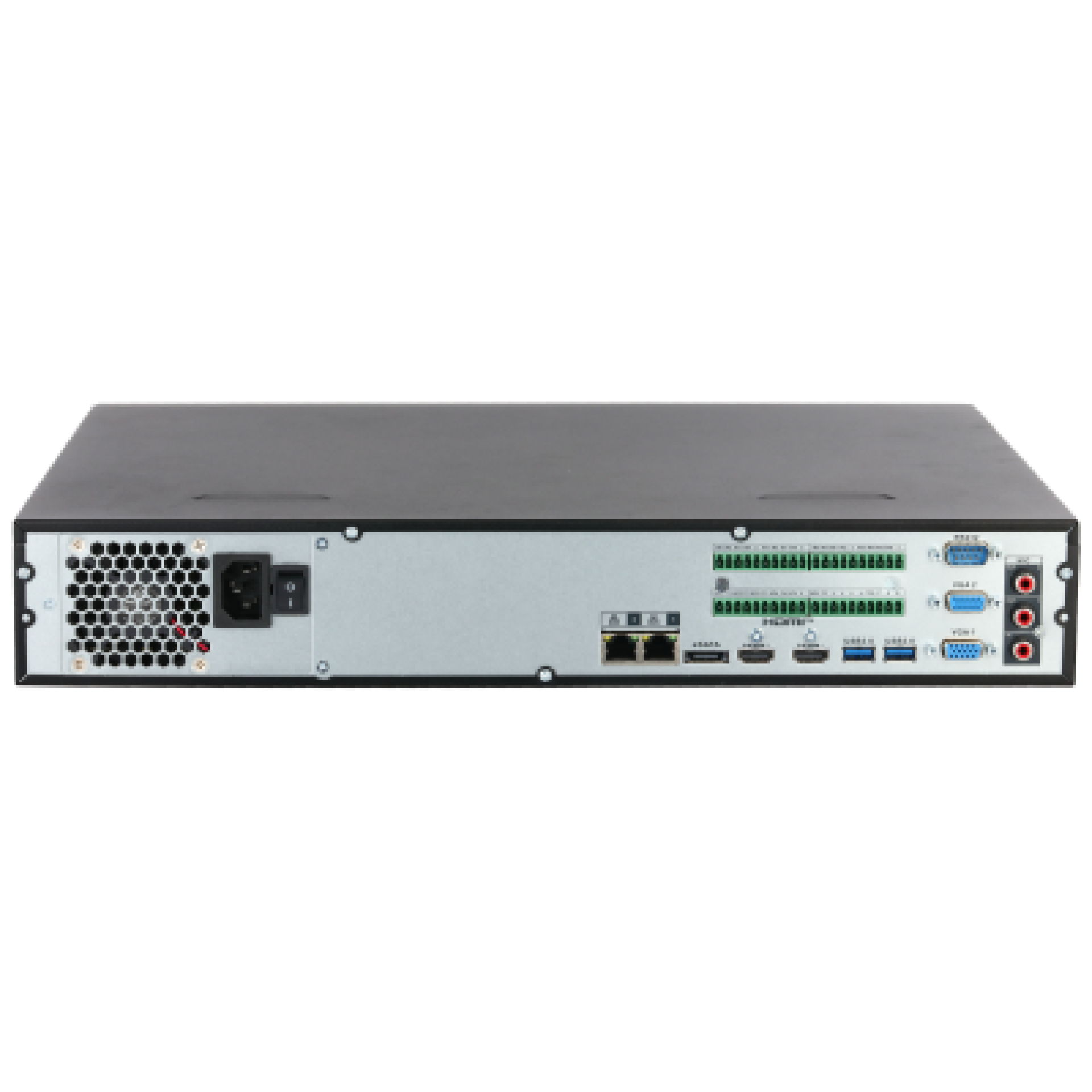

DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Connectivity and Compatibility
- Compatible with Dahua IP cameras
- Supports ONVIF-compliant third-party IP cameras
- Dual Gigabit Ethernet ports
- Dual HDMI and dual VGA monitor outputs
- USB ports for backup and firmware upgrades
- Supports DMSS mobile application
- Compatible with SmartPSS software and web browser management
- Supports iSCSI storage integration
- Supports N+M Cluster for high availability
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Ideal Use Cases
- Smart city surveillance
- Airports and transportation hubs
- Universities and campuses
- Hospitals and healthcare facilities
- Manufacturing plants
- Logistics and distribution centers
- Shopping malls
- Corporate headquarters
- Government institutions
- Large industrial facilities
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – FAQs
1. How many cameras does this NVR support?
It supports up to 64 IP cameras.
2. What is the maximum supported camera resolution?
It supports IP cameras with resolutions up to 32MP.
3. How much storage does it support?
It supports four SATA hard drives with capacities of up to 20TB each.
4. Does it support AI-powered video analytics?
Yes. It includes face detection, face recognition, SMD Plus, perimeter protection, video metadata, AcuPick, ANPR, people counting, and heat map analytics.
5. Can I monitor the system remotely?
Yes. You can remotely access live video, playback recordings, and manage the system using the DMSS mobile application.
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Supports up to 64 IP cameras | Hard drives sold separately |
| Supports cameras up to 32MP resolution | No built-in PoE ports |
| 448 Mbps bandwidth for demanding deployments | Requires external PoE switches |
| Advanced WizSense AI analytics | Higher initial investment |
| Four HDD bays support massive storage capacity | |
| 8K HDMI output | |
| Dual Gigabit Ethernet ports | |
| Supports N+M Cluster and iSCSI |
DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder – Conclusion
The DAHUA DHI-NVR5464-EI2 64 Channel WizSense Network Video Recorder is a high-performance enterprise surveillance solution built for organizations requiring intelligent video management and exceptional scalability. With support for 64 IP cameras, 32MP recording, 448 Mbps bandwidth, advanced WizSense AI features, 8K video output, four HDD bays, and enterprise-grade networking capabilities, it provides reliable and future-ready security management for large CCTV deployments.
