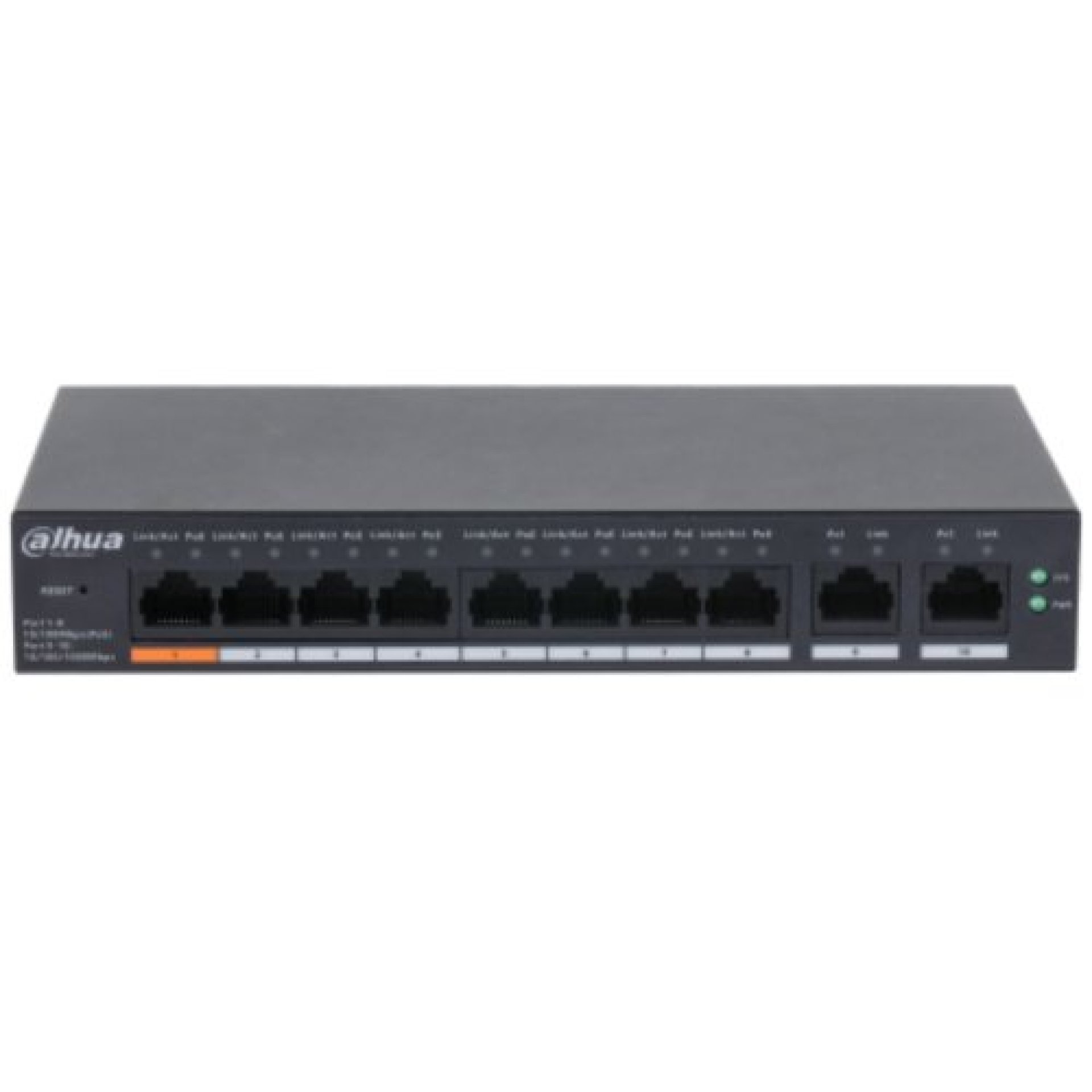

DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Overview
The DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE is a Layer 2 smart switch designed for small and medium-sized businesses, IP surveillance systems, and enterprise edge networks. It features 8 Fast Ethernet PoE ports and 2 Gigabit uplink ports, delivering reliable connectivity and centralized cloud management through DoLynk Care. With Hi-PoE support on Port 1 (up to 60W), 60W total PoE budget, PoE Watchdog, long-distance PoE transmission up to 250 meters, VLAN support, and intelligent network topology management, this switch offers an efficient and scalable networking solution for professional deployments.
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Key Features
- 8 × 10/100 Mbps RJ-45 PoE ports
- 2 × 10/100/1000 Mbps Gigabit uplink ports
- Layer 2 cloud-managed switch
- Supports IEEE 802.3af, IEEE 802.3at, and Hi-PoE standards
- Hi-PoE output up to 60W on Port 1
- Total PoE power budget of 60W
- Cloud management via DoLynk Care
- Local web management
- 4.8 Gbps switching capacity
- 3.57 Mpps packet forwarding rate
- PoE Watchdog for automatic device recovery
- Long-distance PoE transmission up to 250 meters
- VLAN support
- Loop protection
- LLDP network topology management
- Intelligent PoE power management
- Fanless full-metal enclosure
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE | KSh 6,500 – KSh 13,500 |
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Specification Table
| Specification | Details |
|---|---|
| Product | DAHUA CS4010-8ET-60 |
| Switch Type | Layer 2 Cloud Managed PoE Switch |
| PoE Ports | 8 × 10/100 Mbps RJ-45 |
| Uplink Ports | 2 × 10/100/1000 Mbps RJ-45 |
| PoE Standard | IEEE 802.3af/at, Hi-PoE |
| Hi-PoE Output | Port 1 up to 60W |
| Total PoE Budget | 60W |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Jumbo Frame | 9216 Bytes |
| VLAN Support | Up to 32 VLANs |
| Management | Web Management, DoLynk Care Cloud Management |
| PoE Distance | Up to 250 m (Extend Mode) |
| Protection | PoE Watchdog, Loop Protection, Lightning Protection |
| Installation | Desktop or Wall Mount |
| Housing | Full Metal |
| Operating Temperature | -10°C to +55°C |
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Performance
- Delivers reliable Layer 2 switching for surveillance and business networks
- Cloud management enables remote monitoring and configuration
- Hi-PoE Port 1 powers high-performance devices up to 60W
- PoE Watchdog automatically restarts unresponsive IP cameras
- Supports long-distance PoE transmission up to 250 meters
- 4.8 Gbps switching capacity ensures efficient network performance
- Gigabit uplink ports provide high-speed backbone connectivity
- VLAN and loop protection improve network security and stability
- Fanless metal construction ensures quiet and reliable 24/7 operation
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Design and Build
- Compact desktop form factor
- Durable full-metal enclosure
- Fanless design for silent operation
- Desktop or wall-mount installation
- LED indicators for power and port status
- Industrial-grade construction for continuous operation
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Connectivity and Compatibility
- Compatible with Dahua IP cameras
- Supports third-party IEEE 802.3af/at PoE devices
- Supports Hi-PoE devices on Port 1
- Works with NVRs and DVRs
- Compatible with routers, servers, and wireless access points
- Supports DoLynk Care cloud platform
- Local web-based management interface
- Supports Cat5e and Cat6 Ethernet cabling
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Ideal Use Cases
- CCTV surveillance systems
- Small and medium-sized businesses
- Office networking
- Retail stores
- Hotels and restaurants
- Schools and universities
- Healthcare facilities
- Warehouses
- Industrial facilities
- Smart building infrastructure
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – FAQs
1. How many ports does this switch provide?
It includes eight 10/100 Mbps PoE ports and two Gigabit RJ-45 uplink ports.
2. Does it support cloud management?
Yes. It supports centralized cloud management through the DoLynk Care platform as well as local web management.
3. What is the total PoE power budget?
The switch provides a total PoE power budget of 60W, with Port 1 supporting Hi-PoE up to 60W.
4. How far can PoE transmission reach?
In Extend Mode, PoE transmission can reach up to 250 meters at 10 Mbps.
5. Does it support automatic camera recovery?
Yes. The integrated PoE Watchdog automatically detects and restarts unresponsive PoE devices to maintain continuous network operation.
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Pros and Cons
| Pros | Cons |
|---|---|
| Cloud and local web management | 60W total PoE budget may limit multiple high-power devices |
| Eight PoE ports with two Gigabit uplinks | PoE ports support Fast Ethernet only |
| Hi-PoE support up to 60W on Port 1 | External power adapter required |
| Long-distance PoE transmission up to 250 meters | |
| PoE Watchdog and loop protection | |
| Durable fanless metal enclosure | |
| Gigabit uplinks improve network performance |
DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch 8-Port PoE – Conclusion
The DAHUA CS4010-8ET-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE is an excellent networking solution for professional CCTV systems and business environments. Its combination of cloud management, Hi-PoE support, Gigabit uplinks, intelligent PoE management, and long-distance transmission capabilities makes it a reliable and scalable choice for organizations seeking efficient, secure, and remotely managed network infrastructure.
