Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Overview
The Dahua XVR5116HS-5M-I3/T 16 Channel Penta-brid 5MP WizSense Digital Video Recorder is a high-capacity surveillance solution designed for medium to large security installations that require advanced AI analytics and flexible camera integration. It supports Penta-brid technology (HDCVI, AHD, TVI, CVBS, and IP cameras), allowing seamless mixing of analog and IP systems. With 5MP recording capability, WizSense AI features, H.265 compression, and support for up to 1 HDD, it delivers efficient, intelligent, and scalable video management for professional security environments.
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Key Features
- 16-channel Penta-brid video input (HDCVI/AHD/TVI/CVBS/IP)
- Supports up to 5MP@12fps / 1080p recording
- WizSense AI with human and vehicle detection
- SMD Plus smart motion detection on 16 channels
- H.265 / Smart H.265+ video compression
- AI Coding for storage optimization
- Supports up to 24 IP camera channels (extended mode)
- AI functions including AcuPick, perimeter protection, and face detection
- HDMI and VGA simultaneous output
- Smart playback and intelligent video search
- 1 SATA HDD support (up to 16TB)
- ONVIF-compatible IP camera integration
- Remote access via DMSS mobile application
- 1U compact professional design
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua XVR5116HS-5M-I3/T 16 Channel 5MP WizSense DVR | KSh 20,000 – KSh 35,000 |
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua XVR5116HS-5M-I3/T DVR |
| Channels | 16 Channels (Penta-brid) |
| Video Input | HDCVI / AHD / TVI / CVBS / IP |
| IP Camera Support | Up to 24 channels |
| Max Recording | 5MP@12fps / 1080p@25fps |
| Compression | H.265 / Smart H.265+ / H.264 |
| AI Features | WizSense (SMD Plus, AcuPick, Face Detection, Perimeter Protection) |
| Storage | 1 SATA HDD (up to 16TB) |
| Video Output | HDMI / VGA |
| Network | RJ45 Ethernet |
| Remote Access | DMSS App, Web Client, CMS software |
| USB Ports | 2 × USB |
| Power Supply | 12V DC |
| Operating Temperature | –10°C to +55°C |
| Form Factor | 1U compact DVR |
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Performance
- Handles large multi-camera surveillance systems efficiently
- AI-powered WizSense reduces false alarms from non-human motion
- Supports mixed analog and IP systems for flexible upgrades
- H.265 compression significantly reduces storage usage
- Smooth multi-channel live view and playback
- Intelligent search improves incident investigation speed
- Stable 24/7 recording for professional environments
- Optimized bandwidth usage for remote monitoring

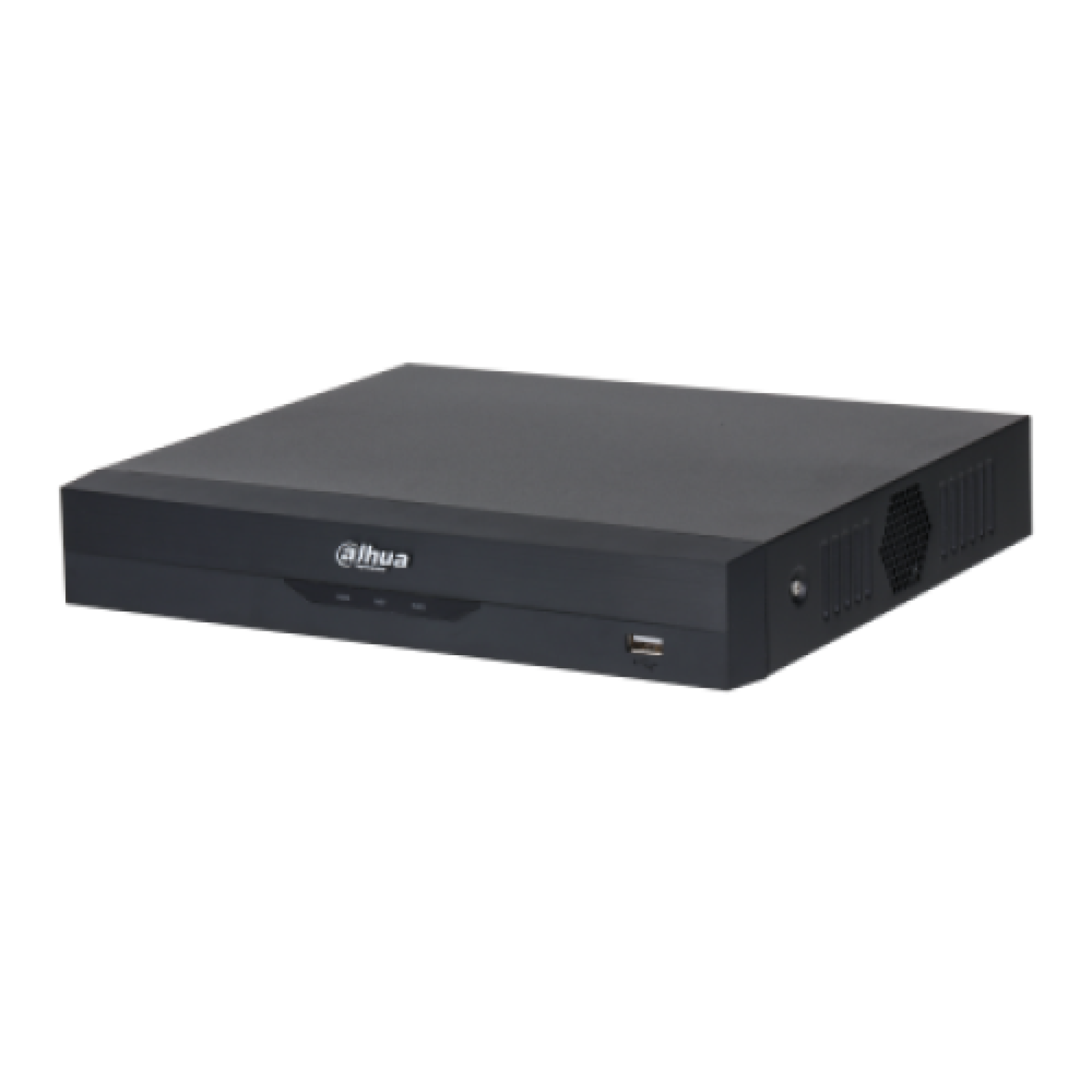

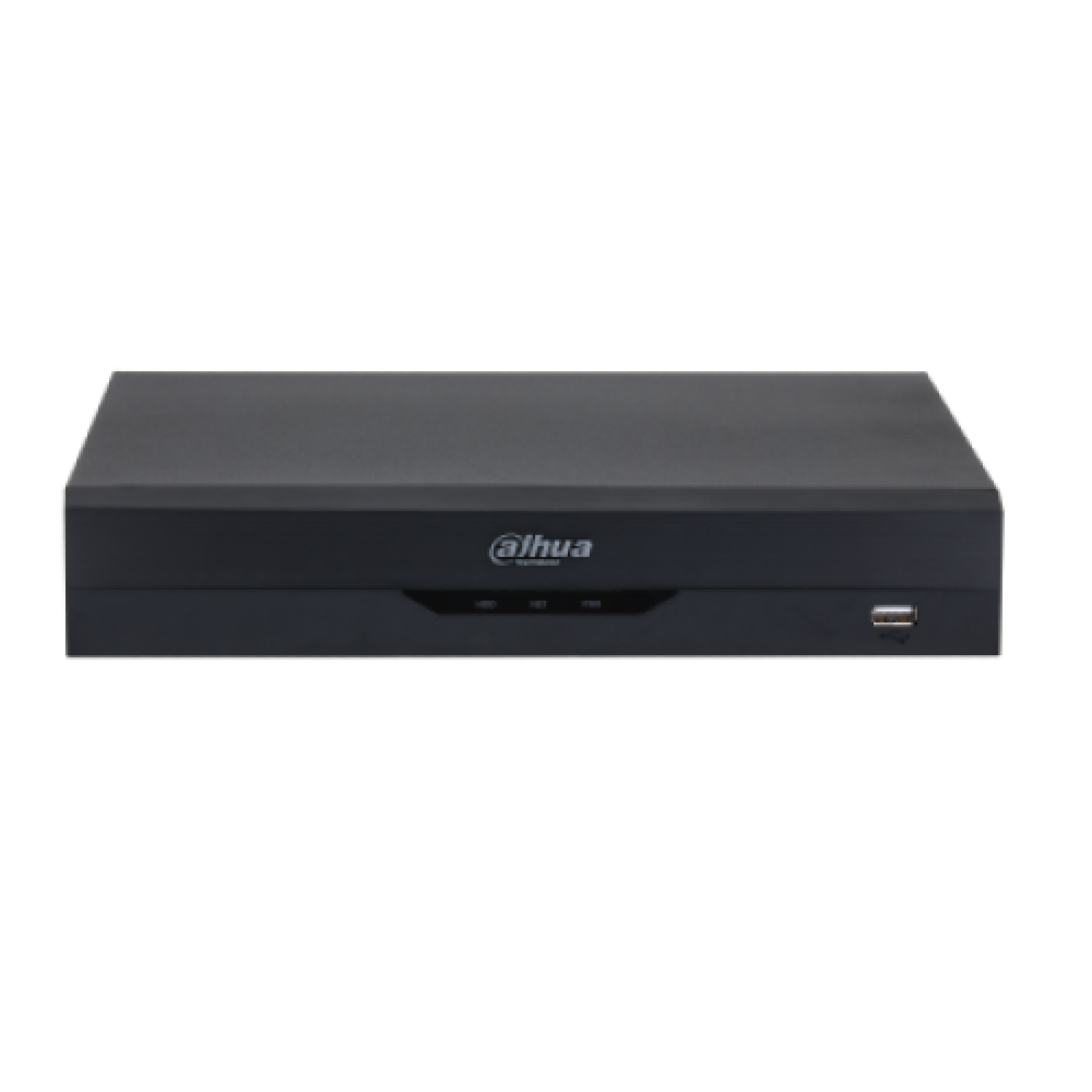

Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Design and Build
- Compact 1U rack-mountable metal chassis
- Durable industrial-grade construction
- Efficient cooling for continuous operation
- Simple interface for easy setup and management
- Lightweight yet robust surveillance design
- Built for long-term professional use

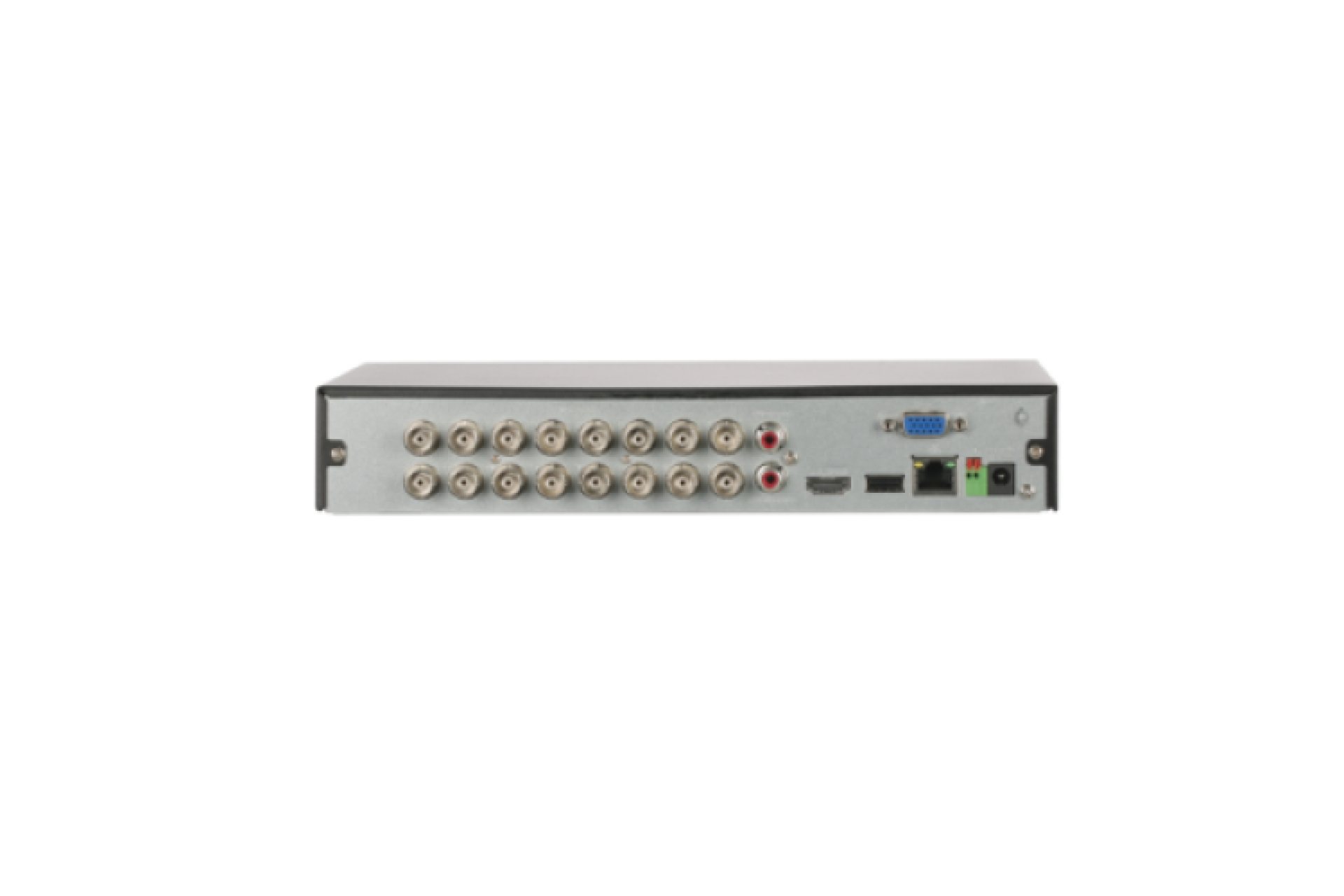

Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Connectivity and Compatibility
- Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Compatible with Dahua and ONVIF IP cameras
- Remote monitoring via DMSS mobile app
- Web browser and CMS software support
- HDMI and VGA video outputs
- RJ45 network connectivity
- USB backup and firmware upgrade support
- Works in hybrid CCTV systems (analog + IP)
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Ideal Use Cases
- Large residential estates
- Commercial buildings
- Retail chains and supermarkets
- Schools and universities
- Warehouses and logistics centers
- Industrial facilities
- Government installations
- Multi-entrance security systems
- Hybrid CCTV upgrades
- Professional surveillance deployments
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – FAQs
1. How many cameras does it support?
It supports 16 analog channels and up to 24 IP channels in extended mode.
2. Does it support AI features?
Yes, it includes WizSense AI with SMD Plus, AcuPick, and perimeter protection.
3. Can I access it remotely?
Yes, via the DMSS mobile application.
4. What camera types are compatible?
It supports HDCVI, AHD, TVI, CVBS, and IP cameras.
5. How much storage does it support?
It supports 1 SATA HDD up to 16TB.
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Pros and Cons
| Pros | Cons |
|---|---|
| 16-channel scalability | Only 1 HDD slot |
| Supports 5MP recording | Limited frame rate at higher resolution |
| Advanced WizSense AI features | Not ideal for enterprise multi-HDD setups |
| Supports up to 24 IP cameras | Requires proper setup for full AI use |
| Efficient H.265 compression | |
| Hybrid camera compatibility |
Dahua 16 Channel Penta-brid 5MP Digital Video Recorder – XVR5116HS-5M-I3/T – Conclusion
The Dahua XVR5116HS-5M-I3/T 16 Channel 5MP WizSense DVR is a powerful and scalable surveillance solution designed for professional security installations. With AI analytics, hybrid camera support, high compression efficiency, and multi-channel capability, it delivers reliable performance for large homes, businesses, and commercial security systems.
