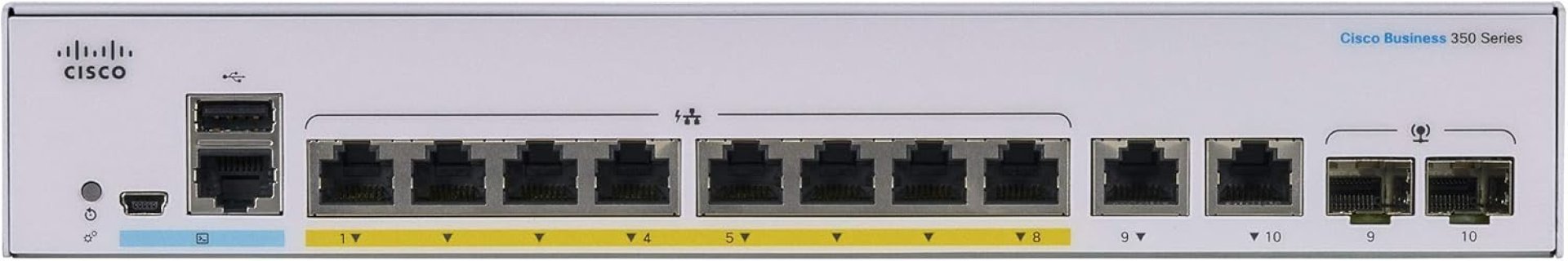

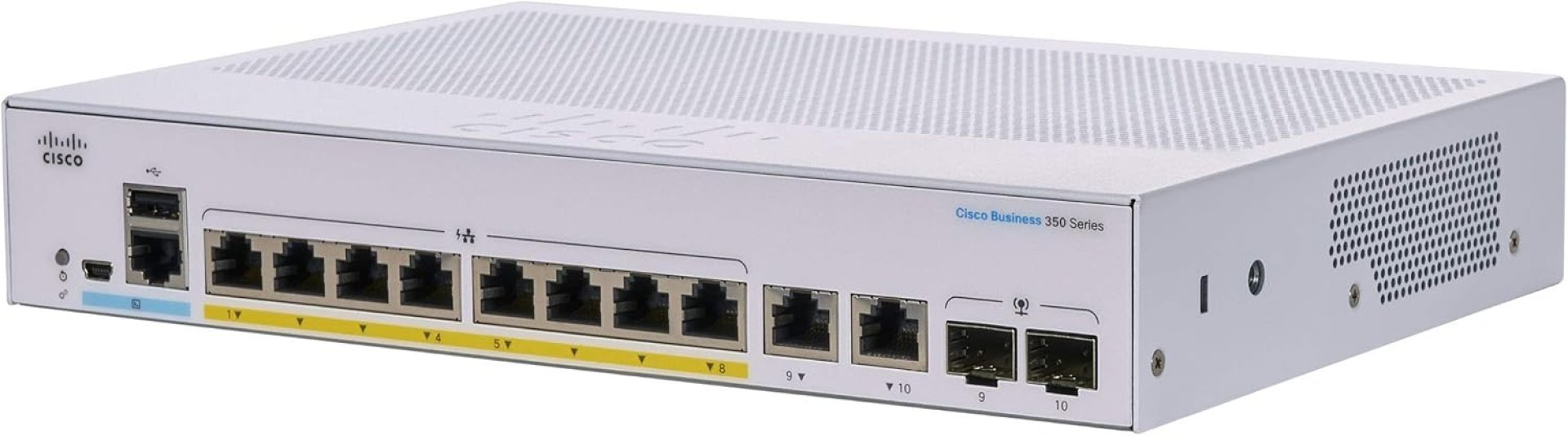

Cisco CBS350‑8P‑E‑2G‑UK 8‑Port Managed PoE+ Switch w/ 2 SFP

Specifications – Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

• Product Name: Cisco CBS350‑8P‑E‑2G‑UK

• Ethernet Ports: 8 × 10/100/1000 Mbps RJ45 (PoE+)

• SFP Uplink Ports: 2 × 1G SFP

• PoE Standard: 802.3at PoE+

• PoE Budget: Up to 370W

• Switch Type: Fully managed L2+ / basic L3

• VLAN Support: 802.1Q with VLAN routing

• QoS: Layer 2–4 prioritization and shaping

• Security: Access control lists, storm control, 802.1X

• Management: Web GUI, CLI, SNMP, RMON

• Redundancy: Spanning Tree, Link Aggregation

• Form Factor: 1U rackmount

• Cooling: Quiet internal fans

• Power Supply: Internal AC PSU

• Dimensions: 241 × 180 × 44 mm

• Weight: ~1.85 kg

Full Port Capacity on Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

The Cisco CBS350‑8P‑E‑2G‑UK delivers 8 Gigabit PoE+ ports, each capable of powering devices while delivering full wired speeds. With a substantial 370W PoE budget, the switch supports demanding devices such as IP phones, wireless access points, and smart cameras. Two 1G SFP ports enable fiber or copper uplinks for flexible deployment and higher-tier network integration.

Advanced Layer Control in Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

Cisco’s CBS350 series integrates Layer 2+ and basic Layer 3 capabilities, enabling features like VLAN routing, ACLs, static routes, and DHCP snooping. This makes the CBS350‑8P‑E‑2G‑UK ideal for professional environments that require secure, segmented networking alongside priority traffic management. The switch supports advanced QoS and traffic shaping across layers 2 through 4.

Secure Networking on Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

Security on the CBS350‑8P‑E‑2G‑UK includes 802.1X port authentication, storm control, DHCP snooping, and per-port ACLs. Administrators can segment network access cleanly and isolate devices securely. The system also supports link aggregation and Spanning Tree variants for network stability and redundancy.

High-Performance Uplinks for Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

Two 1G SFP uplink ports provide robust connectivity options—whether over fiber with distance or copper with standard SFP modules. These ports support link aggregation for higher throughput and redundancy, ensuring smooth integration with data center or core network switches.

Unified Management with Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

The CBS350‑8P‑E‑2G‑UK supports management through a full-featured Web GUI, CLI via SSH/telnet, SNMP, and RMON protocol. Real-time monitoring, firmware updates, syslog, and port mirroring are all available. IT administrators benefit from centralized management and configuration for multiple switches.

Rack-Ready Design of Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

In a sturdy 1U rack form factor, the CBS350‑8P‑E‑2G‑UK includes low-noise internal fans and rack-mount hardware. Its compact size is suitable for wiring closets, network cabinets, or small data centers. LED indicators on each port simplify physical diagnostics and monitoring.

Efficient PoE Delivery in Cisco CBS350‑8P‑E‑2G‑UK 8‑Port PoE Managed Switch

With support for 802.3at PoE+, the switch can deliver up to 30W per port. The integrated 370W power budget allows simultaneous support of multiple power-intensive devices, making it fit for secure, streamlined deployments. PoE scheduling via the management interface helps optimize power use during off-peak hours.
