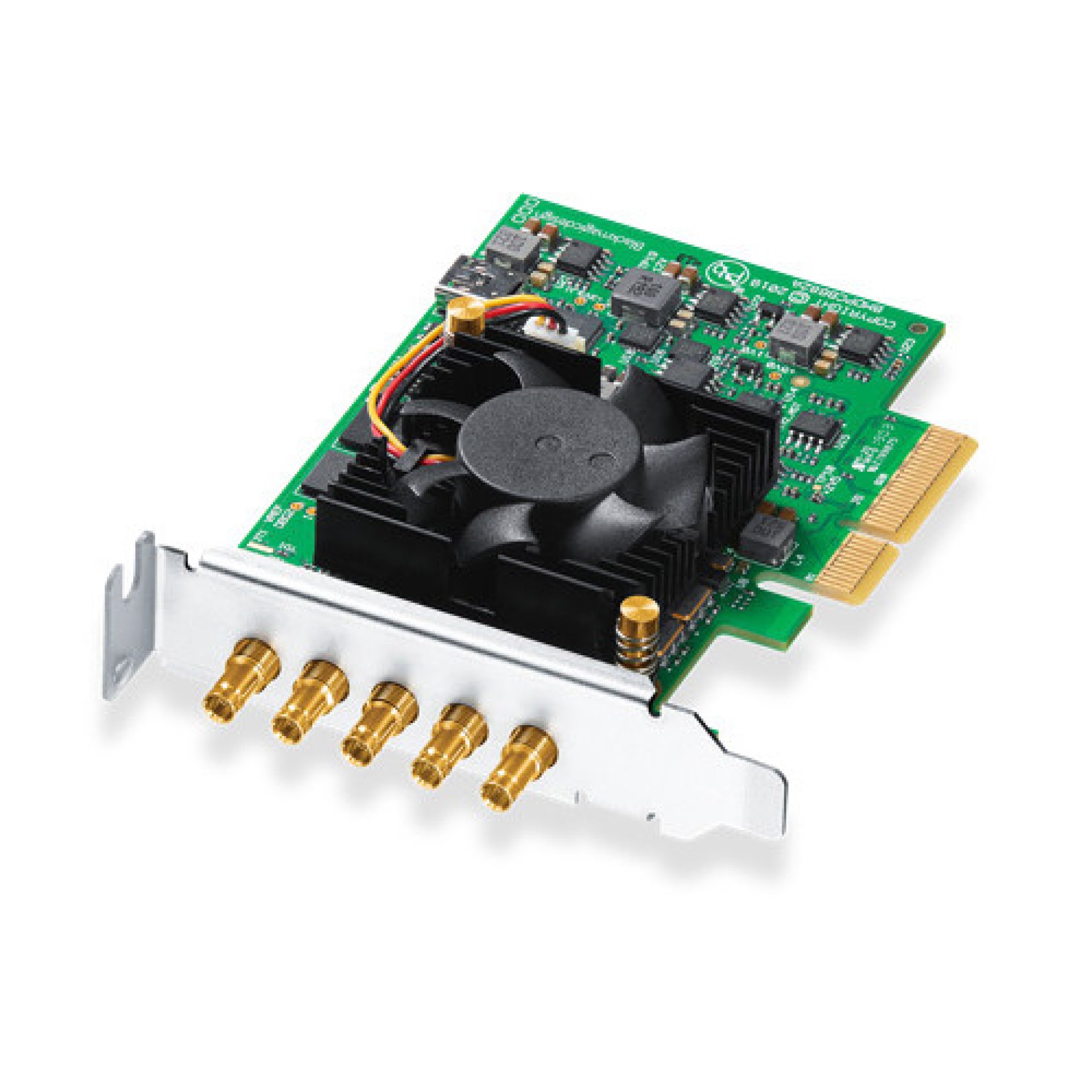

Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card
The Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card is a professional multi-channel SDI capture and playback solution designed for broadcast, live production, post-production, digital signage, streaming, and professional AV applications. Featuring four independent bidirectional 3G-SDI connections, it provides the flexibility to configure each SDI connection as either an input or an output, allowing users to build highly versatile video workflows with a single PCIe card.
Supporting SD, HD, and 3G-SDI video formats up to 1080p60, the DeckLink Duo 2 delivers 10-bit and 12-bit video processing, hardware up, down, and cross conversion, 16-channel embedded SDI audio, reference input for synchronization, and compatibility with Windows, macOS, and Linux. It integrates seamlessly with industry-leading software such as DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, Avid Media Composer, OBS Studio, and vMix, making it an excellent choice for professional production environments.
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Price
| Product | Price |
|---|---|
| Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card | KSh 85,600 |
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Features
- Four independent bidirectional 3G-SDI connections
- Each SDI port configurable as an input or output
- Supports SD, HD, and 3G-SDI formats
- Maximum resolution up to 1080p60
- PCI Express 2.0 x4 interface
- 10-bit and 12-bit video processing
- Hardware up conversion, down conversion, and cross conversion
- 16-channel embedded SDI audio support
- Reference input for Tri-Level Sync and Black Burst
- Real-time hardware color space conversion
- Compatible with Windows, macOS, and Linux
- Supports multiple professional broadcast and editing applications
- Designed for continuous professional operation
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Specifications
| Specification | Details |
|---|---|
| Brand | Blackmagic Design |
| Model | DeckLink Duo 2 |
| Product Type | PCIe Capture and Playback Card |
| Computer Interface | PCI Express 2.0 x4 |
| SDI Inputs/Outputs | 4 × Bidirectional 3G-SDI BNC |
| Reference Input | Tri-Level Sync / Black Burst |
| Maximum Resolution | 1920 × 1080 at 60 fps |
| Supported Formats | SD, HD, 3G-SDI |
| Video Processing | 10-bit and 12-bit |
| Embedded Audio | 16 Channels SDI |
| Color Space Conversion | Hardware Real-Time |
| HD Up Conversion | Yes |
| HD Down Conversion | Yes |
| Cross Conversion | Yes |
| Operating Systems | Windows, macOS, Linux |
| Power Consumption | Approx. 10 W |
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Performance and Usage Overview
The Blackmagic DeckLink Duo 2 provides exceptional flexibility by allowing each of its four SDI ports to operate independently as either an input or an output. This enables users to configure the card for multi-camera capture, simultaneous playback, digital signage, graphics playout, or mixed input/output workflows using a single PCIe slot.
Its integrated hardware video processing performs high-quality up conversion, down conversion, and cross conversion with minimal CPU load, while 16-channel embedded SDI audio ensures professional-quality synchronized audio capture and playback. The reference input allows synchronization with other broadcast equipment for stable operation in multi-device production environments.
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Connectivity
- 4 × Bidirectional 3G-SDI BNC connectors
- PCI Express 2.0 x4 interface
- Tri-Level Sync reference input
- Black Burst reference input
- Embedded SDI audio support
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Compatibility
- DaVinci Resolve
- Adobe Premiere Pro
- Adobe After Effects
- Final Cut Pro
- Avid Media Composer
- OBS Studio
- vMix
- Wirecast
- Windows
- macOS
- Linux
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Build Quality and Design
- Professional PCIe expansion card
- High-quality broadcast-grade components
- Four locking BNC SDI connectors
- Compact low-profile design
- Efficient low-power operation
- Engineered for continuous 24/7 use
- Reliable performance for professional studios
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Ideal Applications and Use Cases
- Television broadcasting
- Live event production
- Multi-camera streaming
- Digital signage
- Studio production
- Broadcast graphics playout
- Video servers
- Professional post-production
- AV system integration
- Video capture and playback
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Pros and Cons
| Pros | Cons |
|---|---|
| Four independently configurable SDI channels | Supports up to Full HD 1080p60 only |
| Flexible capture and playback configuration | Requires an available PCIe slot |
| Hardware up, down, and cross conversion | No HDMI connectivity |
| Professional 10-bit and 12-bit video processing | Desktop installation only |
| Compatible with major production software | Not designed for Ultra HD 4K workflows |
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card FAQs
1. What is the Blackmagic DeckLink Duo 2 used for?
It is a professional PCIe capture and playback card used for multi-channel SDI video capture, playback, live production, streaming, broadcast graphics, and digital signage.
2. How many SDI connections does it have?
It features four independent bidirectional 3G-SDI ports, each configurable as either an input or an output.
3. What is the maximum supported resolution?
The card supports SD, HD, and 3G-SDI formats up to 1920 × 1080 at 60 fps (1080p60).
4. Which software is compatible with the DeckLink Duo 2?
It works with DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, Avid Media Composer, OBS Studio, vMix, Wirecast, and many other professional video applications.
5. Does it support embedded SDI audio?
Yes. It supports 16-channel embedded SDI audio for both capture and playback.
6. Can each SDI port be configured independently?
Yes. Each SDI connector can be configured individually as either an input or an output, providing exceptional workflow flexibility.
7. Is the DeckLink Duo 2 suitable for live production?
Yes. It is widely used for live broadcasting, multi-camera production, streaming, digital signage, and professional video playback thanks to its reliable SDI connectivity and flexible channel configuration.
Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card Conclusion
The Blackmagic DeckLink Duo 2 PCIe Capture and Playback Card is a highly flexible professional capture solution that combines four independently configurable 3G-SDI channels with hardware video processing, embedded audio support, and broad software compatibility. Its ability to function as multiple capture or playback devices within a single PCIe card makes it an excellent choice for broadcasters, production companies, livestreaming professionals, and AV integrators.
Priced at KSh 85,600, it delivers exceptional value for professionals seeking a reliable, broadcast-grade SDI capture and playback solution.
