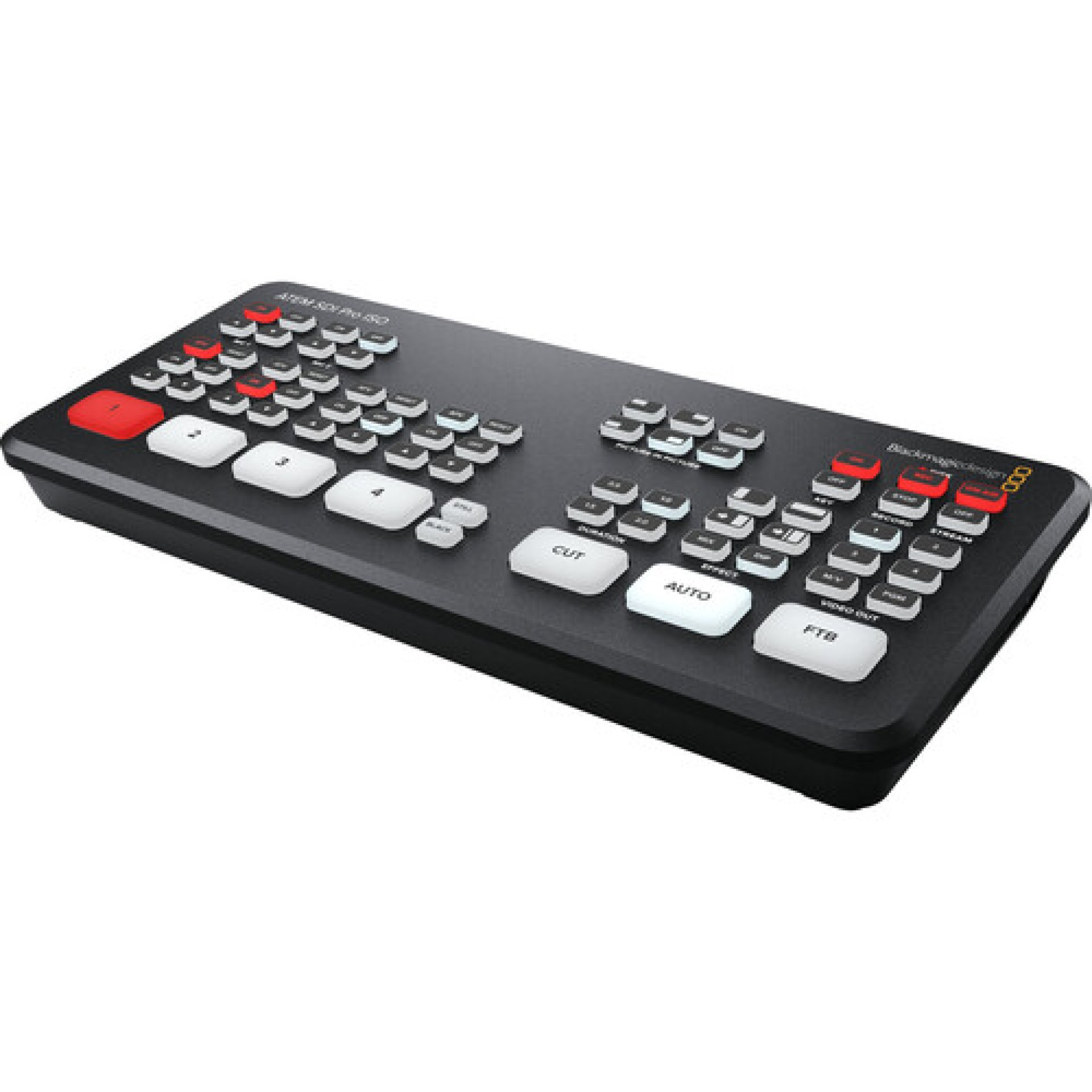

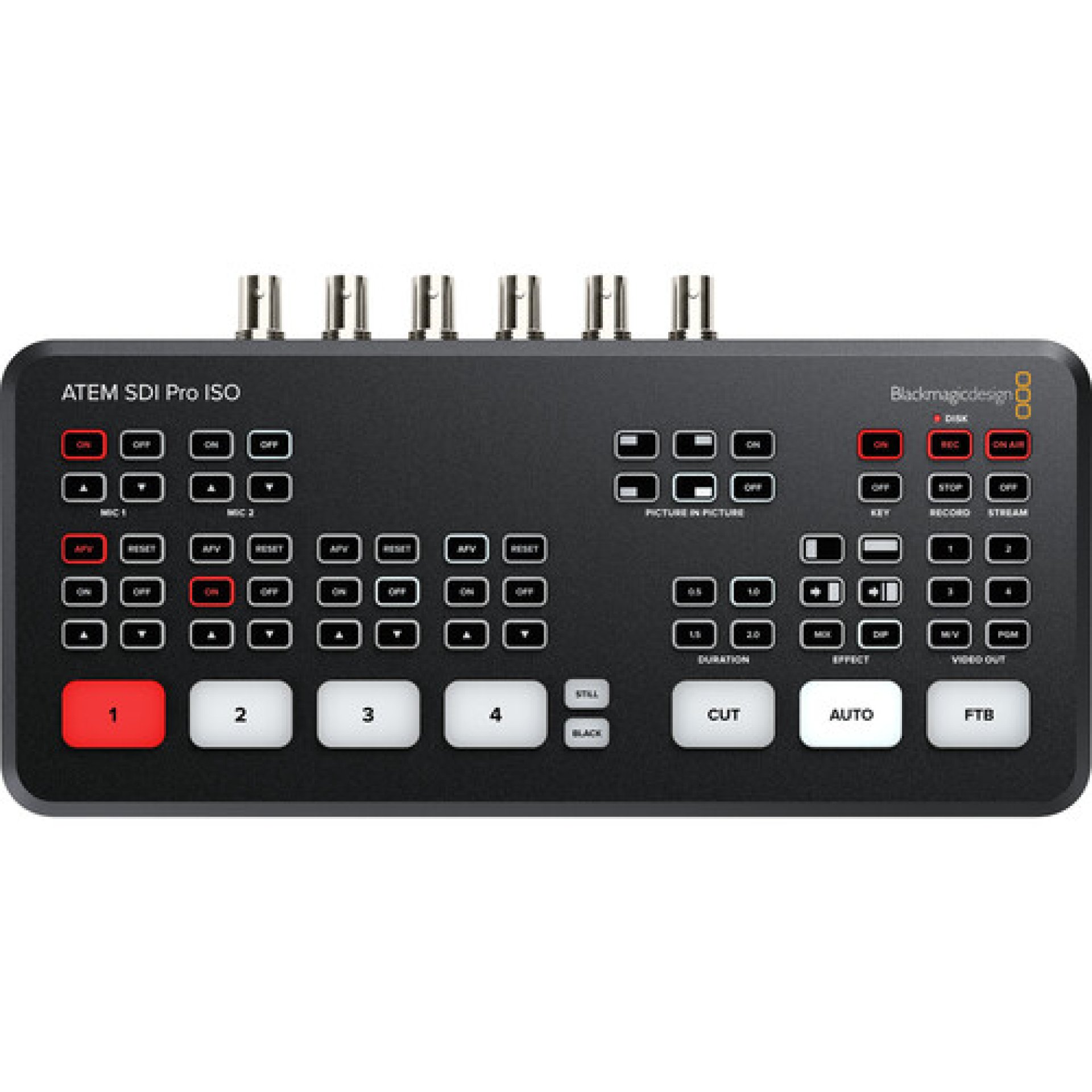

Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher
The Blackmagic ATEM SDI Pro ISO is a professional 4-channel 3G-SDI live production switcher designed for broadcasters, production studios, houses of worship, educational institutions, and live event producers who require reliable SDI connectivity, professional streaming, and advanced post-production capabilities. Built for demanding broadcast environments, it combines live switching, hardware streaming, ISO recording, and DaVinci Resolve integration in a compact and portable unit.
Unlike the standard ATEM SDI Pro, the ATEM SDI Pro ISO can record the program output and all four SDI inputs simultaneously as separate video files. It also automatically generates a DaVinci Resolve project file, allowing editors to reopen the entire production with synchronized cuts, transitions, graphics, and audio for seamless post-production.
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Price
| Product | Price |
|---|---|
| Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher | KSh 128,900 |
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Features
- 4 x 3G-SDI inputs with automatic format conversion
- Simultaneous ISO recording of all four SDI inputs
- Program output recording to external USB storage
- Built-in hardware live streaming engine
- Automatic DaVinci Resolve project generation
- USB-C webcam output for conferencing and streaming
- Supports Full HD 1080p60 live production
- Professional Fairlight audio mixer
- HDMI multiview output for monitoring
- Chroma Key, Luma Key, Linear Key, and DVE transitions
- Two configurable 3G-SDI outputs
- Built-in media pool for graphics and titles
- Ethernet connectivity for direct RTMP streaming
- Camera control and tally support for compatible Blackmagic cameras
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Specifications
| Specification | Details |
|---|---|
| Brand | Blackmagic Design |
| Model | ATEM SDI Pro ISO |
| Product Type | Professional Live Production Switcher |
| Video Inputs | 4 × 3G-SDI |
| Video Outputs | 2 × 3G-SDI |
| HDMI Output | 1 × HDMI Multiview |
| USB Ports | 2 × USB-C |
| Ethernet | Gigabit Ethernet |
| Maximum Resolution | 1080p60 Full HD |
| Streaming | Built-in Hardware Encoder |
| Recording | Program Output + 4 Individual ISO Recordings |
| Audio Inputs | 2 × 3.5 mm Stereo |
| Embedded Audio | Supported via SDI |
| Audio Mixer | Fairlight Audio Mixer |
| Video Effects | Cut, Mix, Dip, Wipe, DVE |
| Keyers | Chroma, Luma, Linear, Downstream |
| Media Pool | 20 Still Images |
| Power Consumption | Approx. 36 W |
| Weight | Approx. 678 g |
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Performance and Usage Overview
The Blackmagic ATEM SDI Pro ISO is engineered for professional broadcast workflows where SDI connectivity offers superior signal reliability over long cable runs. Its four 3G-SDI inputs allow seamless switching between professional broadcast cameras while maintaining broadcast-quality video throughout the production.
The built-in hardware streaming engine enables direct streaming to platforms such as YouTube Live, Facebook Live, and Twitch without requiring a dedicated streaming computer. Its ISO recording capability captures every SDI input individually alongside the final program output, while the automatically generated DaVinci Resolve project significantly accelerates post-production editing.

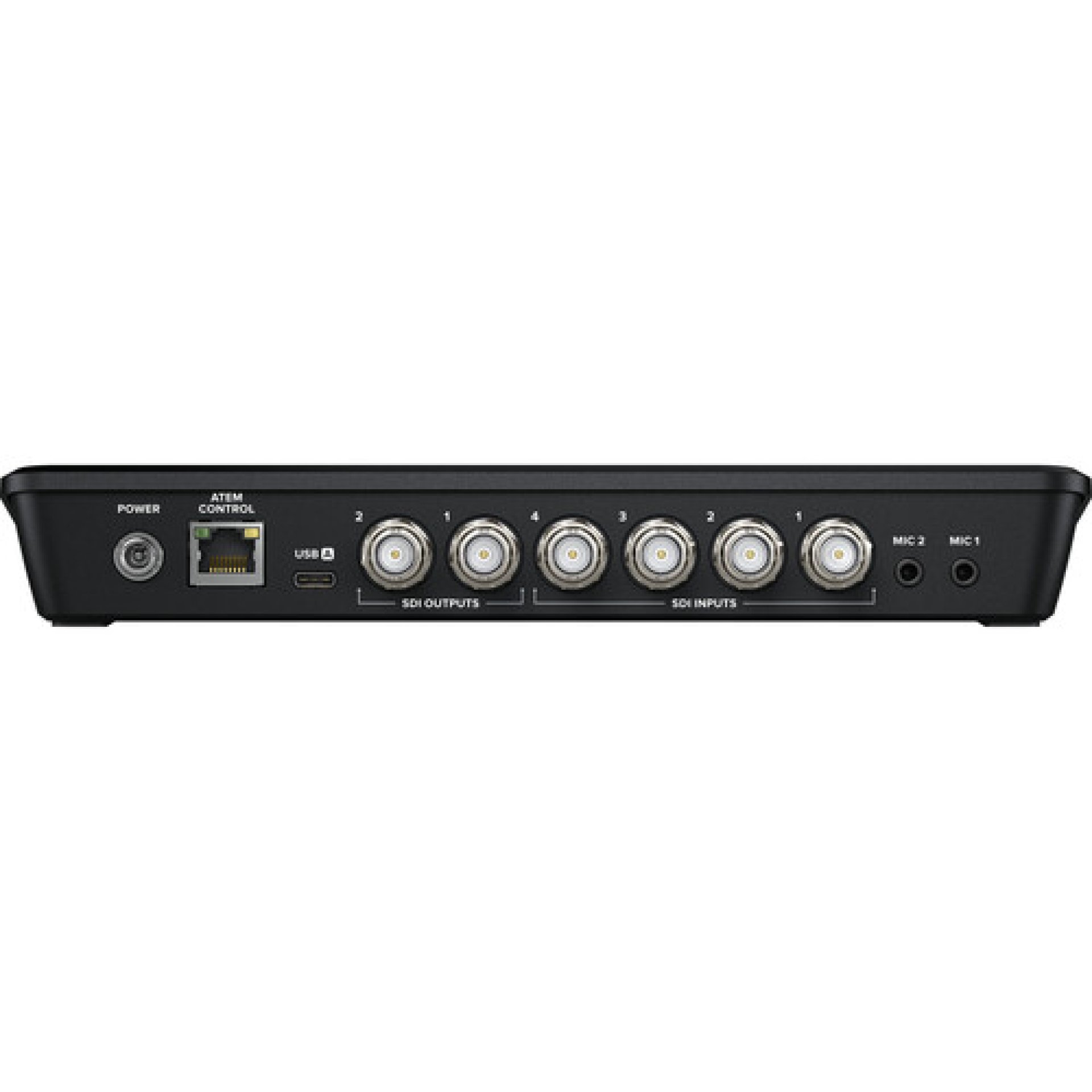

Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Connectivity
- 4 × 3G-SDI inputs
- 2 × 3G-SDI outputs
- HDMI multiview output
- 2 × USB-C ports
- USB webcam output
- Gigabit Ethernet
- 2 × 3.5 mm stereo audio inputs
- External USB storage recording support
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Compatibility
- Professional broadcast cameras
- Blackmagic Studio Cameras
- Blackmagic URSA cameras
- SDI camcorders
- DaVinci Resolve
- OBS Studio
- vMix
- Zoom
- Microsoft Teams
- YouTube Live
- Facebook Live
- Twitch
- Windows computers
- macOS computers
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Build Quality and Design
- Rugged professional desktop chassis
- Compact and portable design
- Responsive illuminated control buttons
- Clearly labeled SDI input and output ports
- Efficient cooling for continuous operation
- Designed for studio and field broadcasting
- Reliable build for professional production environments
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Ideal Applications and Use Cases
- Broadcast television production
- Church live streaming
- Corporate presentations
- Educational broadcasting
- Sports production
- Live concerts
- Conference streaming
- Webinar production
- Podcast studios
- Professional live events
- Multi-camera interviews
- Hybrid event production
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Pros and Cons
| Pros | Cons |
|---|---|
| Simultaneous ISO recording of all SDI inputs | Limited to Full HD 1080p |
| Professional SDI connectivity | Supports SDI cameras only without converters |
| Built-in hardware streaming | External USB storage required for recording |
| Automatic DaVinci Resolve project creation | Four inputs may be limiting for larger productions |
| Professional Fairlight audio mixer | Advanced features require some learning |
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher FAQs
1. What is the difference between the ATEM SDI Pro ISO and the ATEM Mini Pro ISO?
The ATEM SDI Pro ISO uses professional 3G-SDI inputs and outputs instead of HDMI, making it better suited for broadcast environments while also offering ISO recording and DaVinci Resolve project generation.
2. How many cameras can it connect?
It supports up to four professional 3G-SDI cameras simultaneously.
3. Can it stream directly without a computer?
Yes. It features a built-in hardware streaming engine that streams directly over Ethernet using RTMP.
4. Can it record individual camera feeds?
Yes. It records the program output and all four SDI inputs separately to supported USB-C storage devices.
5. Does it generate a DaVinci Resolve project automatically?
Yes. Every ISO recording session includes a DaVinci Resolve project file for quick post-production editing.
6. Does it support professional audio mixing?
Yes. It includes a Fairlight audio mixer with advanced audio controls and embedded SDI audio support.
7. Is it suitable for professional broadcasting?
Yes. Its combination of SDI connectivity, ISO recording, hardware streaming, Fairlight audio mixing, and DaVinci Resolve integration makes it an excellent solution for professional broadcast and live production environments.
Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher Conclusion
The Blackmagic ATEM SDI Pro ISO 4-Channel 3G-SDI Live Production Switcher is a powerful live production solution built for professional broadcast workflows. With reliable SDI connectivity, built-in streaming, simultaneous ISO recording, Fairlight audio processing, and automatic DaVinci Resolve project generation, it provides everything needed for efficient live production and post-production.
At KSh 128,900, it is an excellent investment for broadcasters, production companies, churches, educational institutions, and live event professionals looking for dependable SDI-based switching and recording.
