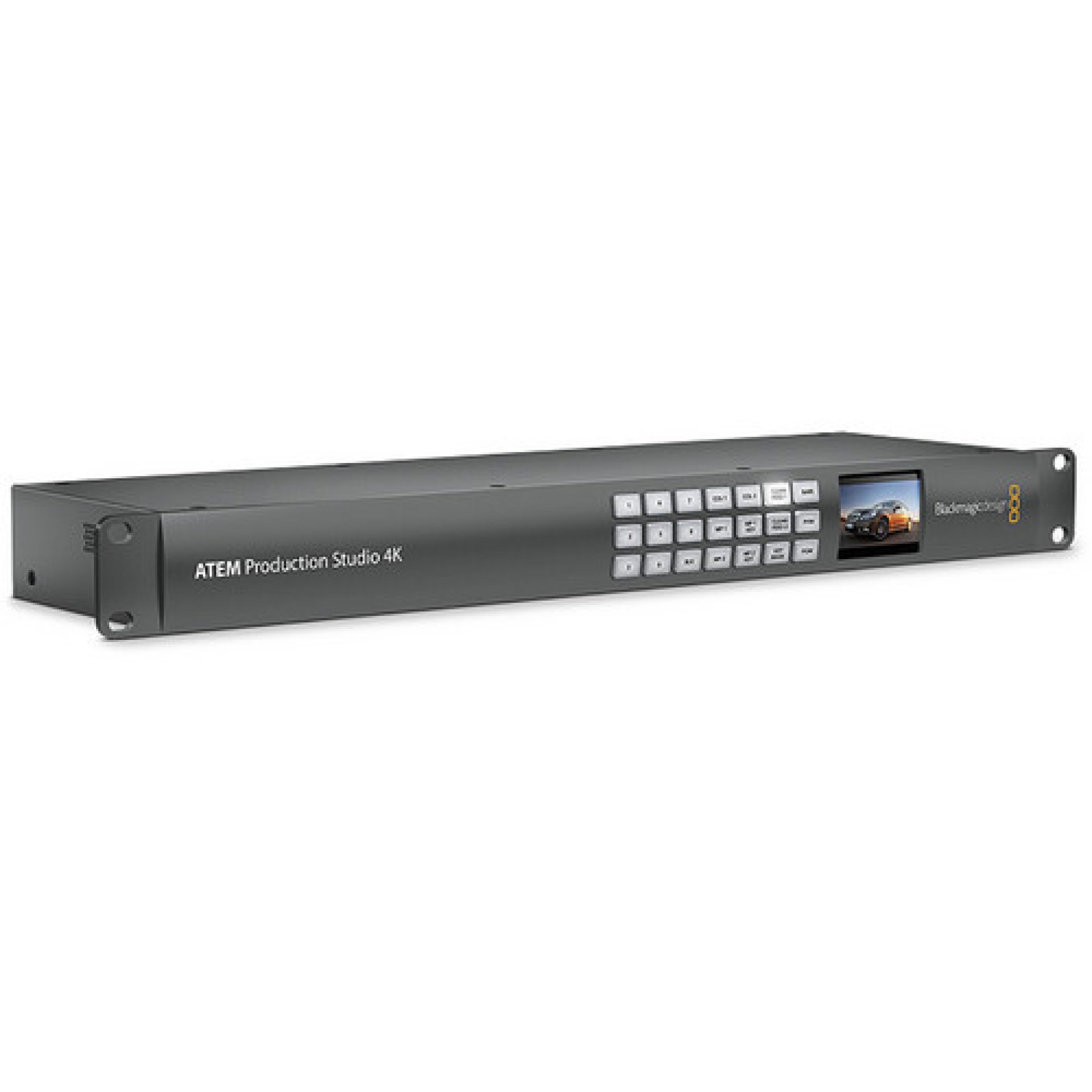

Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher
The Blackmagic ATEM Production Studio 4K is a professional 8-input Ultra HD live production switcher designed for broadcasters, production companies, houses of worship, live event organizers, educational institutions, and corporate studios. Built for high-quality multi-camera productions, it supports SD, HD, and Ultra HD 4K workflows, allowing seamless switching between professional cameras, computers, media players, and other video sources.
Featuring 4 x 6G-SDI inputs, 4 x HDMI inputs, built-in frame synchronizers, chroma keying, downstream keyers, media players, multiview monitoring, and a professional audio mixer, the ATEM Production Studio 4K delivers broadcast-quality live production in a compact 1RU rackmount chassis.
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Price
Product
Price
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher
KSh 288,700
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Features
4 × 6G-SDI inputs supporting SD, HD, and Ultra HD 4K
4 × HDMI inputs supporting SD, HD, and Ultra HD 4K
Supports Ultra HD 4K production up to 2160p30
Built-in frame synchronizers on all inputs
HDMI and SDI multiview monitoring
Professional chroma keying
Upstream and downstream keyers
Two media players for graphics and titles
Built-in audio mixer
Professional transition effects including Cut, Mix, Dip, Wipe, and DVE
Auxiliary SDI output
Ethernet control using ATEM Software Control
Compact 1RU rackmount design
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Specifications
Specification
Details
Brand
Blackmagic Design
Model
ATEM Production Studio 4K
Product Type
Professional Live Production Switcher
Video Inputs
4 × 6G-SDI, 4 × HDMI
Total Video Inputs
8
Program Outputs
1 × SDI, 1 × HDMI
Auxiliary Output
1 × SDI
Multiview Outputs
1 × HDMI, 1 × SDI
Audio Inputs
2 × XLR, 2 × RCA, Embedded SDI/HDMI Audio
Audio Outputs
2 × XLR
Maximum Resolution
Ultra HD 3840 × 2160p30
Frame Synchronizers
On All Inputs
Media Players
2
Media Pool
20 Still Images
Chroma Key
1 Upstream Keyer
Downstream Keyers
2
Ethernet
10/100/1000 Base-T
Rack Size
1RU
Video Processing
10-bit 4:2:2
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Performance and Usage Overview
The Blackmagic ATEM Production Studio 4K is engineered for professional live productions requiring Ultra HD image quality and reliable multi-camera switching. It supports simultaneous connection of up to eight video sources, including professional SDI cameras, HDMI cameras, computers, and playback devices.
Built-in frame synchronizers automatically synchronize every input, eliminating the need for genlock-compatible cameras. Professional keying, transitions, media playback, and multiview monitoring enable smooth and efficient production workflows for television, conferences, concerts, worship services, and corporate events.
Unlike newer ATEM Television Studio HD8 and 4K8 models, the ATEM Production Studio 4K does not include built-in hardware streaming, USB webcam output, or internal recording. External streaming hardware or capture devices are required for online broadcasting.

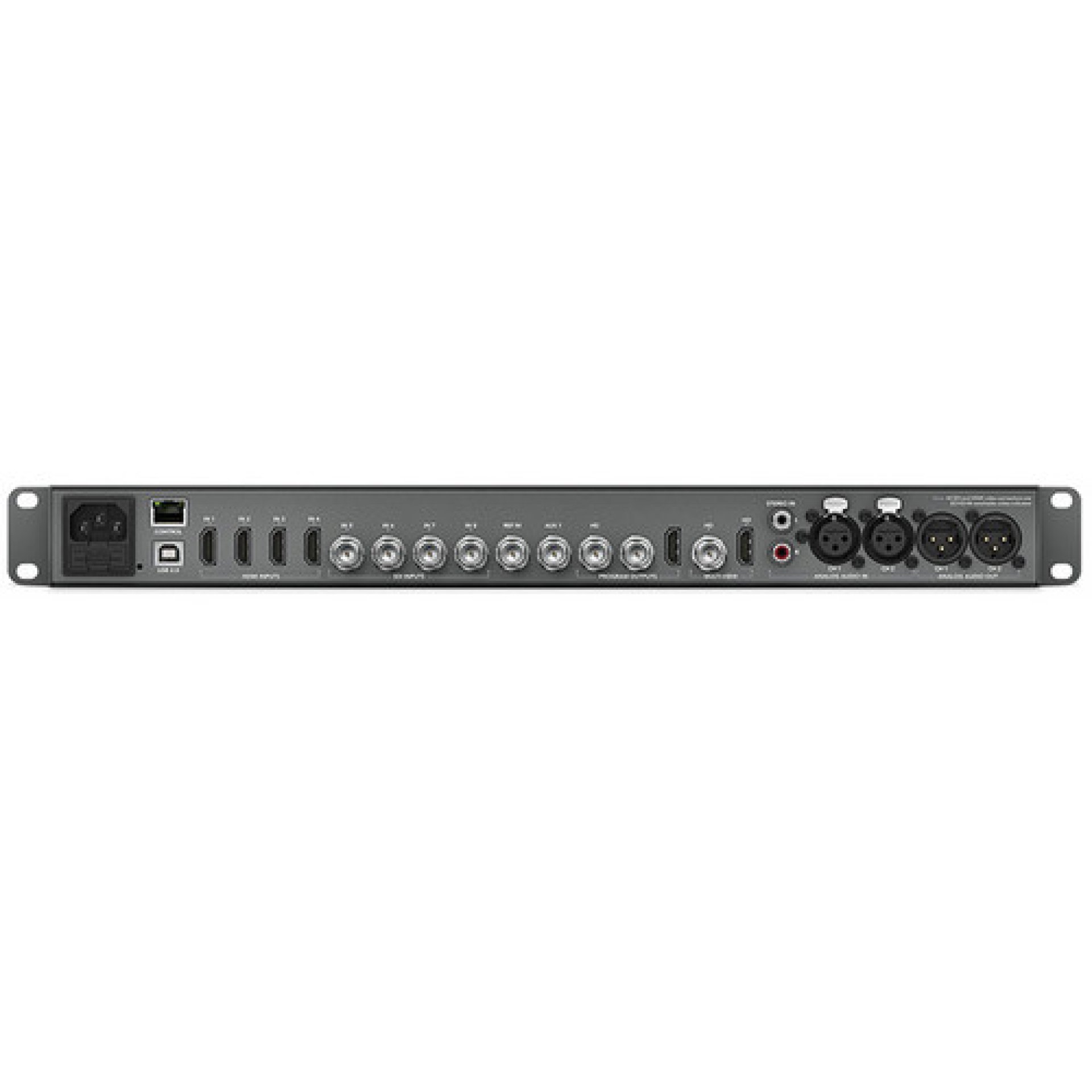

Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Connectivity
4 × 6G-SDI video inputs
4 × HDMI video inputs
SDI program output
HDMI program output
SDI auxiliary output
HDMI multiview output
SDI multiview output
2 × XLR audio inputs
2 × RCA stereo audio inputs
Gigabit Ethernet
Reference sync input
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Compatibility
Professional SDI cameras
HDMI cameras
Blackmagic Studio Cameras
Blackmagic URSA cameras
Computers with HDMI output
Media players
DaVinci Resolve
ATEM Software Control
Windows computers
macOS computers

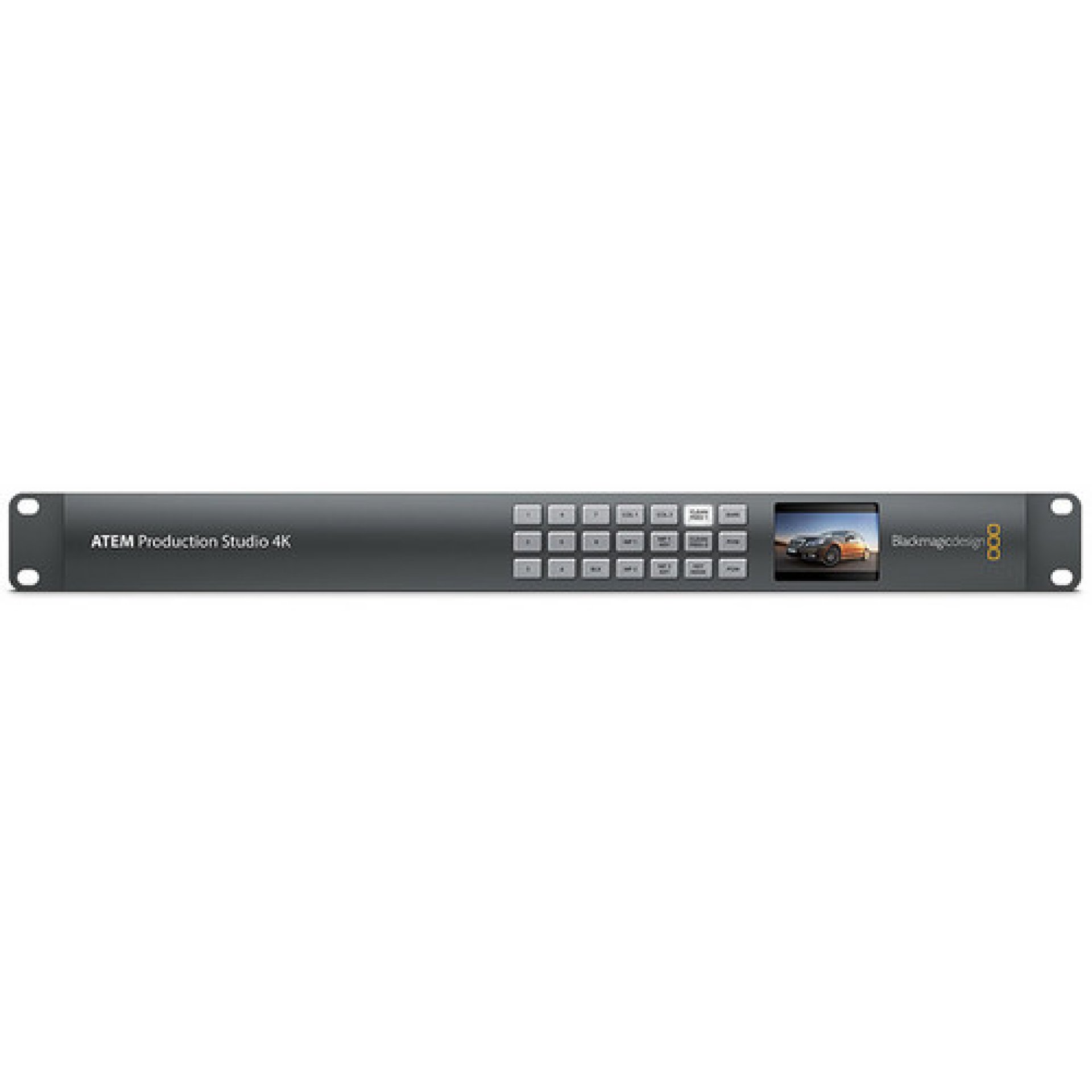

Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Build Quality and Design
Professional 1RU rackmount chassis
Rugged all-metal construction
Integrated LCD status display
Front-panel control buttons
Clearly labeled input and output ports
Designed for continuous professional operation
Suitable for studio and mobile production systems
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Ideal Applications and Use Cases
Television broadcasting
Live event production
Sports broadcasting
Church live streaming
Corporate presentations
Educational production
Concert production
Conference broadcasting
Multi-camera video production
Professional studios
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Pros and Cons
Pros
Cons
Supports SD, HD, and Ultra HD 4K production
No built-in hardware streaming
Eight professional video inputs
No USB webcam output
Built-in frame synchronizers on all inputs
No internal recording
Professional chroma keying and transitions
Supports up to 4K30 rather than 4K60
Compact 1RU broadcast design
Requires external hardware for streaming
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher FAQs
1. How many video sources can it support?
It supports up to eight video sources, including 4 SDI and 4 HDMI inputs.
2. Does it support Ultra HD 4K?
Yes. It supports Ultra HD 3840 × 2160 production up to 30 frames per second.
3. Does it have built-in live streaming?
No. Unlike newer ATEM models, it requires an external streaming encoder or capture device for live streaming.
4. Does it include multiview monitoring?
Yes. It provides both HDMI and SDI multiview outputs for monitoring all connected sources.
5. Can it connect both SDI and HDMI cameras?
Yes. It supports professional SDI cameras and HDMI cameras simultaneously.
6. Does it include professional audio mixing?
Yes. It features a built-in audio mixer supporting embedded SDI/HDMI audio along with balanced XLR and RCA analog audio inputs.
7. Who is the ATEM Production Studio 4K designed for?
It is designed for broadcast television, production companies, houses of worship, educational institutions, corporate AV teams, and professional live event producers requiring reliable Ultra HD live production.
Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher Conclusion
The Blackmagic ATEM Production Studio 4K Professional 8-Input Ultra HD Live Production Switcher is a robust broadcast-grade solution for organizations requiring reliable SD, HD, and Ultra HD multi-camera production. With eight professional video inputs, built-in frame synchronization, advanced keying, multiview monitoring, and professional audio capabilities, it provides a solid foundation for studio and live event production.
At KSh 288,700, it is an excellent choice for broadcasters, production companies, churches, educational institutions, and corporate AV teams looking for a dependable professional 4K production switcher.
