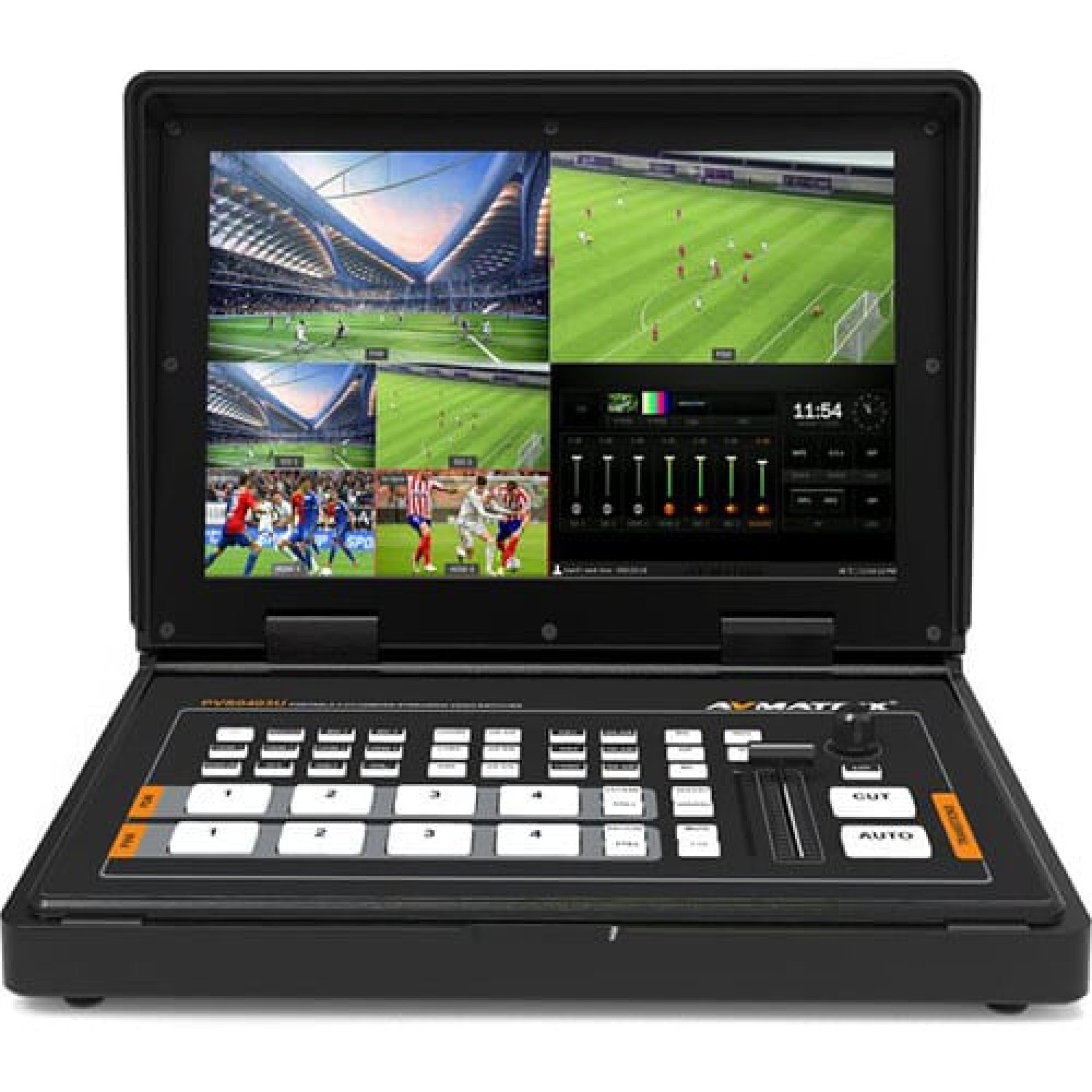

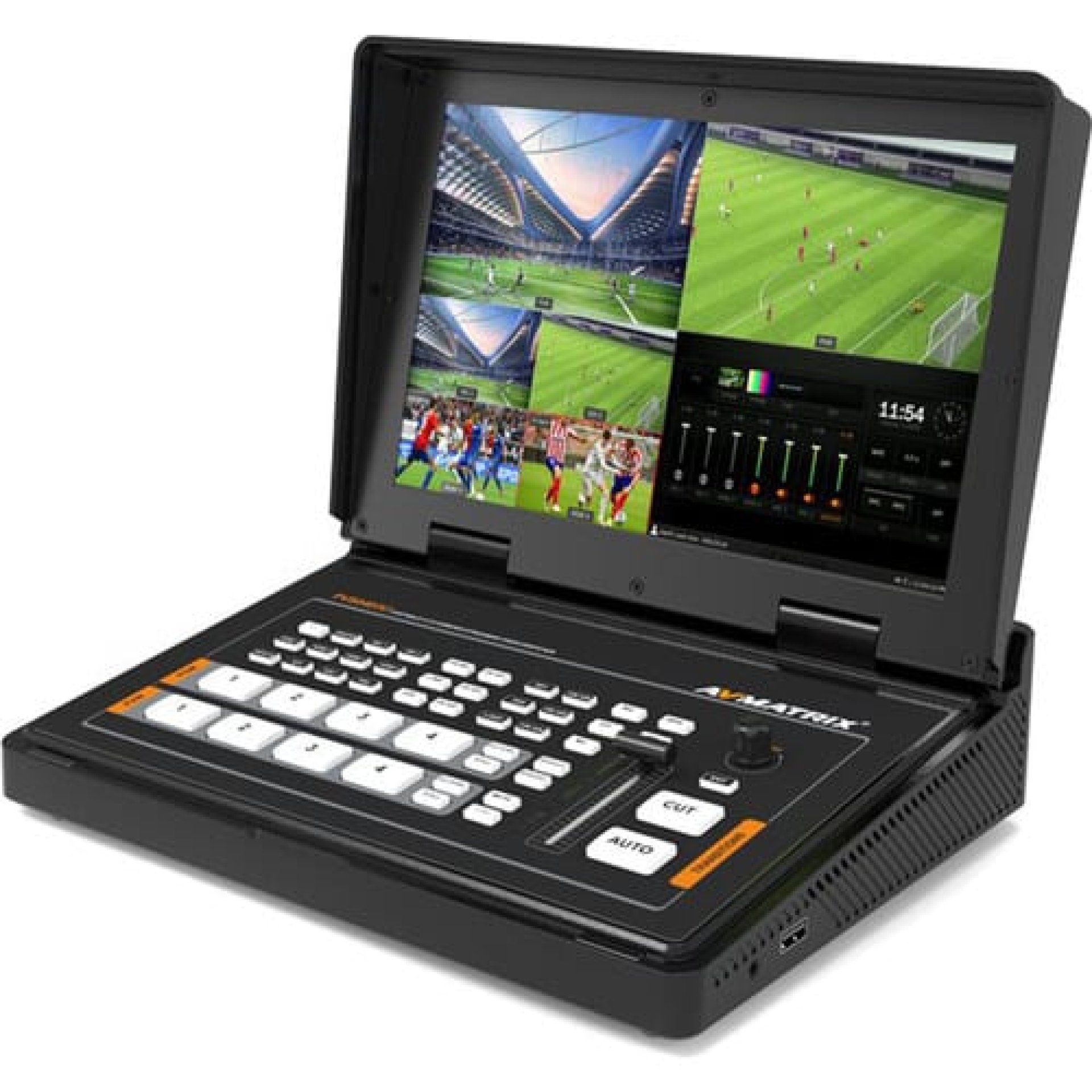

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher

The AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher is a professional portable live production switcher designed for broadcasters, churches, educational institutions, event organizers, production studios, and content creators. Featuring an integrated 10.1-inch Full HD IPS display, 2 HDMI inputs, 2 3G-SDI inputs, dual HDMI Program outputs, HDMI Multiview output, USB Type-C UVC streaming, USB recording, Chroma Key, Luma Key, Picture-in-Picture (PiP), Picture-on-Picture (PoP), professional audio mixing, logo overlay, Downstream Key (DSK), and T-Bar transitions, the PVS0403U provides a complete professional live production solution in a compact desktop design.

Supporting Full HD 1080p60, the PVS0403U integrates seamlessly with OBS Studio, vMix, Zoom, Microsoft Teams, YouTube Live, Facebook Live, Twitch, and other streaming platforms. The built-in IPS display eliminates the need for an external multiview monitor, making it ideal for portable production, field broadcasting, conferences, sports events, worship services, and professional studio applications.

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Price

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Features

• Built-in 10.1-inch Full HD IPS LCD monitor
• 2 HDMI auto-detect video inputs
• 2 3G-SDI auto-detect video inputs
• 2 HDMI Program outputs
• 1 HDMI Multiview output
• USB Type-C UVC streaming output
• USB recording support
• Supports Full HD resolutions up to 1080p60
• Picture-in-Picture (PiP)
• Picture-on-Picture (PoP)
• Chroma Key
• Luma Key
• Downstream Key (DSK)
• Logo overlay support
• AUX output configurable and assignable
• 39 built-in media patterns
• 16 imported image slots
• 16 captured image slots
• Professional audio mixer
• Audio Follow Video (AFV)
• Audio delay adjustment
• Dual 3.5 mm microphone/line inputs
• LAN remote software control
• GPIO tally support
• Manual T-Bar, Auto, and Cut transitions
• USB capture for OBS Studio and other streaming software
• Configuration import and export

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Specifications

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Performance and Usage Overview

The AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher is engineered for professional multi-camera live productions requiring both HDMI and SDI connectivity. With support for two HDMI and two SDI inputs, users can combine broadcast cameras, DSLR cameras, mirrorless cameras, laptops, and presentation systems into a single production workflow.

Its integrated 10.1-inch Full HD IPS display provides clear multiview monitoring, preview, program output, audio meters, and menu settings without requiring an external monitor. The USB Type-C UVC output functions as a plug-and-play webcam for OBS Studio, vMix, Zoom, Microsoft Teams, and other live streaming software.

Advanced production features such as Chroma Key, Luma Key, Downstream Key, Picture-in-Picture, Picture-on-Picture, logo overlays, media management, configurable AUX output, professional audio mixing, and T-Bar transitions allow users to produce broadcast-quality live streams and events with ease.

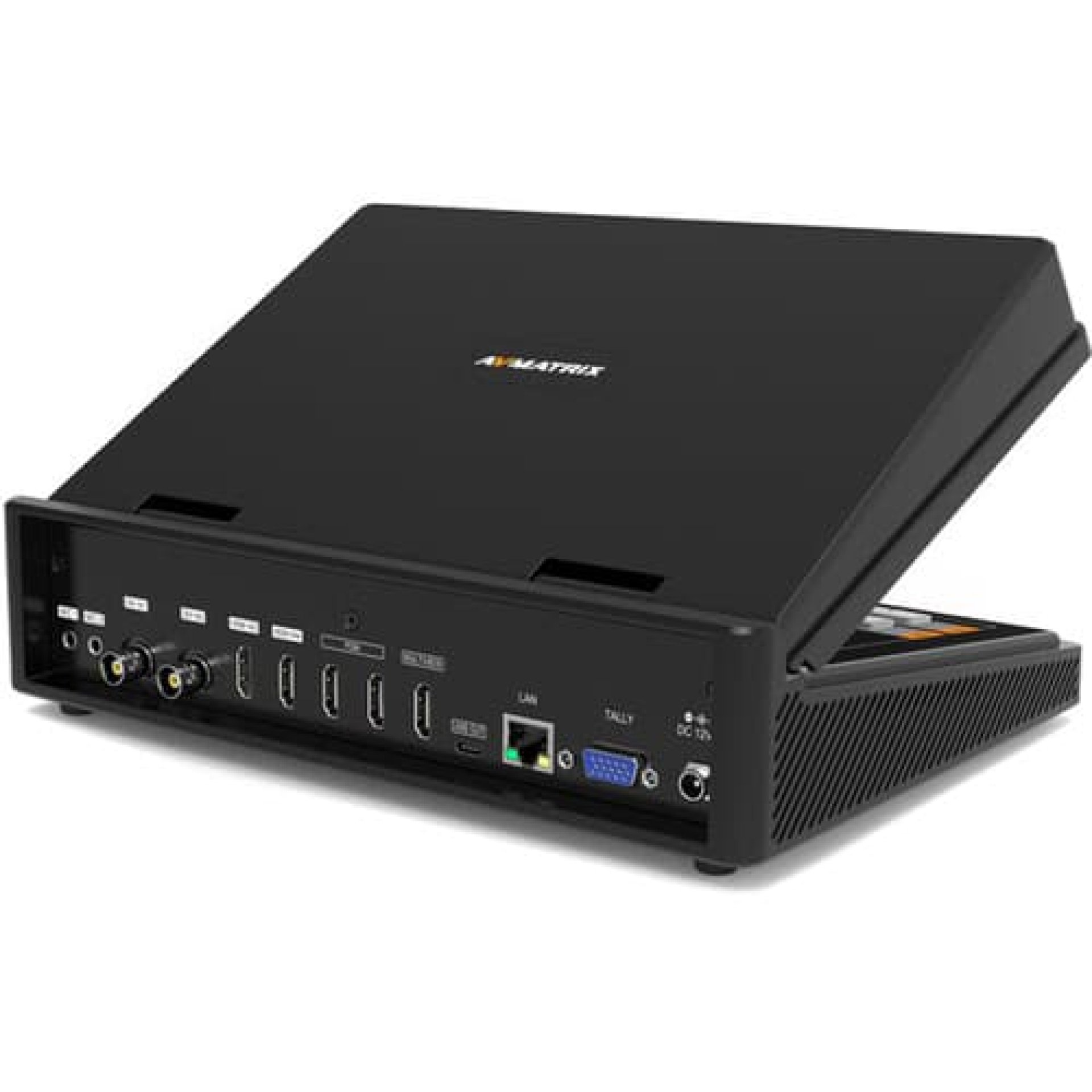

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Connectivity

• 2 × HDMI video inputs
• 2 × 3G-SDI video inputs
• 2 × HDMI Program outputs
• 1 × HDMI Multiview output
• USB Type-C UVC streaming output
• USB-A port
• RJ45 LAN Ethernet port
• GPIO tally interface
• 2 × 3.5 mm microphone/line inputs
• DC power input

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Compatibility

Compatible with:

• Broadcast SDI cameras
• Professional camcorders
• DSLR cameras
• Mirrorless cameras
• Cinema cameras
• Laptops
• Media players
• OBS Studio
• vMix
• Zoom
• Microsoft Teams
• YouTube Live
• Facebook Live
• Twitch
• Windows computers
• macOS computers

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Build Quality and Design

• Durable all-metal construction
• Integrated 10.1-inch Full HD IPS display
• Compact desktop form factor
• Professional hardware control buttons
• Smooth T-Bar transition lever
• Clearly labeled input and output ports
• Efficient cooling system
• Portable for field production
• Designed for continuous professional operation

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Ideal Applications and Use Cases

• Professional live streaming
• Church broadcasting
• Corporate presentations
• Educational productions
• Webinar hosting
• Podcast production
• Conference streaming
• Sports broadcasting
• Wedding live production
• Studio production
• Government events
• Multi-camera YouTube production
• Hybrid events

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Pros and Cons

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Frequently Asked Questions (FAQs)

1. How many cameras can be connected?

The switcher supports four video sources, including 2 HDMI and 2 SDI inputs.

2. Does it have a built-in monitor?

Yes. It includes a 10.1-inch Full HD IPS display for multiview monitoring, preview, program output, and menu navigation.

3. Can it stream directly to OBS Studio?

Yes. The USB Type-C UVC output works as a webcam, making it fully compatible with OBS Studio, vMix, Zoom, and other streaming software.

4. Does it support Chroma Key?

Yes. It supports Chroma Key, Luma Key, and Downstream Key (DSK) for professional virtual production workflows.

5. Does it support Picture-in-Picture?

Yes. It supports both Picture-in-Picture (PiP) and Picture-on-Picture (PoP) layouts.

6. Can HDMI and SDI cameras be used together?

Yes. The PVS0403U is designed to switch seamlessly between HDMI and SDI sources in the same production.

7. Is it suitable for professional broadcasting?

Absolutely. Its combination of SDI and HDMI connectivity, integrated monitor, professional keying, audio mixing, USB streaming, and hardware controls makes it ideal for churches, conferences, broadcast studios, educational institutions, and professional live productions.

8. What is the main advantage of the PVS0403U?

The biggest advantage is its integrated 10.1-inch Full HD IPS display, allowing complete multiview monitoring without the need for an external monitor while delivering professional switching and streaming capabilities.

AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher Conclusion

The AV MATRIX PVS0403U Micro 4-Channel Multiformat Live Streaming Video Switcher is a comprehensive live production solution that combines professional HDMI and SDI switching, an integrated Full HD IPS display, USB Type-C streaming, advanced keying, professional audio mixing, and intuitive hardware controls into one portable unit. Its compact design and broadcast-quality features make it an excellent choice for churches, corporate events, educational productions, sports broadcasts, webinars, podcasts, and professional live streaming.

At KSh 88,900, the PVS0403U delivers exceptional value for professionals seeking a compact yet powerful multiformat live streaming video switcher.
